High Throughput Crystal Growth System By Zone Melting up to 1700C - SKJ1600HT

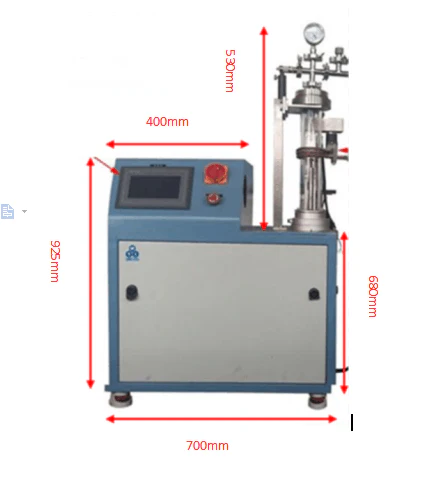

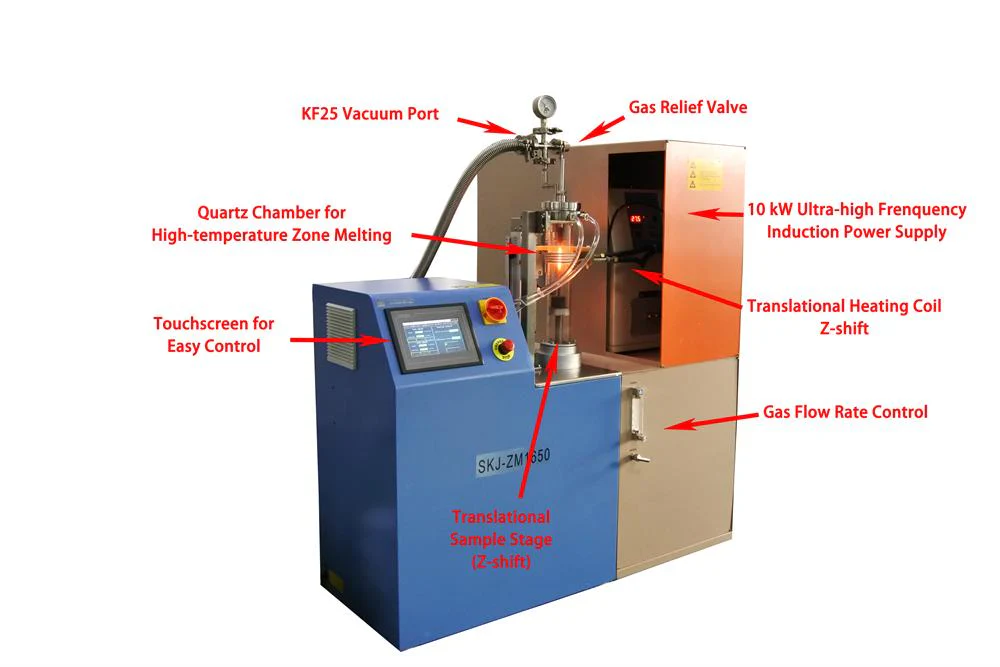

SKJ1600HT is a high throughput crystal growth system for metallic alloys via an induction heated zone melting method. A multi-hole graphite crucible with a thermal insulation layer is put in 5" quartz tube. 25 KW ultra-high-frequency induction coil will move from bottom to top slowly and melt and solidify multi-rod with different compositions into a single crystal. This system also can be used as zone melting purification and thermal gradient heat treatment

Specifications:

Advanced Features	Maximum temperature: 1700 ºC  Vacuum or Atmosphere controlled Induction coil traveling distance: Max. 300 mm
Power	Voltage: AC 220 V, Three Phases 50/60Hz 25 KW
PLC Control	Touch Screen, User-Friendly Parameters: Induction coil and crucible position, Moving speed, Induction power by percentage, Temperature
Working Temperature	Induction Heating with 25 KW power supply Maximum Working Temperature: 1700°C ( <1hr) Frequency: 30 - 80 kHz Digital Temperature control: +/- 0.5ºC ( Eurotherm controller with 24 segment programmable)
Tube and Flange	5" O.D. High purity quartz tube ( smaller tube is available upon request ) Top stainless steel flange with KF 25 vacuum connection port, mechanical pressure gauge, over-pressure relief valve Bottom stainless steel flange with the gas delivery port and 1/4" Feedthrough for the thermal couple One thermal couple on the bottom of the crucible for temperature control

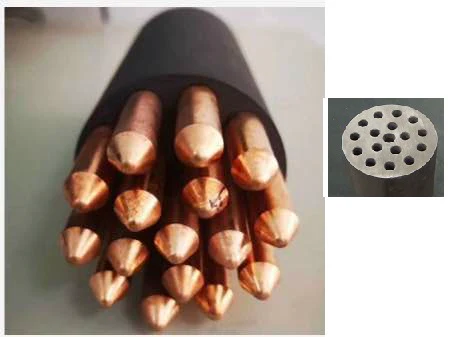

Crucible	Graphite crucible 60 mm O.D x 80 mm H with 8 mm dia hole up to 32 holes Customized hole size is available upon request One samll hole on the bottom crucible is available to put single-crystal seed High purity carbon felt is used as a thermal insulation layer
Coil Traveling Mechanism	Maximum traveling distance of coil: 150 mm Servo motor controlled High speed: 0 - 200 mm/min Slow speed for single crystal growth: 1 - 50 mm/hr The speed mode can be customized at an extra cost
Water Chiller	Temperature range: 5 - 30°C Water Flow Rate: 16 L/min Water Tank: 12 Liters made of stainless steel Note: It is recommended to use a specific coolant to get the best performance.
Vacuum Pump (Not included)	10E-2 torr via dual-stage mechanical vacuum pump (bottom right picture) 10E-5 torr via Turbopump (bottom left picture) The vacuum pump is optional. Please click here to choose a vacuum pump.
Compliance	CE certified NRTL certification is available upon request at $5000 extra
Application note	In order to zone melting for metallic materials, you may make a solid rod sample from powder before zone melting via CIP as the link below
