1100 ºC 3-zone Top Seeded Solution Growth (TSSG) Furnace - VTF1200XIIITSSG

1100 ºC 3-zone Top Seeded Solution Growth (TSSG) Furnace - VTF1200XIIITSSG

1100 ºC 3-zone Top Seeded Solution Growth (TSSG) Furnace - VTF1200XIIITSSG

VTF-1200X-III-TSSG is a 3-zone top seed solution growth (TSSG) furnace for growing various crystals via flux solution. The furnace consists of three heating zone with the chamber of 5" Diameter x 24" high up to 1200ºC. The Eurotherm temperature controller with 28 segments programmable is built in the furnace with +/- 0.1ºC accuracy, as well as precision, pulling, and rotation mechanism with a speed range from 0.1 - 50 mm/hour.

Please click to view the article of Flux Method for Preparing Crystals

Power	208V- 240V AC, 50/60Hz, single phase 5 kW
Heating Chamber	NiCrAl Kanthal heating coils Three heating zone: 150mm+300mm+150mm with independent temperature control Ø135 × 600 mm heating area
Working Temperature	<1100°C ( < 1 hr) ≤1000°C (continuous)
Thermocouple	Type K
Temperature controller	Eurotherm 3004 Temperature Controllers
Growth Chamber	Water-cooled stainless steel flanges and quartz tube (Ø100×Ø90×900 mm) for hermetic growth conditions Gas inlet / outlet: 1/4" compression tube fittings KF25 vacuum port Pressure relief valve @ 3 psig
Pulling Mechanism	Pulling speed 0.5 - 50 mm/hr Rotation speed 0.1- 23 rpm Maximum load < 2kg Downward speed 40 mm/min PLC touch screen panel for settings of temperature recipes and pulling parameters.
Seed Crystal Mount	Alumina seed crystal mount Alumina crucible stage
Vacuum Pump (Optional)	156 L/min Double Stage Rotary Vane Vacuum Pump
Water Chiller (Optional)	Recirculating Water Chiller with 16L/min Flow, 6K BTU/hr -KJ5300
Compliance	CE Certified NRTL or CSA certification is available upon request at extra cost.

$17,494.75

Original: $49,985.00

-65%

1100 ºC 3-zone Top Seeded Solution Growth (TSSG) Furnace - VTF1200XIIITSSG—

$49,985.00

$17,494.75

More Images

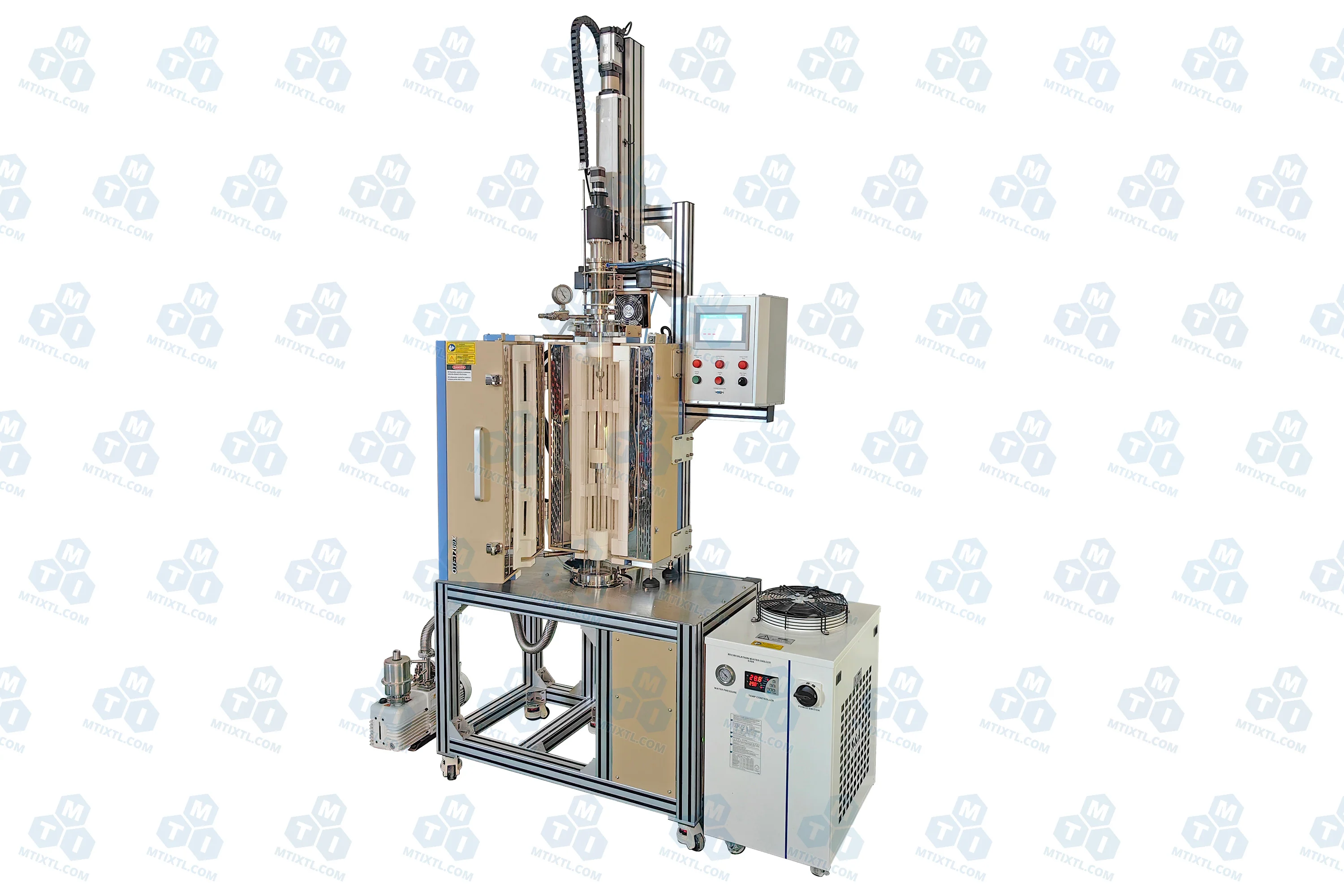

1100 ºC 3-zone Top Seeded Solution Growth (TSSG) Furnace - VTF1200XIIITSSG - Image 2

1100 ºC 3-zone Top Seeded Solution Growth (TSSG) Furnace - VTF1200XIIITSSG - Image 3

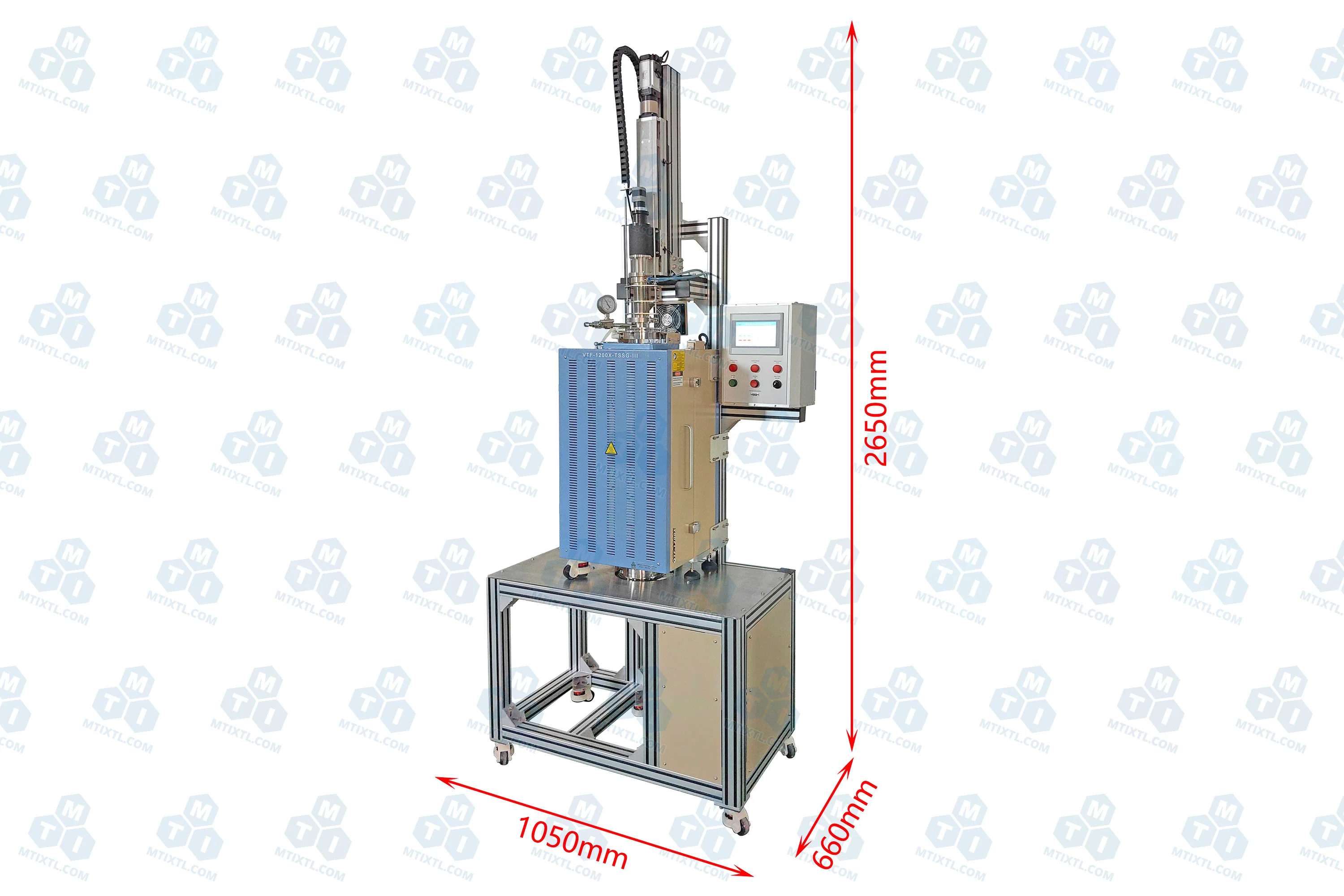

1100 ºC 3-zone Top Seeded Solution Growth (TSSG) Furnace - VTF1200XIIITSSG - Image 4

1100 ºC 3-zone Top Seeded Solution Growth (TSSG) Furnace - VTF1200XIIITSSG - Image 5

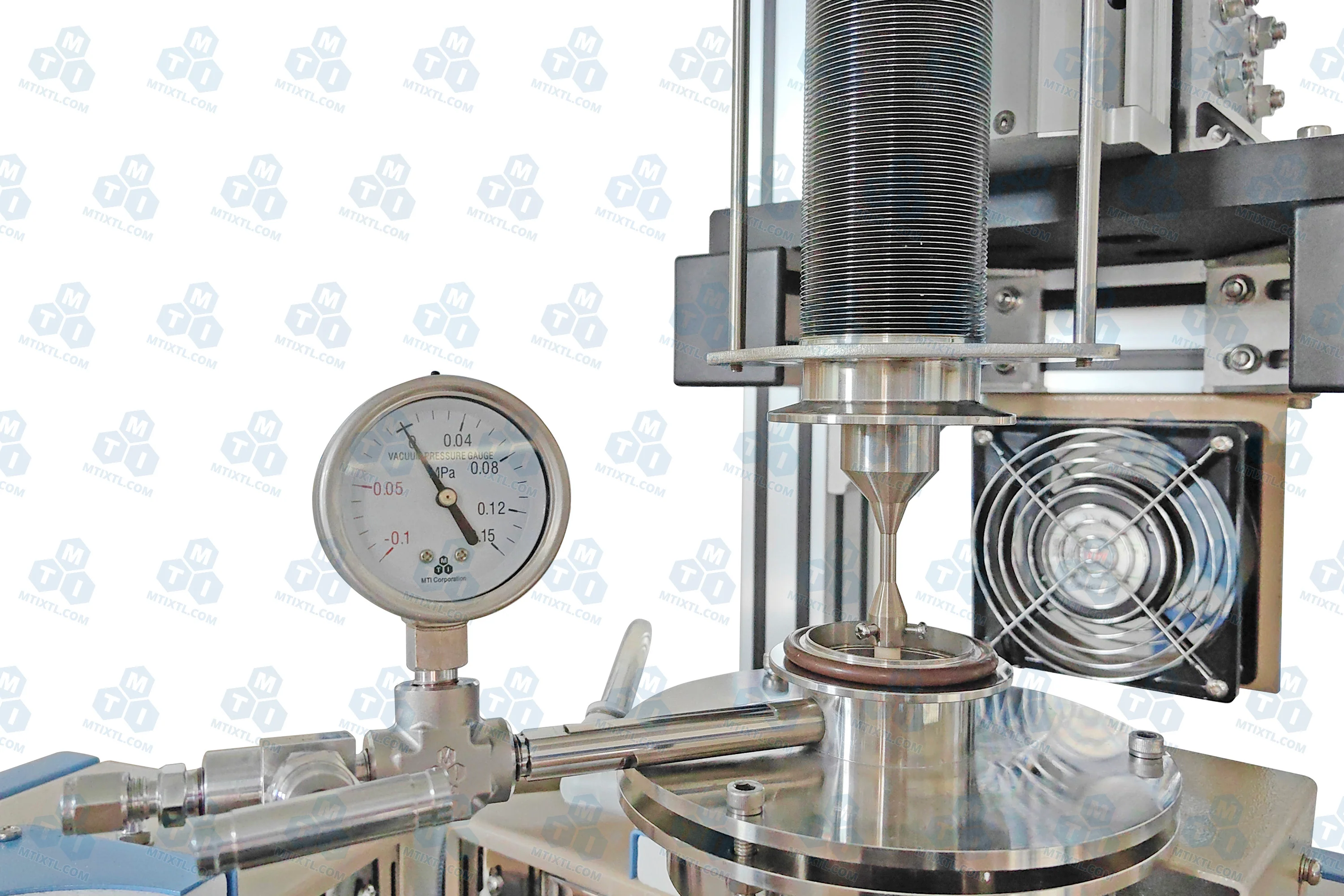

1100 ºC 3-zone Top Seeded Solution Growth (TSSG) Furnace - VTF1200XIIITSSG - Image 6
