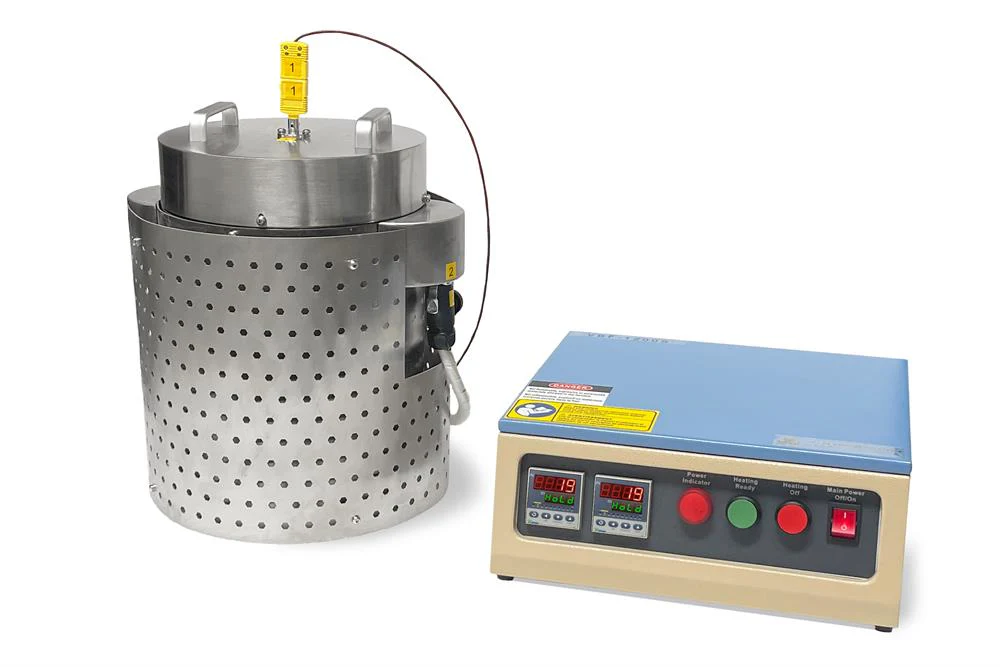

1000°C Vertical Crucible Furnace with 4.7" Dia x 8" H Chamber & SS316 Case - VBF1200S

1000°C Vertical Crucible Furnace with 4.7" Dia x 8" H Chamber & SS316 Case - VBF1200S

1000°C Vertical Crucible Furnace with 4.7" Dia x 8" H Chamber & SS316 Case - VBF1200S

SPECIFICATION:

Structure	SS316 case for anti-corrosive processing The crucible furnace has a heating chamber of 4.7" D x 8" H, (120 mm ID x 200 mm H) The separated temperature controller for remote operation The compact furnace can be put in the glovebox via an antechamber
Power	AC 110-120V, Single Phase 50/60Hz, 20 A, 1.5 KVA Max. AC 208-240V, Single Phase 50/60Hz, 16 A, 1.8 KVA Max.
Max. Temperature	Max. 1100°C for short time <1hour Continuous working temperature: <1000°C
Max. Heating Rate	20 °C/min Max.
SS316 Reaction Vessel (VBF600S, Optional, not included)	The stainless steel 316 reaction vessel consists of: One SS316 processing tube One DN80ISO-K top flange with six 1/4" compression tube ports One alumina spacer is included for heating isolation and adapting the reaction vessel When using the SS316 reaction vessel, the maximum temperature is 600°C Tube dimension: Ø 76 x Ø 70 x D 290 mm Max. positive pressure: 3 psig
Temperature Controller	One digital temperature controller is built into a separate box with +/- 1ºC control accuracy PID automatic control and auto-tune function. 30 programmable segments for precise process Built-in protection for overheated and broken thermocouples. One digital temperature reader with +/- 1ºC resolution Furnace temperature monitoring Cut off power if the furnace overheats RS485 port installed for PC operation
Thermocouple	Two Omega K-type thermal couples are included One for furnace temperature control One for temperature monitoring
Certificate	CE Certified NRTL Certification is available upon request, additional charges will apply

Select Voltage

From $1,749.30

Original: $4,998.00

-65%

1000°C Vertical Crucible Furnace with 4.7" Dia x 8" H Chamber & SS316 Case - VBF1200S—

$4,998.00

$1,749.30

More Images

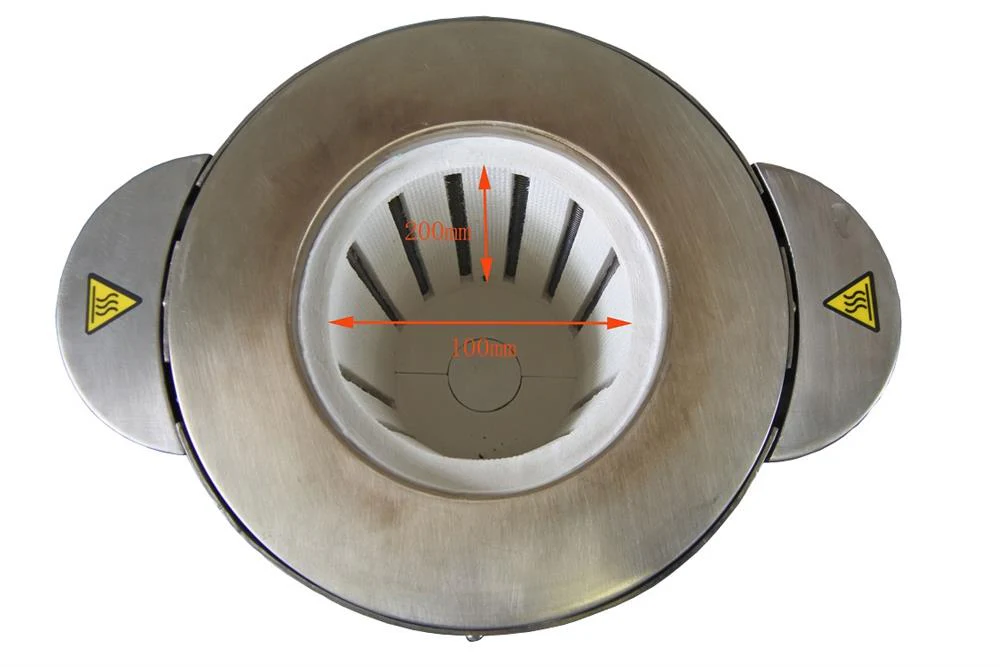

1000°C Vertical Crucible Furnace with 4.7" Dia x 8" H Chamber & SS316 Case - VBF1200S - Image 2

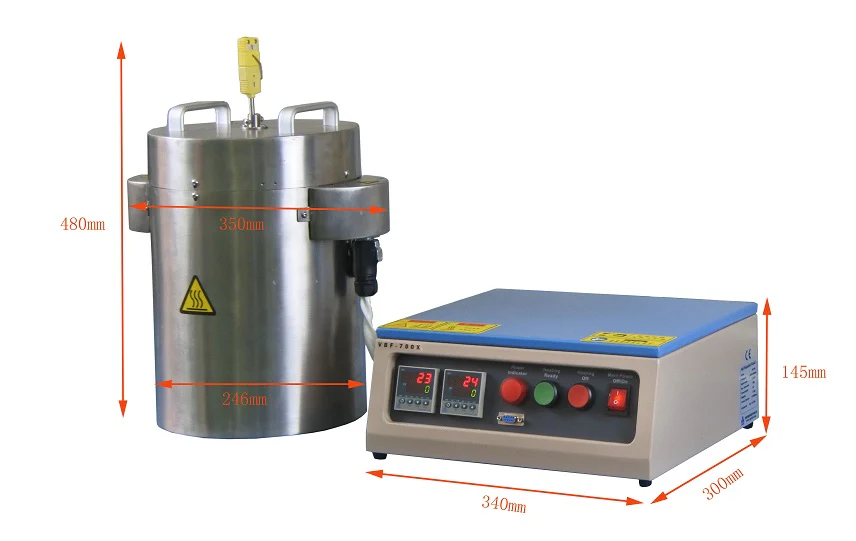

1000°C Vertical Crucible Furnace with 4.7" Dia x 8" H Chamber & SS316 Case - VBF1200S - Image 3
