1250°C Max. High Vacuum Chamber Furnace for 4" Sample - VBF-1200X-HV

1250°C Max. High Vacuum Chamber Furnace for 4" Sample - VBF-1200X-HV

1250°C Max. High Vacuum Chamber Furnace for 4" Sample - VBF-1200X-HV

VBF-1200X-HV is a compact high vacuum furnace for samples up to 4" x 4" x 4". It comes with a one-end-open quartz chamber and Kanthal resistance heating wires for internal heating. The chamber is free of porous materials and high vacuum compatible. It can reach 10-6 torr via an optional turbopump.

SPECIFICATIONS

Power	208 - 240 VAC / 50/60Hz, Single-phase (a 20 A receptacle is required. ) 3 kW max. Note Power cable included without a plug. An optional power plug is available upon request.
Working Temperature	≤ 1200 °C continuously Max. 1250 °C, < 30 min Heating Rate: ≤ 20°C/ min
Heating Elements and Heating zone	Ni-Cr-Al resistance coil on a sintered ceramic sleeve Multi-layer layers of Mo reflection plates for thermal uniformity.

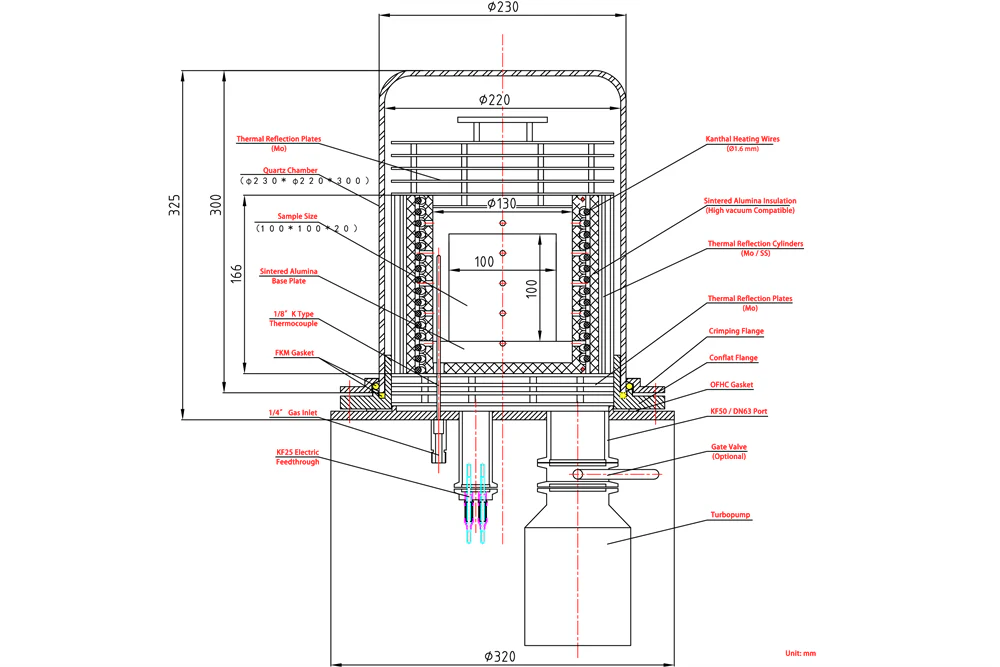

Quartz Vacuum chamber	Chamber size size: Ø9" ×Ø8.5"×H13.4" (Ø230×Ø220×H325 mm) Heating zone: Ø130 mm x H 166 mm Maximum sample size: 100 x 100 x 100 or Ø100×H100 within +/- 5°C Optional: 11"OD x 10.6"ID x 15"H quartz chamber with 5" Dia x 5" heating zone is available .
Ports	KF50 or DN63 ISO flange for turbo pump KF25 port for electric feedthrough. 1/4" gas inlet and outlet with needle valves. KF25 port for a high vacuum pressure gauge.
Temperature Controller	Proportional–integral–derivative control (PID control) and auto-tune function 30 segments programmed with ramping, cooling, and dwelling steps Built-in over-temperature alarm and thermocouple failure alarm +/- 1 ºC temperature control accuracy THE Default DB9 PC communication port is included for connecting to a PC Eurotherm Temperature Controller is available at an extra cost with +/-0.1°C accuracy. Type K thermocouple
Vacuum Pressure	Vacuum Level is dependent on the vacuum pump used, 10^-2torr via a mechanical pump 10^-6torr via turbo-pump Click the picture below to order a vacuum pump/gauge assembly.
Compliance	CE Certified NRTL or CSA certification is available upon request at extra cost. Patten Number : ZL-2011-2-0102249.4 SINCE 2011-5-19

Select Vacuum Gauge

From $8,697.50

Original: $24,850.00

-65%

1250°C Max. High Vacuum Chamber Furnace for 4" Sample - VBF-1200X-HV—

$24,850.00

$8,697.50

1250°C Max. High Vacuum Chamber Furnace for 4" Sample - VBF-1200X-HV

VBF-1200X-HV is a compact high vacuum furnace for samples up to 4" x 4" x 4". It comes with a one-end-open quartz chamber and Kanthal resistance heating wires for internal heating. The chamber is free of porous materials and high vacuum compatible. It can reach 10-6 torr via an optional turbopump.

SPECIFICATIONS

Power	208 - 240 VAC / 50/60Hz, Single-phase (a 20 A receptacle is required. ) 3 kW max. Note Power cable included without a plug. An optional power plug is available upon request.
Working Temperature	≤ 1200 °C continuously Max. 1250 °C, < 30 min Heating Rate: ≤ 20°C/ min
Heating Elements and Heating zone	Ni-Cr-Al resistance coil on a sintered ceramic sleeve Multi-layer layers of Mo reflection plates for thermal uniformity.
Quartz Vacuum chamber	Chamber size size: Ø9" ×Ø8.5"×H13.4" (Ø230×Ø220×H325 mm) Heating zone: Ø130 mm x H 166 mm Maximum sample size: 100 x 100 x 100 or Ø100×H100 within +/- 5°C Optional: 11"OD x 10.6"ID x 15"H quartz chamber with 5" Dia x 5" heating zone is available .
Ports	KF50 or DN63 ISO flange for turbo pump KF25 port for electric feedthrough. 1/4" gas inlet and outlet with needle valves. KF25 port for a high vacuum pressure gauge.
Temperature Controller	Proportional–integral–derivative control (PID control) and auto-tune function 30 segments programmed with ramping, cooling, and dwelling steps Built-in over-temperature alarm and thermocouple failure alarm +/- 1 ºC temperature control accuracy THE Default DB9 PC communication port is included for connecting to a PC Eurotherm Temperature Controller is available at an extra cost with +/-0.1°C accuracy. Type K thermocouple
Vacuum Pressure	Vacuum Level is dependent on the vacuum pump used, 10^-2torr via a mechanical pump 10^-6torr via turbo-pump Click the picture below to order a vacuum pump/gauge assembly.
Compliance	CE Certified NRTL or CSA certification is available upon request at extra cost. Patten Number : ZL-2011-2-0102249.4 SINCE 2011-5-19

Product Information

Shipping & Returns

Description

VBF-1200X-HV is a compact high vacuum furnace for samples up to 4" x 4" x 4". It comes with a one-end-open quartz chamber and Kanthal resistance heating wires for internal heating. The chamber is free of porous materials and high vacuum compatible. It can reach 10-6 torr via an optional turbopump.

SPECIFICATIONS

Power	208 - 240 VAC / 50/60Hz, Single-phase (a 20 A receptacle is required. ) 3 kW max. Note Power cable included without a plug. An optional power plug is available upon request.
Working Temperature	≤ 1200 °C continuously Max. 1250 °C, < 30 min Heating Rate: ≤ 20°C/ min
Heating Elements and Heating zone	Ni-Cr-Al resistance coil on a sintered ceramic sleeve Multi-layer layers of Mo reflection plates for thermal uniformity.
Quartz Vacuum chamber	Chamber size size: Ø9" ×Ø8.5"×H13.4" (Ø230×Ø220×H325 mm) Heating zone: Ø130 mm x H 166 mm Maximum sample size: 100 x 100 x 100 or Ø100×H100 within +/- 5°C Optional: 11"OD x 10.6"ID x 15"H quartz chamber with 5" Dia x 5" heating zone is available .
Ports	KF50 or DN63 ISO flange for turbo pump KF25 port for electric feedthrough. 1/4" gas inlet and outlet with needle valves. KF25 port for a high vacuum pressure gauge.
Temperature Controller	Proportional–integral–derivative control (PID control) and auto-tune function 30 segments programmed with ramping, cooling, and dwelling steps Built-in over-temperature alarm and thermocouple failure alarm +/- 1 ºC temperature control accuracy THE Default DB9 PC communication port is included for connecting to a PC Eurotherm Temperature Controller is available at an extra cost with +/-0.1°C accuracy. Type K thermocouple
Vacuum Pressure	Vacuum Level is dependent on the vacuum pump used, 10^-2torr via a mechanical pump 10^-6torr via turbo-pump Click the picture below to order a vacuum pump/gauge assembly.
Compliance	CE Certified NRTL or CSA certification is available upon request at extra cost. Patten Number : ZL-2011-2-0102249.4 SINCE 2011-5-19
