Fast Heating & Cooling Vacuum Sealed Furnace (1100°C 2" I.D.) - VBF-1100X-Q

Fast Heating & Cooling Vacuum Sealed Furnace (1100°C 2" I.D.) - VBF-1100X-Q

Fast Heating & Cooling Vacuum Sealed Furnace (1100°C 2" I.D.) - VBF-1100X-Q

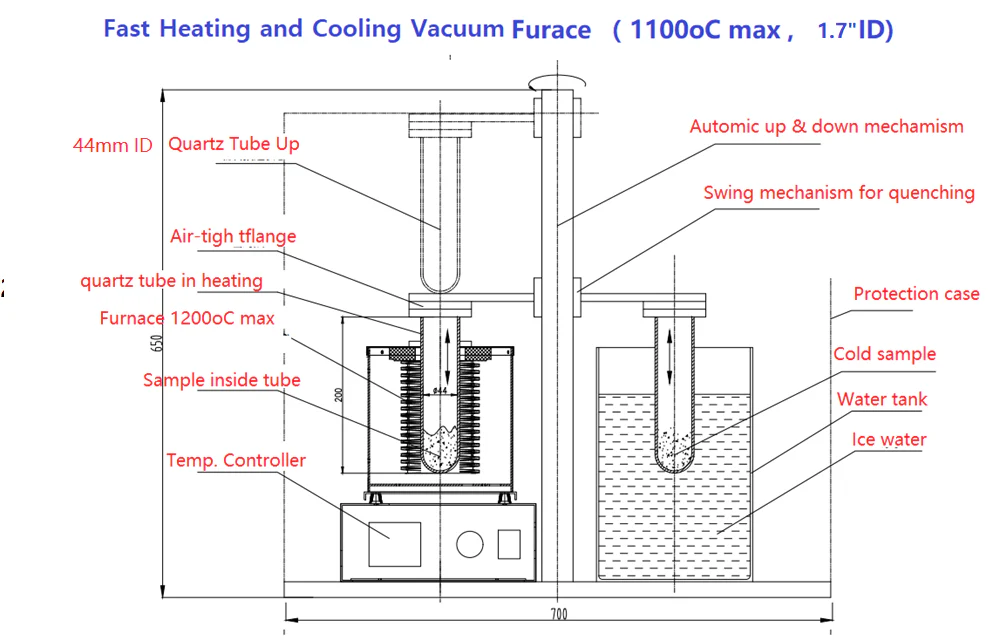

VBF-1100X-Q is a 2" ID vacuum tube furnace with the function of fast heating and cooling ( optional water quenching ) for heat treatment of air-sensitive materials. The sample will be placed inside half opened and vacuum-sealed tube, then insert into the pre-heated furnace to achieve fast heating (~ 10oC/S ). After treatment, the tube will be raised up automatically, then insert into an ice tank for quenching ( quickly cooling ). This furnace was designed for LPS powder and can be used for quenching all material under vacuum or controlled atmosphere

SPECIFICATIONS

Power	Voltage: Single-phase 110 - 120 VAC / 50/60Hz, (20 A breaker installed) 1500 W max. Note: Power cable included but without the plug. Please install a plug on your own or click the link below the picture to choose a plug according to your country or your lab requirements
Working Temperature	<= 1100°C continuously Max. 1200°C, < 30 minutes Temperature Uniformity: +/- 2°C
Heating Chamber	The heating module is made of Ni-Cr-Al resistance wire with a fibrous alumina insulating layer. Quartz tube has a dimension of 50mm O.D. x 44 I.D. x 263 H, mm) SS304 vacuum flange with KF25 Vac. port with valve and gas inlet &outlet valves Quartz thermal block is included Mechanical vacuum gauge is built-in Vacuum level: 10-6 torr by turbopump and 10-3 by rotary pump and 10-5 torr by a turbopump
Compliance	CE Certified NRTL or CSA certification is available upon request at extra cost.
Warning Click here to learn the installation of a gas regulator	Tube furnaces with quartz tubes are designed for use under vacuum and at low-pressure < 0.2 bars Attention: A two-stage pressure regulator must be installed on the gas cylinder to limit the pressure to below 3 PSI for safe operation. A maximum temperature of 1000°C should be imposed on all quartz tube furnaces to avoid the quartz tubes undergoing deformations under vacuum. The flow rate for gasses should be limited to < 200 SCCM for reducing thermal shocks

$10,499.30

Original: $29,998.00

-65%

Fast Heating & Cooling Vacuum Sealed Furnace (1100°C 2" I.D.) - VBF-1100X-Q—

$29,998.00

$10,499.30

Fast Heating & Cooling Vacuum Sealed Furnace (1100°C 2" I.D.) - VBF-1100X-Q

VBF-1100X-Q is a 2" ID vacuum tube furnace with the function of fast heating and cooling ( optional water quenching ) for heat treatment of air-sensitive materials. The sample will be placed inside half opened and vacuum-sealed tube, then insert into the pre-heated furnace to achieve fast heating (~ 10oC/S ). After treatment, the tube will be raised up automatically, then insert into an ice tank for quenching ( quickly cooling ). This furnace was designed for LPS powder and can be used for quenching all material under vacuum or controlled atmosphere

SPECIFICATIONS

Power	Voltage: Single-phase 110 - 120 VAC / 50/60Hz, (20 A breaker installed) 1500 W max. Note: Power cable included but without the plug. Please install a plug on your own or click the link below the picture to choose a plug according to your country or your lab requirements
Working Temperature	<= 1100°C continuously Max. 1200°C, < 30 minutes Temperature Uniformity: +/- 2°C
Heating Chamber	The heating module is made of Ni-Cr-Al resistance wire with a fibrous alumina insulating layer. Quartz tube has a dimension of 50mm O.D. x 44 I.D. x 263 H, mm) SS304 vacuum flange with KF25 Vac. port with valve and gas inlet &outlet valves Quartz thermal block is included Mechanical vacuum gauge is built-in Vacuum level: 10-6 torr by turbopump and 10-3 by rotary pump and 10-5 torr by a turbopump
Compliance	CE Certified NRTL or CSA certification is available upon request at extra cost.
Warning Click here to learn the installation of a gas regulator	Tube furnaces with quartz tubes are designed for use under vacuum and at low-pressure < 0.2 bars Attention: A two-stage pressure regulator must be installed on the gas cylinder to limit the pressure to below 3 PSI for safe operation. A maximum temperature of 1000°C should be imposed on all quartz tube furnaces to avoid the quartz tubes undergoing deformations under vacuum. The flow rate for gasses should be limited to < 200 SCCM for reducing thermal shocks

Product Information

Shipping & Returns

Description

VBF-1100X-Q is a 2" ID vacuum tube furnace with the function of fast heating and cooling ( optional water quenching ) for heat treatment of air-sensitive materials. The sample will be placed inside half opened and vacuum-sealed tube, then insert into the pre-heated furnace to achieve fast heating (~ 10oC/S ). After treatment, the tube will be raised up automatically, then insert into an ice tank for quenching ( quickly cooling ). This furnace was designed for LPS powder and can be used for quenching all material under vacuum or controlled atmosphere

SPECIFICATIONS

Power	Voltage: Single-phase 110 - 120 VAC / 50/60Hz, (20 A breaker installed) 1500 W max. Note: Power cable included but without the plug. Please install a plug on your own or click the link below the picture to choose a plug according to your country or your lab requirements
Working Temperature	<= 1100°C continuously Max. 1200°C, < 30 minutes Temperature Uniformity: +/- 2°C
Heating Chamber	The heating module is made of Ni-Cr-Al resistance wire with a fibrous alumina insulating layer. Quartz tube has a dimension of 50mm O.D. x 44 I.D. x 263 H, mm) SS304 vacuum flange with KF25 Vac. port with valve and gas inlet &outlet valves Quartz thermal block is included Mechanical vacuum gauge is built-in Vacuum level: 10-6 torr by turbopump and 10-3 by rotary pump and 10-5 torr by a turbopump
Compliance	CE Certified NRTL or CSA certification is available upon request at extra cost.
Warning Click here to learn the installation of a gas regulator	Tube furnaces with quartz tubes are designed for use under vacuum and at low-pressure < 0.2 bars Attention: A two-stage pressure regulator must be installed on the gas cylinder to limit the pressure to below 3 PSI for safe operation. A maximum temperature of 1000°C should be imposed on all quartz tube furnaces to avoid the quartz tubes undergoing deformations under vacuum. The flow rate for gasses should be limited to < 200 SCCM for reducing thermal shocks
