Hi-Pressure Super Alloy Tube with flange KIT, 55 ODx20 IDx580 L (mm) , 1100oC Max. - Tube-HP-55-20-580

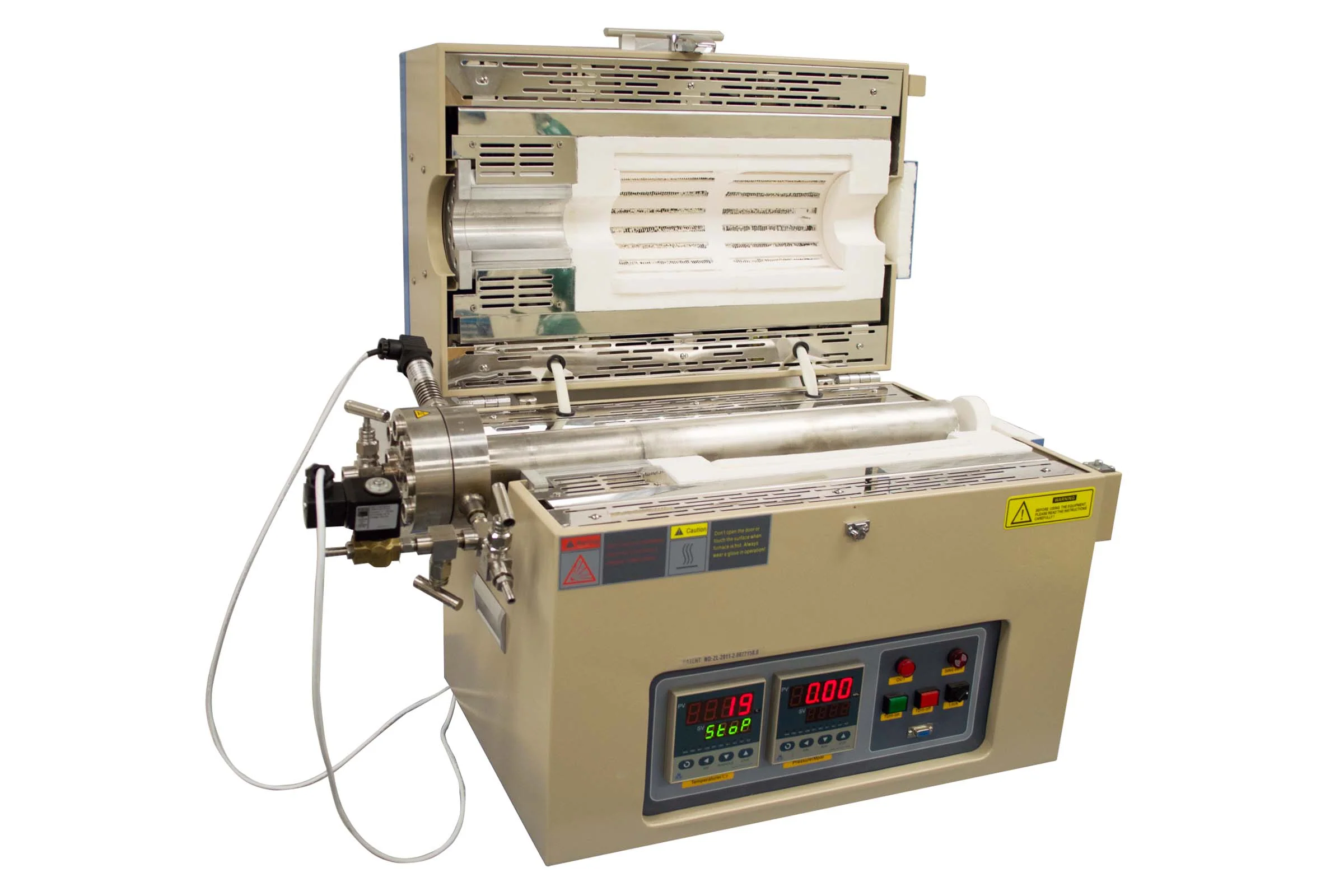

Ni-based superalloy tube vessel (50mm O.D x 20 mm I.D x 580 mm L). It can be used under ultra-highly oxidizing and inert gas atmospheres up to 1100°C to process special compounds. It is consumable part of OTF-1200X-HP-55 which is a compact HIP (hot isostatic pressure) furnace for researching the new generation of materials at low cost.

Specification:

Outside Diameter	50 mm
Inside Diameter	20 mm
Tube Length	580 mm
Chamber Length	550 mm Please click picture below to see detail of pressure vessel
Max. working temperature     without load	1100 °C
Working Pressure              &     Temperature	Maximum pressure inside the tube (sf = 2) Heating temperature Max. 3045 PSI  (21 Mpa) 800°C Max. 1812 PSI  (12.5 Mpa) 900°C Max. 914 PSI   (6.3 Mpa) 1000°C Max. 609 PSI   (4.2 Mpa) 1100°C The allowable pressure is calculated based on Barlow's formula. S = yield strength. Safety factory= 2 Warning:  The suitable tightening torque for turning the screws on this tube is the 40-foot pound. Click the picture below for torque wrench detail. Please set up a pressure alarm point in the digital pressure display before the operation Must install a pressure regulator on the gas cylinder to increase pressure gradually. Service-life design for 2,000 hours at 800oC. The high-pressure vessel is a consumable part, please order replacement once found deformation
Standard Package	Ni-Based Super Alloy Seamless Tube with Super-alloy flange
Optional	Optional: Adjustable High-Pressure Relief Valve 1000 - 10,000 PSI (7 - 70 Mpa) Optional: Digital Vacuum/Pressure Gauge, M14 x 1.5 from -100Kp to 30Mp Optional: Solenoid valve, pressure gauge, and controller set to Relief Pressure at the desired setting.                                                                                                                                                    High-pressure  Relief Valve                         Digital Pressure Gauge                    Solenoid valve Set
Attention	When the pressure reaches the alarm set point (Max.15Mpa), the pressure inside the vessel will be released via the solenoid valve installed on the flange.                                                                                                                 For Max. pressure >15 Mpa, please shut off the manual needle valve nearby the solenoid valve. Considering the toughness of Ni-Based Alloy, you should tighten the screws in diagonal sequence and apply equal pressure. Do not over tighten, always use the recommended torque screwdriver.
