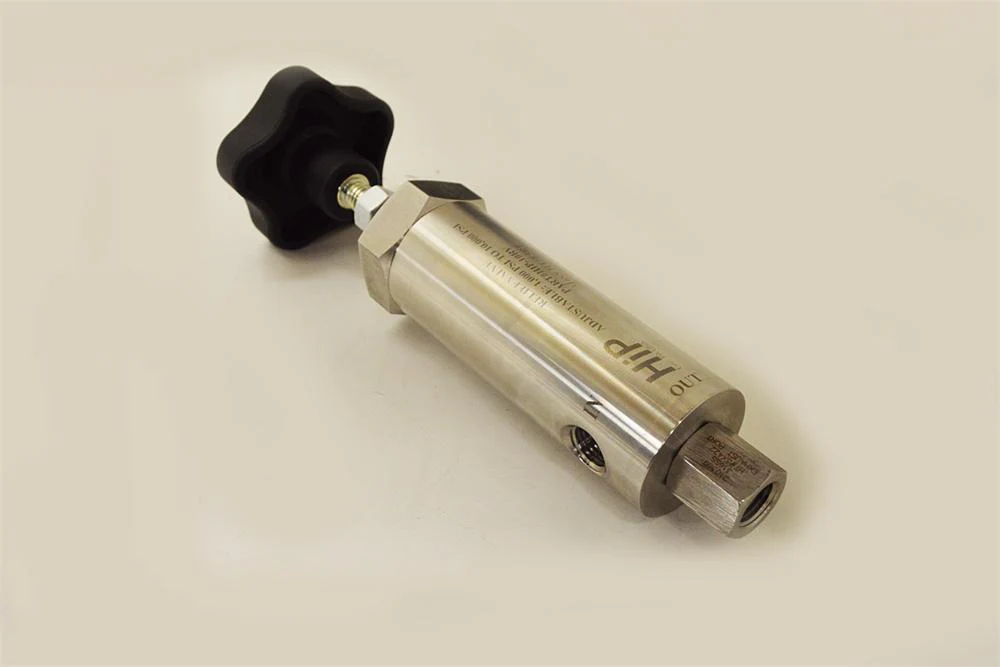

Adjustable and Reusable High Pressure Relief Valve 1000 - 10,000 PSI (7 - 70 Mpa) - HIP-RV10-LD
HomeStore

Adjustable and Reusable High Pressure Relief Valve 1000 - 10,000 PSI (7 - 70 Mpa) - HIP-RV10-LD

Adjustable and Reusable High Pressure Relief Valve 1000 - 10,000 PSI (7 - 70 Mpa) - HIP-RV10-LD

Relief valves are offered in pressure ranges: 1,000 through 10,000 psi. (7 Mpa --70 Mpa) adjustable and reusable and can be used for MTI high-pressure furnaces.
  • Standard materials include 316 stainless steel bodies and glands. Stand and O-ring material is EPDM, with Teflon packing and nylon seats
  • Inlet connections 1/4" NPT-HIP-10RV; HF4-HIP-20RV
  • Outlet connections are 1/4" NPT
  • These valves are not recommended for use below 1,000 psi and are readily adjustable in the field
  • 1000 - 20,000 PSI adjust relief valve is available upon request
  • Made in the USA
  • Please click the drawing below to see the dimensions



$938.00
Adjustable and Reusable High Pressure Relief Valve 1000 - 10,000 PSI (7 - 70 Mpa) - HIP-RV10-LD—
$938.00

Adjustable and Reusable High Pressure Relief Valve 1000 - 10,000 PSI (7 - 70 Mpa) - HIP-RV10-LD

Relief valves are offered in pressure ranges: 1,000 through 10,000 psi. (7 Mpa --70 Mpa) adjustable and reusable and can be used for MTI high-pressure furnaces.
  • Standard materials include 316 stainless steel bodies and glands. Stand and O-ring material is EPDM, with Teflon packing and nylon seats
  • Inlet connections 1/4" NPT-HIP-10RV; HF4-HIP-20RV
  • Outlet connections are 1/4" NPT
  • These valves are not recommended for use below 1,000 psi and are readily adjustable in the field
  • 1000 - 20,000 PSI adjust relief valve is available upon request
  • Made in the USA
  • Please click the drawing below to see the dimensions




Product Information

Shipping & Returns

Description

Relief valves are offered in pressure ranges: 1,000 through 10,000 psi. (7 Mpa --70 Mpa) adjustable and reusable and can be used for MTI high-pressure furnaces.
  • Standard materials include 316 stainless steel bodies and glands. Stand and O-ring material is EPDM, with Teflon packing and nylon seats
  • Inlet connections 1/4" NPT-HIP-10RV; HF4-HIP-20RV
  • Outlet connections are 1/4" NPT
  • These valves are not recommended for use below 1,000 psi and are readily adjustable in the field
  • 1000 - 20,000 PSI adjust relief valve is available upon request
  • Made in the USA
  • Please click the drawing below to see the dimensions
