Hi-Pressure Super Alloy Tube with Flange: OD30x ID12x L580 (mm), Max.1100oC - Tube-HP-30-12-580

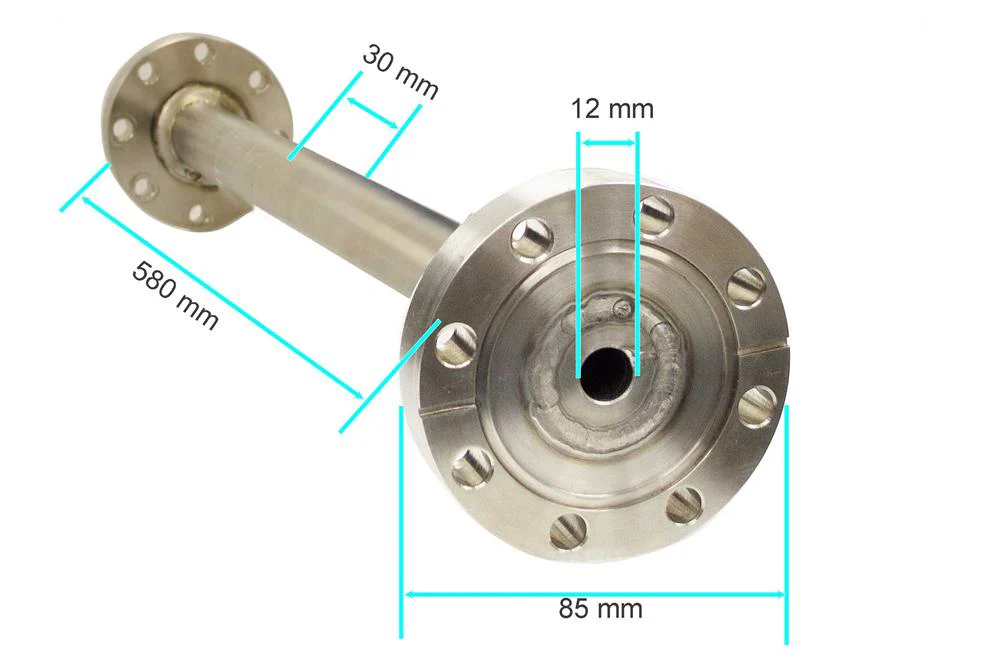

Ni-based superalloy tube vessel (30mm O.D x 12 mm I.D x 580 mm L). It can be used under ultra-highly oxidizing and inert gas atmosphere up to 1100°C to process special compounds. It is consumable part of OTF-1200X-HP-30A which is a compact HIP (hot isostatic pressure) furnace for researching the new generation of materials at low cost.

Specification:

Outside Diameter:

30 mm

Inside Diameter:

12 mm

Tube Length:

580 mm

Weight:

9.35 lb

Max. working temperature
without load:

1100 °C

Working Pressure
&
Temperature:

Maximum pressure inside the tube	Heating temperature
Max. 2900 PSI (20 Mpa)	800°C
Max. 1740 PSI (12Mpa)	900°C
Max. 870 PSI (6 Mpa)	1000°C
Max. 580 PSI (4 Mpa)	1100°C

Warning:

Please set up a pressure alarm point in the digital pressure display before the operation
Must install a pressure regulator on the gas cylinder to increase pressure gradually.
Service life depends on the maximum operating temperature and sample used. The high-pressure vessel is a consumable part, please order replacement once observed deformation.

Standard package

Name	QTY
Ni-based superalloy tube vessel)	1 set
Flange	1 set
Bolts	1 set
Copper Ring	1 set

Optional Accessories

An optional torque wrench is available here to avoid overtightening the flange bolts
Option High-pressure relief valve with pre-set safe pressure
Option High-temperature pressure transmitter to read pressure

Installation:
