SP-MSM-16AT is a 16-station automatic Arc Melting System with repeatable flipping function in a specially designed glovebox ( <1 ppm H2O and O2 level under Argon gas environment). Once 16 types of alloy samples are loaded in a copper hearth into the glovebox, the arc melting system will purge, melt, flip, and melt as programmed automatically, then send the solidified samples out to the antechamber. It is an excellent tool for exploring new-generation alloys at high throughput. It can combine AGV or a robot to achieve autonomous operation.

SPECIFICATIONS:

Main Features

Compared with the SP-MSM360 melting system, SP-MSM-16AT features

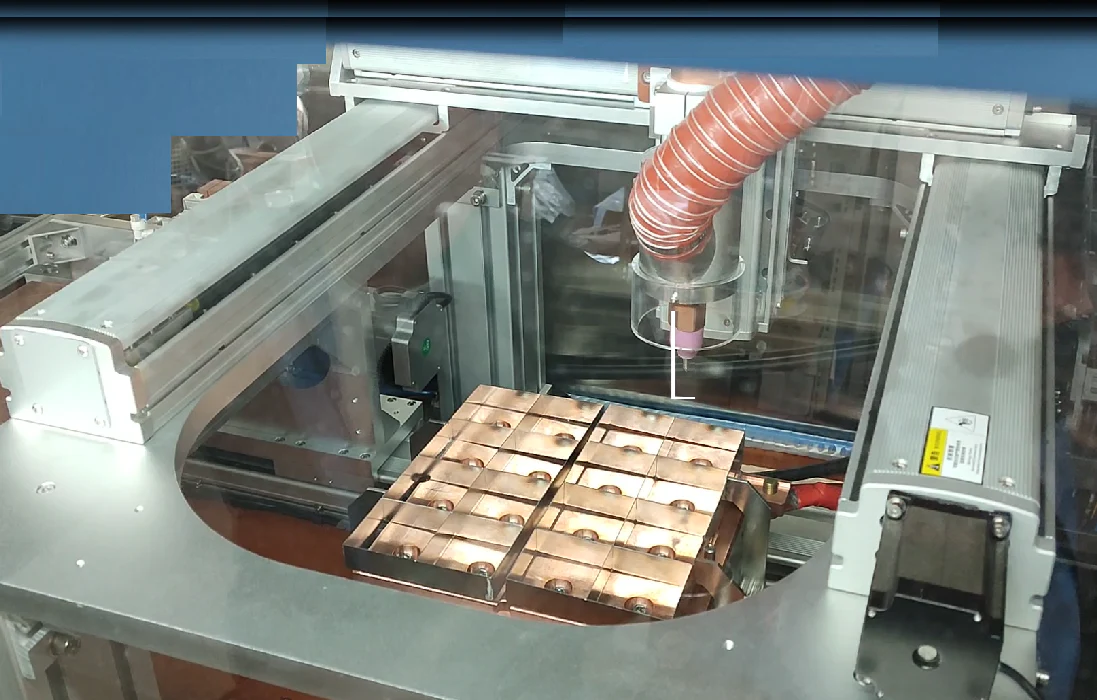

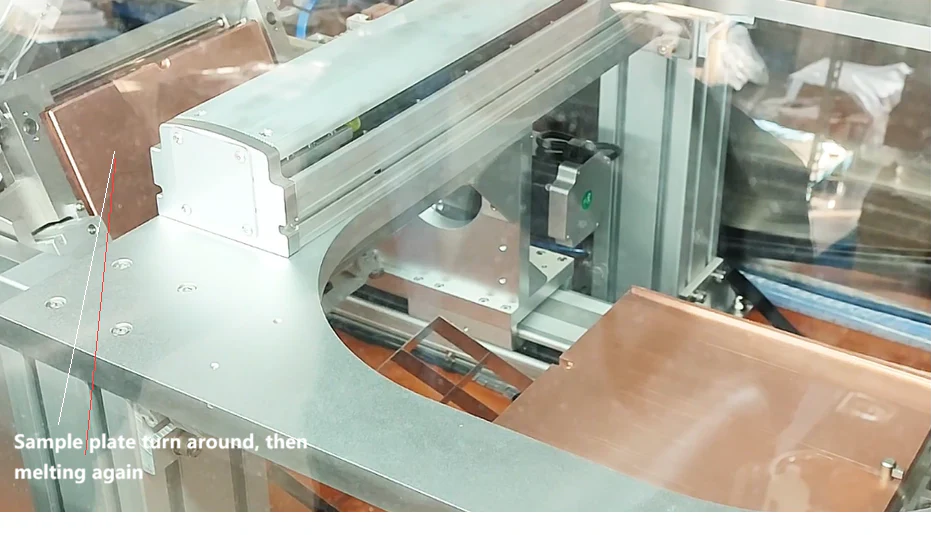

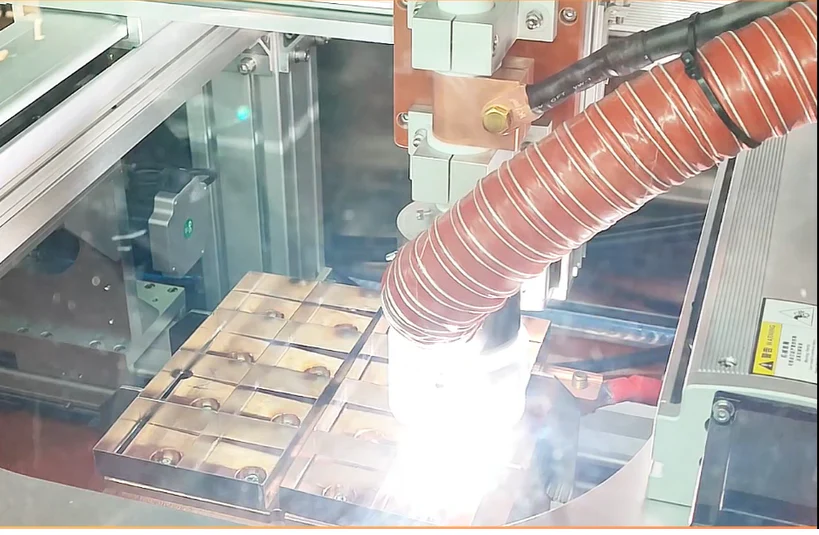

  • A 16-cavity sample hearth can be flipped up to 10 times, allowing the sample to be repeatedly melted and achieving a homogeneous alloy without manual intervention. （Pic. 1 & 2 )
  • The doors of the antechamber of the glovebox can be opened and closed automatically.
  • Once the sample heart is put into the antechamber, the system will finish melting, flipping, and return the solidified samples of 16 pieces to the antechamber automatically by clicking one button ( Pic. 3)

Pic.1  Pic. 2  Pic. 3

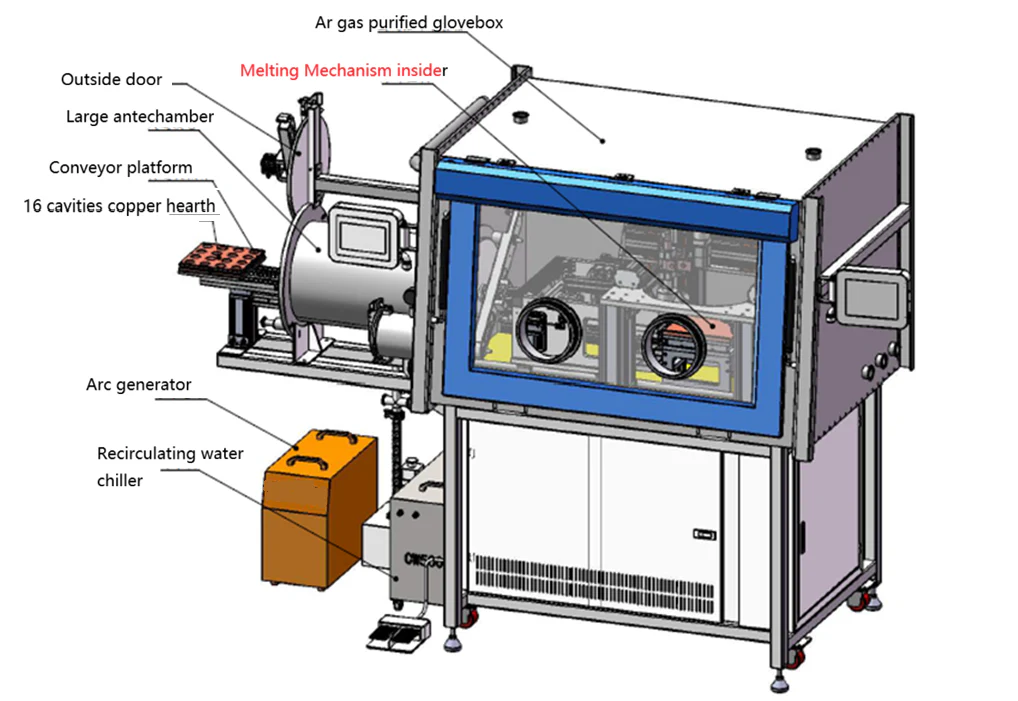

Glove Box
  • The automatic arc melting system is put inside a glovebox

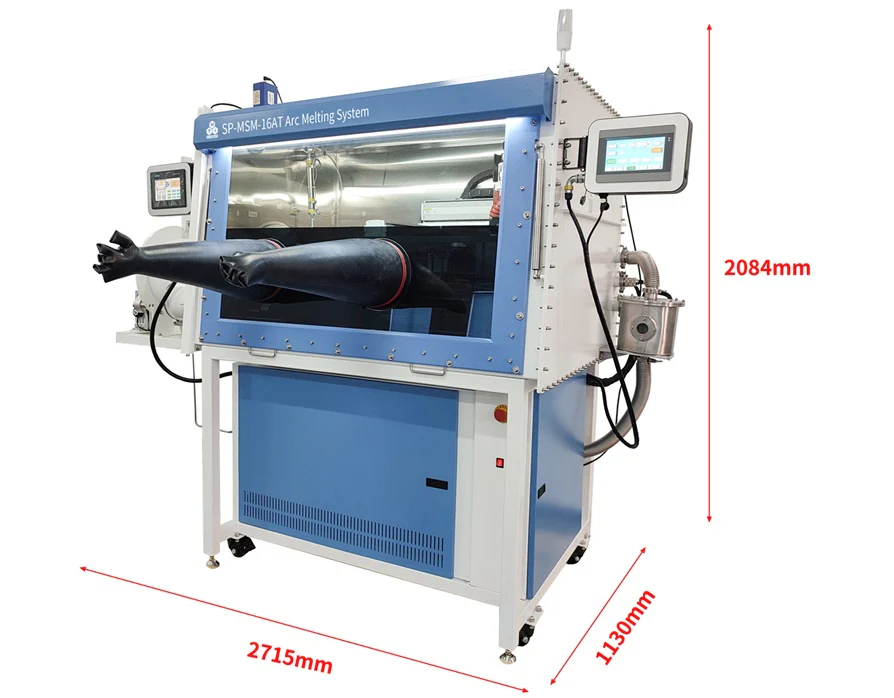

  • Glove-box chamber dimension: 2715 L x 1130 W x 900 H ( mm)
  • Antechamber: size: :
    • Large antechamber dimension: 360 ID ×700 L ( mm)
    • Small antechamber dimension: 150 ID ×300 L ( mm)
  • Two 175mm diameter glove ports with a pair of 8" Butadyle gloves.
  • Filter system: gas outlet filters can eliminate particles with a size > 0.3μm
  • Hinged-type front window panel for easy equipment loading
  • Glove Box with Argon gas purification system to ensure O2 and H2O levels less than 1 PP

Arc Melting Power Supply
  • Input Voltage: 220 VAC +/- 10%， single phase 。 50/60 HzPulse Frequency Rang
  • Input Current: 35 A max， 7 KW max
  • Output: Voltage： 0 - 22.5VDC
  • Output current： 20 - 300 A ( DC）
  • Pulse Frequency Range: 0.1 - 100Hz
Water Chiller & Gas
  • MTI's KJ-5300 recirculating water chiller (16 L/min) is included for the water cooling of copper crucibles and arc melting stinger.
  • High-purity Argon gas is with at least 5N purity (>99.999%) is required (not included) for the arc melting process.
  • 5% Hydrogen + 95% Argon gas is needed for regenerating the purification station (not included)
 Copper Hearth and Electrode
  • Water cooling copper hearth with 16 cavities of 20 mm diameter is included （ Customized cavity size is available upon request )
  • 6 mm diameter tungsten electrode with water cooling is included
  • Max melting temperature 3000 °C

 Net weight and dimension
  • Net weight: ~850Kg

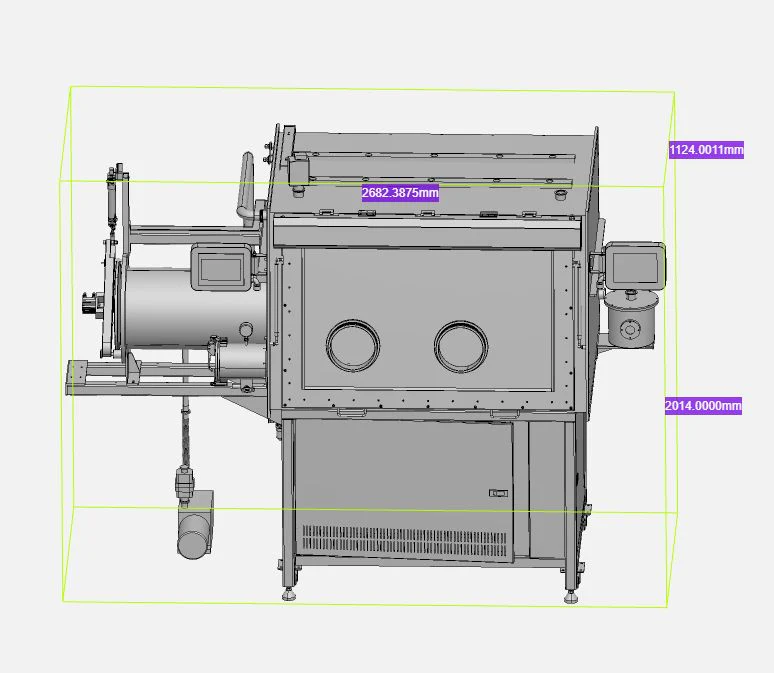

  • Dimension: L 3875 x W 1124 x H 2014 ( mm)
Compliance
  • CE certified
  • NRTL or CSA (UL 6101 ) Certification is available upon request at additional charges
Utility requirement
  • Powder panel: 220VAC +/-10% , 10 KW rated
  • Distilled water： 6 - 10 liters for water chiller
  • Solid and flat floor without vibration
  • Room temperature： 10℃～25℃
  • Room humidity： 《 70%
