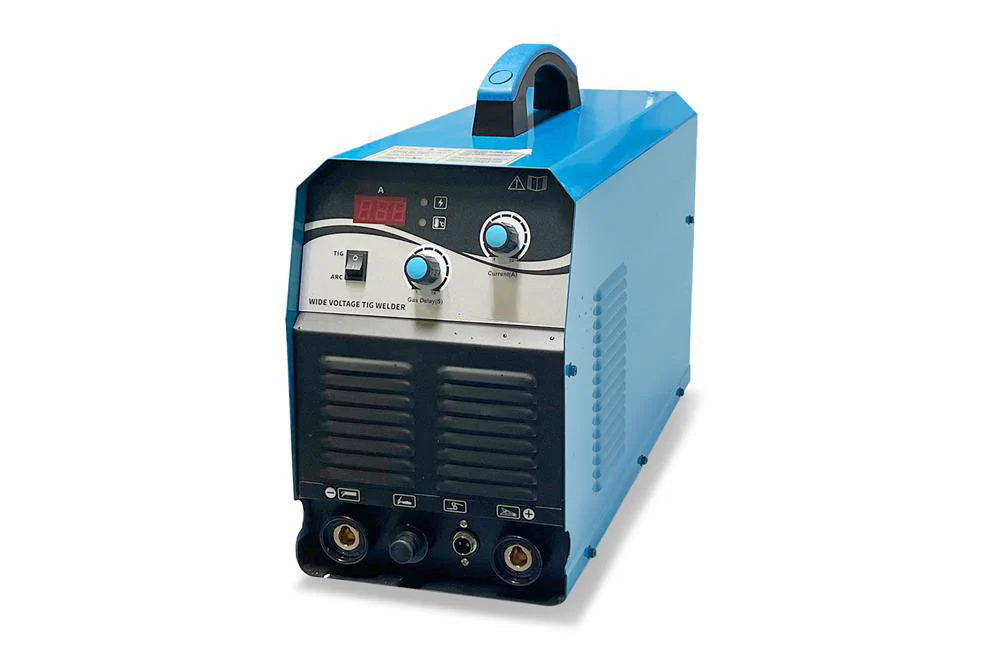

7KW 315A DC Power Supply for MTI's Arc Melting Systems - MSM-PS315

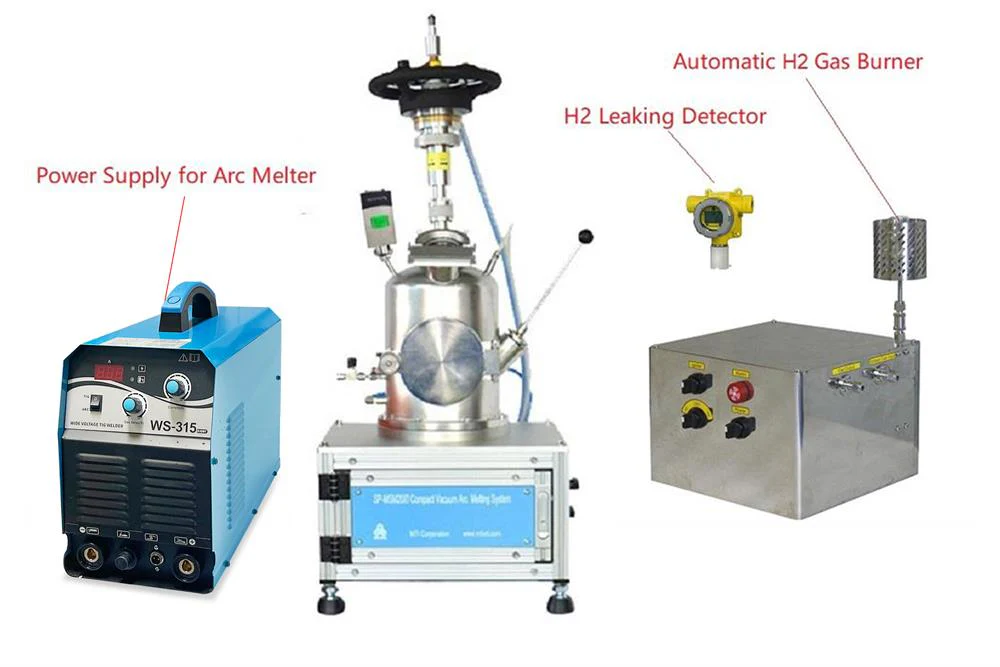

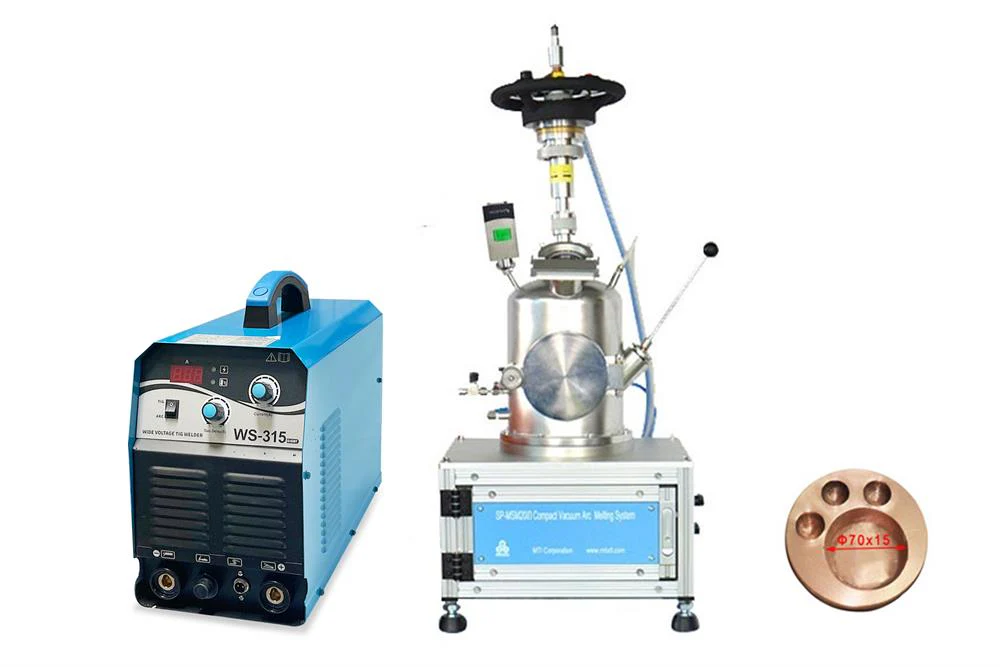

This is a power supply for MTI's arc melting system SP-MSM200.

SPECIFICATIONS

IGBT Type	Module IGBT
Inverter Type	Digital/Micro-controlled
Input Voltage/phase	220VAC,  Single Phase, 50/60Hz
Input Current	35A
Power	7.3KW max
Output Voltage	0 - 22.6V (DC)
Output Rated Amps	20 - 315 A ( DC)
Pulse Frequency Range	0.1 - 100Hz
Duty Cycle	315A/22.6V @ 60% Duty Cycle 244A/20V @ 100% Duty Cycle
Efficiency	η >= 0.85 (Rated Value)
Power Factor	λ >= 0.92
Arc Ignition	HF Arc Starting
