Arc Melting System up to 500g with Casting Function and Vacuum & Water Chiller - SP-MSM-800A

Arc Melting System up to 500g with Casting Function and Vacuum & Water Chiller - SP-MSM-800A

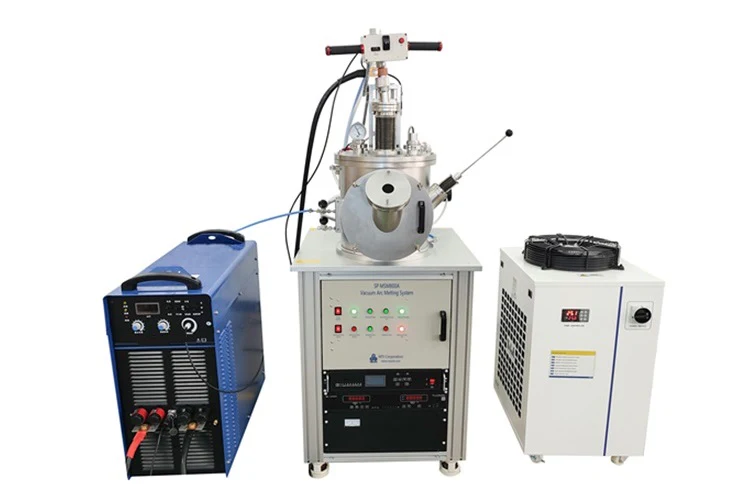

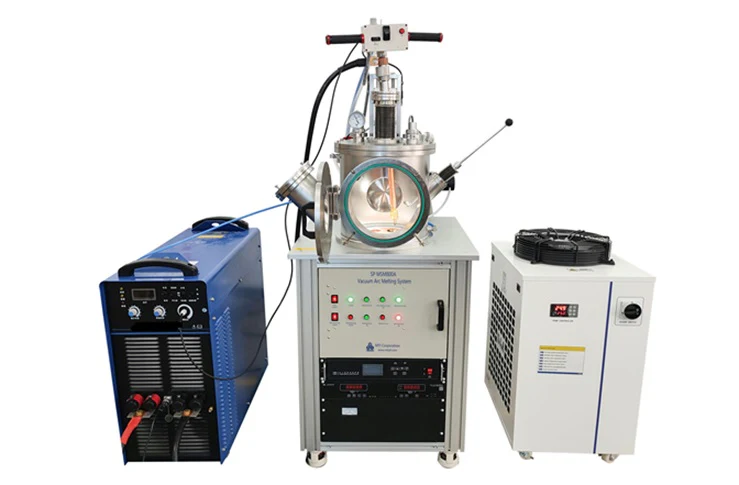

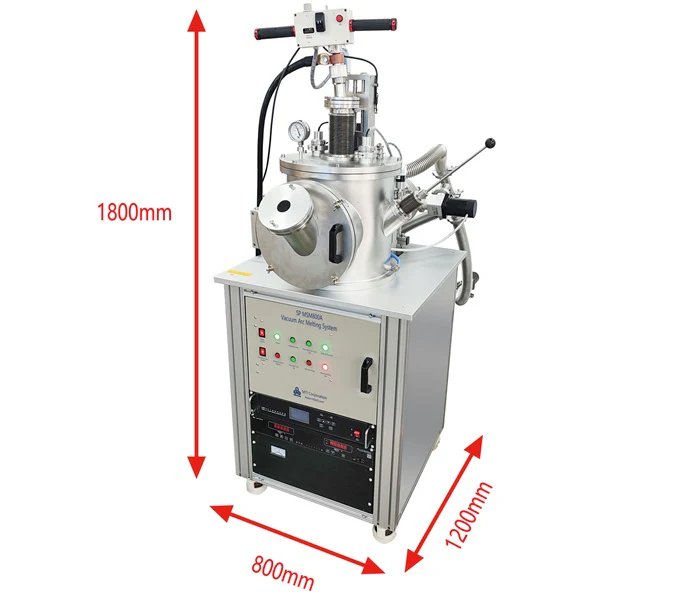

SP-MSM-800A is a complete turn-key arc-melting system with a water-cooled high vacuum chamber, melting power supply, options for interchangeable melting cavities, vacuum casting, and electromagnetic stirring. It allows researchers to explore the next generation of alloy.

Features：

  • Water-cooled SS vacuum chamber which can reach vacuum up to 10-6 torr
  • Powerful arc melting power supply, which enables arc ignition without contact with the sample
  • Water-cooled copper hearth with various types of crucibles and functions.
  • Motor-assisted arc melting electrode with 100 mm vertical stroke length
  • A wobble stick is built-in for sample flipping

SPECIFICATIONS:
Power
  • Input: 480 VAC, 3ph, 50 A, 50/60Hz
  • 30 kW
  • Optional: 380-415 VAC
Melting Chamber
  • High vacuum water-cooled chamber with a cooling-water jacket made of SS304
  • Vacuum level: 5×10^-6 torr via a 1200L/s turbopump, or higher vacuum with larger turbopump.
  • Leakage: <5.0 x 10^-4 (mbar·l)/s (5.0 x 10-5 Pa·m3/s).
  • The chamber size: 400mm Dia x 350mm L
  • Two tinted observation windows (dia. 100 mm) on the front for monitoring the melting process
  • Hinged front door
  • The sample manipulator is built-in for sample flipping without breaking the vacuum
  • Easy sample loading and unloading by the chamber lifting mechanism.

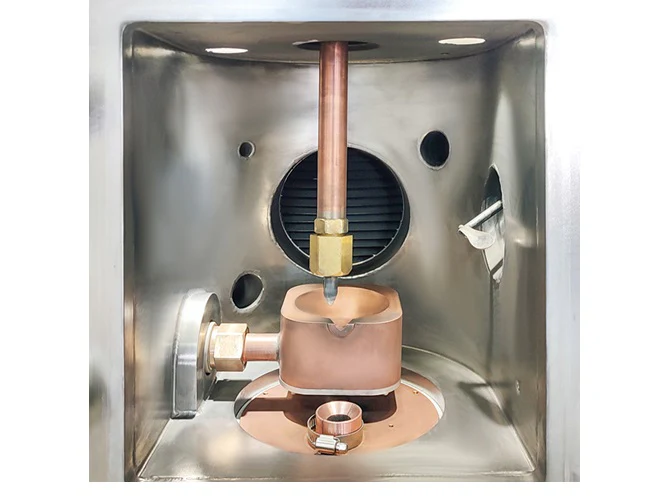

Melting Copper Hearth

(Standard)
  • A water-cooled copper hearth with four cavities
  • Melting capacity: up to 300 g iron based alloy
  • Electromagnetic stirring for the largest cavities.

Single Cavity Copper Hearth (optional)
  • Single cavity water-cooled copper hearth for melting 1000 g steel.
  • Electromagnetic stirring
Vacuum Casting Copper Hearth (optional)
  • A water-cooled vacuum casting copper hearth
    • Cavity 1: Ø80×35 mm
    • Cavity 2: Ø65×25 mm
    • Cavity 3: Ø65×25 mm
    • Cavity 4: Ø50×20 mm for gettering.
    • Cavity 5: Ø60×20 mm with Ø1 mm with vacuum casting mold
  • Customization is available for cavity configuration and vacuum casting mold, up to Ø10×70 mm

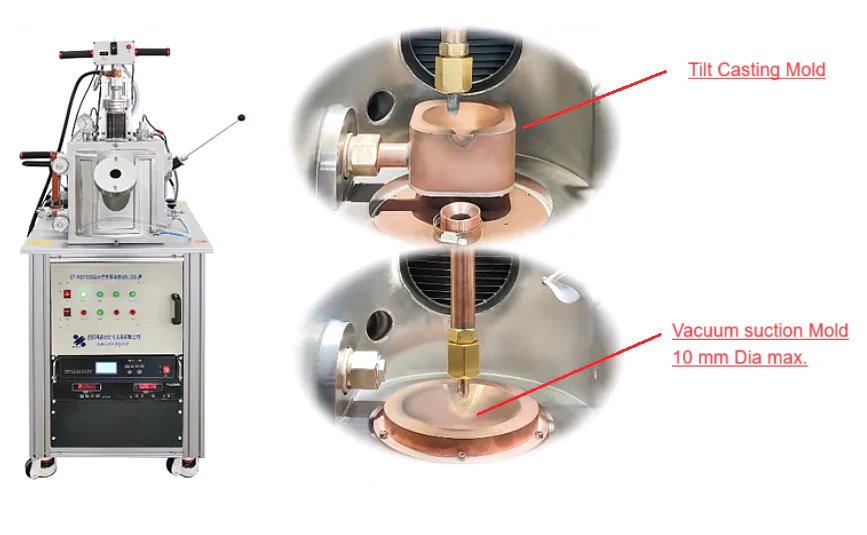

Tilt-casting Module

(Optional)
  • Casting mold Ø20×80 mm, up to 130 g steel.
  • Customization is available for casting mold

Tungsten Electrode & Power Generator
  • Out Put power: 83V DC, 60A - 1000A adjustable
  • Water-cooled wobble tungsten electrode: Ø12 mm
  • The tungsten electrode stroke length. 100 mm
  • Max continuous operation: 30 min
  • HF ( High frequency ) start
  • Max melting temperature: 3500oC
  • Max. melting amount: 500 g ( Iron steel)

Power Supply
  • 25 kW 630 A DC power supply MSM-630 (standard)
  • 55KW 1000A DC Power Supply MSM-PS1000 (optional)
Vacuum System
(Optional)
  • 260 L/s turbopump with a ISO100K manual gate valve
  • 240 L/min rotary vane pump
  • Full range cold cathode gauge for pressure readings.

Water Chiller

(Optional)
  • Water cooling is required but not included.
  • MTI recommend using a water chiller, KJ6200, or equivalent.
Working Gas
  • High-purity inert gas with at least 5N purity (>99.999%) is required (not included)
Compliance
  • CE certified
  • UL/CSA certification by NRTLs is available at an extra fee.



$20,999.30
