800℃ Rapid Melting and Quenching Furnace From Liquid Phase to Ga Melt QF-800

800℃ Rapid Melting and Quenching Furnace From Liquid Phase to Ga Melt QF-800

800℃ Rapid Melting and Quenching Furnace From Liquid Phase to Ga Melt QF-800

QF-800 is a fast melting & quenching furnace under an air-tight chamber for studying super-cooling of materials

SPECIFICATIONS

Power	AC 110VAC, Single Phase, 50/60 Hz 1.5 KW ( without vacuum pump ) The power cable is included with a US plug
Vacuum chamber & Hater	SS304 Vacuum Chamber: Ø315 mm×315 mm H (inner dimension) Resistance coil heater up to 800ºC 14 mm ID quartz tube with 1 mm hole as melting crucible 10 bar pressure inert gas ( helium suggested ) will inject molten materials into a bottom container with liquid gallium.
Heating plate	One heating plate with magnetic stirring for liquid gallium is located at the bottom of the heater up to 200oC Melting liquid will be dropped into the heated container with Ga for rapid cooling
Max. Temperature	800^oC < 30 min Heated by resistance coil
Heating Rate	Recommended: <= 30^oC /min
Quartz tube	Two 14 mm ID quartz tubes with a 1 mm hole are included. Click the picture left to see the dimensions of the tube, and order a spare
Control Panel	Furnace temperature control: Digital temperature Controller with 30 segment programmable process segments up to 800oC PID automatic temperature control system DB9 PC communication port and software are included for PC operation. +/- 1 ºC temperature accuracy Heating Plate Temperature Control 250oC Max with magnetic stirring
Vacuum Level	Mechanical Pump (Separate Purchase): < 1e-2 torr Molecular Pump (Separate Purchase): <1e-5 torr

$17,499.30

Original: $49,998.00

-65%

800℃ Rapid Melting and Quenching Furnace From Liquid Phase to Ga Melt QF-800—

$49,998.00

$17,499.30

More Images

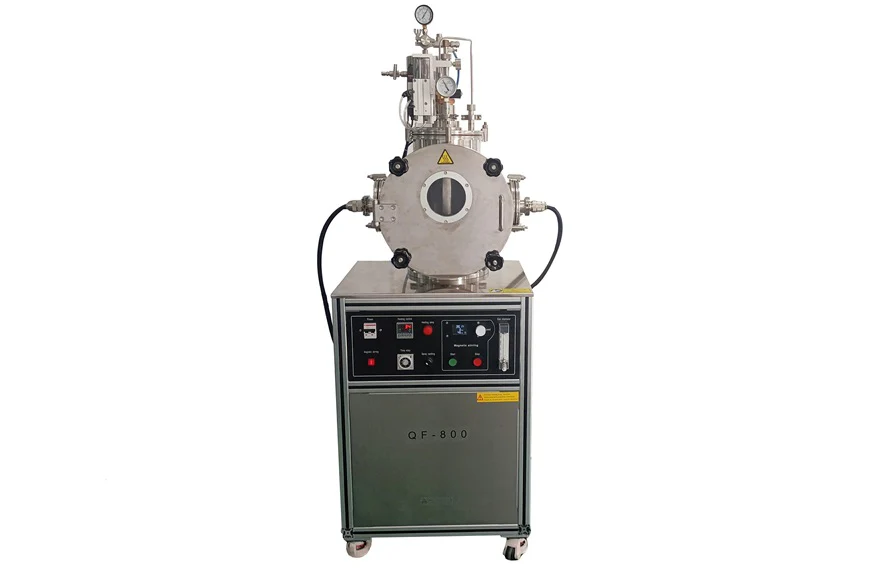

800℃ Rapid Melting and Quenching Furnace From Liquid Phase to Ga Melt QF-800 - Image 2

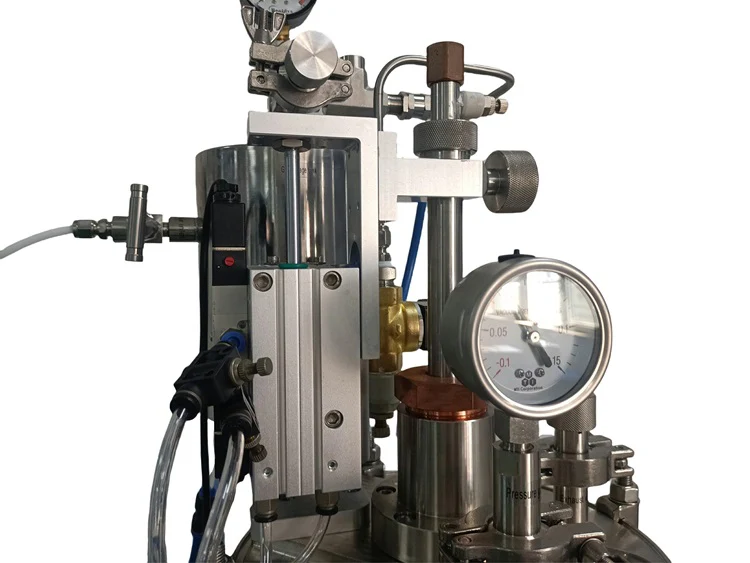

800℃ Rapid Melting and Quenching Furnace From Liquid Phase to Ga Melt QF-800 - Image 3

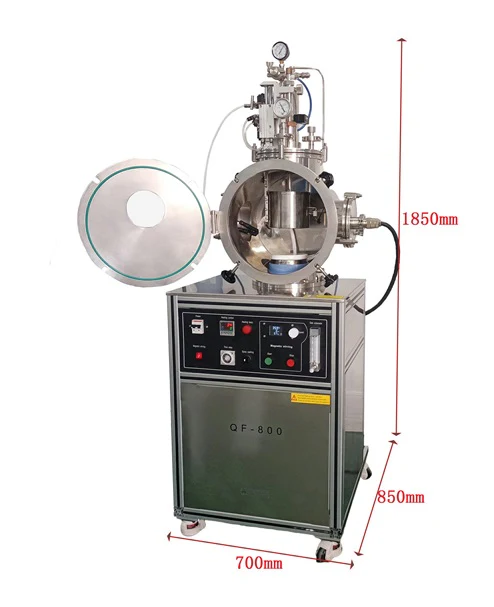

800℃ Rapid Melting and Quenching Furnace From Liquid Phase to Ga Melt QF-800 - Image 4

800℃ Rapid Melting and Quenching Furnace From Liquid Phase to Ga Melt QF-800

QF-800 is a fast melting & quenching furnace under an air-tight chamber for studying super-cooling of materials

SPECIFICATIONS

Power	AC 110VAC, Single Phase, 50/60 Hz 1.5 KW ( without vacuum pump ) The power cable is included with a US plug
Vacuum chamber & Hater	SS304 Vacuum Chamber: Ø315 mm×315 mm H (inner dimension) Resistance coil heater up to 800ºC 14 mm ID quartz tube with 1 mm hole as melting crucible 10 bar pressure inert gas ( helium suggested ) will inject molten materials into a bottom container with liquid gallium.
Heating plate	One heating plate with magnetic stirring for liquid gallium is located at the bottom of the heater up to 200oC Melting liquid will be dropped into the heated container with Ga for rapid cooling
Max. Temperature	800^oC < 30 min Heated by resistance coil
Heating Rate	Recommended: <= 30^oC /min
Quartz tube	Two 14 mm ID quartz tubes with a 1 mm hole are included. Click the picture left to see the dimensions of the tube, and order a spare
Control Panel	Furnace temperature control: Digital temperature Controller with 30 segment programmable process segments up to 800oC PID automatic temperature control system DB9 PC communication port and software are included for PC operation. +/- 1 ºC temperature accuracy Heating Plate Temperature Control 250oC Max with magnetic stirring
Vacuum Level	Mechanical Pump (Separate Purchase): < 1e-2 torr Molecular Pump (Separate Purchase): <1e-5 torr

Product Information

Shipping & Returns

Description

QF-800 is a fast melting & quenching furnace under an air-tight chamber for studying super-cooling of materials

SPECIFICATIONS

Power	AC 110VAC, Single Phase, 50/60 Hz 1.5 KW ( without vacuum pump ) The power cable is included with a US plug
Vacuum chamber & Hater	SS304 Vacuum Chamber: Ø315 mm×315 mm H (inner dimension) Resistance coil heater up to 800ºC 14 mm ID quartz tube with 1 mm hole as melting crucible 10 bar pressure inert gas ( helium suggested ) will inject molten materials into a bottom container with liquid gallium.
Heating plate	One heating plate with magnetic stirring for liquid gallium is located at the bottom of the heater up to 200oC Melting liquid will be dropped into the heated container with Ga for rapid cooling
Max. Temperature	800^oC < 30 min Heated by resistance coil
Heating Rate	Recommended: <= 30^oC /min
Quartz tube	Two 14 mm ID quartz tubes with a 1 mm hole are included. Click the picture left to see the dimensions of the tube, and order a spare
Control Panel	Furnace temperature control: Digital temperature Controller with 30 segment programmable process segments up to 800oC PID automatic temperature control system DB9 PC communication port and software are included for PC operation. +/- 1 ºC temperature accuracy Heating Plate Temperature Control 250oC Max with magnetic stirring
Vacuum Level	Mechanical Pump (Separate Purchase): < 1e-2 torr Molecular Pump (Separate Purchase): <1e-5 torr
