Peel Strength Tester for Battery Electrodes - MSK-TE602-PS
HomeStore

Peel Strength Tester for Battery Electrodes - MSK-TE602-PS

Peel Strength Tester for Battery Electrodes - MSK-TE602-PS

MSK-TE602-PS is lab-scale peel strength tester for battery electrodes or other thin-films. It equips a temperature control unit to enable testing under different temperatures.

SPECIFICATIONS:
Power Requirement
  • AC220V ±10%, 50Hz/60Hz, single phase
  • 200W
Test Mode
  • Coefficient of Friction Test
  • Peel Strength Test
Loading Range
  • 0-5 N
  • 0-10 N
  • 0-30 N
Accuracy
  • 0.5 class
Sliding Block Mass
  • Standard block with 200 g (other mass of 100 g, 500 g, 1000 g, 1814 g, and 2000 g are available upon request )
Testing Speed
  • 1-600 mm/min
Testing Temperature
  • RT-99.9 ℃
Compliance
  • CE approval
  • NRTL certification is available upon request at extra cost. Please contact our sales representatives for a quote.







$6,993.00

Original: $19,980.00

-65%
Peel Strength Tester for Battery Electrodes - MSK-TE602-PS—

$19,980.00

$6,993.00

More Images

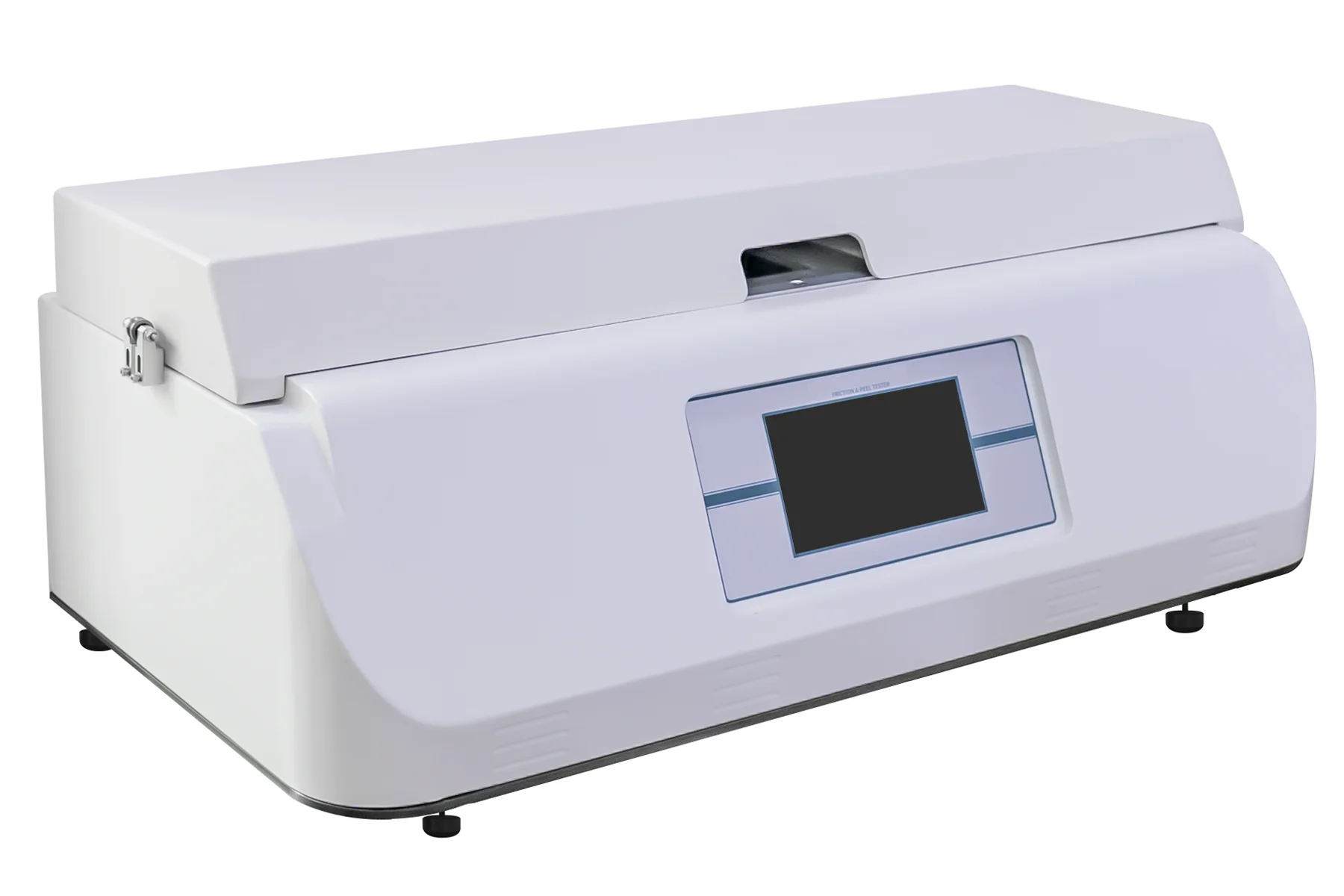

Peel Strength Tester for Battery Electrodes - MSK-TE602-PS - Image 2

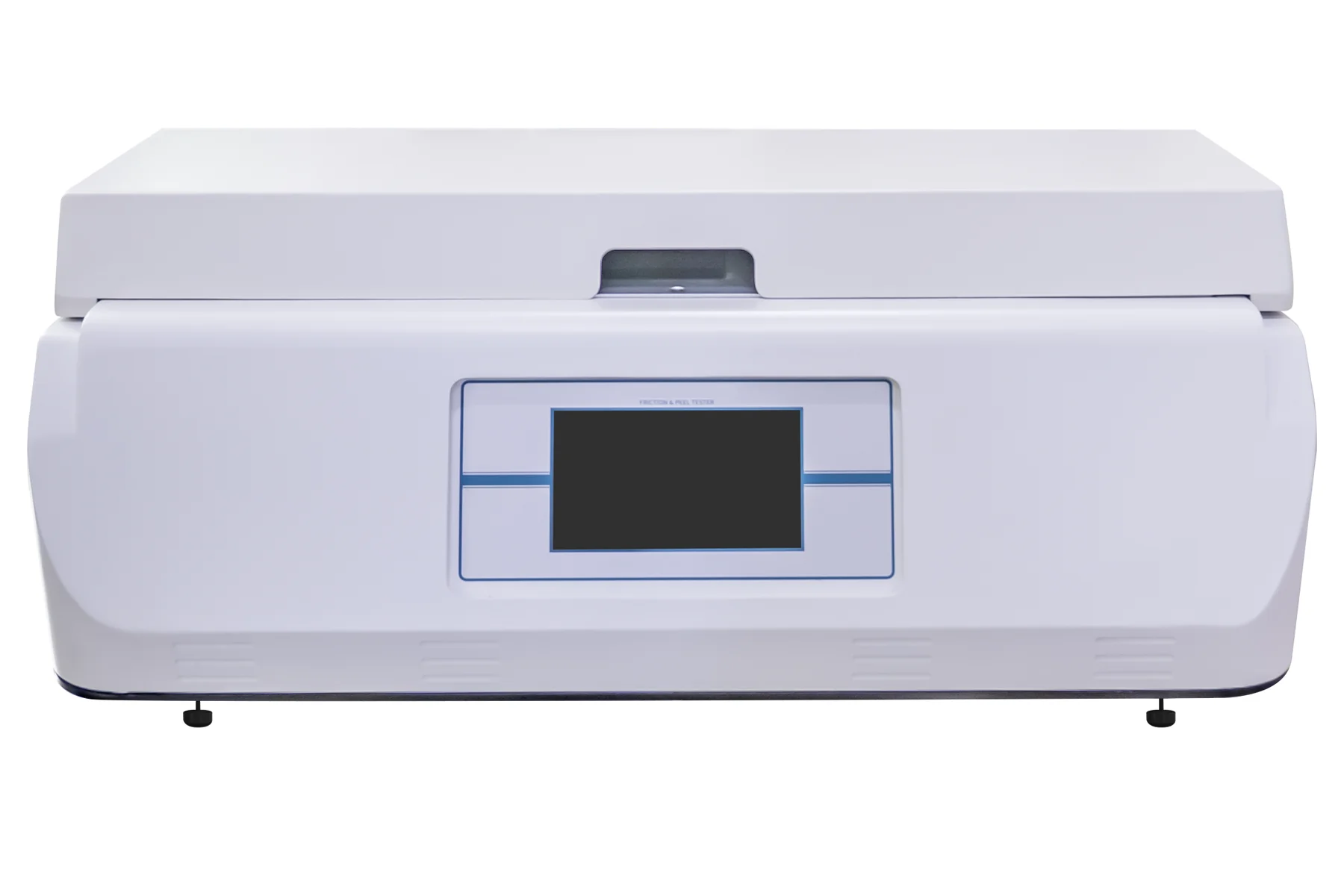

Peel Strength Tester for Battery Electrodes - MSK-TE602-PS - Image 3

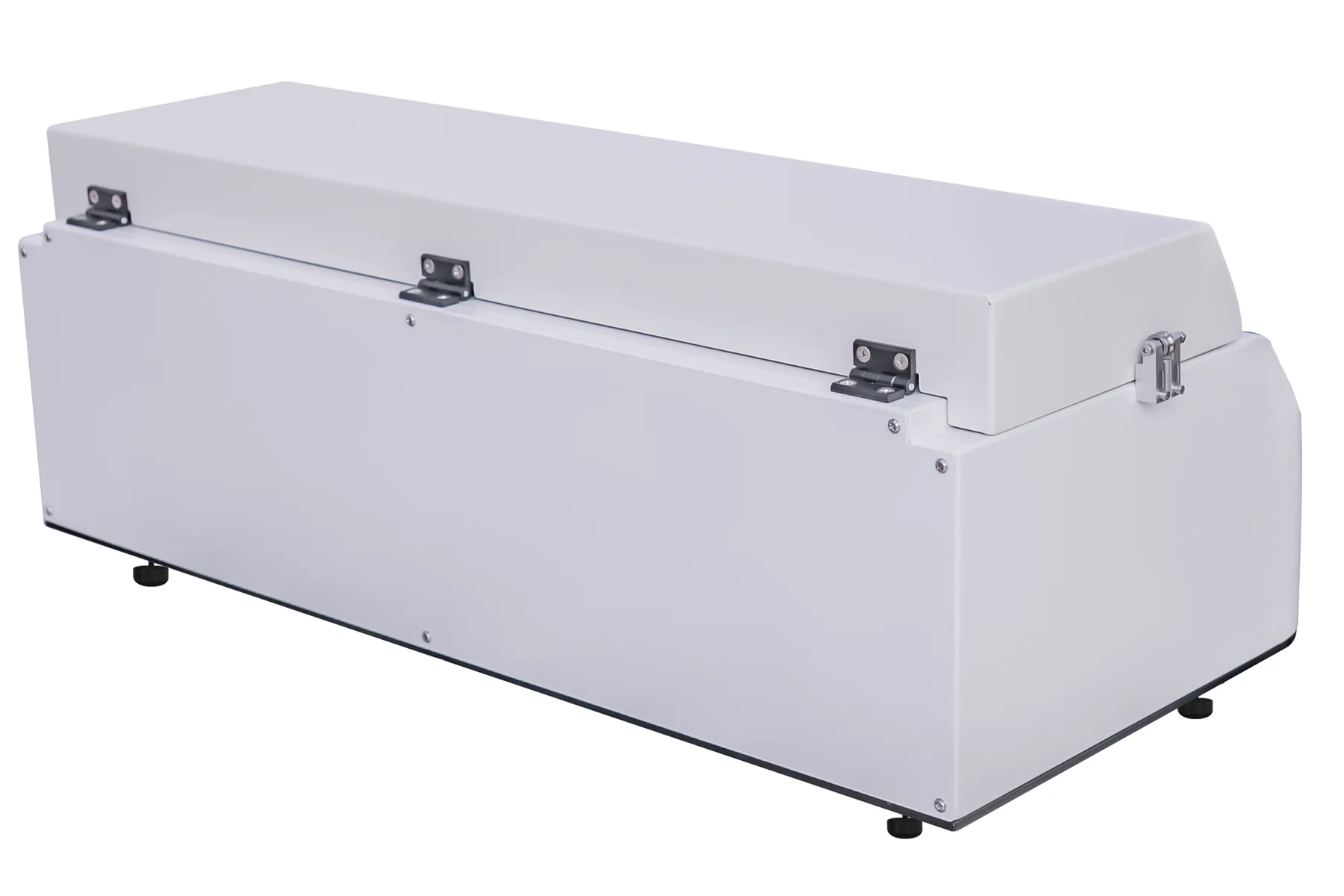

Peel Strength Tester for Battery Electrodes - MSK-TE602-PS - Image 4

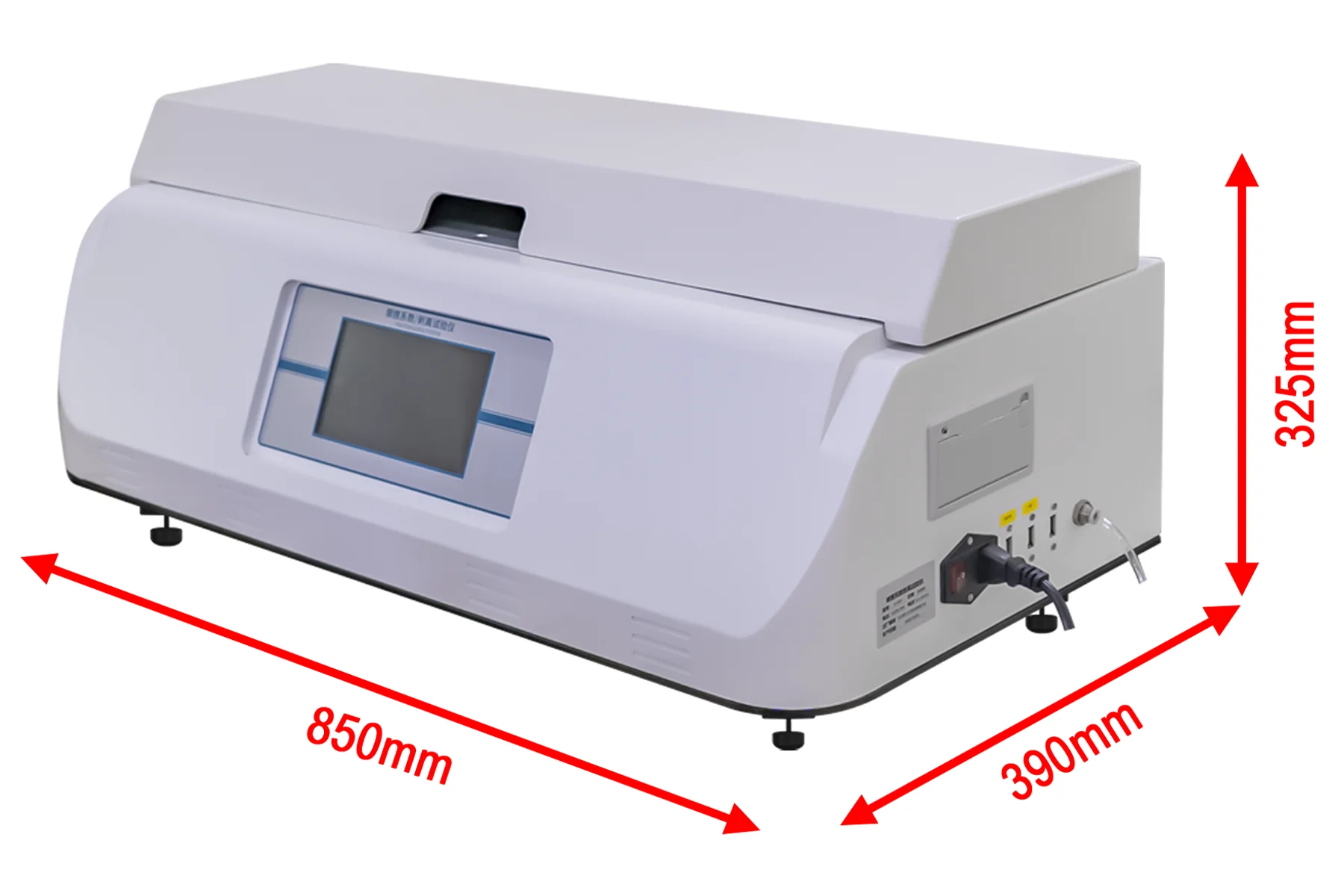

Peel Strength Tester for Battery Electrodes - MSK-TE602-PS - Image 5

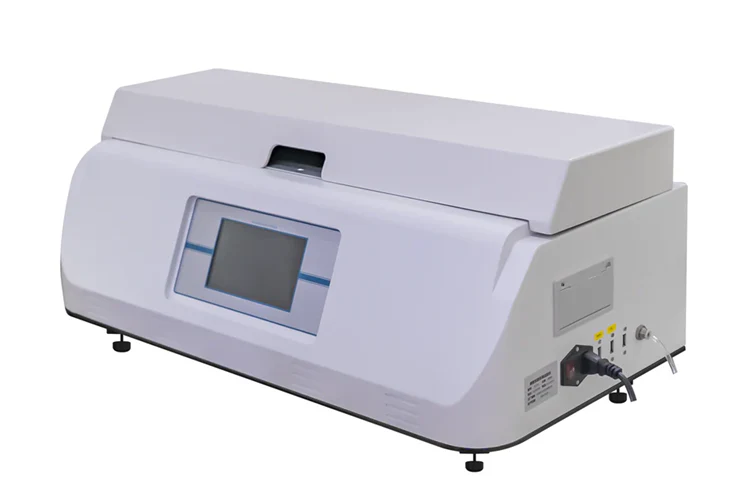

Peel Strength Tester for Battery Electrodes - MSK-TE602-PS

MSK-TE602-PS is lab-scale peel strength tester for battery electrodes or other thin-films. It equips a temperature control unit to enable testing under different temperatures.

SPECIFICATIONS:
Power Requirement
  • AC220V ±10%, 50Hz/60Hz, single phase
  • 200W
Test Mode
  • Coefficient of Friction Test
  • Peel Strength Test
Loading Range
  • 0-5 N
  • 0-10 N
  • 0-30 N
Accuracy
  • 0.5 class
Sliding Block Mass
  • Standard block with 200 g (other mass of 100 g, 500 g, 1000 g, 1814 g, and 2000 g are available upon request )
Testing Speed
  • 1-600 mm/min
Testing Temperature
  • RT-99.9 ℃
Compliance
  • CE approval
  • NRTL certification is available upon request at extra cost. Please contact our sales representatives for a quote.







Product Information

Shipping & Returns

Description

MSK-TE602-PS is lab-scale peel strength tester for battery electrodes or other thin-films. It equips a temperature control unit to enable testing under different temperatures.

SPECIFICATIONS:
Power Requirement
  • AC220V ±10%, 50Hz/60Hz, single phase
  • 200W
Test Mode
  • Coefficient of Friction Test
  • Peel Strength Test
Loading Range
  • 0-5 N
  • 0-10 N
  • 0-30 N
Accuracy
  • 0.5 class
Sliding Block Mass
  • Standard block with 200 g (other mass of 100 g, 500 g, 1000 g, 1814 g, and 2000 g are available upon request )
Testing Speed
  • 1-600 mm/min
Testing Temperature
  • RT-99.9 ℃
Compliance
  • CE approval
  • NRTL certification is available upon request at extra cost. Please contact our sales representatives for a quote.
