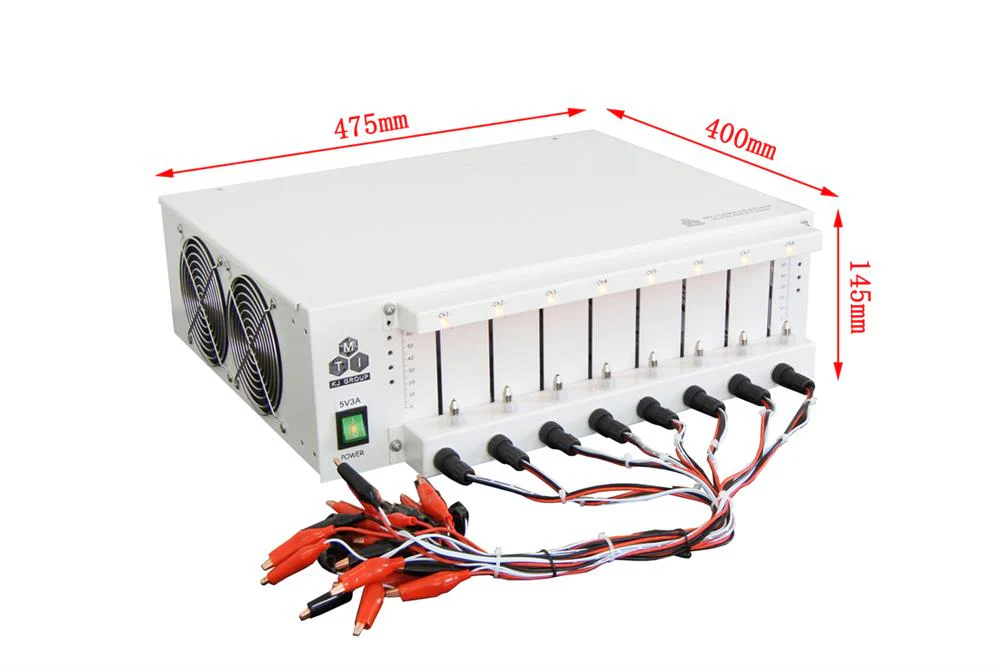

8 Channel Battery Analyzer (6-3000 mA, 5V) w/ Laptop & Software, with Optional Temperature Sensor - BST8A3

Voltage

• Without the temperature sensing function: 110 - 240 V AC.
• With the temperature sensing function:
  • 110V AC, 50/60Hz (standard)
  • 220V AC 50/60Hz version is available upon request

Power Consumption

• 300 W Max. in total.

Current

• Range: 6 mA – 3,000mA programmable
• Accuracy: ±(0.05% RD + 0.05% FS)
• Resolution: 0.01 mA

Voltage

• Range: 10 mV - 5V programmable
• Accuracy: ±(0.05% RD + 0.05% FS)
• Resolution: 0.1 mV

Data Sampling

• Time interval: 1 - 900s

Max. Measurement cycles

• 65535 cycles

Max. Program steps

• 400 steps

Cell holder

• 8 Gold Plated spring load holders with adjustable height for measuring cylinder cell up to 70mm(H)
• 8 polymer battery analyzer clamp with temperature detector and cable for universal connecting (compatible with pouch cell and cylindrical cell)

Optional Temperature Sensor

Channels & Test Modes

• Charge: constant current charge (CC), constant voltage (CV), constant current & constant voltage charge(CC-CV)
• Discharge: constant current discharge (CD), constant power discharge (CP), constant resistance discharge (CR)
• Rest
• Cycles
• Temperature Monitor

Programs & Software

• The software is included to set various working modes for evaluating cell capacity and lifecycle for all types of rechargeable batteries
• Limited threshold conditions include voltage, current, time, capacity, negative voltage slope, etc.
• With real-time monitoring windows and integrated graph/data windows, the testing process can be observed more directly and efficiently.
• During the test, the software will provide instructions and warnings for assistance.
•
• The software is not compatible with other MTI brand battery analyzers

Test Reports and Curves for Analysis

• Various graphs and curves can be created by software based on user definition. (Voltage-time curve, current-time curve, capacity-voltage curve, loops times charge/discharge capacity curve, loops times charge/ discharge efficiency curve, etc)
• Data reports are created by software in Excel format. A copy of MS Excel must be installed in order to export data. The user can easily compare the performance of the batteries tested in channels both visually and statistically.

Protection and Auto-recover

• If a power failure occurs during testing, the system will shut down all the operating channels. Once power is recovered, the system will automatically resume those stopped channels and ensure that the test is normally conducted, so that no cases will lose any data.
• Voltage upper & lower limit; Current upper & lower limit; Capacity upper limit; Power upper limit;

• Brand new laptop ( 4GB RAM 128GB SSD) with MS Windows 10and the latest version testing software is installed and calibrated for immediate use.
• Notice: We strongly suggest you keep an instant backup of the collected data using an external hard drive.
•

Compliance

• CE Certified
• NRTL certification is available upon request at extra cost

Application Notes

• New buyers must buy the software installed laptop to avoid trouble with installation.
• Warning: The time for Screen and Sleep should be set to "NEVER" in the Power& Sleep setting of your computer to avoid causing a disconnection from the battery analyzer.
