172L Vacuum Chamber (17x20x30") with Digital Pressure Control for Altitude Simulation (UN 38.3.4.1) - MSK-VA172
HomeStore

172L Vacuum Chamber (17x20x30") with Digital Pressure Control for Altitude Simulation (UN 38.3.4.1) - MSK-VA172

172L Vacuum Chamber (17x20x30") with Digital Pressure Control for Altitude Simulation (UN 38.3.4.1) - MSK-VA172

MSK-VA172 has a 172 liters capacity larger vacuum chamber with a built-in vacuum pump and control system designed for Battery Altitude Simulation Test based on UN38.3 standard (38.3.4.1).
It can also be used as a vacuum storage chamber with automatic control of vacuum pressure and no vacuum leaking.
Please click here to review the UN38.3 Li-Ion Battery Transportation Safety Testing Requirements

SPECIFICATIONS
Power
  • 220VAC, 50/60Hz,
  • 110VAC available upon request
  • Max Power: 1 kW
Chamber
  • Heavy duty and explosion-proof stainless steel structure
  • Inside dimensions:
    • Size: 440 mm x 520 mm x 750 mm (17 x 20 x 30")
    • Capacity: 172 liters
  • Working temperature: Room Temp. without heating
  • Ideal explosion-proof box with four Latch-Action Toggle Clamps for the high power rechargeable battery testing
  • Max. Vacuum: 0.2 KPa (1.5 Torr) by built-in Mechanical pump
  • Click here to see vacuum pressure conversion.
Pressure Control

  • The pressure control system monitors and controls the chamber pressure. The pressure setpoint and holding time are user-defined (default 11.6kpa for 6 hrs)
  • 4.3" Touch-screen PLC panel to control & display pressure and running time automatically
  • Optional: (at an extra cost and upgrade to 215L, click the link below to see specs)
    • Can add pressure setting programmable function up to 9 segments according to the request
    • Can add heating programmable function up to the temperature of 200°C
Accessories
  • One 156 L/m Double-Stage Rotary Vane Vacuum Pump with Exhaust Filter, Bellows & KF-D25 Inlet, and vacuum pipe are built in the bottom of the box for immediate use
  • 4 mobile wheels are installed for easy moving
  • You can order NIST traceable digital gauge to calibrate vacuum chamber pressure at extra cost ( click Pic below right to order
Compliance
  • CE Certified
  • NRTL (TUV-UL61010)) or CSA certification is available at an extra cost
Attention Note
  • Please be aware that the welding joints inside the chamber are ground in order to smooth out the surface, however, they are not mirror-polished.







$5,949.30

Original: $16,998.00

-65%
172L Vacuum Chamber (17x20x30") with Digital Pressure Control for Altitude Simulation (UN 38.3.4.1) - MSK-VA172—

$16,998.00

$5,949.30

172L Vacuum Chamber (17x20x30") with Digital Pressure Control for Altitude Simulation (UN 38.3.4.1) - MSK-VA172

MSK-VA172 has a 172 liters capacity larger vacuum chamber with a built-in vacuum pump and control system designed for Battery Altitude Simulation Test based on UN38.3 standard (38.3.4.1).
It can also be used as a vacuum storage chamber with automatic control of vacuum pressure and no vacuum leaking.
Please click here to review the UN38.3 Li-Ion Battery Transportation Safety Testing Requirements

SPECIFICATIONS
Power
  • 220VAC, 50/60Hz,
  • 110VAC available upon request
  • Max Power: 1 kW
Chamber
  • Heavy duty and explosion-proof stainless steel structure
  • Inside dimensions:
    • Size: 440 mm x 520 mm x 750 mm (17 x 20 x 30")
    • Capacity: 172 liters
  • Working temperature: Room Temp. without heating
  • Ideal explosion-proof box with four Latch-Action Toggle Clamps for the high power rechargeable battery testing
  • Max. Vacuum: 0.2 KPa (1.5 Torr) by built-in Mechanical pump
  • Click here to see vacuum pressure conversion.
Pressure Control

  • The pressure control system monitors and controls the chamber pressure. The pressure setpoint and holding time are user-defined (default 11.6kpa for 6 hrs)
  • 4.3" Touch-screen PLC panel to control & display pressure and running time automatically
  • Optional: (at an extra cost and upgrade to 215L, click the link below to see specs)
    • Can add pressure setting programmable function up to 9 segments according to the request
    • Can add heating programmable function up to the temperature of 200°C
Accessories
  • One 156 L/m Double-Stage Rotary Vane Vacuum Pump with Exhaust Filter, Bellows & KF-D25 Inlet, and vacuum pipe are built in the bottom of the box for immediate use
  • 4 mobile wheels are installed for easy moving
  • You can order NIST traceable digital gauge to calibrate vacuum chamber pressure at extra cost ( click Pic below right to order
Compliance
  • CE Certified
  • NRTL (TUV-UL61010)) or CSA certification is available at an extra cost
Attention Note
  • Please be aware that the welding joints inside the chamber are ground in order to smooth out the surface, however, they are not mirror-polished.







Product Information

Shipping & Returns

Description

MSK-VA172 has a 172 liters capacity larger vacuum chamber with a built-in vacuum pump and control system designed for Battery Altitude Simulation Test based on UN38.3 standard (38.3.4.1).
It can also be used as a vacuum storage chamber with automatic control of vacuum pressure and no vacuum leaking.
Please click here to review the UN38.3 Li-Ion Battery Transportation Safety Testing Requirements

SPECIFICATIONS
Power
  • 220VAC, 50/60Hz,
  • 110VAC available upon request
  • Max Power: 1 kW
Chamber
  • Heavy duty and explosion-proof stainless steel structure
  • Inside dimensions:
    • Size: 440 mm x 520 mm x 750 mm (17 x 20 x 30")
    • Capacity: 172 liters
  • Working temperature: Room Temp. without heating
  • Ideal explosion-proof box with four Latch-Action Toggle Clamps for the high power rechargeable battery testing
  • Max. Vacuum: 0.2 KPa (1.5 Torr) by built-in Mechanical pump
  • Click here to see vacuum pressure conversion.
Pressure Control

  • The pressure control system monitors and controls the chamber pressure. The pressure setpoint and holding time are user-defined (default 11.6kpa for 6 hrs)
  • 4.3" Touch-screen PLC panel to control & display pressure and running time automatically
  • Optional: (at an extra cost and upgrade to 215L, click the link below to see specs)
    • Can add pressure setting programmable function up to 9 segments according to the request
    • Can add heating programmable function up to the temperature of 200°C
Accessories
  • One 156 L/m Double-Stage Rotary Vane Vacuum Pump with Exhaust Filter, Bellows & KF-D25 Inlet, and vacuum pipe are built in the bottom of the box for immediate use
  • 4 mobile wheels are installed for easy moving
  • You can order NIST traceable digital gauge to calibrate vacuum chamber pressure at extra cost ( click Pic below right to order
Compliance
  • CE Certified
  • NRTL (TUV-UL61010)) or CSA certification is available at an extra cost
Attention Note
  • Please be aware that the welding joints inside the chamber are ground in order to smooth out the surface, however, they are not mirror-polished.







You may also like

NEW
Thumbnail 1Thumbnail 2

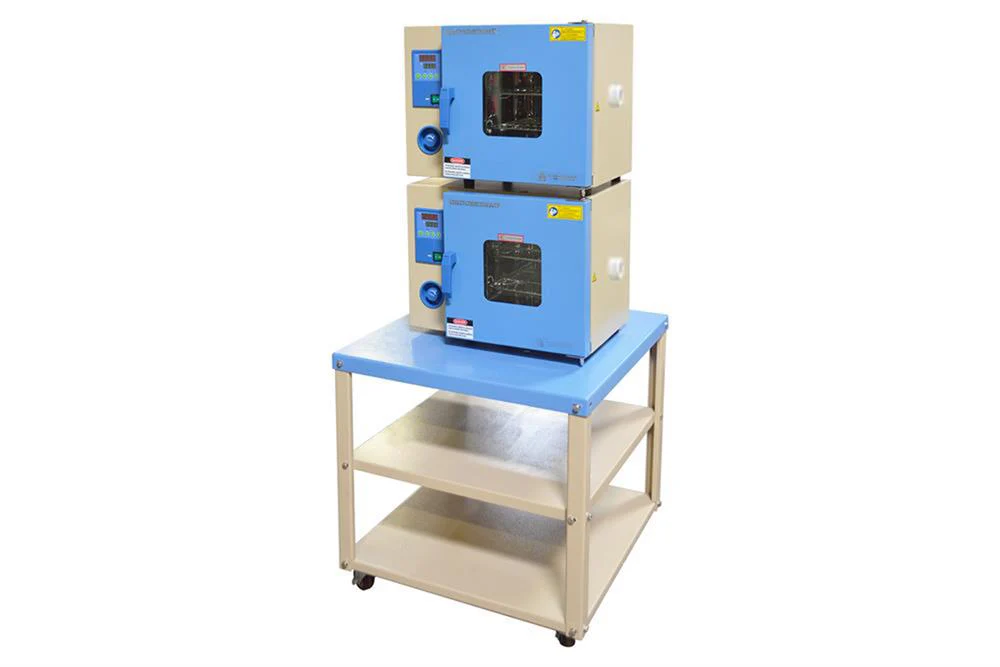

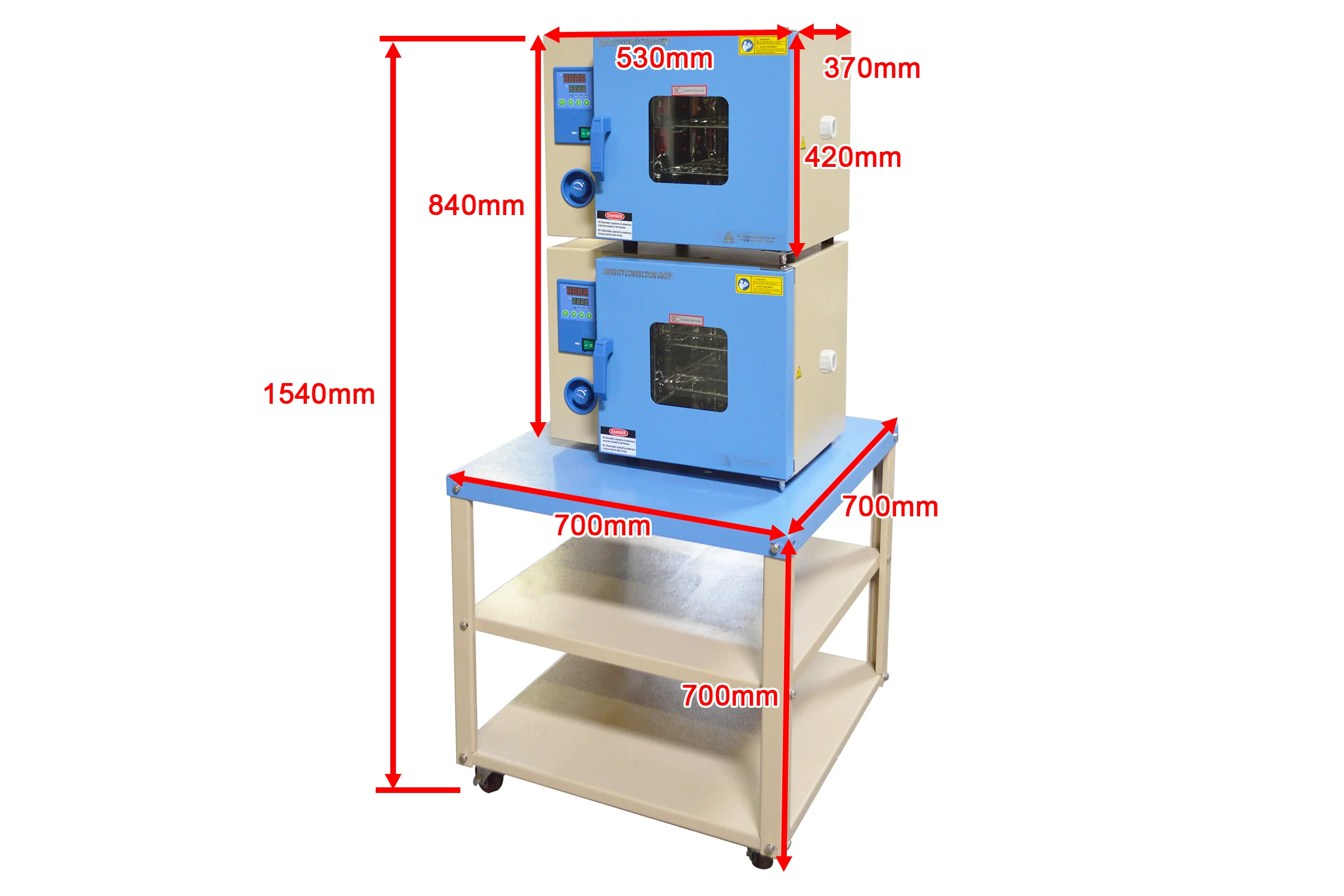

Dual Fire-Proof Chamber (2 x 12L) for Thermal Abuse Test of Battery (0-180C) - DHG-9015TA

$3,998.00

NEW
Thumbnail 1Thumbnail 2

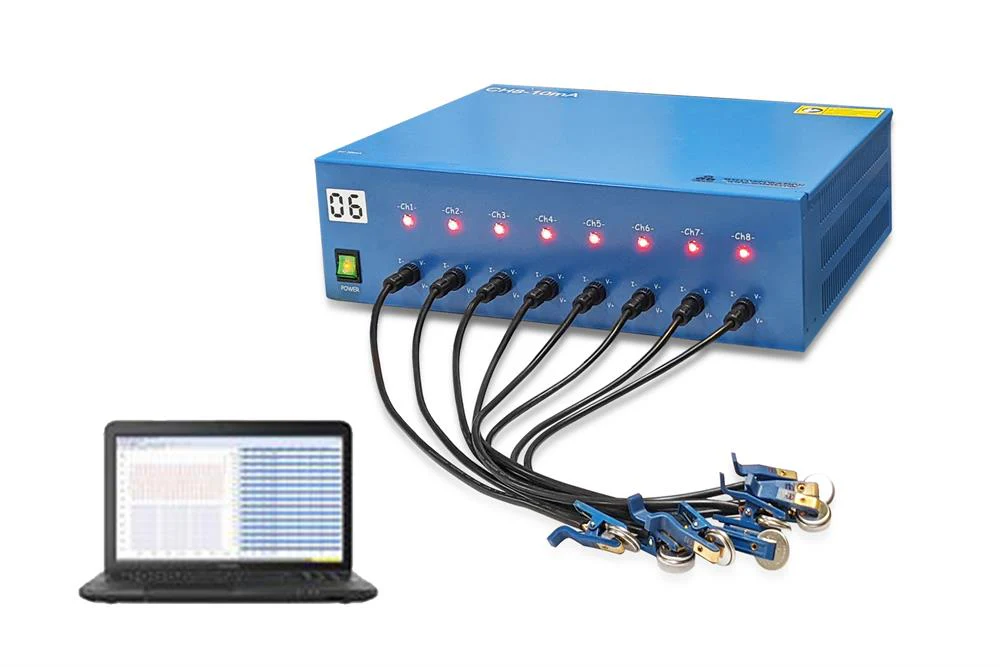

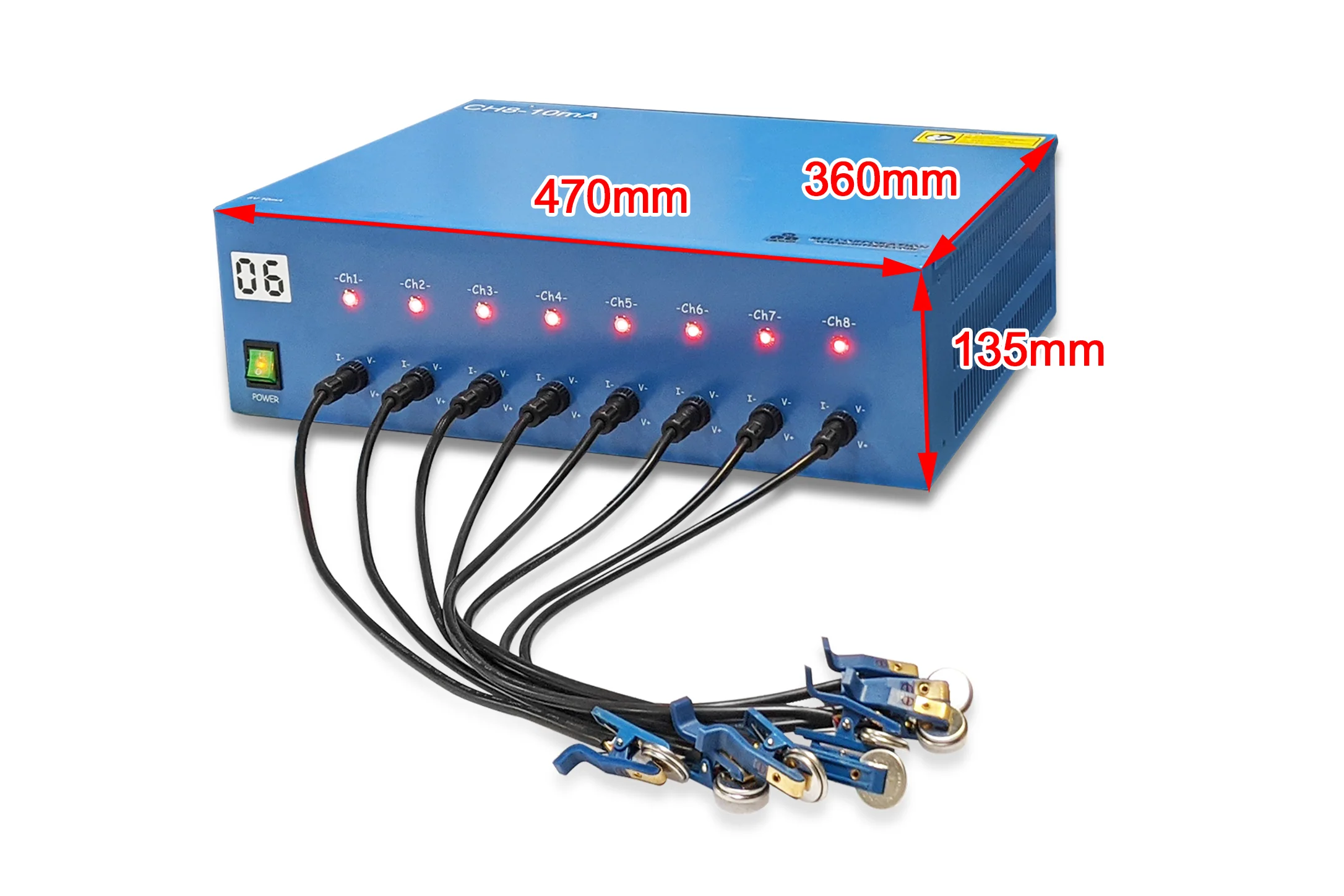

8 Channel Battery Analyzer (0.02 -10 mA, up to 5V) w/ Laptop & Software - BST8-MA

$3,598.00

-65%NEW
Thumbnail 1Thumbnail 2

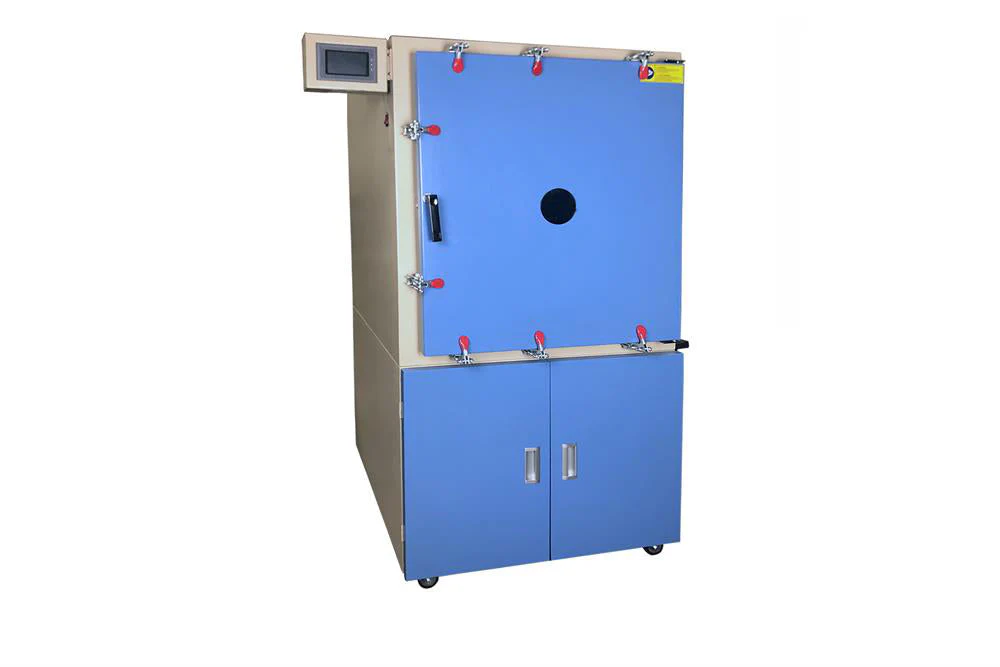

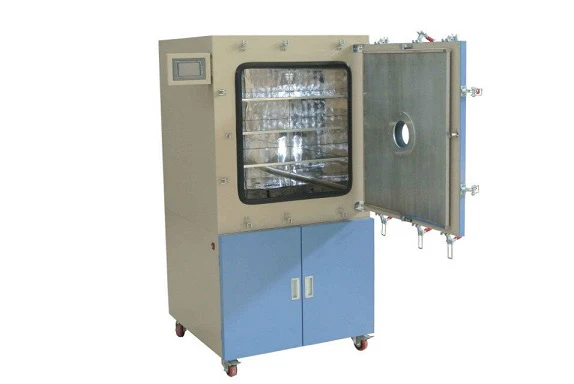

215L Vacuum Chamber (22"x 25" x 24") with Programmable Pressure Control for Battery Altitude Simulation (UN 38.3.4.1) -- MSK-VA215

$23,986.00

$8,395.10

-65%NEW
Thumbnail 1Thumbnail 2

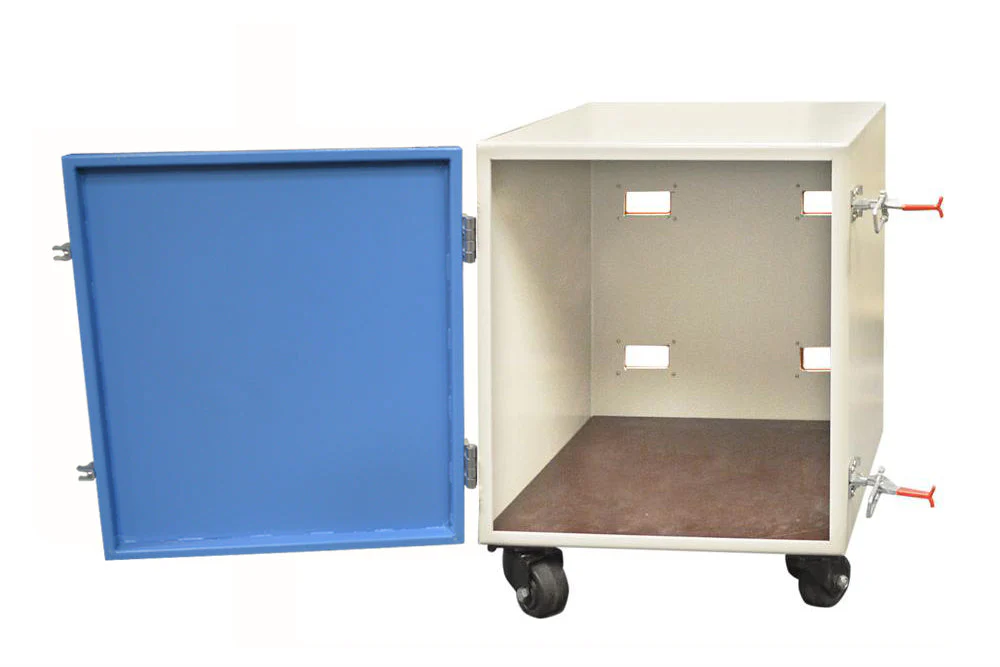

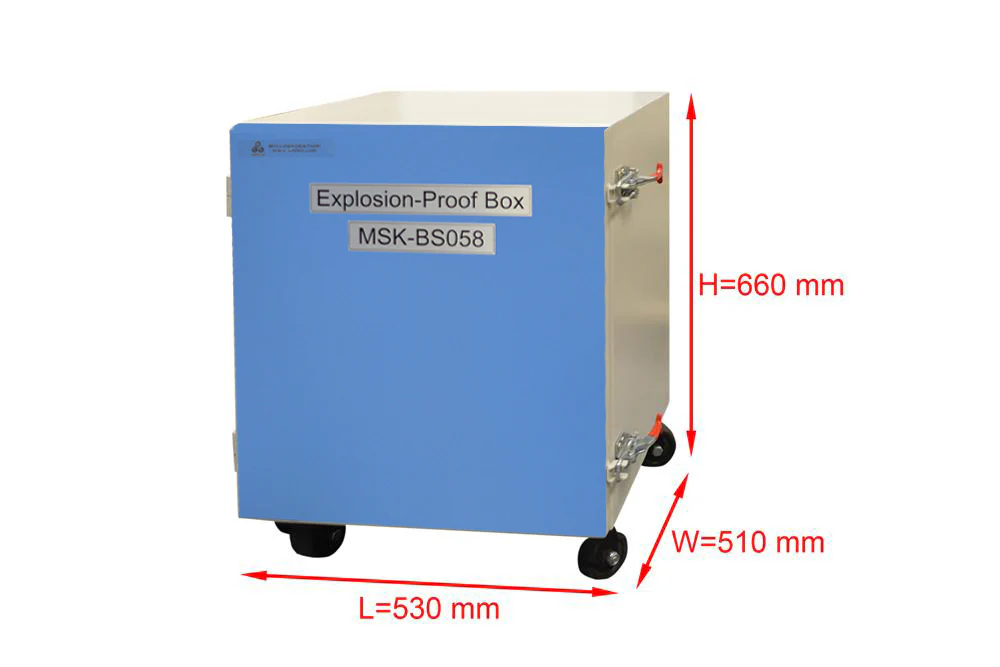

Explosion-Proof Box for Battery or High Pressure vessel Testing (20" x 20" x 20", 125L, UN38.3.4.7 & 8) - MSK-BS058

$1,998.00

$699.30

NEW
Thumbnail 1Thumbnail 2

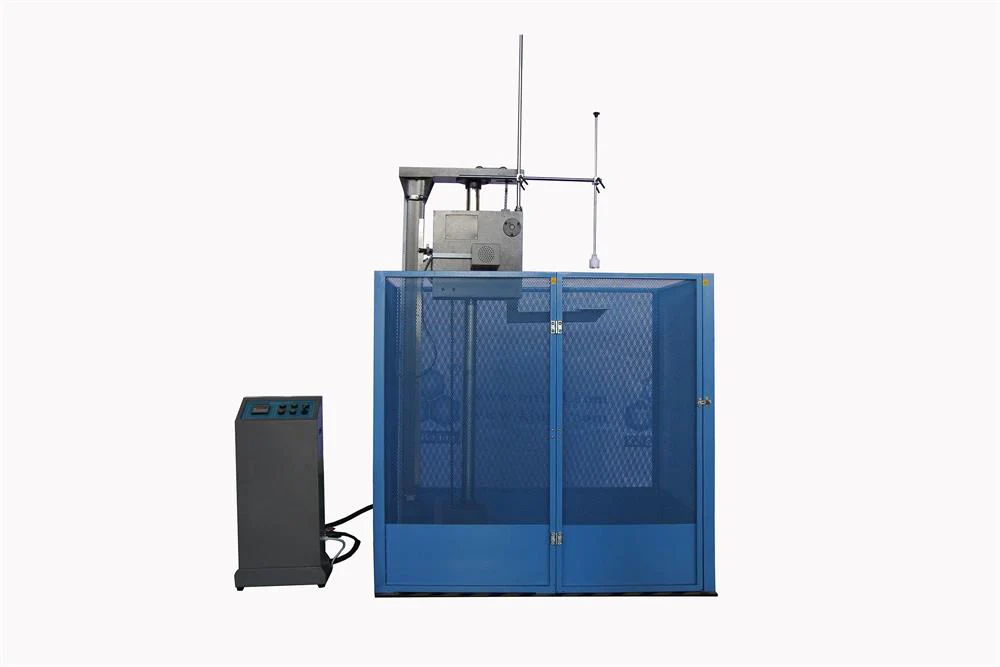

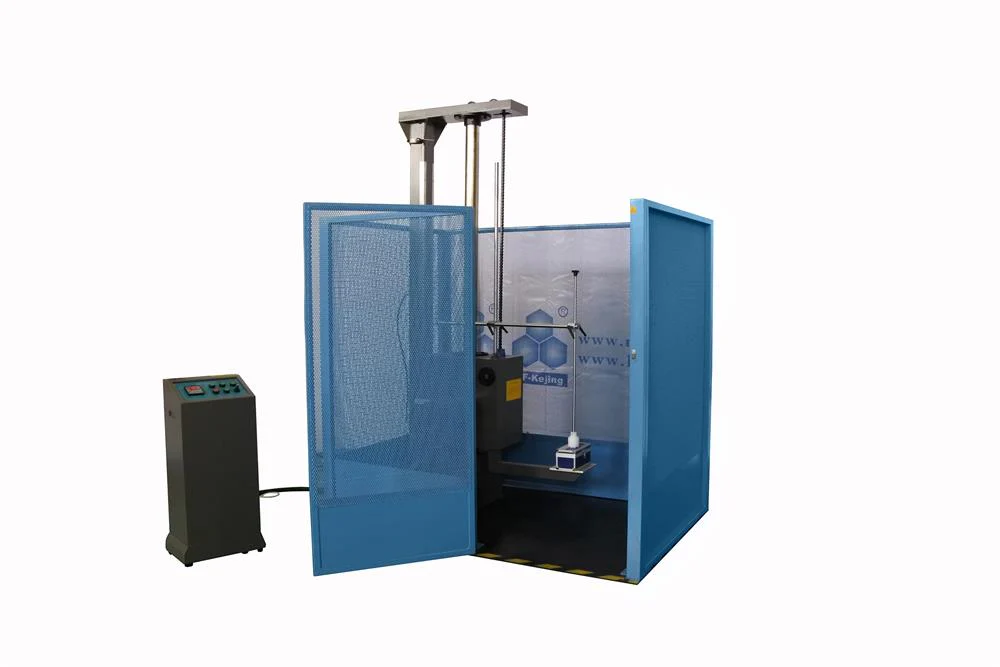

Drop Tester for Lithium Battery Package (UN3480) - MSK-TE908B-UL

$8,998.00

-65%NEW
Thumbnail 1

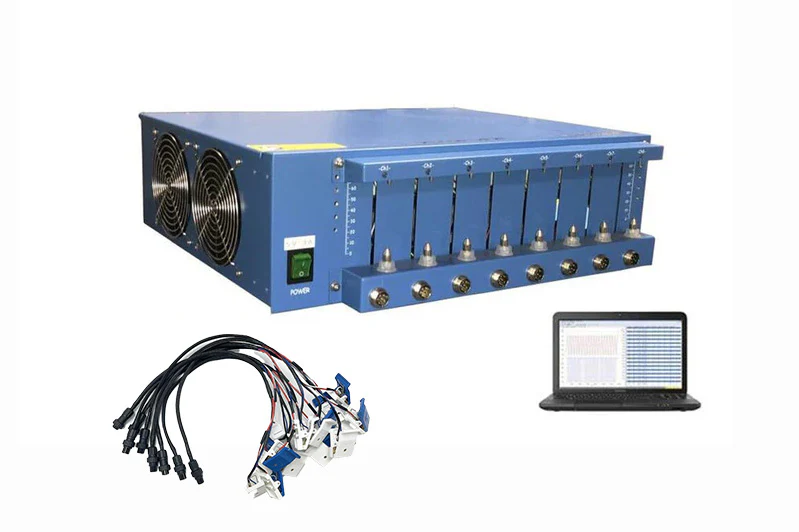

8 Channel Battery Analyzer (2-1000 mA, 5V per Channel ) w/ Laptop & Software - BST8-1A

$3,698.00

$1,294.30

NEW
Thumbnail 1Thumbnail 2

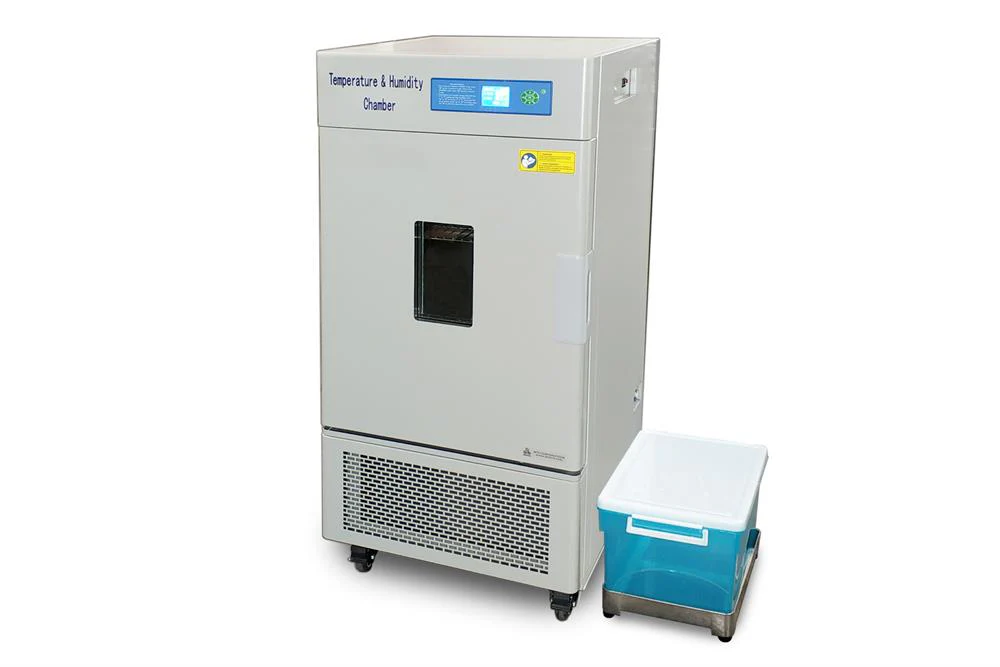

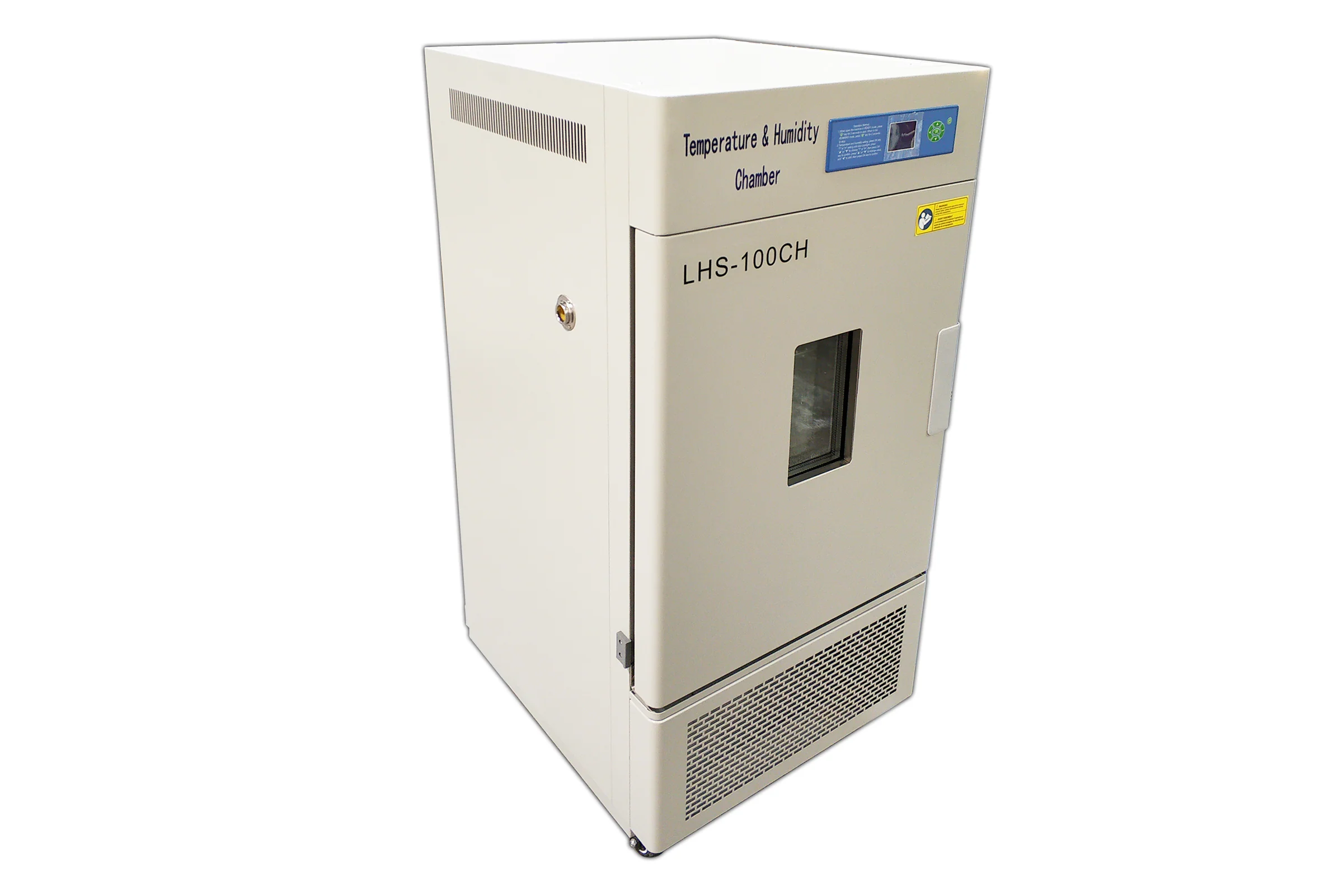

Humidity & Temperature Test Chamber ( RT - 85 °C / 80% - 95% RH, 100L) - MSK-HT100L

$9,985.00

NEW
Thumbnail 1Thumbnail 2

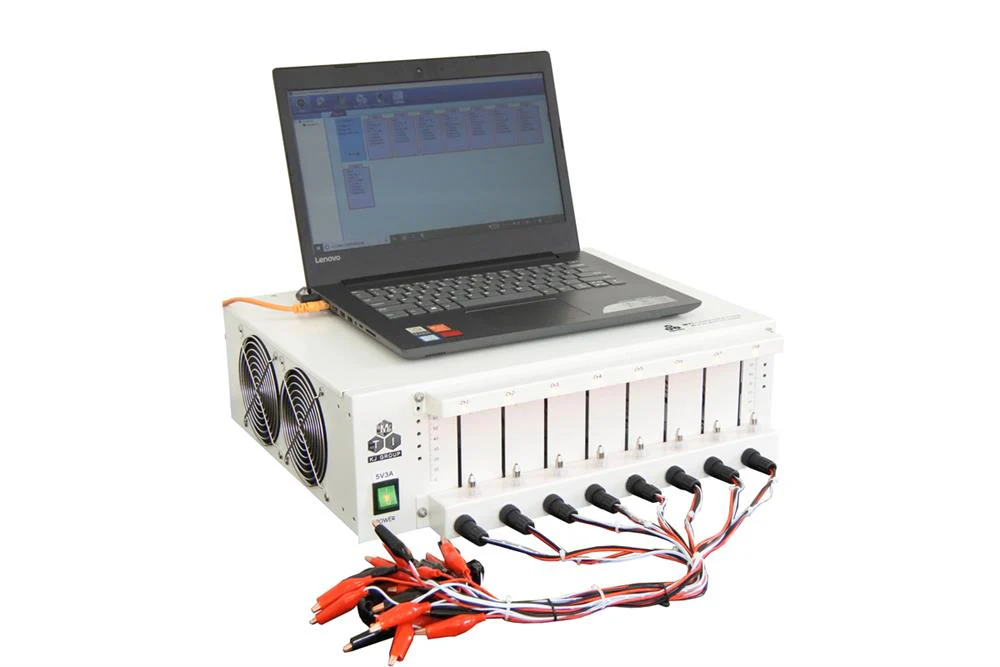

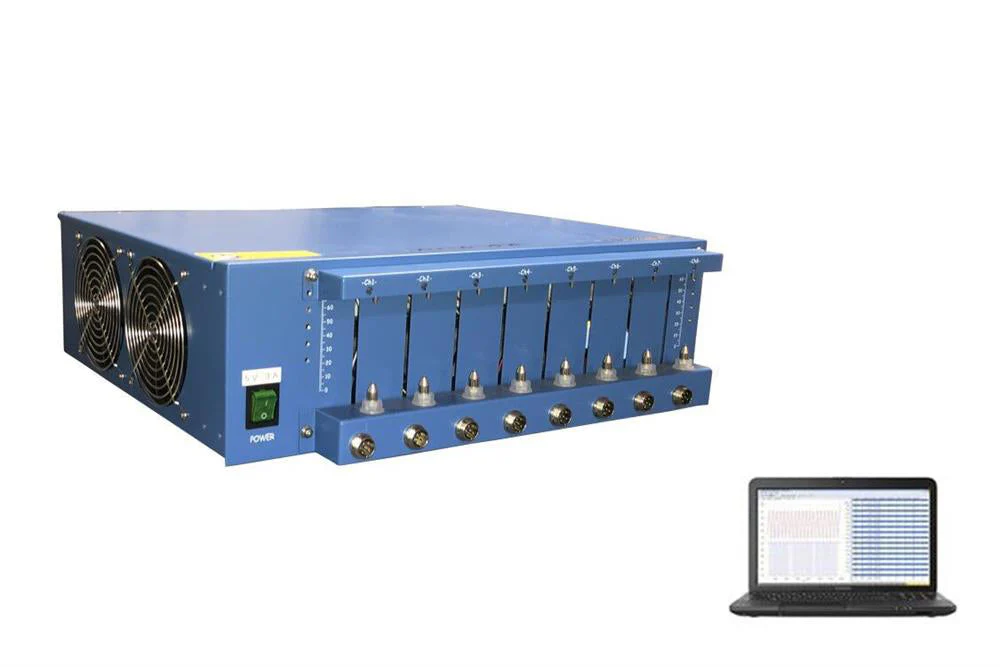

8 Channel Battery Analyzer (6-3000 mA, 5V) w/ Laptop & Software, with Optional Temperature Sensor - BST8A3

$3,998.00

NEW
Thumbnail 1

Precision Humidity & Temperature Test Chamber (-10 - 70 °C / 40% - 95% RH, 149L) - MSK-HT140L

$16,998.00

-65%NEW
Thumbnail 1

5T Max. Precision Programmable Nail Penetration Tester ( 0.01 - 500mm/m) w/ Heating Oven - MSK-TE501

$39,998.00

$13,999.30

-65%NEW
Thumbnail 1Thumbnail 2

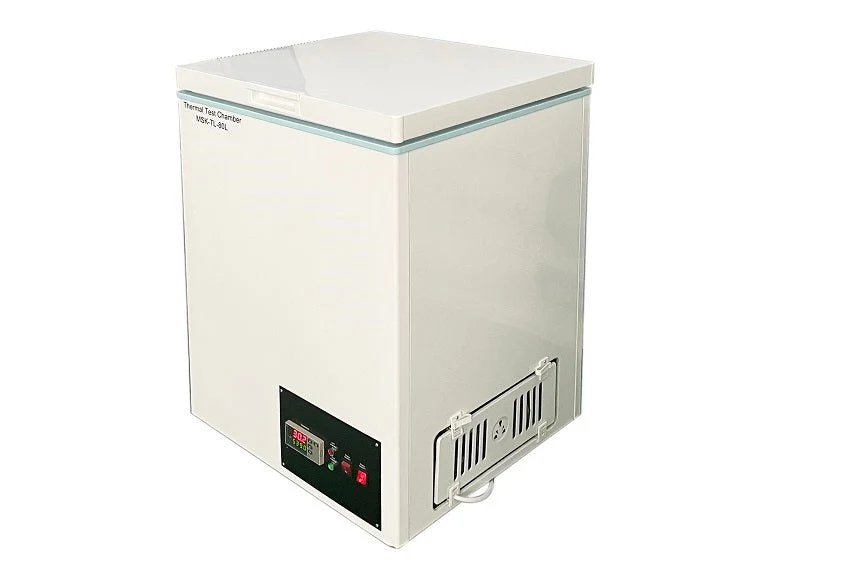

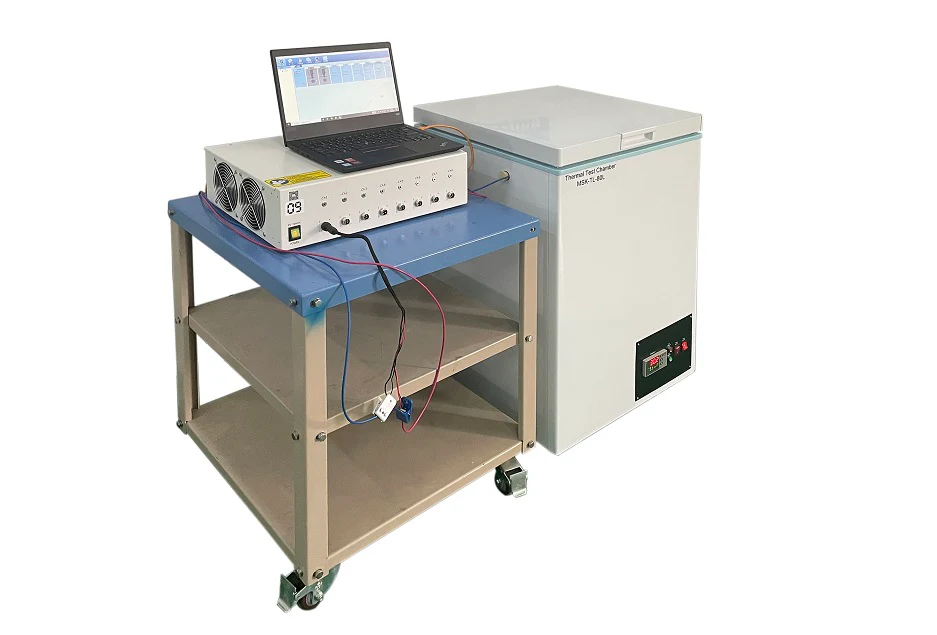

80L Thermal Test Chamber (-40 C to +100C, Programmable Temperature Controlled ) - MSKTL80L
