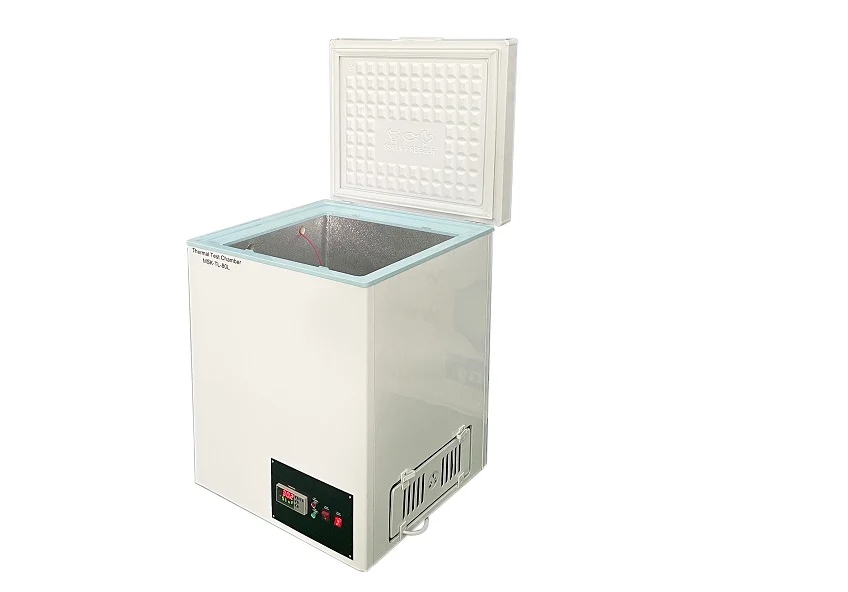

80L Thermal Test Chamber (-40 C to +100C, Programmable Temperature Controlled ) - MSKTL80L

MSK-TL-80 is a thermal test chamber from -40°C to +100°C with a programmable temperature controller and an accuracy of ±1°C. With a chamber size of 470 L x 420W x 460H mm (80L), it becomes a cost-effective testing unit for rechargeable batteries.



Power Requirement	208 - 240VAC 50/60 Hz  750 W 110VAC is available via a 1500W transformer

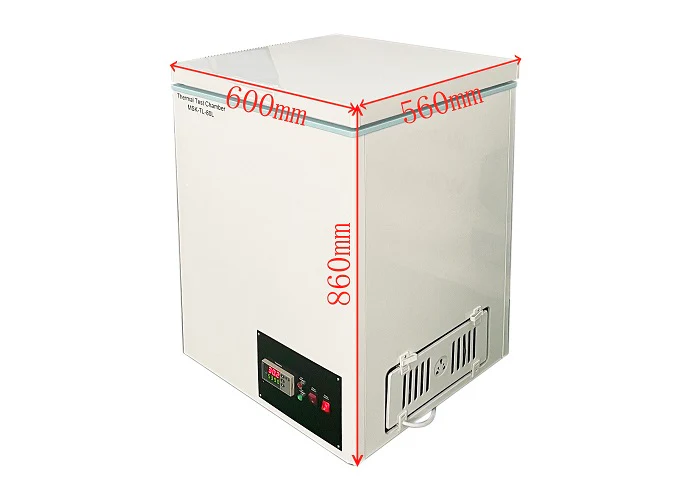

Structure	Chamber: 470 L × 420 W × 460 H (mm) Total: 600L × 560 W × 860 H (mm) Two 25 mm ports on the left side are designed for battery analyzer or electric device feed-throughs Nominal capacity: 80 L
Temperature control	Digital Temperature controller with 30 segments temperature control from -40 to +100 °C Accuracy : +/- 2 °C Max. heating rate : ~1.5 °C/min (25 - 100 °C )  Max cooling rate: ~ 0.7 °C/min (25 - -40 °C) RS485 port is built-in for PC communication Optional: The furnace may be operated by PC with an optional communication module. Please order an MTS-01 control module at an extra cost
Compliance	CE NRTL or CSA certification is available upon request
