215L Vacuum Chamber (22"x 25" x 24") with Programmable Pressure Control for Battery Altitude Simulation (UN 38.3.4.1) -- MSK-VA215

MSK-VA215 is a 215 L vacuum chamber (22"x 25" x 24")with a built-in vacuum pump and pressure control system, designed for Battery Altitude Simulation Test based on UN 38.3 (38.3.4.1). It can also be used as a vacuum storage chamber with control of vacuum pressure

Please click here to review the UN38.3 Li-Ion Battery Transportation Safety Testing Requirements

Power	110 VAC, 50/60Hz, 600 W 208-240V available upon request.

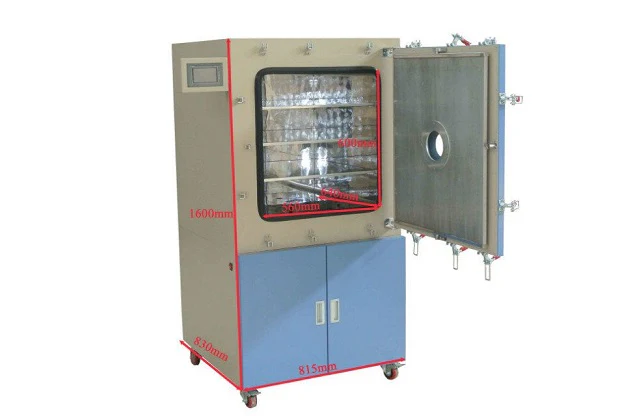

Chamber	Heavy duty stainless steel structure Eight Toggle Clamps to ensure a vacuum seall Silicone door gasket 3 stainless steel shelves are included to facilitate the test of multiple batteries. Ø4" x T 12mm tempered glass observation window with an explosion-proof film Inside dimensions: 560 mm x 640 mm x 600 mm ( 22"x 25" x 24") 215 liters (7.59 cubit feet) Vacuum Pressure: < 0.2 kpa (1.5 Torr) by the built in mechanical pump
Pressure Control	Single-stage programmable vacuum control (< 3% error bar below 70 kPa, < 4.5% error bar above 70 kPa) 6" Touch-screen panel for pressure control and testing time recording. Optional function programmable pressure control up to 9 segments.

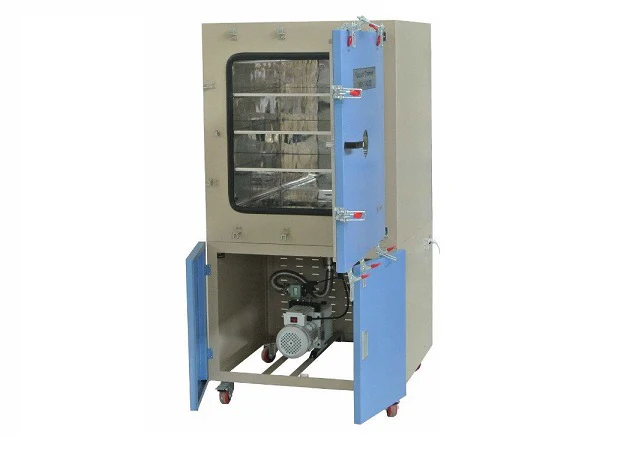

Accessories	One 156 L/m Double Stage Rotary Vane Vacuum Pump with Exhaust Filter and a vacuum below are built at the bottom of the chamber for immediate use. 4 mobile wheels are installed for easy moving The pressure gauge is pre-calibrated before shipping.
Compliance	CE Certified. NRTL field certification is available at an extra cost
