1100°C Dual-Zone Rotary Tube Furnace with Automatic Feeding & Collecting, 110V - OTF1200XIISR-AF
HomeStore

1100°C Dual-Zone Rotary Tube Furnace with Automatic Feeding & Collecting, 110V - OTF1200XIISR-AF

1100°C Dual-Zone Rotary Tube Furnace with Automatic Feeding & Collecting, 110V - OTF1200XIISR-AF

The OTF-1200X-S-R-II-AF is a dual-zone rotary tube furnace equipped with automatic feeding, rotation, tilting, lifting, and material collection functions. It enables continuous feeding, heating, sintering, and collection processes. The system is specifically designed for universities, research institutes, and industrial enterprises for sintering and analysis of lithium-ion battery cathode/anode materials, non-corrosive powders, and granular materials under atmosphere or vacuum conditions.

Specifications:

Furnace Construction
  • Double shell casing with three cooling fans
  • High purity Alumina fibrous insulation for max. energy saving
  • Gear DC motor drives quartz tube with variable

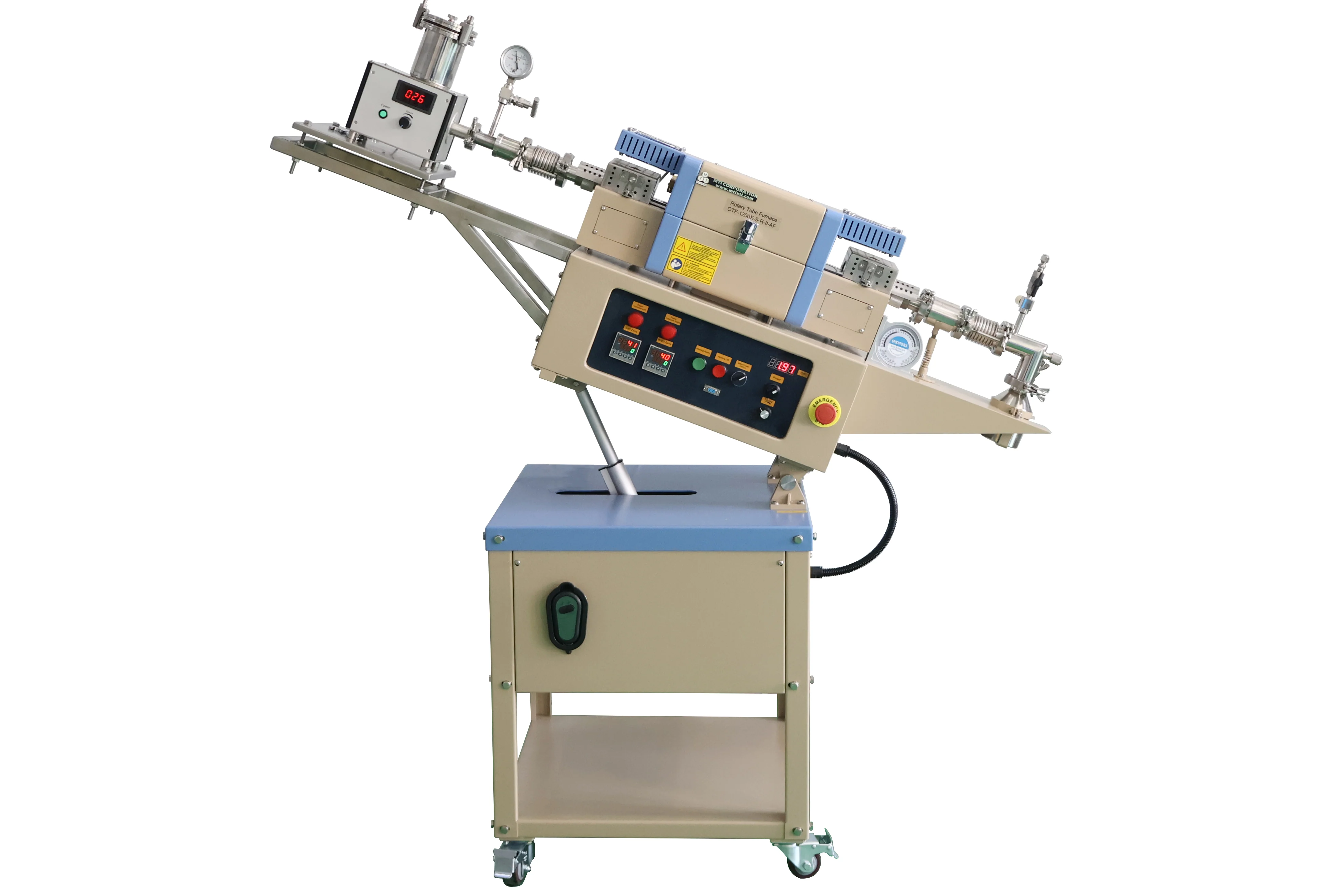

  • The furnace can be tilted up to 20°

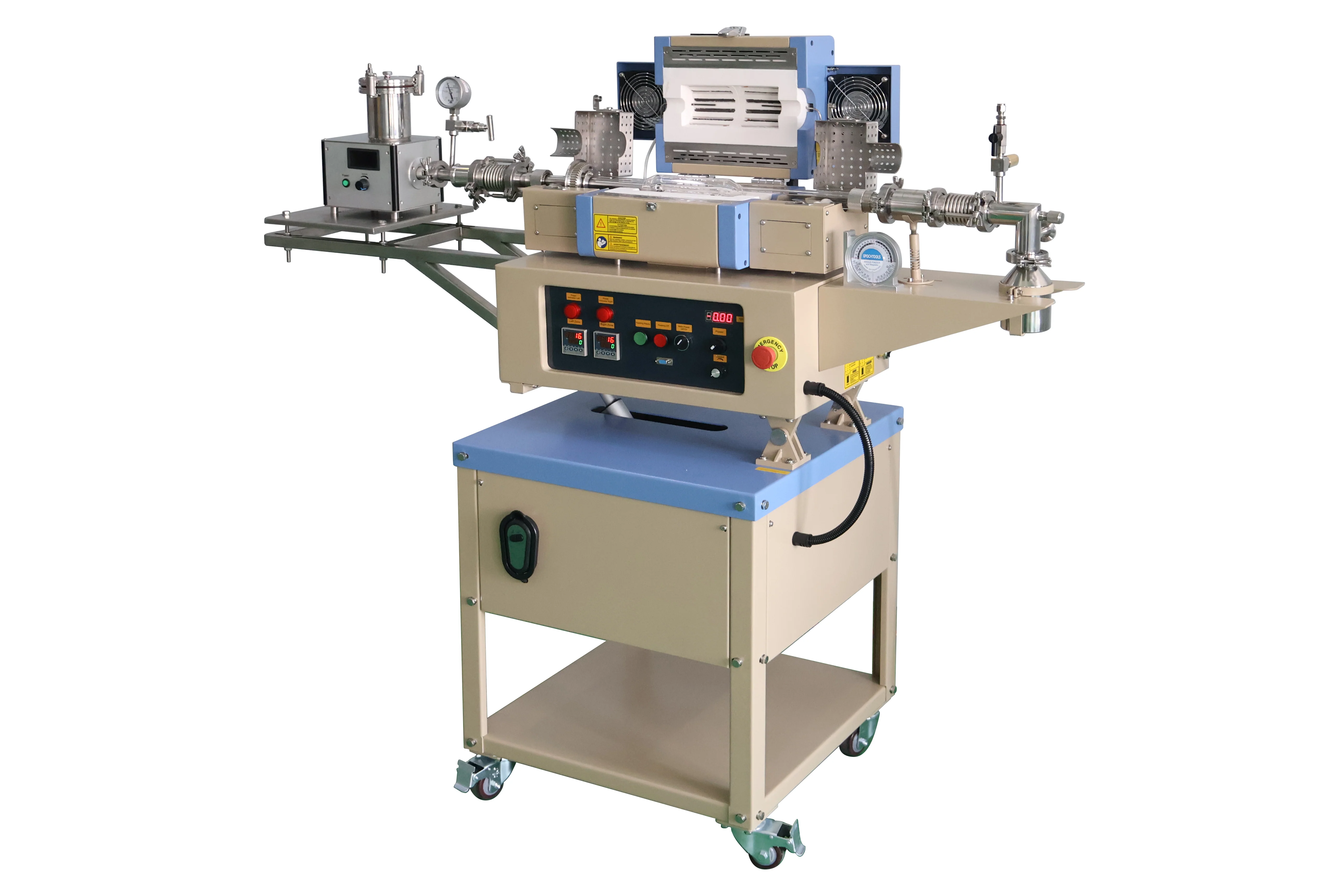

  • The split cover enables faster cooling and easy operation
Working Voltage

  • Single-phase AC 110V ±5%, 50/60Hz
Output Power
  • Furnace: 2kW
Thermocouple
  • Type K
Working Temperature
  • Max Operating Temperature: 1100°C (≤60 min)
  • Continuous Operating Temperature: 1050°C (≤1000°C under vacuum)
  • Recommended Heating Rate: ≤10°C/min
  • Temperature Accuracy: ±1°C
Heating Zone Length
  • 200 mm
Tilting Angle
  • -5° to +20° (adjustable)
Rotary Tube
  • Dimensions: φ30 mm (ends) × φ50 mm (center) × 700 mm
  • Rotation Speed: 2–10 rpm (max 10 rpm)
  • Max Material Capacity: ~30 ml
  • DC motor–driven tube rotation, maximum speed 10 rpm, adjustable range 2–10 rpm.

Special-shaped quartz tube with internal lifting vanes

5" Quartz Tube for MTI Two Zone Rotary Tube Furnace - TQSR5-N

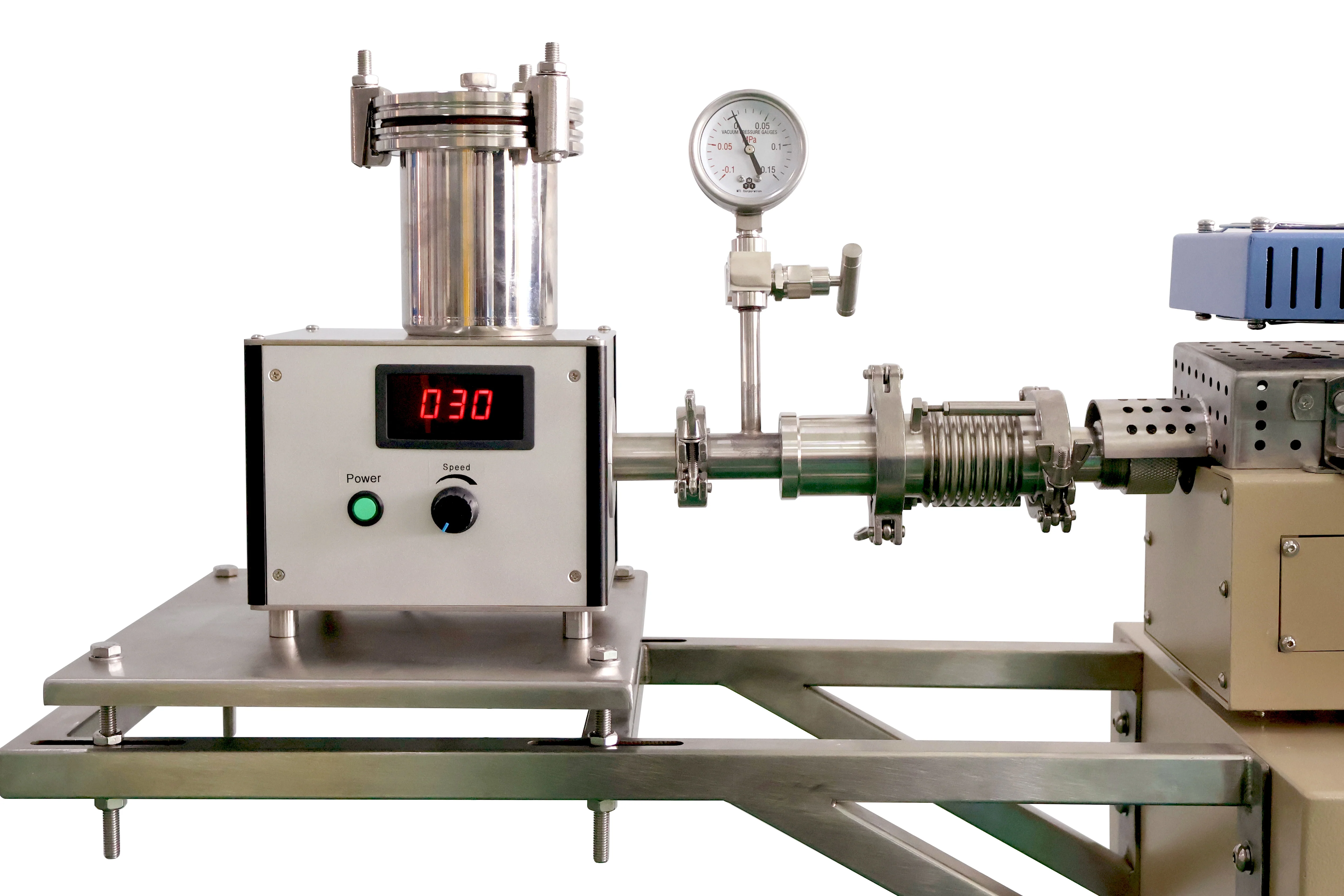

Automatic Feeder
  • Power: DC 24V / 30W
  • Volume: 500 ml (customizable)
  • Feeding Rate: 3–60 ml/min (adjustable)
  • Particle Size: 90–250 μm (customizable up to φ2 mm)
  • Outlet: KF25 stainless steel auger
  • 50 ml Volume stainless steel KF40 collection tank
Flanges
  • Sealing via quick-clamp flanges, ferrofluid seals, and silicone O-rings.
  • Left side (KF40): quick-clamp flange → flexible KF40 bellows → ferrofluid seal assembly, including φ6.35 mm gas inlet (double-ferrule) with stainless-steel needle valve, mechanical pressure gauge (–0.1 to 0.15 MPa); downstream KF25 interface connected to the automatic feeder.

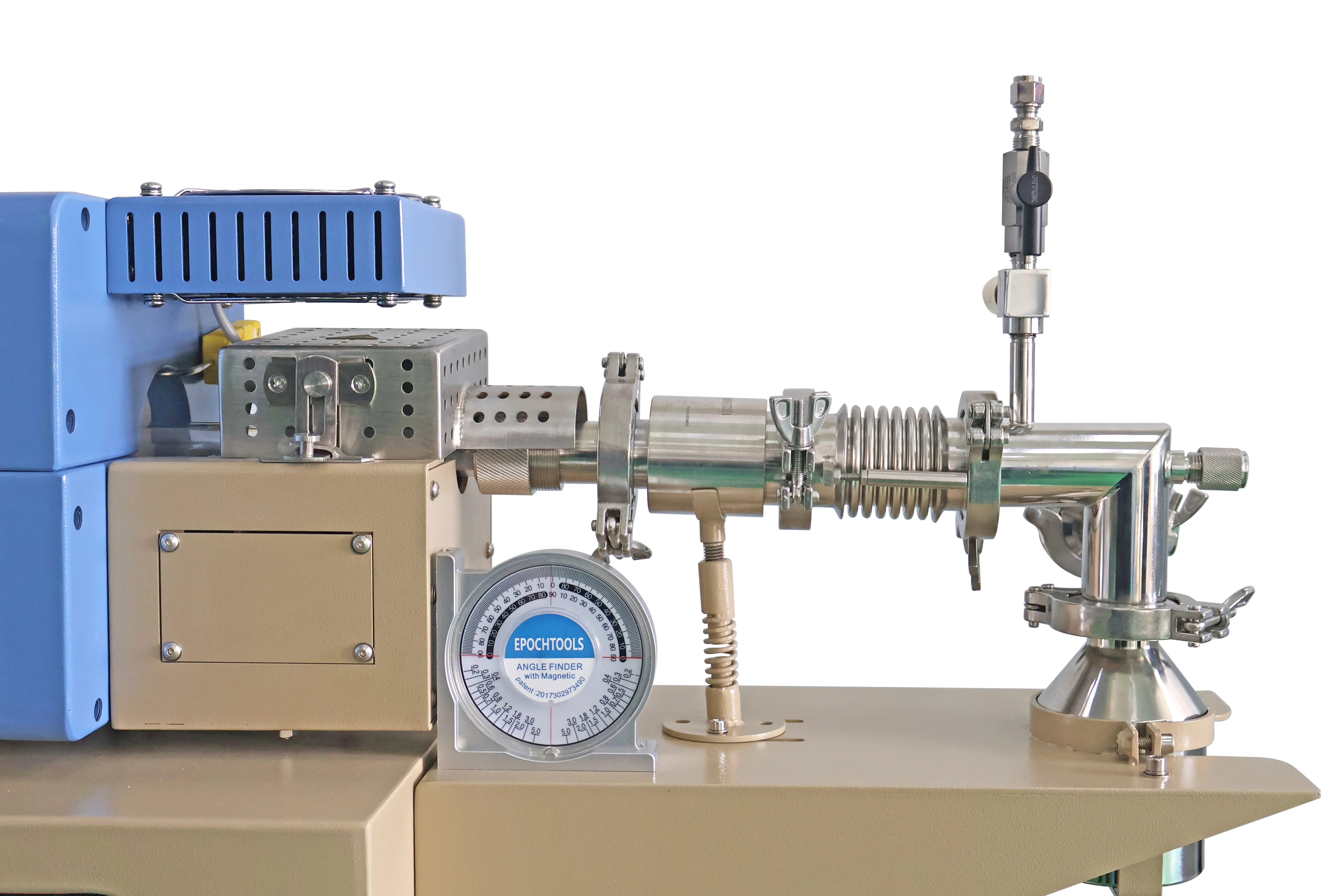

  • Right side (KF40): quick-clamp flange → KF40 ferrofluid seal → flexible bellows → KF40 elbow assembly, including gas outlet (hose barb) with 3 mm ball valve, KF25 vacuum port (for connection to vacuum system), φ6.35 mm armored cleaning port; outlet connected to the material collection tank.
Temperature Controllers
  • Dual digital PID controllers
  • 50-segment programmable control
  • Accuracy: ±1°C
  • DB9 PC communication port
  • MET certified
PC software (Optional)
  • Brand new laptop with Microsoft Windows 10 and Microsoft Office 2013 (30 days free trial) for immediate use.
  • Labview Based Temperature Control System (EQ-MTS01)enables the user to edit temperature profile, manage heat-treatment recipes, and record and plot data for MTI furnaces.
  • A wireless remote control provides up to 300 meters of operating range.
Dimensions

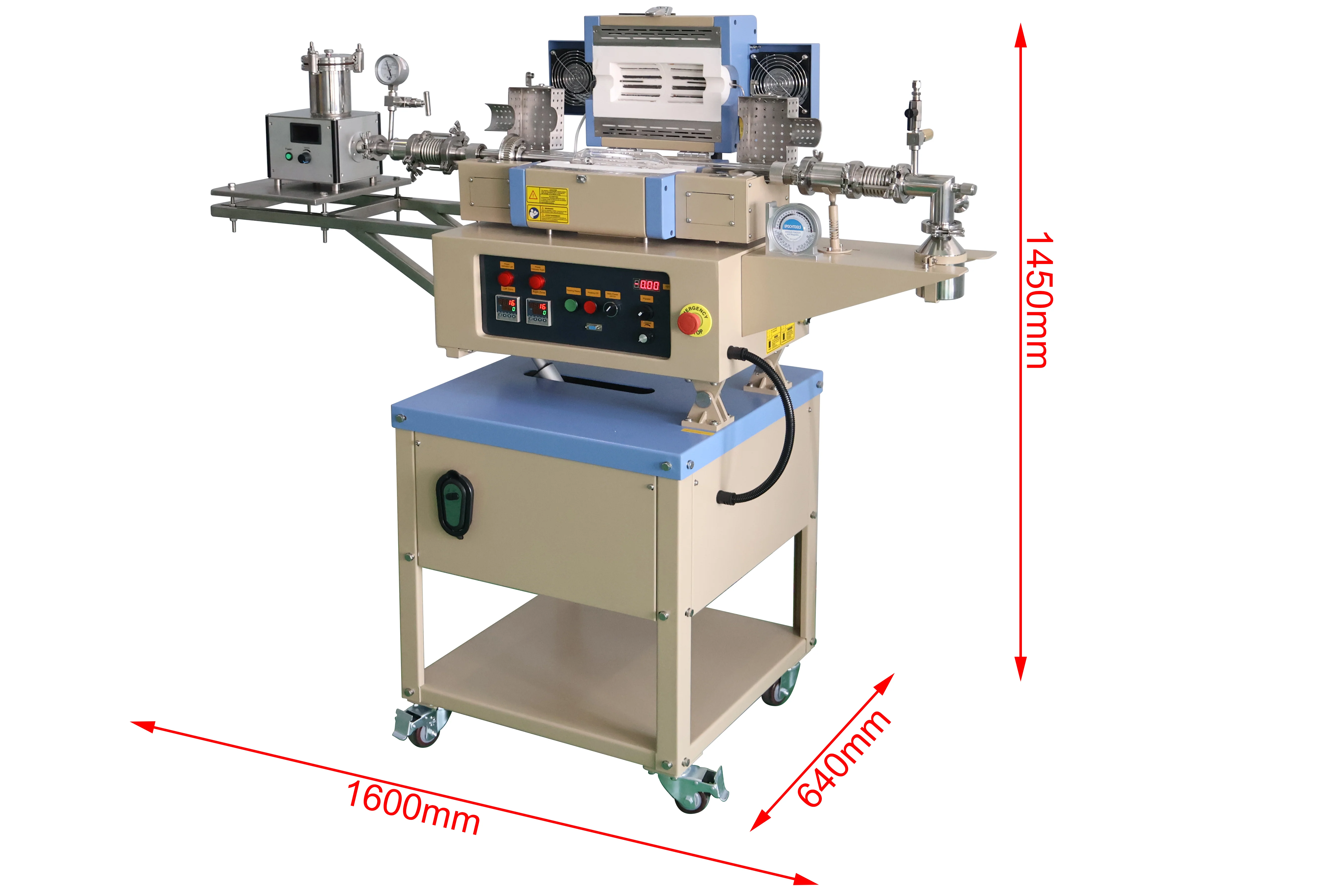

  • Furnace Opened: 1600 × 640 × 1450 mm (L × D × H)

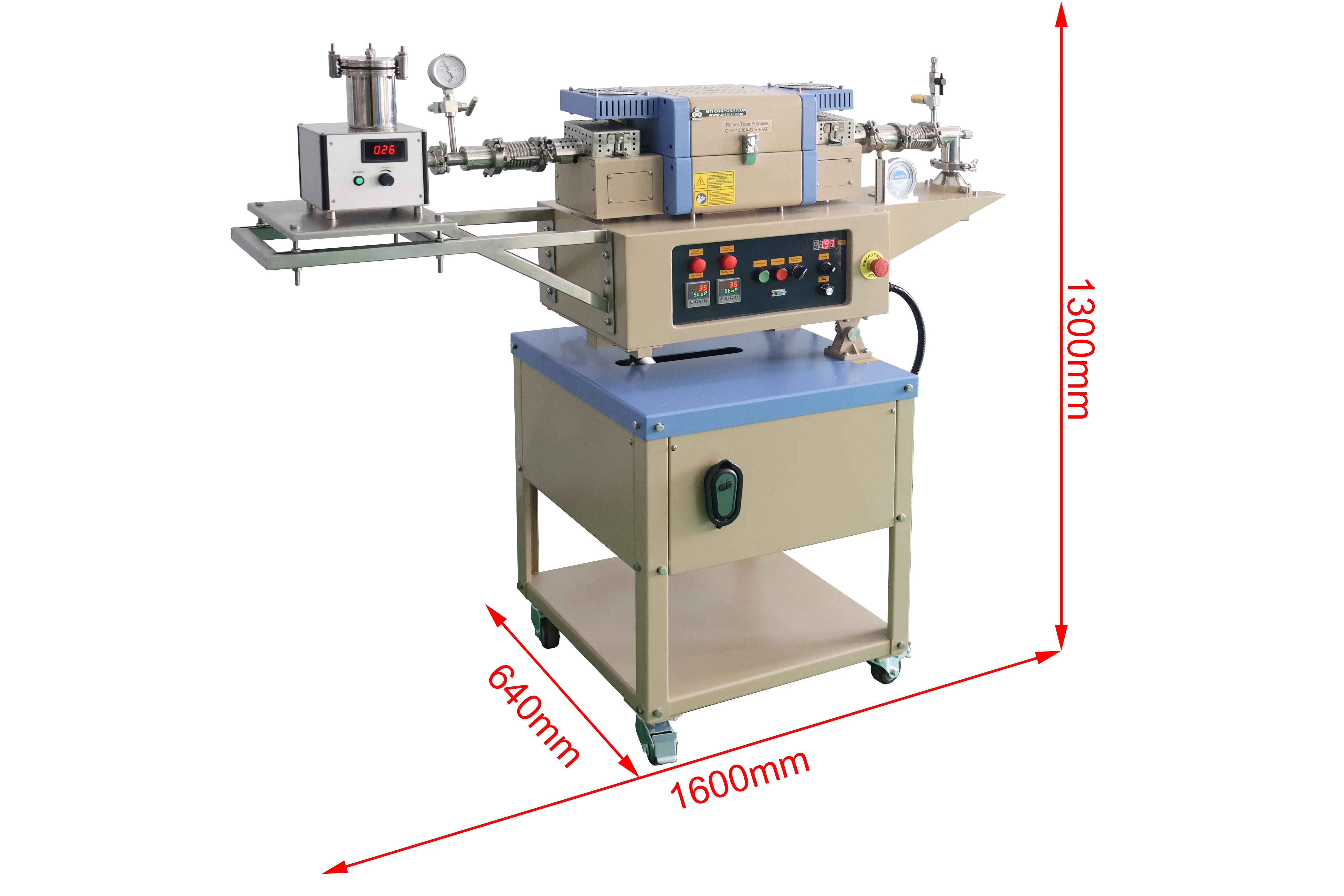

  • Furnace Closed: 1600 × 640 × 1300 mm (L × D × H)
  • Net Weight: about 120kg
Furnace Compliance
  • Patterned Product with Patten Number: ZL-2011-2-0162234.8 SINCE 2011-5-19
  • CE Certified
  • NRTL (UL61010) or CSA certification is available at extra cost.
 Warning
  • The tube furnaces with quartz tube are designed for use under vacuum and low pressure < 0.2 bars / 3 psi / 0.02 MPa
  • Attention: A two-stage pressure regulator must be installed on the gas cylinder to limit the pressure to below 3 PSI for safe operation. Click here to learn the installation of a gas regulator.
  • Vacuum limit definition for all quartz tube furnaces: * Vacuum pressures may only be safely used up to 1000°C
