1200°C Max. Heating 4" Tube Furnace with Sliding Flange - OTF1200XSF4

OTF-1200X-100-SF is a compact 4" ID quartz tube furnace with slidable flange with 1200°C Max. working temperature, which is designed for customers to build a DIY CVD system easily.

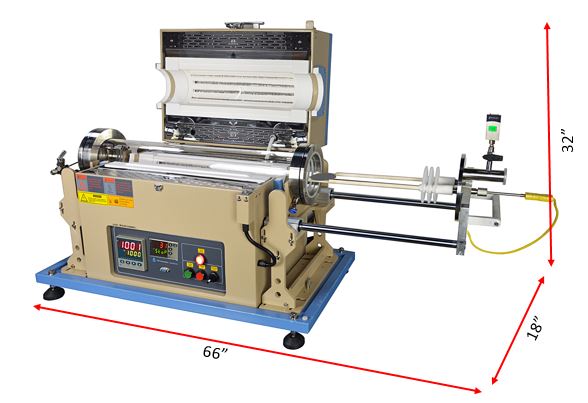

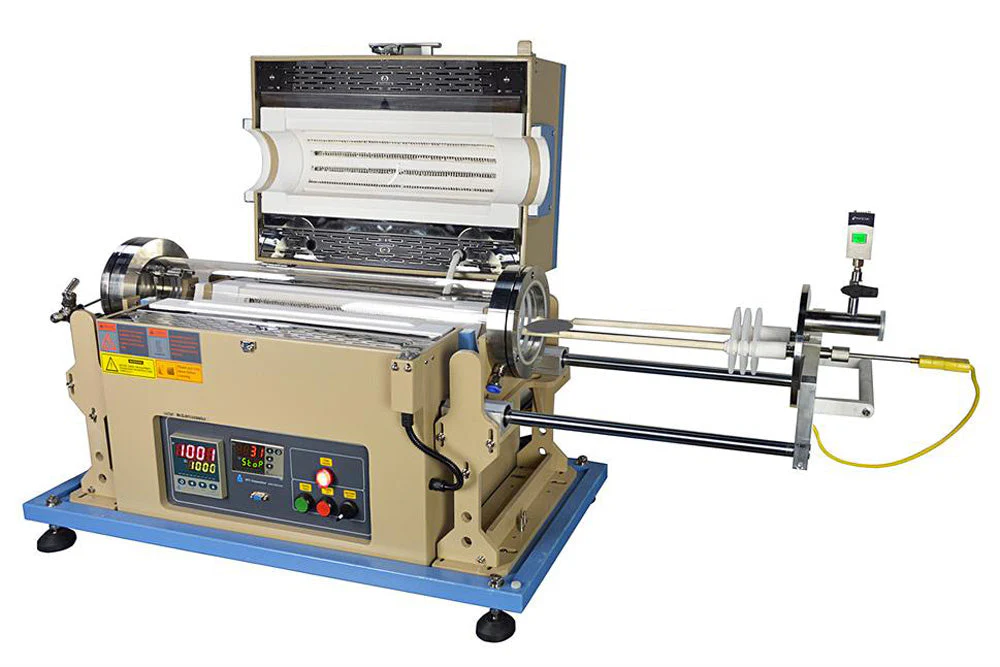

Furnace Structure	Compact CVD furnace system is modified from OTF-1200X-100 single zone tube furnace: 4.33" O.D x 4.05" I.D x 29.13" Length quartz tube 1200ºC Max. working temperature Water cooling flange on right-side is slidable for easy sample loading Water cooling flange on the left-side is for gas inlets, and customized feedthrough is available upon request. Split cover with Interlock protection, cut the power if the door open during furnace heating process. Please click the picture below for more details:
Rated Voltage	Single Phase, 220V AC, 50/60 Hz, AWG 8# Power cord is included (without plug)
Power Consumption	Max. 3600 W (20 A breaker required)
Heating Zone	Heating zone Length:  440 mm Constant temperature zone: 100 mm
Working Temperature	Max heating temperature: 1200°C ( < 30 minutes ) Continuous working temperature: 200~1100°C Max heating & cooling rate: 20°C/min
Temperature Control	Digital controller with PID/self-tuning function and 30 segments programmable Thermocouple: K type thermocouple, which is inserted from the right side flange and connected to the temperature controller. Control accuracy: +/- 1°C Software for PC control furnace is available as optional (click picture below to order)
Vacuum and Gas Sealing & Flange	Right flange: Water cooling structure with 12mm quick connector to prevent sealing o-ring from melting (water cooler is not included, please click water chiller to order) KF25 vacuum fitting (to the vacuum pump, please click to order a pump,  vacuum hose, valve and sealing gasket) Slidable to easily and fast push/pull in/out the sample One quartz wafer holder ( 3" Dia. max.  ) is built in the flange with heating radiation block for CVD growth on a thin substrate An anti-corrosive capacitance diaphragm gauge is included Left flange with four 1/8'' Swagelok fittings for 1/8'' gas tube: Two separate 1/8'' fitting on the flange for any gas into the CVD furnace   and customized feedthrough is available upon request.
Laptop, software & WiFi Control(Optional)	Brand new laptop with Microsoft Windows 10 and Microsoft Office 2013 (30 days free trial) Labview Based Temperature Control System (MTS01) enables users to edit temperature profiles, manage heat-treatment recipes, record, and plot data for MTI furnaces. A wireless remote control provides up to 300 meters of operating range. The above features are available upon request at an extra cost (up to $1,000). Please contact us for more information. Note: The software is only compatible with MTI’s Yudian Temperature Controller
Compliance	CE Certified NRTL or  CSA or TUV certification is available upon request at extra cost.
Warning	The tube furnaces with quartz tube are designed for use under vacuum and low pressure <0.2 bars / 3 psi / 0.02 Mpa Attention: A two-stage pressure regulator must be installed on the gas cylinder to limit the pressure to below 3 PSI for safe operation. Please click here to learn how to install the gas regulator. Vacuum limit definition for all quartz tube furnaces: * Vacuum pressures may only be safely used up to 1000°C  The flow rate for gasses should be limited to<200 SCCM (or 200ml/min) for reducing thermal shocks to the tube
