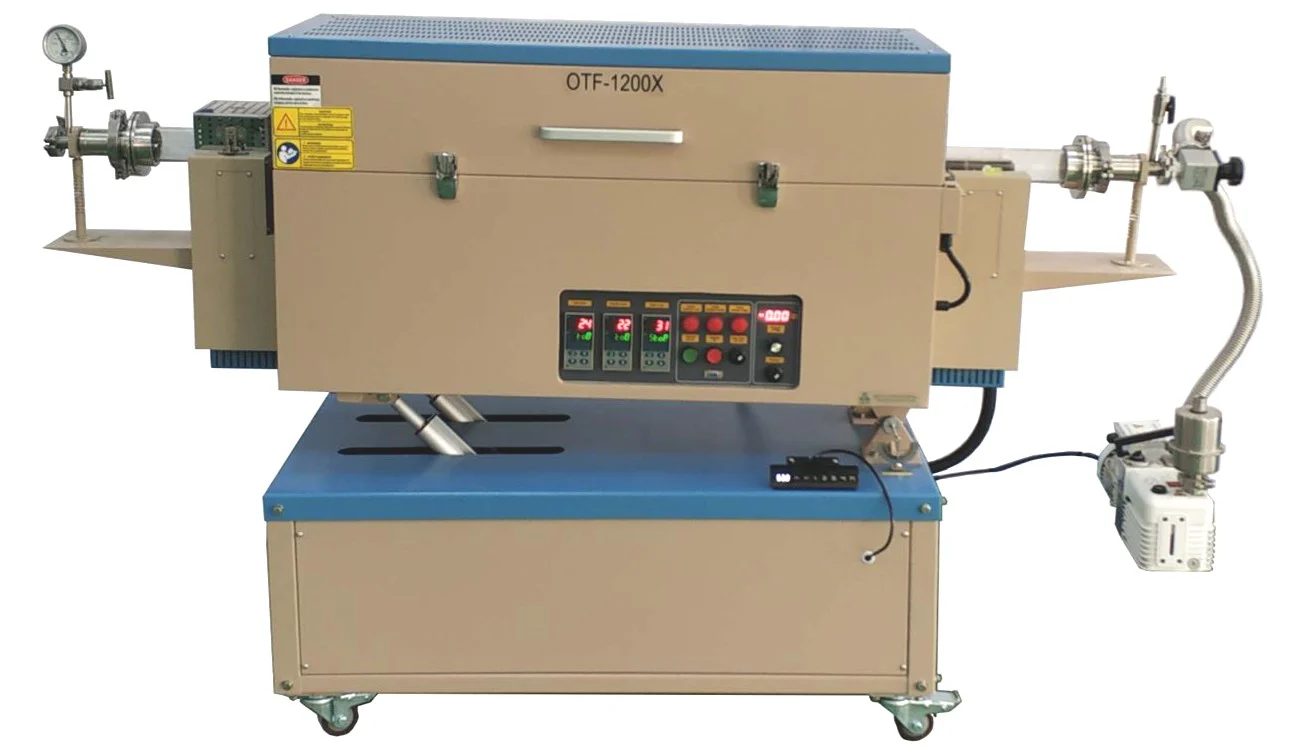

1200C Max.5" Three Zone Rotary Tube Furnace - OTF1200XIIIR5L

1200C Max.5" Three Zone Rotary Tube Furnace - OTF1200XIIIR5L

1200C Max.5" Three Zone Rotary Tube Furnace - OTF1200XIIIR5L

The OTF1200XIIIR5L is a 3-zone rotary tube furnace with a max working temperature of 1100°C. It is designed for powder dehydration, powder surface treatment, CVD/PVD process, and chemical reactions. It is suitable for Li-ion cathode/anode samples, environment samples, and other mineral samples.

Features

rotary quartz tube with mixing blades
3-zone 900 mm heating length
rotary speed 1-10 rpm
tilt angle 1-15°

Specifications:

Working Voltage	AC 208-240V, Single Phase (30A Breaker required), 50HZ
Output Power	7.0KW
Furnace	Double shell casing with three cooling fans DC Gear motor drives quartz tube with variable speed 1 - 10 RPM The furnace can be electrically tilted up to 15°
Rotary Furnace	Double casing with fibrous alumina insulation Three zones: (900 mm, 35.43" in total) Zone 1: 300 mm Zone 2: 300mm Zone 3: 300 mm ≤1100°C at ambient pressure ≤1000°C under vacuum Heating rate ≤10°C Heating element NiCrAl:Mo Rotary speed 2-10 rpm Tilting angle 0-15°
Temperature Control	PID programmable temperature control 50 segments Accuracy ±1°C DB-9, RS485 MODBUS communication
Rotary Tube and Flanges	Left flange Diagram pressure gauge -0.1 - 0.5 MPa Gas inlet Ø1/4" compression tube fitting Needle valve KF25 port Right flange Gas outlet Ø1/4" compression tube fitting Needle valve KF25 vacuum angle valve KF50/KF25 magnetic fluid dynamic seal Rotary Quartz Tube Ø60 × Ø130 × 1600mm Tumbling zone Ø130 × 700mm, about 9000 ml Effective working volume 1800-2250 ml
Tube Pressure	<3 psig
Vacuum System (Optional)	156 L/min Double Stage Rotary Vane Vacuum Pump with Exhaust Filter KF25 for intake and exhaust
Software and Laptop (Optional)	Brand new laptop with Microsoft Windows 10 or 11 for immediate use. LabVIEW-based Temperature Control System (MTS03) for temperature programming, monitoring, and recording.
Compliance	CE Certified NRTL (UL61010) or CSA certification is available upon request at extra cost.

$12,599.65

Original: $35,999.00

-65%

1200C Max.5" Three Zone Rotary Tube Furnace - OTF1200XIIIR5L—

$35,999.00

$12,599.65

More Images

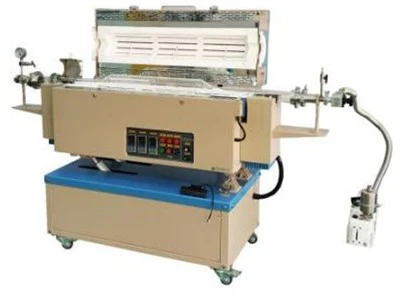

1200C Max.5" Three Zone Rotary Tube Furnace - OTF1200XIIIR5L - Image 2

1200C Max.5" Three Zone Rotary Tube Furnace - OTF1200XIIIR5L - Image 3

1200C Max.5" Three Zone Rotary Tube Furnace - OTF1200XIIIR5L

The OTF1200XIIIR5L is a 3-zone rotary tube furnace with a max working temperature of 1100°C. It is designed for powder dehydration, powder surface treatment, CVD/PVD process, and chemical reactions. It is suitable for Li-ion cathode/anode samples, environment samples, and other mineral samples.

Features

rotary quartz tube with mixing blades
3-zone 900 mm heating length
rotary speed 1-10 rpm
tilt angle 1-15°

Specifications:

Working Voltage	AC 208-240V, Single Phase (30A Breaker required), 50HZ
Output Power	7.0KW
Furnace	Double shell casing with three cooling fans DC Gear motor drives quartz tube with variable speed 1 - 10 RPM The furnace can be electrically tilted up to 15°
Rotary Furnace	Double casing with fibrous alumina insulation Three zones: (900 mm, 35.43" in total) Zone 1: 300 mm Zone 2: 300mm Zone 3: 300 mm ≤1100°C at ambient pressure ≤1000°C under vacuum Heating rate ≤10°C Heating element NiCrAl:Mo Rotary speed 2-10 rpm Tilting angle 0-15°
Temperature Control	PID programmable temperature control 50 segments Accuracy ±1°C DB-9, RS485 MODBUS communication
Rotary Tube and Flanges	Left flange Diagram pressure gauge -0.1 - 0.5 MPa Gas inlet Ø1/4" compression tube fitting Needle valve KF25 port Right flange Gas outlet Ø1/4" compression tube fitting Needle valve KF25 vacuum angle valve KF50/KF25 magnetic fluid dynamic seal Rotary Quartz Tube Ø60 × Ø130 × 1600mm Tumbling zone Ø130 × 700mm, about 9000 ml Effective working volume 1800-2250 ml
Tube Pressure	<3 psig
Vacuum System (Optional)	156 L/min Double Stage Rotary Vane Vacuum Pump with Exhaust Filter KF25 for intake and exhaust
Software and Laptop (Optional)	Brand new laptop with Microsoft Windows 10 or 11 for immediate use. LabVIEW-based Temperature Control System (MTS03) for temperature programming, monitoring, and recording.
Compliance	CE Certified NRTL (UL61010) or CSA certification is available upon request at extra cost.

Product Information

Shipping & Returns

Description

The OTF1200XIIIR5L is a 3-zone rotary tube furnace with a max working temperature of 1100°C. It is designed for powder dehydration, powder surface treatment, CVD/PVD process, and chemical reactions. It is suitable for Li-ion cathode/anode samples, environment samples, and other mineral samples.

Features

rotary quartz tube with mixing blades
3-zone 900 mm heating length
rotary speed 1-10 rpm
tilt angle 1-15°

Specifications:

Working Voltage	AC 208-240V, Single Phase (30A Breaker required), 50HZ
Output Power	7.0KW
Furnace	Double shell casing with three cooling fans DC Gear motor drives quartz tube with variable speed 1 - 10 RPM The furnace can be electrically tilted up to 15°
Rotary Furnace	Double casing with fibrous alumina insulation Three zones: (900 mm, 35.43" in total) Zone 1: 300 mm Zone 2: 300mm Zone 3: 300 mm ≤1100°C at ambient pressure ≤1000°C under vacuum Heating rate ≤10°C Heating element NiCrAl:Mo Rotary speed 2-10 rpm Tilting angle 0-15°
Temperature Control	PID programmable temperature control 50 segments Accuracy ±1°C DB-9, RS485 MODBUS communication
Rotary Tube and Flanges	Left flange Diagram pressure gauge -0.1 - 0.5 MPa Gas inlet Ø1/4" compression tube fitting Needle valve KF25 port Right flange Gas outlet Ø1/4" compression tube fitting Needle valve KF25 vacuum angle valve KF50/KF25 magnetic fluid dynamic seal Rotary Quartz Tube Ø60 × Ø130 × 1600mm Tumbling zone Ø130 × 700mm, about 9000 ml Effective working volume 1800-2250 ml
Tube Pressure	<3 psig
Vacuum System (Optional)	156 L/min Double Stage Rotary Vane Vacuum Pump with Exhaust Filter KF25 for intake and exhaust
Software and Laptop (Optional)	Brand new laptop with Microsoft Windows 10 or 11 for immediate use. LabVIEW-based Temperature Control System (MTS03) for temperature programming, monitoring, and recording.
Compliance	CE Certified NRTL (UL61010) or CSA certification is available upon request at extra cost.
