OTF-1200X-II-UL is a Split two-zone tube furnace that can achieve faster heating up to 1200oC and create a different thermal gradient by setting the different temperatures of each zone. The furnace includes one 40" L fused quartz tube (please select tube O.D in the options bar) with vacuum flanges and valves for immediate use. Two 30 segments of programmable temperature controllers are installed. The microprocessor-based self-tuning PID controller provides excellent control without overshooting the set temperature. It is a perfect tool for CVD applications such as preparing nanomaterials and film.

SPECIFICATIONS:

Furnace structure
  • Double-layer steel case with two cooling fans, which ensures low surface temperature
  • Energy-saving high-purity fibrous alumina liner and insulation
  • High-purity Al2O3 coating which provides a longer service life
Power 3 KW (20A Breaker)
Voltage AC 208-240V Single Phase, 50/60 Hz, a power cord is included without the plug.
Temperature range 100~1100°C (Continuous); 1200°C (<1 hour)
Max. Heating Rate ≤ 20°C /min
Tube Accessories (When the tube size is selected, compatible accessories will match it automatically, please refer to standard package for details)
  • One fused quartz tube with 1000mm L is included
  • Two fibrous ceramic tube blocks are included to block heat radiation from the inside tube. (Ceramic blocks must be fully inserted into the furnace chamber before heating)
  • Quartz block (Optional) is ideal for more cleanness and higher achievable vacuum, Multi-Stack Quartz Thermal Blcok for OTF1200XII100 ,available at extra cost
  • You may order flange support to avoid tube rotating ( click Pic below right )
  •

Heating Zone Length
  • Two zones: each zone length 7.7" (196 mm)
  • Total 17" (432 mm) heating zone

Constant Temp. Zone
  • 150mm (+/-1°C) for each heating zone

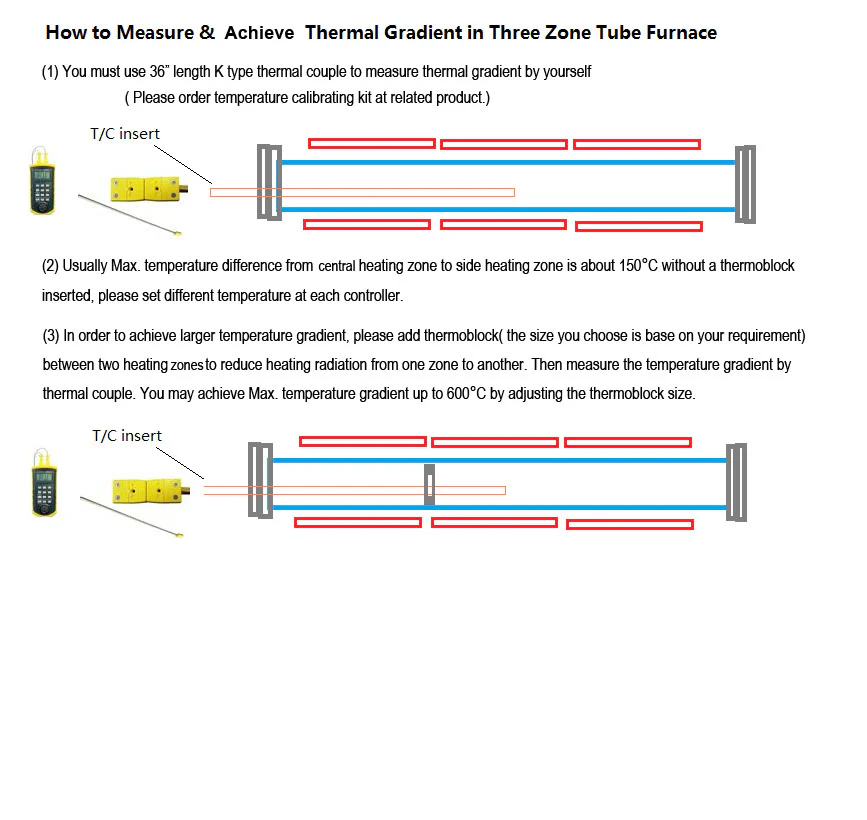

  • A longer constant temperature zone ( about 200mm ) can be created by setting both zones at the same temperature
  • Please click the pic to view the detailed temperature uniformity profile at 800C.







Temperature Controllers
  • 2 digital controllers with 30 programmable segments for precise control of heating rate, cooling rate, and dwell time
  • Built-in PID Auto-Tune function with overheating & broken thermocouple protection
  • Over-temperature protection and alarm allow for operation without attendant(s)
  • +/- 1 ºC temperature accuracy
  • Two K-type thermocouples (one for each zone)
  • RS485 Communications Port
  • Optional:
    • The furnace may be operated by a PC by installing a control module. Please order an MTS-02 control module at an extra cost
    • If you order the PC control module together with the furnace, we will install and test it before shipping. We recommend you to order a computer laptop from us
  •
Thermocouple
TCK8S3B
Temperature Accuracy +/- 1°C
Heating Element Fe-Cr-Al Alloy doped by Mo
Vacuum Flange & Fitting Ports
(Certain flange sizes will be matched as the tube size is selected in the options bar)
  • One pair of SS 304 vacuum flange with double high-temperature silicone O-rings are Included
  • One Vacuum pressure gauge is installed, and one digital vacuum gauge is available upon request at an extra cost
  • The flange set has two 1/4'' Bard fittings, a two-needle valve, one set of KF25 quick clamps, one blank flange fitting, 1/4'' tube feedthrough port (for 1/4" O.D thermocouple insert), and a KF25 vacuum port (click the picture in the left to see details)
  • The vacuum level can reach 10^-2 torr by a quality mechanical vacuum pump and 10^-5 torr by a molecular pump
  • Optional: Please choose a quality mechanical pump or molecular pump (please click the pictures below to find the right one for your application)


  • Optional (only for 80mm O.D and 100mm O.D tube size): Hinged type flanges with support frame for easy sample loading/unloading is available at an extra cost of ($1995 ), please select from the links and order separately:
  • Hinged Vacuum Sealing Assembly with Flange Support for 80 mm Dia Tube Furnace - EQ-FL-80KF25-HG
  • Hinged Vacuum Sealing Assembly with Flange Support for 100 mm Dia Tube Furnace - EQ-FL-101KF25-HG
  • You may order a pressure control module (click the pictures below - right 2-3) to keep the chamber at a constant pressure
  • You may order gas flow control system (click the pictures below - right 1 ) to keep constant mixing gas flow

Laptop, software Control(Optional)


  • Brand new laptop with Microsoft Windows 10 and Microsoft Office 2013 (30 days free trial)
  • Labview Temperature Control System (MTS01)enables the user to edit temperature profiles, manage heat-treatment recipes, and record, and plot data for MTI furnaces.
  • A wireless remote control provides up to 300 meters of operating range.
  • Note: The software is only compatible with MTI’s Yudian Temperature Controller.
Compliance
  • CE Certified
  • NRTL (UL61010) or CSA certification is at an extra cost.
