1200 °C Max 6" Automated Tube Furnace for AI Material Research - GSL1200XS6ASD
HomeStore

1200 °C Max 6" Automated Tube Furnace for AI Material Research - GSL1200XS6ASD

1200 °C Max 6" Automated Tube Furnace for AI Material Research - GSL1200XS6ASD

OTF-1200XS6-ASD is a 6" OD automated tube furnace up to 1100°C. It automates the pump-purge cycles, gas flow, vacuum, heating, and cooling in a sequence. The sliding flange simplifies sample loading and retrieval for conventional tube furnaces. With assistance of a robotic arm, it realizes continuous operation 24×7 to accelerate next-generation material discovery. It also supports remote PC control, monitoring, and data logging and links up to 8 furnaces.

Note: Please check out Prof. Ceder's Group using this furnace for an excellent article:  An autonomous laboratory for the accelerated synthesis of novel materials


SPECIFICATIONS:

Utility
  • 208-240VAC, 50/60Hz, 6 kW
  • Recirculating chilled water
Automation Process
  • Sample loading (assisted by a robotic arm)
  • Pump-purge cycles
  • Steady gas flow
  • Heating, dwelling, and cooling
  • Sample retrieval (assisted by a robotic arm)
Furnace
  • Double-layer steel structure with cooling fans
  • High-purity alumina fibrous insulation for better energy saving
  • Motorized sliding sample stage for sample loading and retrieval.
Working Temperature
  • <1100°C
Heating Area
  • 175+175 mm, dual heating zones
Temperature Uniformity
  • 120 mm @ ± 5°C
Heating Element
  • FeCrAl: Mo
Thermocouple
  • K type
Heating Rate
  • ≦10°C/min
Tube
  • Quartz, Ø150×700 mm
Temperature Controller
  • PID programmable temperature controller
  • Up to 50 temperature segments.
  • Control accuracy ±1°C
Flange Set
  • 304 stainless steel water-cooled flanges
  • Ø12 push-to-connect chilled water inlet/outlet
  • One 1/4" compression tube fitting each side as gas inlet and outlet
  • One 1/4" quick-connect port for in-situ temperature measurement
  • One KF25 port for vacuum generation
Pressure Gauge
  • Inficon PCG 554 ceramic coated Pirani capacitance diaphragm pressure gauge, 3.8e-5 … 1125 torr
Gas Flow
  • 1-1000 sccm mass flow controller
Sample Stage

  • A quartz sample stage with 8 cavities.
  • 8 quartz crucibles Ø21 × 25 mm (6 mL)
  • Crucibles in different materials, such as alumina, graphite, magnesia, are available upon request.
  • Wafer holders for 1-4" are also available upon request.
  • Customized sample holder/crucible is also available upon request
Thermal Block
  • Multi-stack quartz block
Control Panel & Software
  • LabVIEW based software for remote PC control, monitoring, and data logging
  • Complimentary Python API
  • Ethernet TCP/IP communication port
  • PC operation software supports 8 sets of furnaces
  • One laptop with preinstalled software and communication cables.
Robotic Arm (Optional)
  • Automated sample loading and retrieval via an integrated robotic arm.
  • Power: 48VDC, 150W
  • Maximum load: 5kg
  • Accuracy: ±0.02 mm
Vacuum Pump
  • 240L/min rotary vane pump is included.
  • Pump is connected with and controlled by the furnace.
Chilled Water
  • 10L/min, 5-25°C chilled water is required.
  • KJ5000 recirculating water chiller is recommended but not included.
Application Notes
  • The furnace can be integrated with dosing, mixing, milling, and pellet pressing equipment to achieve an automated high temperature materials synthesis platform.
  •
Compliance
  • NRTL or CSA certification is available upon request at an extra cost.



$18,549.30

Original: $52,998.00

-65%
1200 °C Max 6" Automated Tube Furnace for AI Material Research - GSL1200XS6ASD—

$52,998.00

$18,549.30

More Images

1200 °C Max 6" Automated Tube Furnace for AI Material Research - GSL1200XS6ASD - Image 2

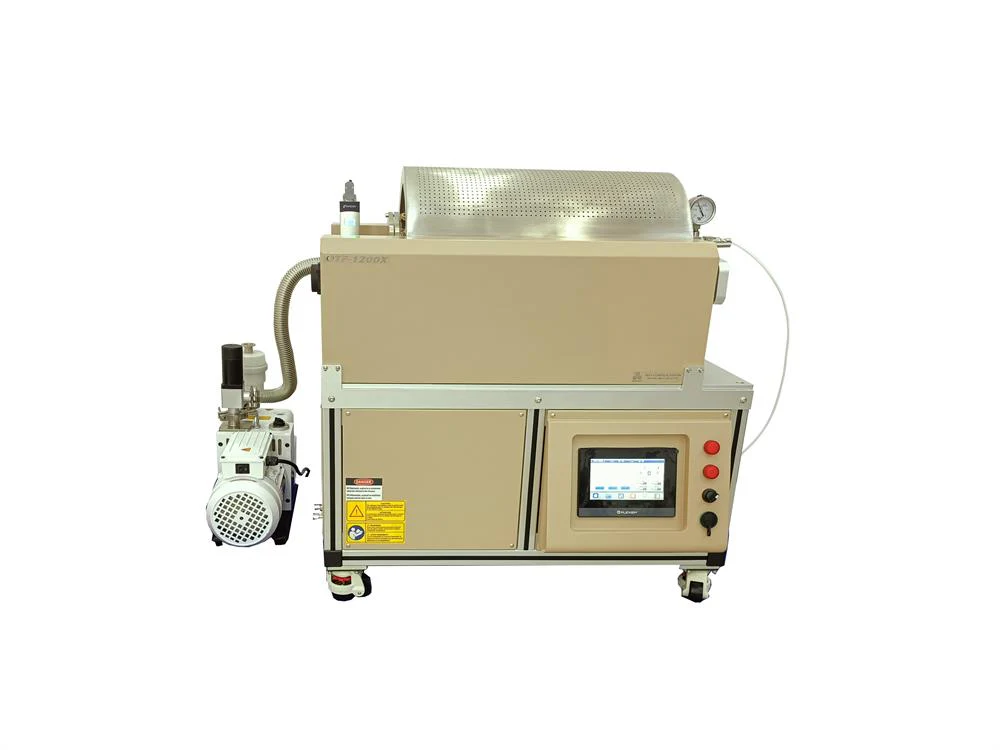

1200 °C Max 6" Automated Tube Furnace for AI Material Research - GSL1200XS6ASD - Image 3

1200 °C Max 6" Automated Tube Furnace for AI Material Research - GSL1200XS6ASD

OTF-1200XS6-ASD is a 6" OD automated tube furnace up to 1100°C. It automates the pump-purge cycles, gas flow, vacuum, heating, and cooling in a sequence. The sliding flange simplifies sample loading and retrieval for conventional tube furnaces. With assistance of a robotic arm, it realizes continuous operation 24×7 to accelerate next-generation material discovery. It also supports remote PC control, monitoring, and data logging and links up to 8 furnaces.

Note: Please check out Prof. Ceder's Group using this furnace for an excellent article:  An autonomous laboratory for the accelerated synthesis of novel materials


SPECIFICATIONS:

Utility
  • 208-240VAC, 50/60Hz, 6 kW
  • Recirculating chilled water
Automation Process
  • Sample loading (assisted by a robotic arm)
  • Pump-purge cycles
  • Steady gas flow
  • Heating, dwelling, and cooling
  • Sample retrieval (assisted by a robotic arm)
Furnace
  • Double-layer steel structure with cooling fans
  • High-purity alumina fibrous insulation for better energy saving
  • Motorized sliding sample stage for sample loading and retrieval.
Working Temperature
  • <1100°C
Heating Area
  • 175+175 mm, dual heating zones
Temperature Uniformity
  • 120 mm @ ± 5°C
Heating Element
  • FeCrAl: Mo
Thermocouple
  • K type
Heating Rate
  • ≦10°C/min
Tube
  • Quartz, Ø150×700 mm
Temperature Controller
  • PID programmable temperature controller
  • Up to 50 temperature segments.
  • Control accuracy ±1°C
Flange Set
  • 304 stainless steel water-cooled flanges
  • Ø12 push-to-connect chilled water inlet/outlet
  • One 1/4" compression tube fitting each side as gas inlet and outlet
  • One 1/4" quick-connect port for in-situ temperature measurement
  • One KF25 port for vacuum generation
Pressure Gauge
  • Inficon PCG 554 ceramic coated Pirani capacitance diaphragm pressure gauge, 3.8e-5 … 1125 torr
Gas Flow
  • 1-1000 sccm mass flow controller
Sample Stage

  • A quartz sample stage with 8 cavities.
  • 8 quartz crucibles Ø21 × 25 mm (6 mL)
  • Crucibles in different materials, such as alumina, graphite, magnesia, are available upon request.
  • Wafer holders for 1-4" are also available upon request.
  • Customized sample holder/crucible is also available upon request
Thermal Block
  • Multi-stack quartz block
Control Panel & Software
  • LabVIEW based software for remote PC control, monitoring, and data logging
  • Complimentary Python API
  • Ethernet TCP/IP communication port
  • PC operation software supports 8 sets of furnaces
  • One laptop with preinstalled software and communication cables.
Robotic Arm (Optional)
  • Automated sample loading and retrieval via an integrated robotic arm.
  • Power: 48VDC, 150W
  • Maximum load: 5kg
  • Accuracy: ±0.02 mm
Vacuum Pump
  • 240L/min rotary vane pump is included.
  • Pump is connected with and controlled by the furnace.
Chilled Water
  • 10L/min, 5-25°C chilled water is required.
  • KJ5000 recirculating water chiller is recommended but not included.
Application Notes
  • The furnace can be integrated with dosing, mixing, milling, and pellet pressing equipment to achieve an automated high temperature materials synthesis platform.
  •
Compliance
  • NRTL or CSA certification is available upon request at an extra cost.



Product Information

Shipping & Returns

Description

OTF-1200XS6-ASD is a 6" OD automated tube furnace up to 1100°C. It automates the pump-purge cycles, gas flow, vacuum, heating, and cooling in a sequence. The sliding flange simplifies sample loading and retrieval for conventional tube furnaces. With assistance of a robotic arm, it realizes continuous operation 24×7 to accelerate next-generation material discovery. It also supports remote PC control, monitoring, and data logging and links up to 8 furnaces.

Note: Please check out Prof. Ceder's Group using this furnace for an excellent article:  An autonomous laboratory for the accelerated synthesis of novel materials


SPECIFICATIONS:

Utility
  • 208-240VAC, 50/60Hz, 6 kW
  • Recirculating chilled water
Automation Process
  • Sample loading (assisted by a robotic arm)
  • Pump-purge cycles
  • Steady gas flow
  • Heating, dwelling, and cooling
  • Sample retrieval (assisted by a robotic arm)
Furnace
  • Double-layer steel structure with cooling fans
  • High-purity alumina fibrous insulation for better energy saving
  • Motorized sliding sample stage for sample loading and retrieval.
Working Temperature
  • <1100°C
Heating Area
  • 175+175 mm, dual heating zones
Temperature Uniformity
  • 120 mm @ ± 5°C
Heating Element
  • FeCrAl: Mo
Thermocouple
  • K type
Heating Rate
  • ≦10°C/min
Tube
  • Quartz, Ø150×700 mm
Temperature Controller
  • PID programmable temperature controller
  • Up to 50 temperature segments.
  • Control accuracy ±1°C
Flange Set
  • 304 stainless steel water-cooled flanges
  • Ø12 push-to-connect chilled water inlet/outlet
  • One 1/4" compression tube fitting each side as gas inlet and outlet
  • One 1/4" quick-connect port for in-situ temperature measurement
  • One KF25 port for vacuum generation
Pressure Gauge
  • Inficon PCG 554 ceramic coated Pirani capacitance diaphragm pressure gauge, 3.8e-5 … 1125 torr
Gas Flow
  • 1-1000 sccm mass flow controller
Sample Stage

  • A quartz sample stage with 8 cavities.
  • 8 quartz crucibles Ø21 × 25 mm (6 mL)
  • Crucibles in different materials, such as alumina, graphite, magnesia, are available upon request.
  • Wafer holders for 1-4" are also available upon request.
  • Customized sample holder/crucible is also available upon request
Thermal Block
  • Multi-stack quartz block
Control Panel & Software
  • LabVIEW based software for remote PC control, monitoring, and data logging
  • Complimentary Python API
  • Ethernet TCP/IP communication port
  • PC operation software supports 8 sets of furnaces
  • One laptop with preinstalled software and communication cables.
Robotic Arm (Optional)
  • Automated sample loading and retrieval via an integrated robotic arm.
  • Power: 48VDC, 150W
  • Maximum load: 5kg
  • Accuracy: ±0.02 mm
Vacuum Pump
  • 240L/min rotary vane pump is included.
  • Pump is connected with and controlled by the furnace.
Chilled Water
  • 10L/min, 5-25°C chilled water is required.
  • KJ5000 recirculating water chiller is recommended but not included.
Application Notes
  • The furnace can be integrated with dosing, mixing, milling, and pellet pressing equipment to achieve an automated high temperature materials synthesis platform.
  •
Compliance
  • NRTL or CSA certification is available upon request at an extra cost.



You may also like

-65%NEW
Thumbnail 1

1700C Max. Dual Zone Tube Furnace - GSL-1700X-II-LD

$14,896.00

$5,213.60

NEW
Thumbnail 1

Dual Zone Quartz Tube Furnace (80mm Dia, 1200C Max) with 3-Ch Gas Mixer, Vacuum Pump, & Anti-Corrosive Vacuum Gauge - OTF-1200X-II-F3LV

$18,986.00

-65%NEW
Thumbnail 1Thumbnail 2

1200C Dual Zone Split Tube Furnace w/ Quartz Tube (60, 80, 100mm) & Flanges - OTF1200XII

$7,698.00

$2,694.30

NEW
Thumbnail 1Thumbnail 2

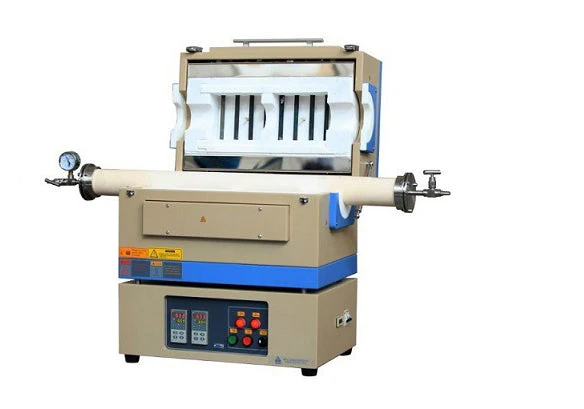

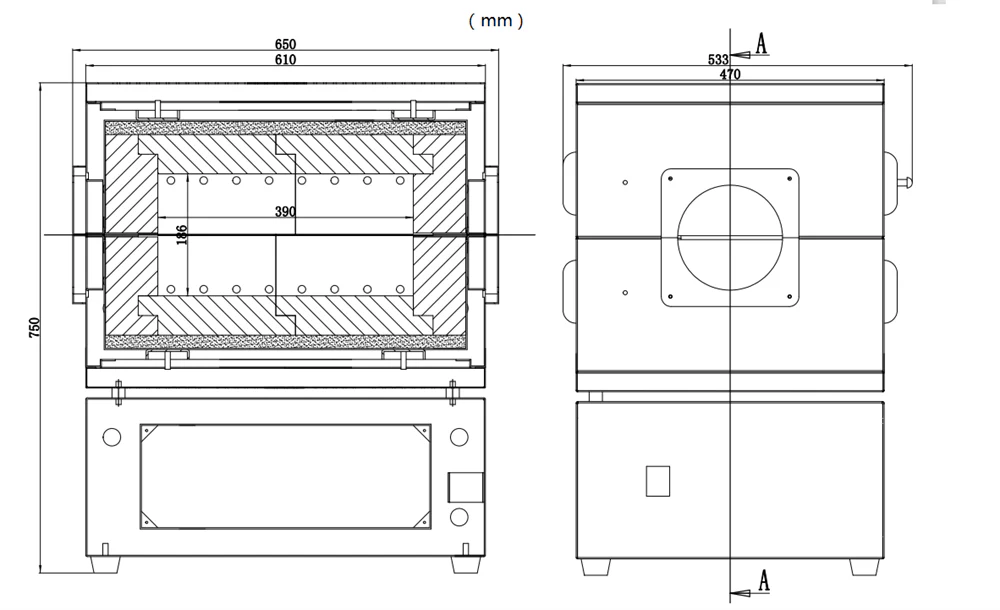

1500C Two Zone Split Tube Furnace with Flange & Alumina Tube (80 mm) - OTF1500XII

$18,995.00

-65%NEW
Thumbnail 1

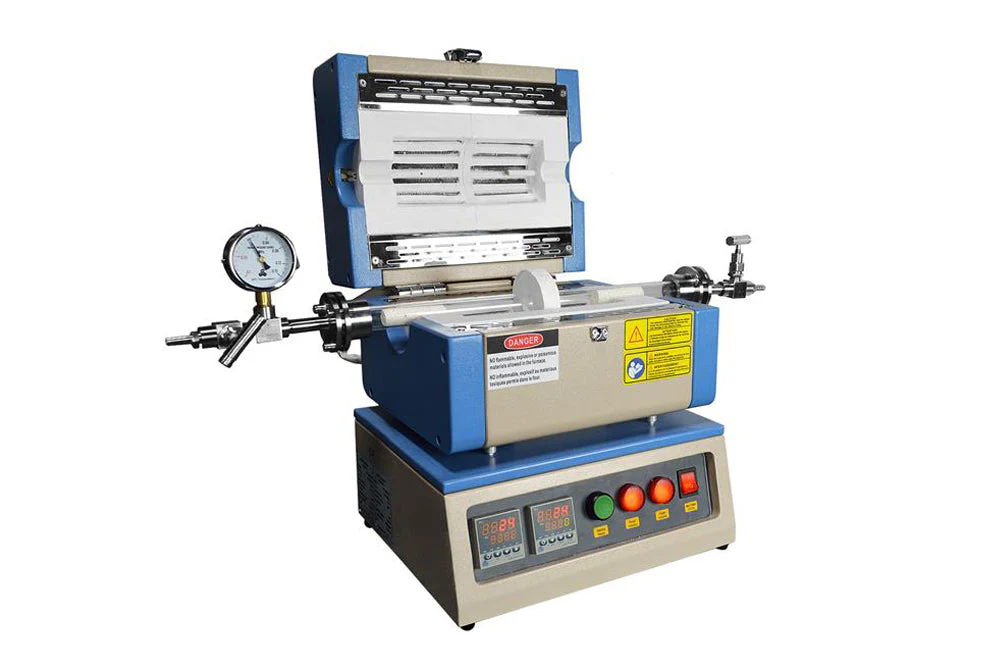

Dual Heating Zone 1200C Compact Split Tube Furnace with Optional 1"- 2" Tube & Flange - OTF1200XIIS

$4,998.00

$1,749.30

-65%NEW
Thumbnail 1Thumbnail 2

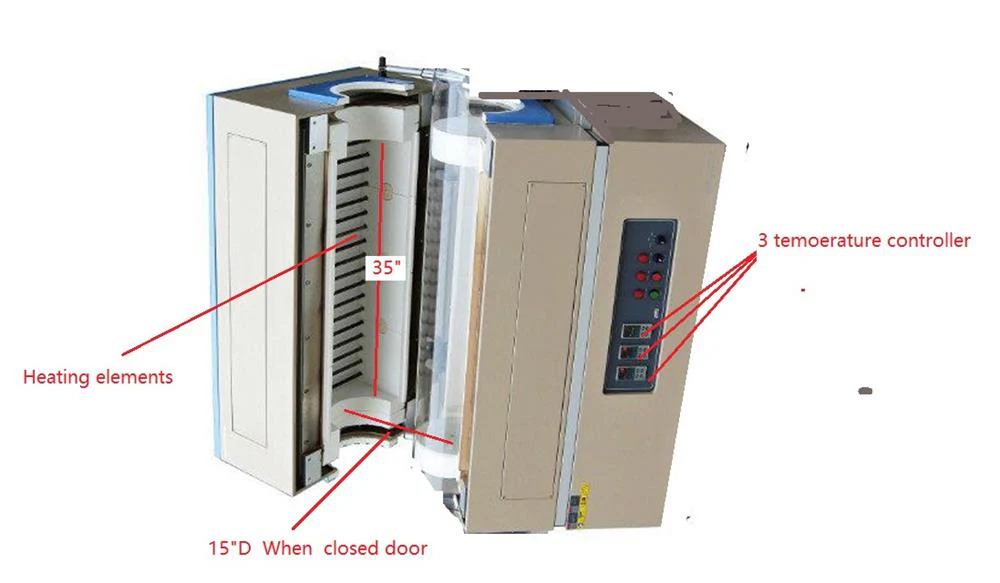

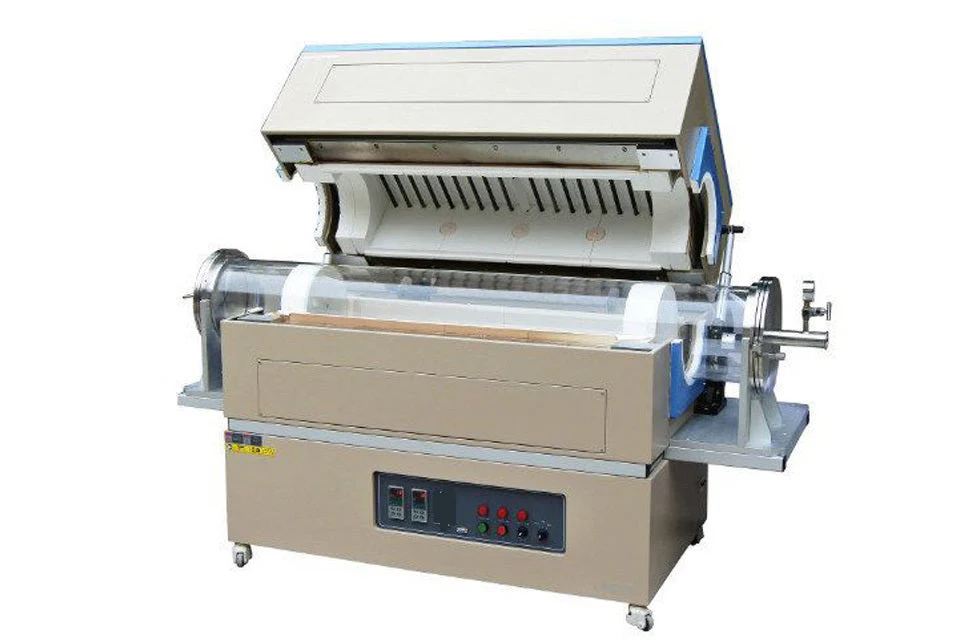

1200°C Two-Zone Tube Furnace w/ Optional Quartz Tube from 11" to 15" - OTF-1100X-II-XX

$45,998.00

$16,099.30

-65%NEW
Thumbnail 1

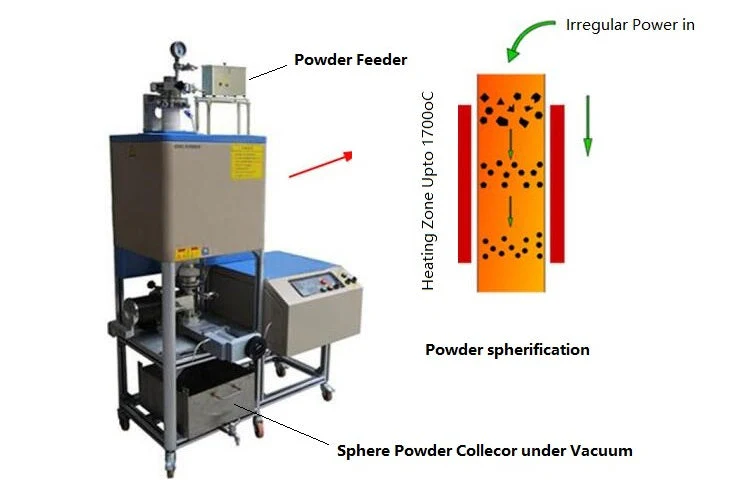

1700oC Vertical Tube Furnace for Powder Spherification - GSL-1700X-II-VT-AF

$79,985.00

$27,994.75

-65%NEW
Thumbnail 1Thumbnail 2

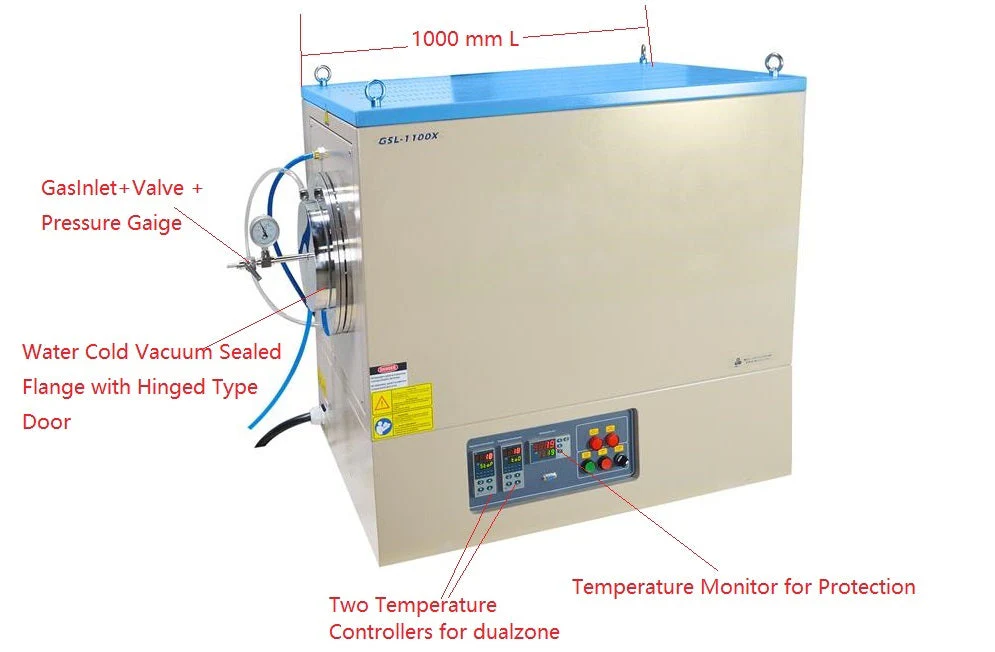

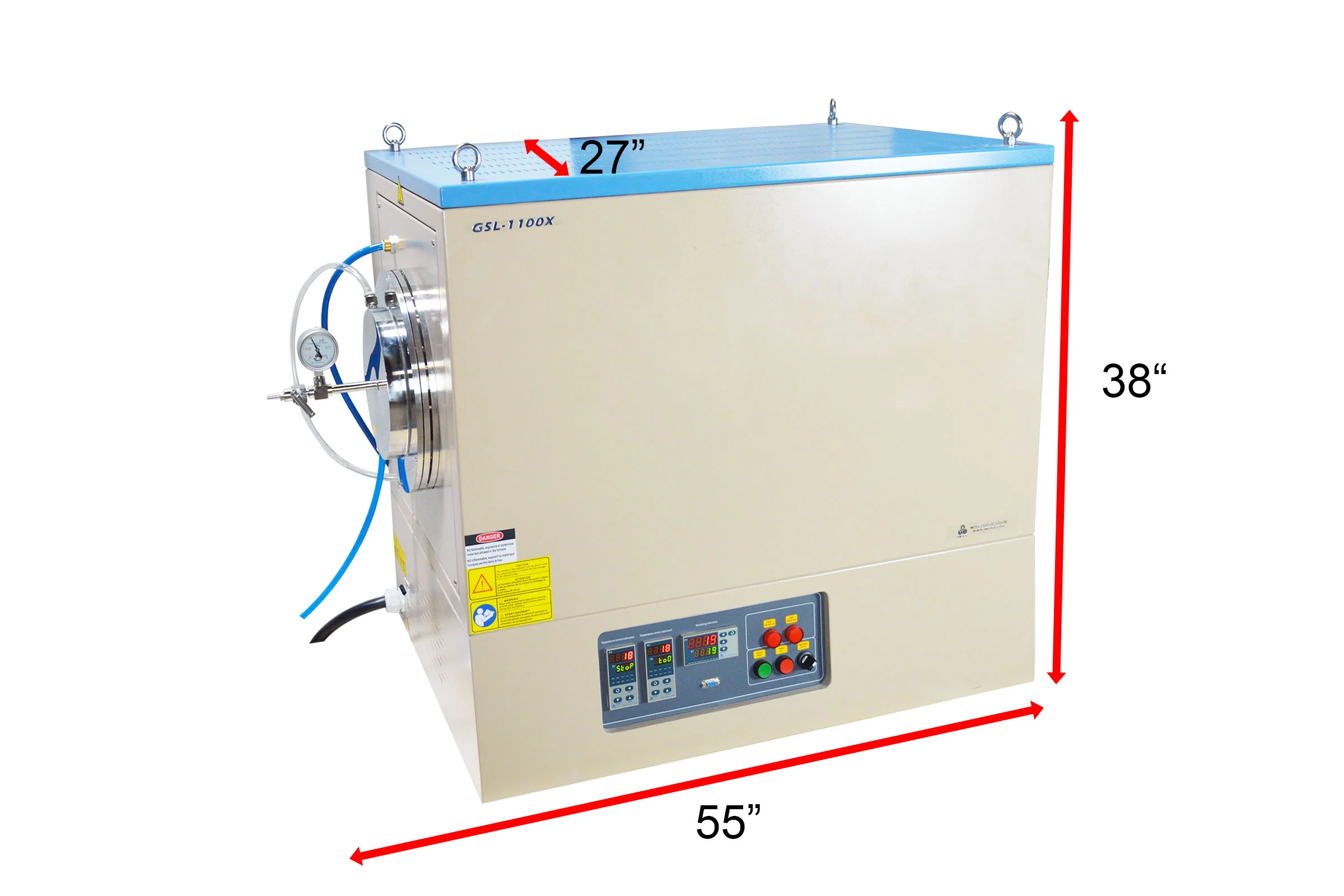

1200°C Dual Zone Tube Furnace Optional 11" Quartz Tube & Vacuum Flanges (24" heating zone) - GSL1100XII11

$21,996.00

$7,698.60

-65%NEW
Thumbnail 1Thumbnail 2

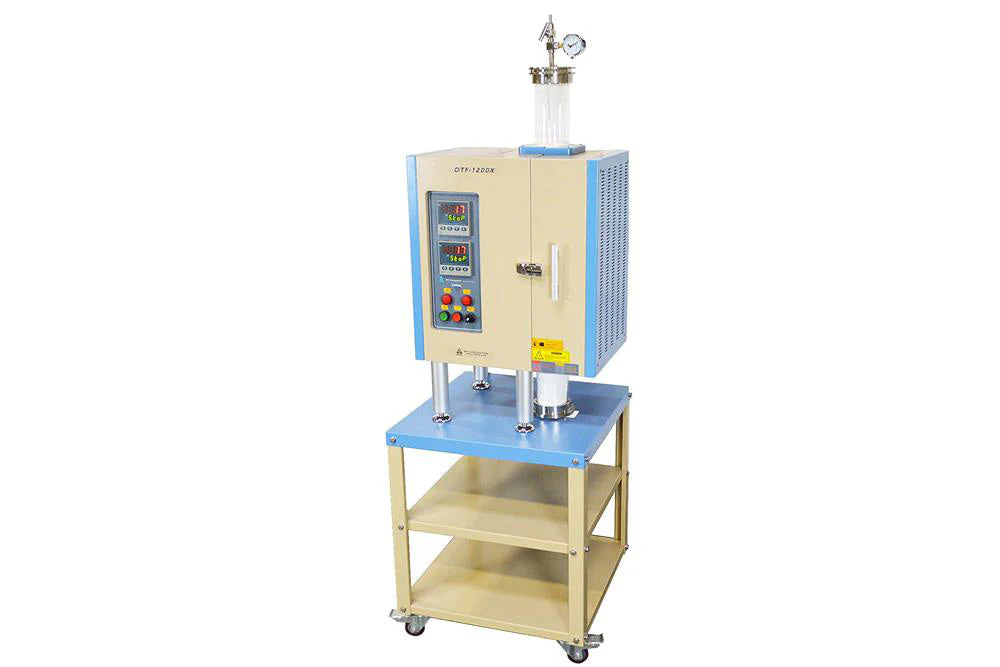

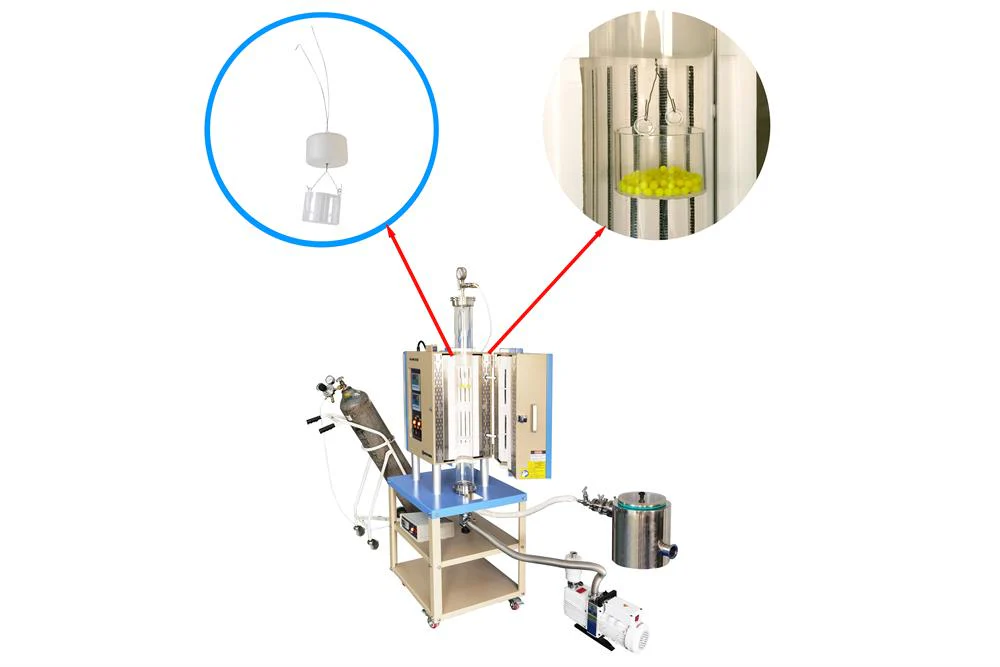

1100°C Two Zones Split Vertical Tube Furnace w/ 4" Quartz Tube & Vacuum Flanges - OTF-1200X-VT-II-100
