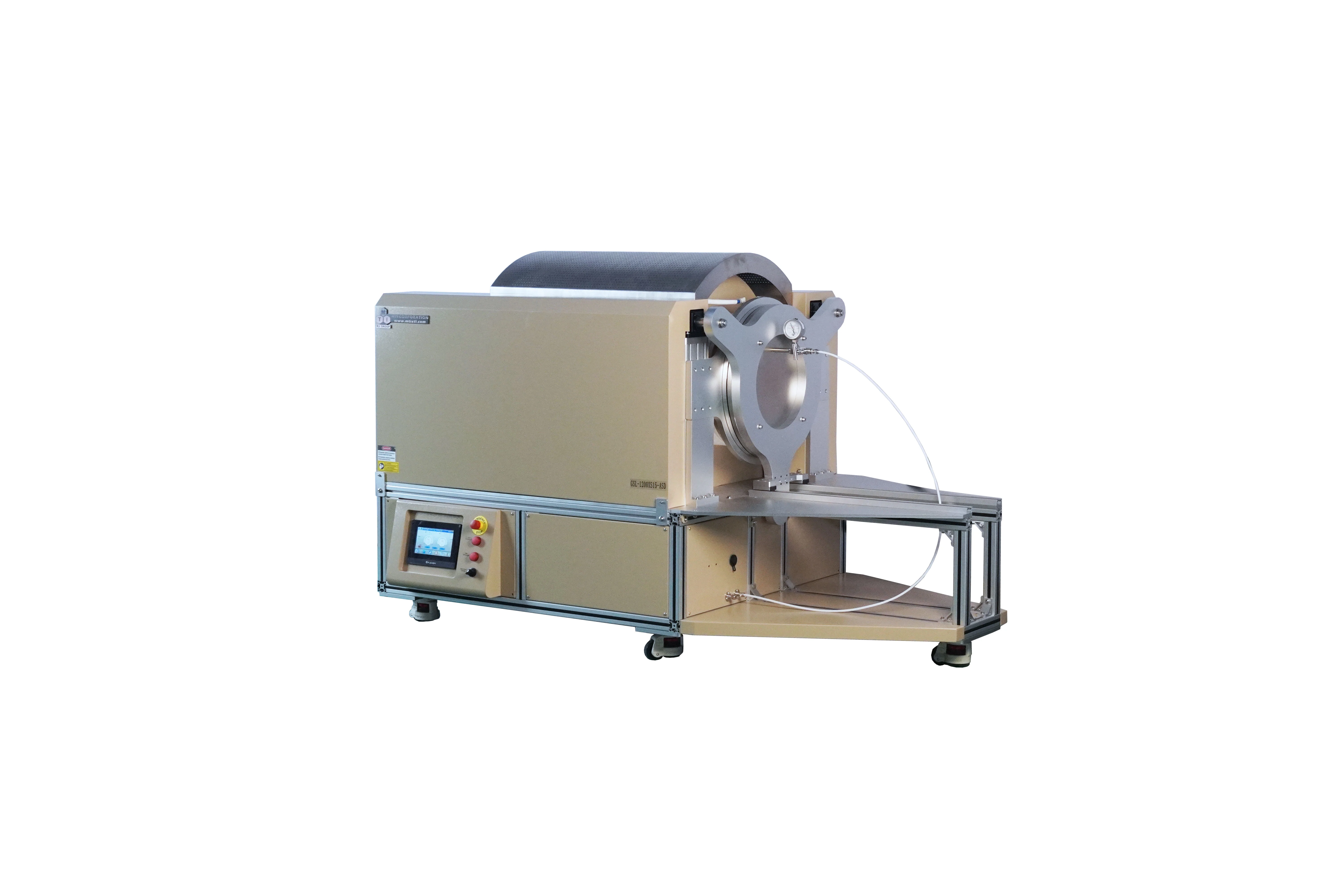

1200 °C Max 15" Automated Tube Furnace for AI Material Research - GSL-1200XS15-ASD

• AC380V +/- 10%, 3 phase, 50/60 Hz,, 15 KW
• 208-240VAC, 50/60Hz


• Sample loading (assisted by a robotic arm)
• Pump-purge cycles
• Steady gas flow
• Heating, dwelling, and cooling
• Sample retrieval (assisted by a robotic arm)

• Working temperature: 1200°C (≤30min)
• Continuously at <1100°C
• Heating area length: 460 mm
• Temperature uniform: 120 mm @ ± 5°C

• Heating rate: ≦10°C/min
• Heating elements:  FeCrAl-Mo dopped.
• Thermocouple: K-type
• Double-layer steel structure with cooling fans
• High-purity alumina fibrous insulation for better energy saving
• Motorized sliding sample stage for sample loading and retrieval.

• Quartz, Ø400×900 mm
• High purity quartz (consumable, not under warranty)

• PID programmable temperature controller
• Up to 50 temperature segments.
• Control accuracy ±1°C
• DB9 communication port (A PC version temperature control software at extra cost)

• Ø12 push-to-connect chilled water inlet/outlet
• One G1/4" compression tube fitting each side as gas inlet and outlet
• One 1/4" quick-connect port for in-situ temperature measurement
• One KF25 port for vacuum generation, with a digital pressure gauge

Two kinds of sample stages,

(1) one is for 17 quartz crucibles

• 17 quartz crucibles Ø40 × 30 mm H
• Alumina, graphite, magnesia crucibles are available upon request.

(2) one is for 30-35 pieces 8x8" wafers holder also available .

• Customized sample holder/crucible is also available upon request

• Set the heating profile, gas flow rate, loading/unloading cycles and cycle number.
• After setup is done, with an assistance of a robot, it enbles,

1. Loading sample and close the door.
2. flow gas
3. execute the predefine heating profile up to 50 segments
4. When the heating profile is executed, stop flowing gas, open the door and unloading at 500°C.
5. repeat step 1-4.
6. Recording the pressure, cycles, purging, etc.

• Automated sample loading and retrieval via an integrated robotic arm.
• Power: 48VDC, 150W
• Maximum load: 5kg
• Accuracy: ±0.02 mm

• Mechanical pump: 10-2 torr
• Turbo pump:          10-5 torr

• Model: Kj-5000
• AC 220V, 50 Hz, 300W
• 16L/min
•  Cooling capacity: 2361 Btu/hr.

• The furnace can be integrated with dosing, mixing, milling, and pellet pressing equipment to achieve an automated high temperature materials synthesis platform.
•

• NRTL or CSA certification is available upon request at an extra cost.
