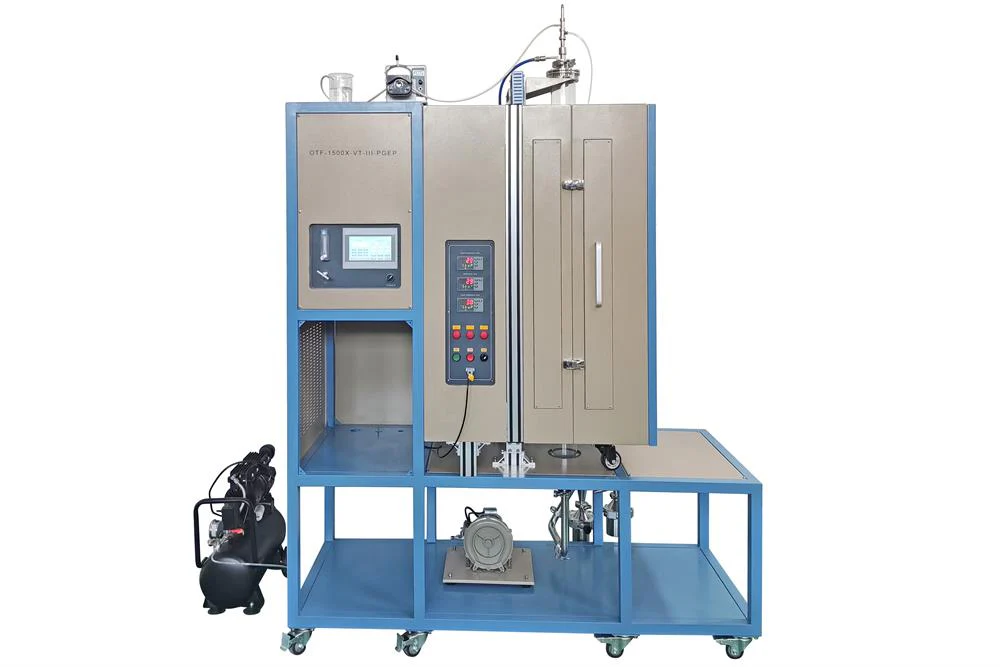

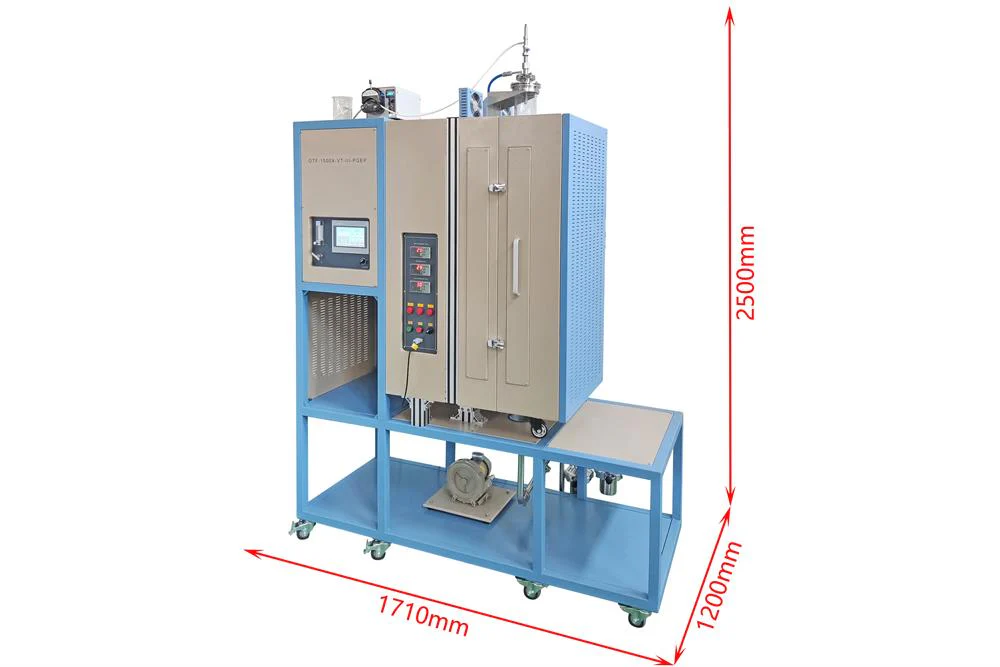

1500C Max Vertical Pyrolysis Furnace for Synthesis Nanoparticles - OTF-1500X-VT-III-PGEP

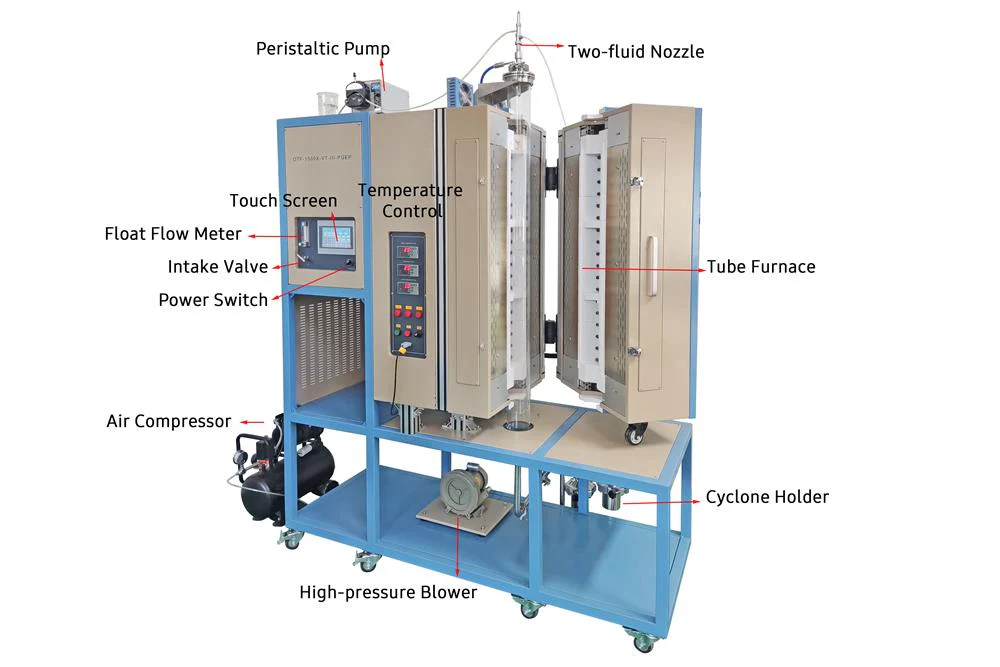

• Equipped with a two-fluid gas atomization device to atomize the liquid into liquid particles, which are then introduced into the tube furnace.
• Vertical tube furnace with a maximum temperature of 1500°C.
• Particle powder collection: cyclone+ filter

• AC 208-240V, 3 phase, 50/60Hz
• 20KW

Type S

• 1400°C continuous
• 1500°C Max. < 30 min

• ≤10℃/min (under 1400℃)
• ≤5℃/min (above 1400℃)

900mm (300mm*3)

• PID automatic control, 28 programmable segments for precise control of heating, cooling, and dwell times.
• Built-in over-temperature alarm and thermocouple disconnection alarm
• ± 1 ºC temperature control at dwelling process

• The high-quality fused quartz tube is included for operation @ 1200C.
• (I.D.: 21mm x OD: 25mm x 1200 mm length).

• Upper flange: KF50 for connecting the gas atomization device
• Lower flange:
  • KF25 for connecting the cyclone
  • φ6.35mm hose adapter serves as an exhaust port, controlled by a stainless steel needle valve. A safety pressure relief valve is installed, automatically releasing pressure when the internal gas pressure reaches 0.02MPa.

All flanges can be equipped with variable-diameter ring gaskets

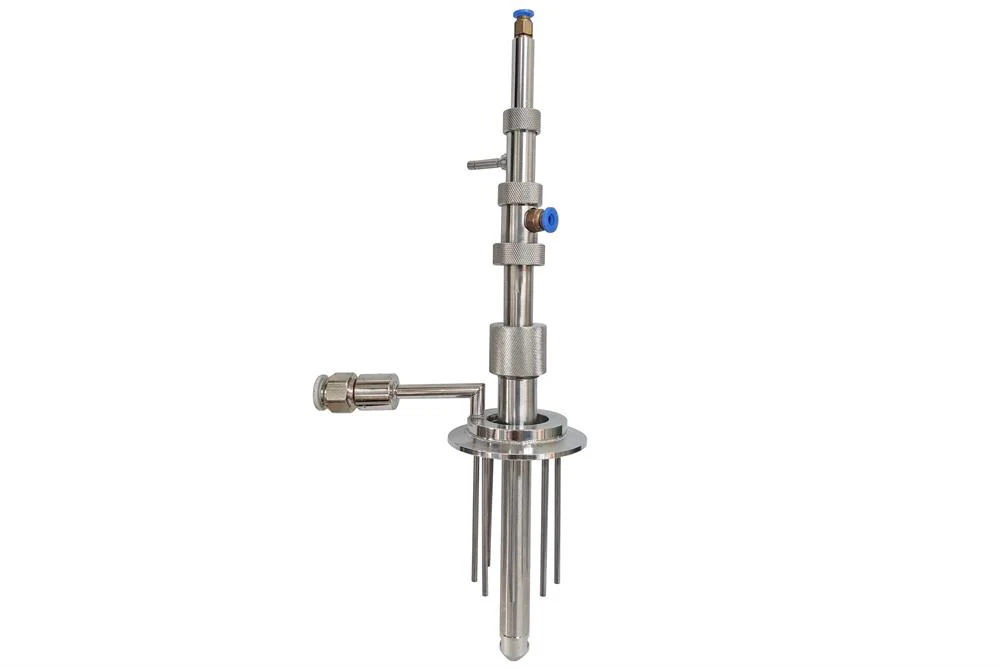

Two-Fluid Nozzle

By utilizing high-speed air, the liquid is crushed, reducing particle size, and enabling ejection of liquid with smaller particles and higher flow rates.

• 316 stainless steel structure providing resistance to general corrosion
• Equipped with a set of vertically fixed flanges for the two-fluid atomization nozzle
• Eccentrically adjustable (15°) flanges for the atomization nozzle

• Flow Rate: 0.051 - 51 ml/minute (adjustable)
• Rotational Speed: 0.1 - 100 rpm (adjustable)
• Drawn Back Speed: 10 - 300 rpm
• Dimensions: 160 * 300 * 170 mm (Length * Width * Height)

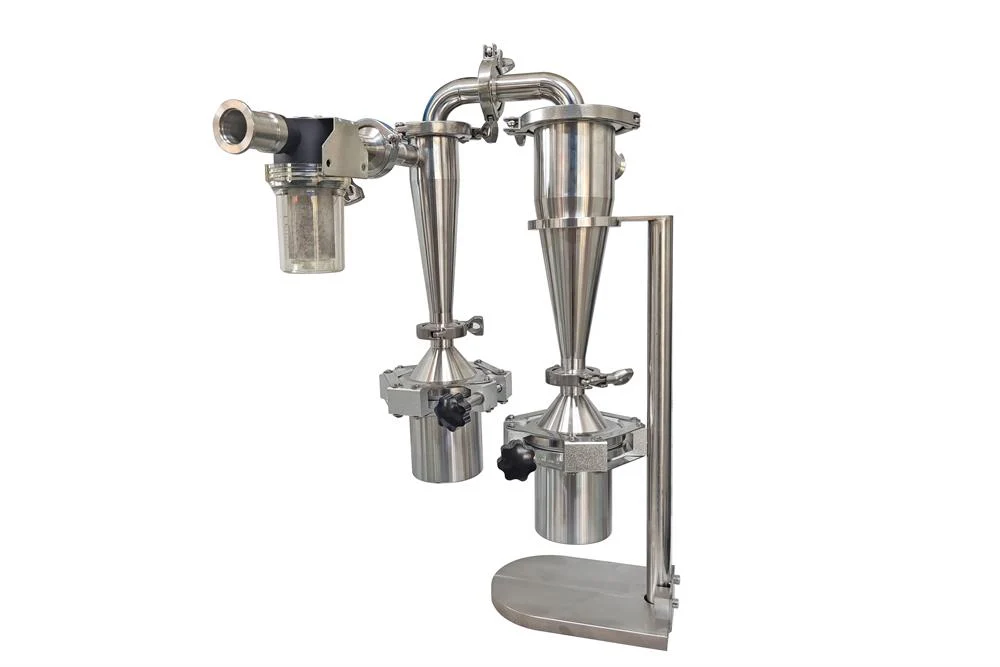

• Two sets of SS304 cyclone collectors with two stainless steel collection bins, each with a volume of 500ml.
• A filter (5um mesh) is installed at the outlet of the cyclone collector, capable of collecting finer particles with a size of up to ~2um.

Air compressor:
(The two-fluid atomizing nozzle requires a certain flow rate and pressure of gas to atomize the liquid)

• Power: 1350W
• Volumetric Flow Rate: 0.11m3/min
• Working Pressure: 0.7Mpa

Blower:
(To ensure that the atomized particles enter the heating furnace vertically along the furnace tube)

• Voltage: 220-240V
• Power: 0.18KW
• Max Flow Rate: 0.8m³/min

• The pressure inside the furnace tube must not exceed 0.02 MPa.
• A relief valve must be installed on the gas source(high pressure).
• For experiments involving sample heating, it is not recommended to close the exhaust valve and intake valve at the flange end of the furnace tube. If it is necessary to close the gas valve for sample heating, the pressure gauge reading must be monitored constantly. If the gas pressure reading exceeds 0.02 MPa, the exhaust valve must be opened immediately to prevent accidents such as furnace tube rupture or flange detachment.
• We do not recommend customers use flammable, explosive, or toxic gases. If customers need to use such gases due to process requirements, they must take their own safety precautions and explosion prevention measures. MTI is not responsible for any issues related to the use of flammable, explosive, or toxic gases.
