1200 Vertical Automatic Gas Quenching Tube Furnace(60mm ) - OTF-1200X-VGQ-60

1200 Vertical Automatic Gas Quenching Tube Furnace(60mm ) - OTF-1200X-VGQ-60

1200 Vertical Automatic Gas Quenching Tube Furnace(60mm ) - OTF-1200X-VGQ-60

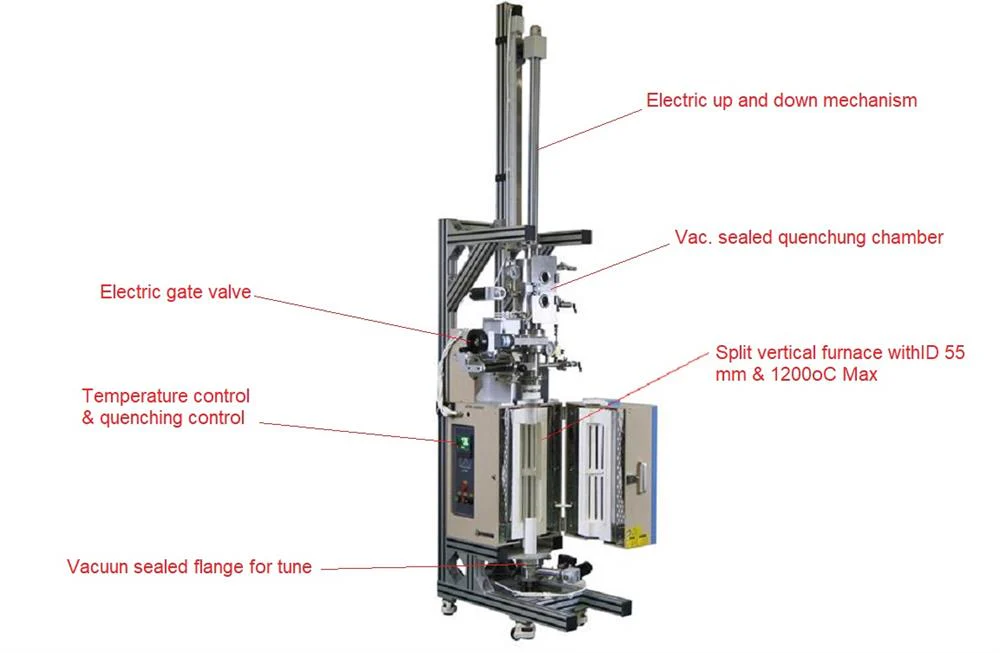

OTF-1200X-VGQ-60 is an automatic gas quenching furnace with an ID 55mm quartz tube and 1200oC max working temperature. It consists of a heating furnace, gas quenching chamber, inert gas injection mechanism. . Automatic procedure included placing a sample into the gas quenching chamber, automatically heating as a program, gas replacement, returning to the gas quenching chamber, and injecting inert gas to quickly cooling.

SPECIFICATIONS

Furnace Structure	Double-layer steel structure with air cooling High purity polycrystalline alumina fiber chamber
Power	AC 208 - 240V Single Phase, 50/60 Hz 3.5 KW Cable is included without plug
Rated temperature	1100^oC
Max. Temperature	1200^oC < 30 min
Continuous Temperature	100^oC < continuous
Heating Rate	Recommended: <= 10^oC /min
Tube Size and Materials	Quartz tube: OD 60 x OD 55 x 800 mm
Heating Zone	Heating Zone length: 400mm
Temperature Controllers	Eurotherm 3000 Programmable Temperature Controller PID automatic temperature control system 24 programmable process segments DB9 PC communication port +/- 0.1 ºC temperature accuracy All electrical components are approved by UL or MET The pre-configured customized software can automatically record the entire process flow
Vacuum Level	Mechanical Pump (Separate Purchase): < 1e-2 torr Molecular Pump (Separate Purchase): <1e-5 torr
Application Notes	Maximum pressure: <0.02Mpa, otherwise, an explosion may happen. The gas cylinder Must be equipped with a relief valve Use extreme caution to monitor and adjust the pressure (<0.02Mpa) while heating, otherwise, an explosion may happen.

$28,875.00

1200 Vertical Automatic Gas Quenching Tube Furnace(60mm ) - OTF-1200X-VGQ-60—

$28,875.00

More Images

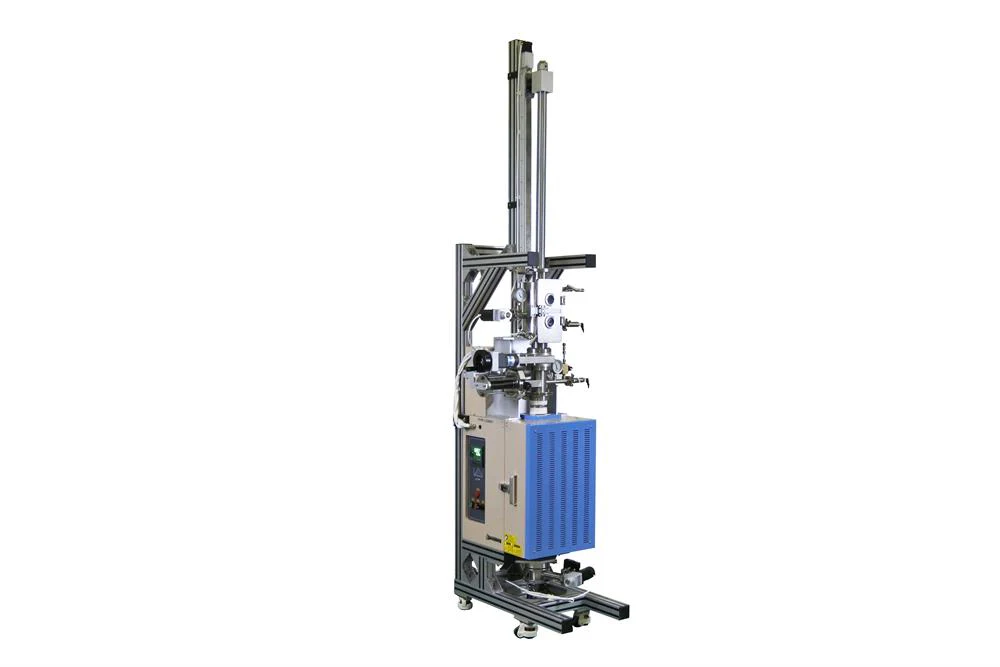

1200 Vertical Automatic Gas Quenching Tube Furnace(60mm ) - OTF-1200X-VGQ-60 - Image 2

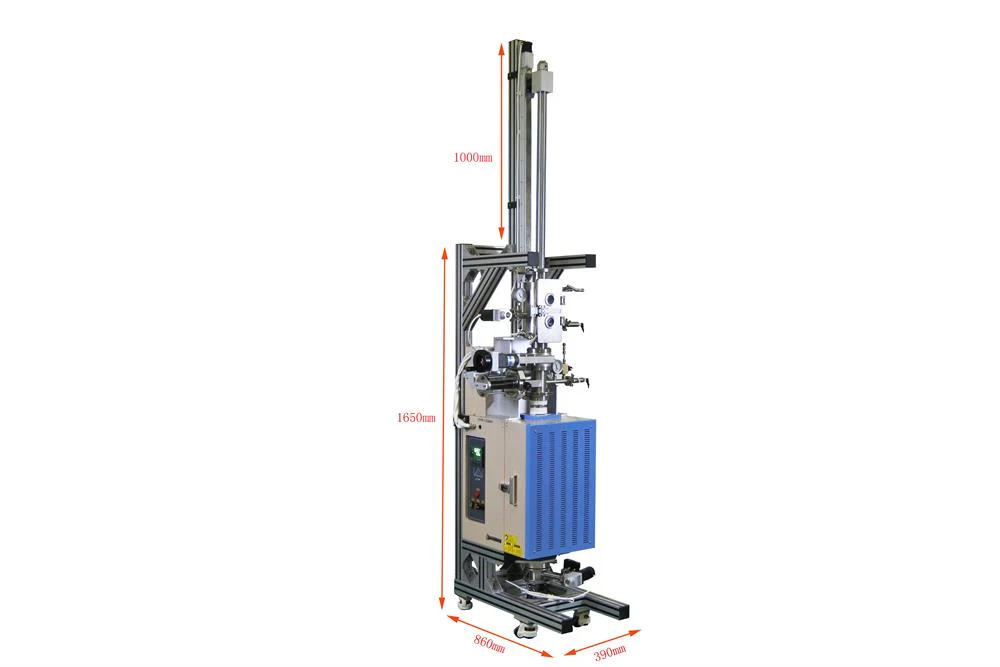

1200 Vertical Automatic Gas Quenching Tube Furnace(60mm ) - OTF-1200X-VGQ-60 - Image 3

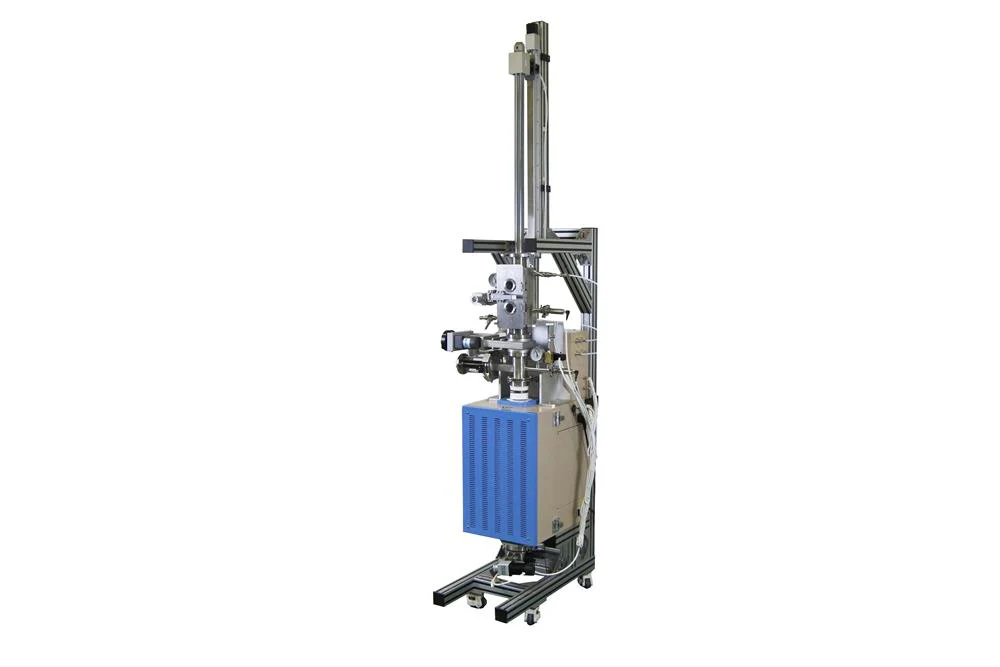

1200 Vertical Automatic Gas Quenching Tube Furnace(60mm ) - OTF-1200X-VGQ-60 - Image 4
