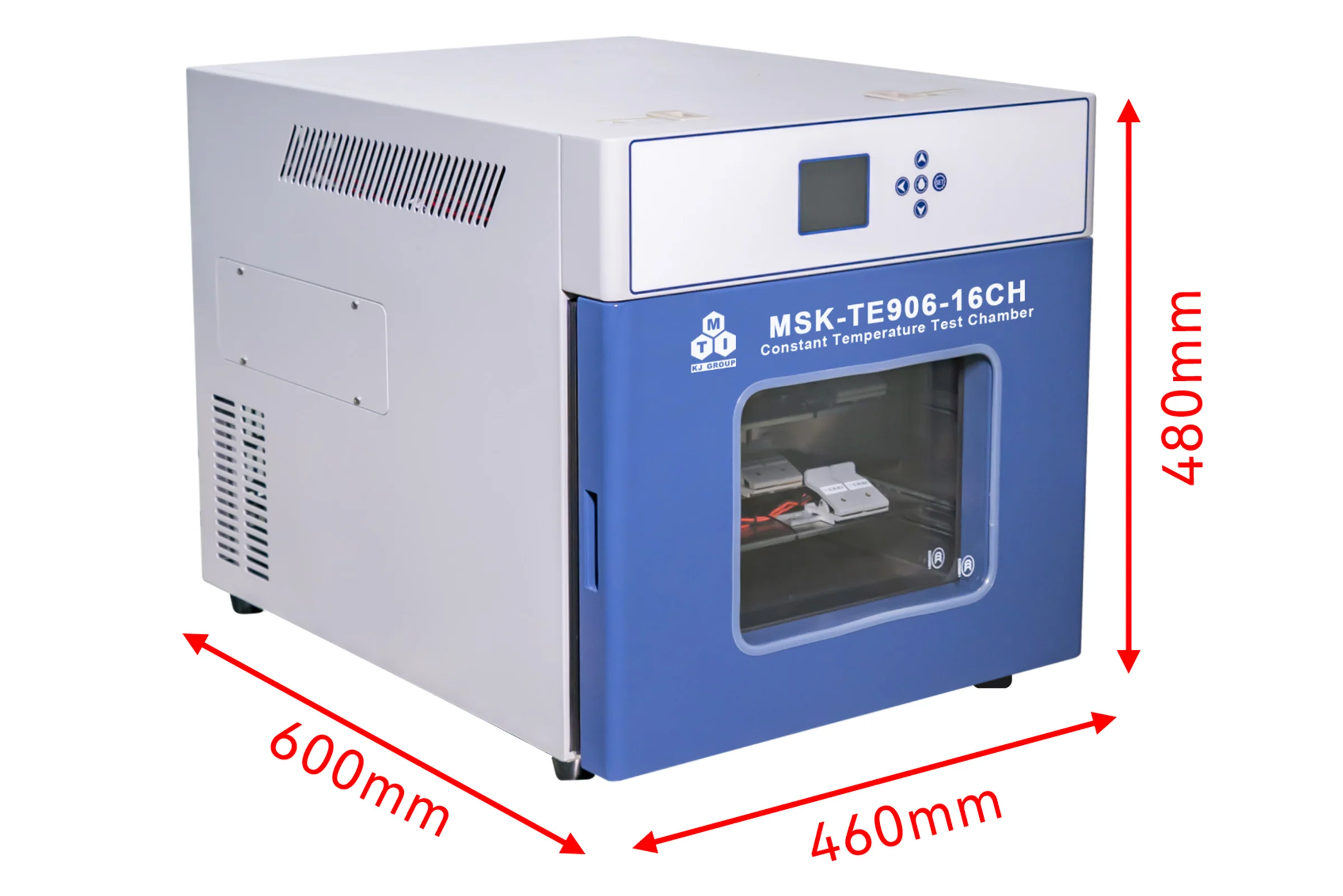

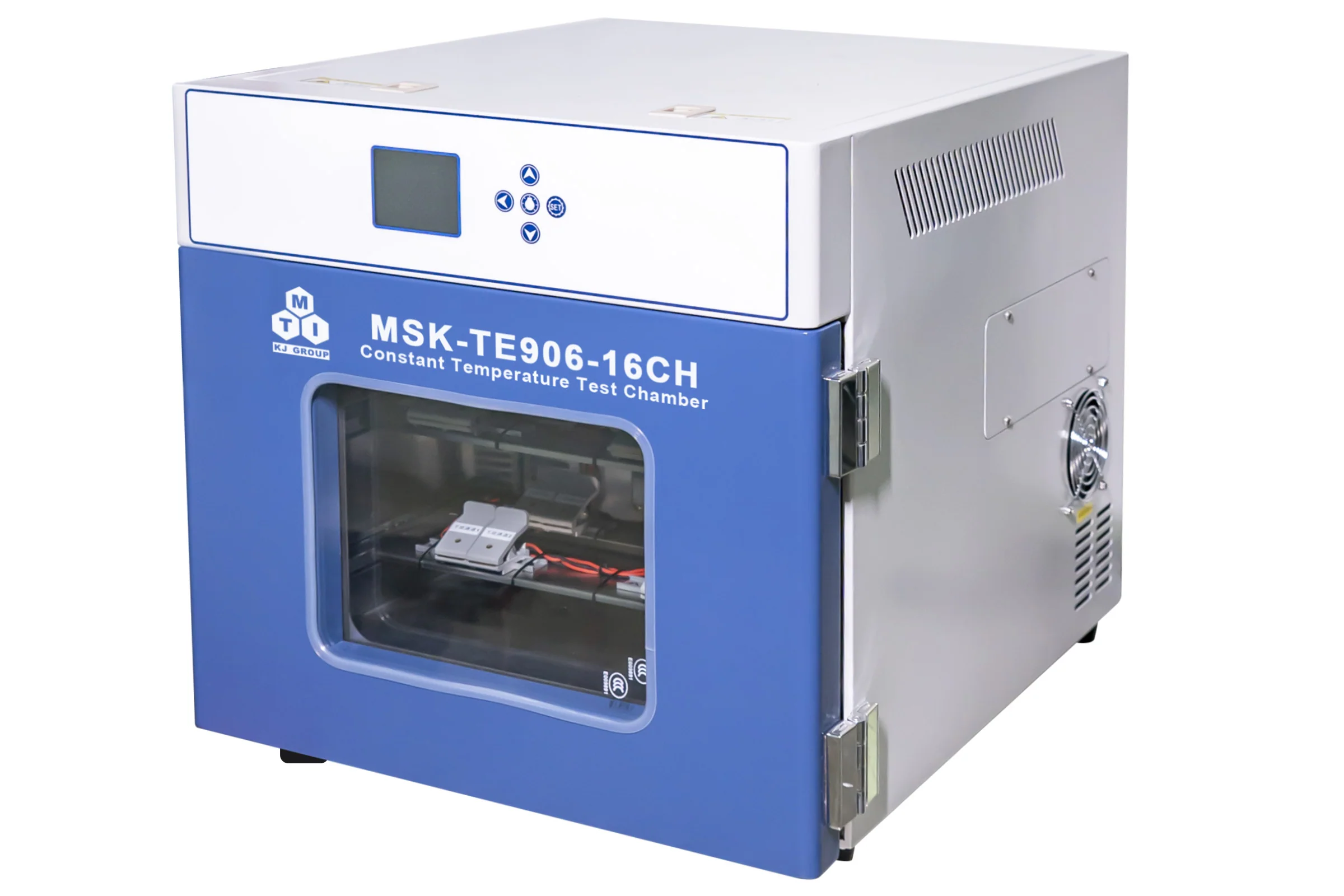

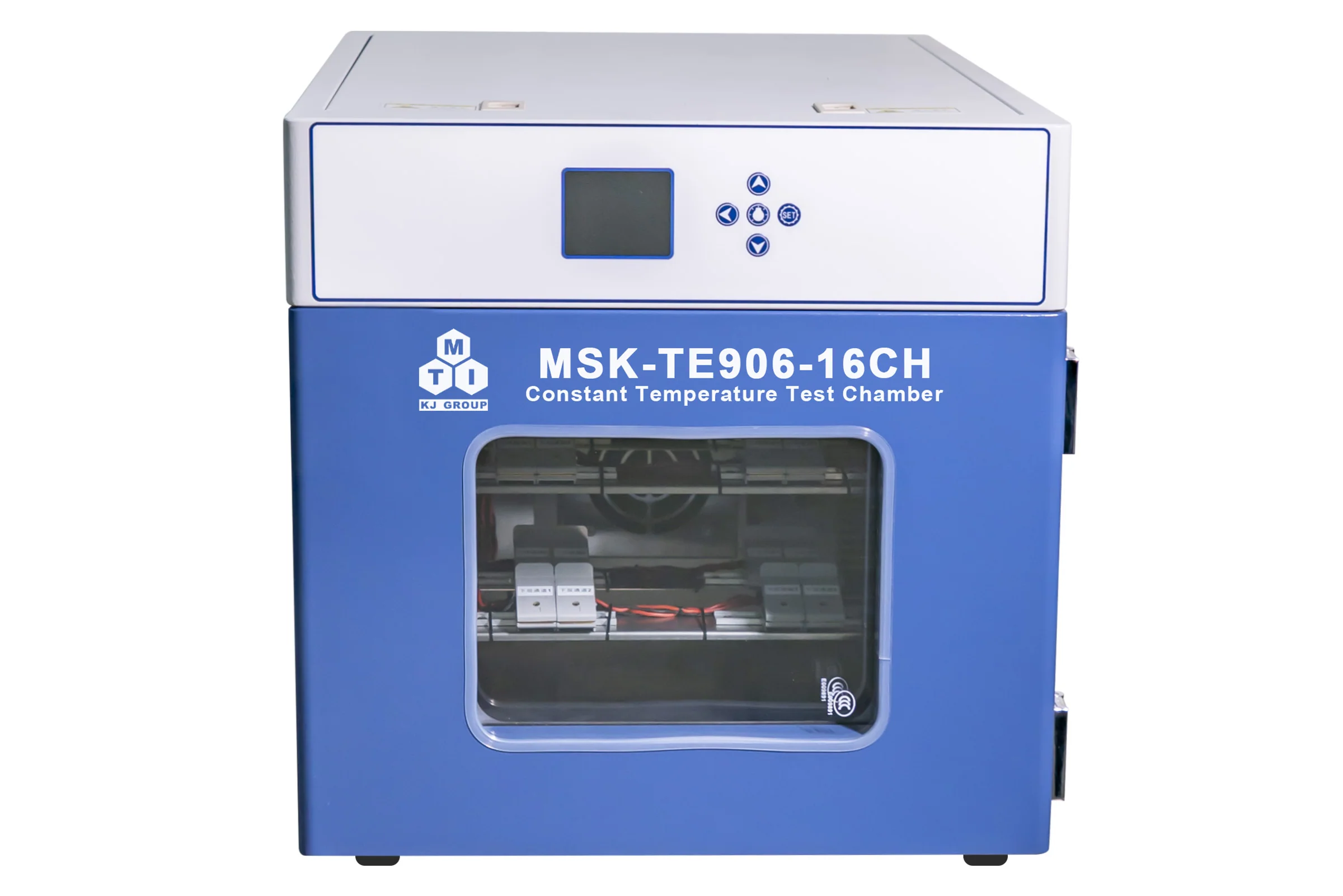

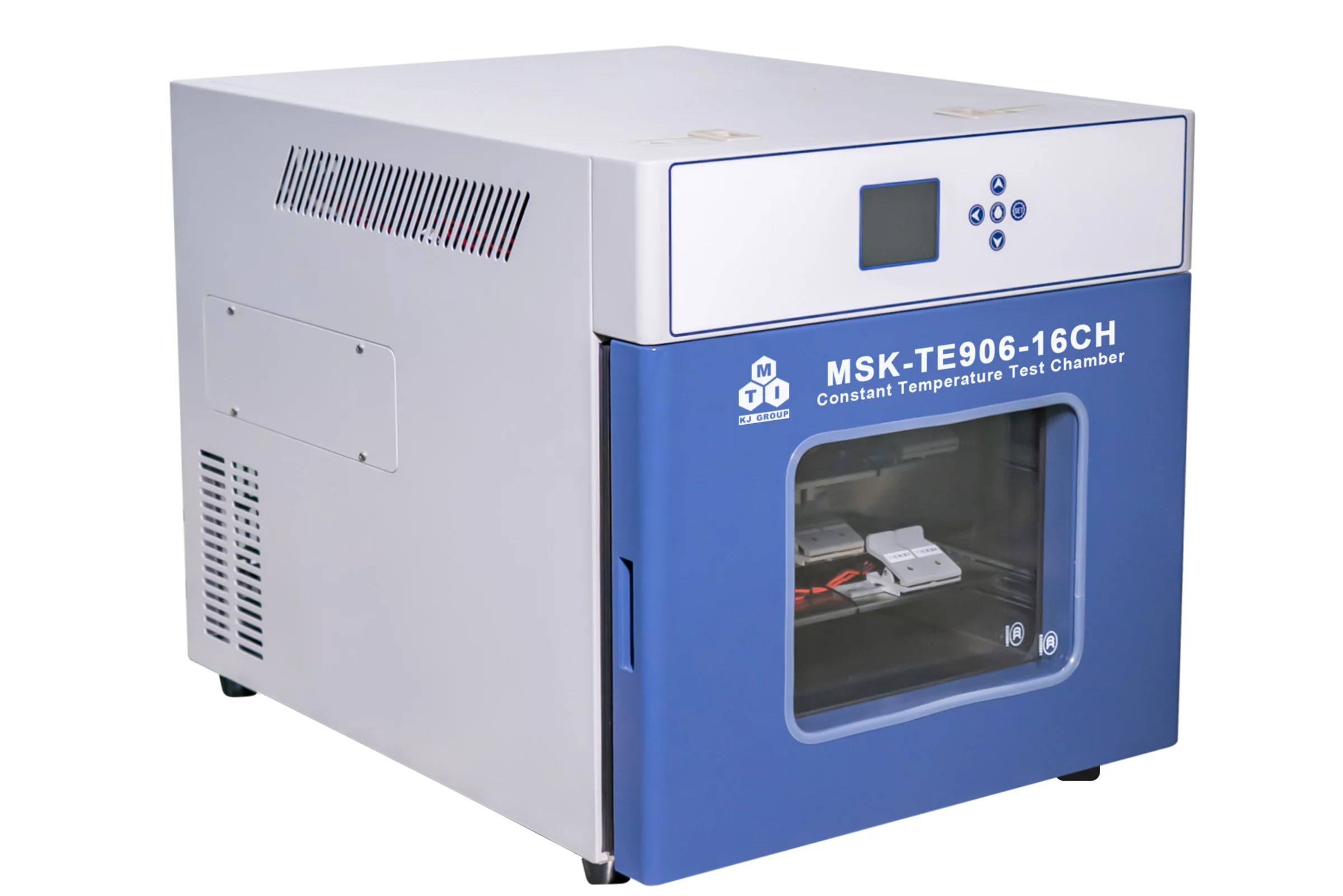

16 Channel Battery Analyzer (2μA-100mA, up to 5V) Integrated with Temp. Control Chamber (15-60°C) w/ Laptop Software

16 Channel Battery Analyzer (2μA-100mA, up to 5V) Integrated with Temp. Control Chamber (15-60°C) w/ Laptop Software

16 Channel Battery Analyzer (2μA-100mA, up to 5V) Integrated with Temp. Control Chamber (15-60°C) w/ Laptop Software

MSK-TE906-16HC is an integrated coin cell analysis system that combines 16 channels battery analyzer with a precision temperature-controlled chamber to evaluate coin cell performance under controlled temperature range. The system supports temperature range from 15 °C to 60°C.

Each channel of the analyzer has an independent constant-current and constant-voltage source for charge and discharge. The built-in battery analyzer provides a measurement range from 2μA to 100mA up to 5V to ensure accurate voltage and current control for precise battery performance evaluation.

SPECIFICATION:

Battery analyzer
Input Power	AC220V±10%, Single Phase, 50 Hz
Power Consumption	Approx. 60W (30W per each analyzer)
Charge & Discharge Current	Four ranges of Max. Current are built-in, and switchable from the device. Range 1: 2μA - 0.5mA Range 2: 0.5mA - 20mA Range 3: 20mA - 50mA Range 4: 50mA - 100mA Output range: 1% to 100% of Full Scale (Charge/Discharge) Accuracy: ±0.05% FS (at 25˚C ±5˚C)
Charge & Discharge Voltage	Range: 2mV to 5 V Output Range: Discharge: -5V to 5V; Charge: -5V to 5V Accuracy: ±0.05%FS (at 25˚C ±5˚C)
Channels	16 independent programmable channels. Each channel can set different working modes and functions independently

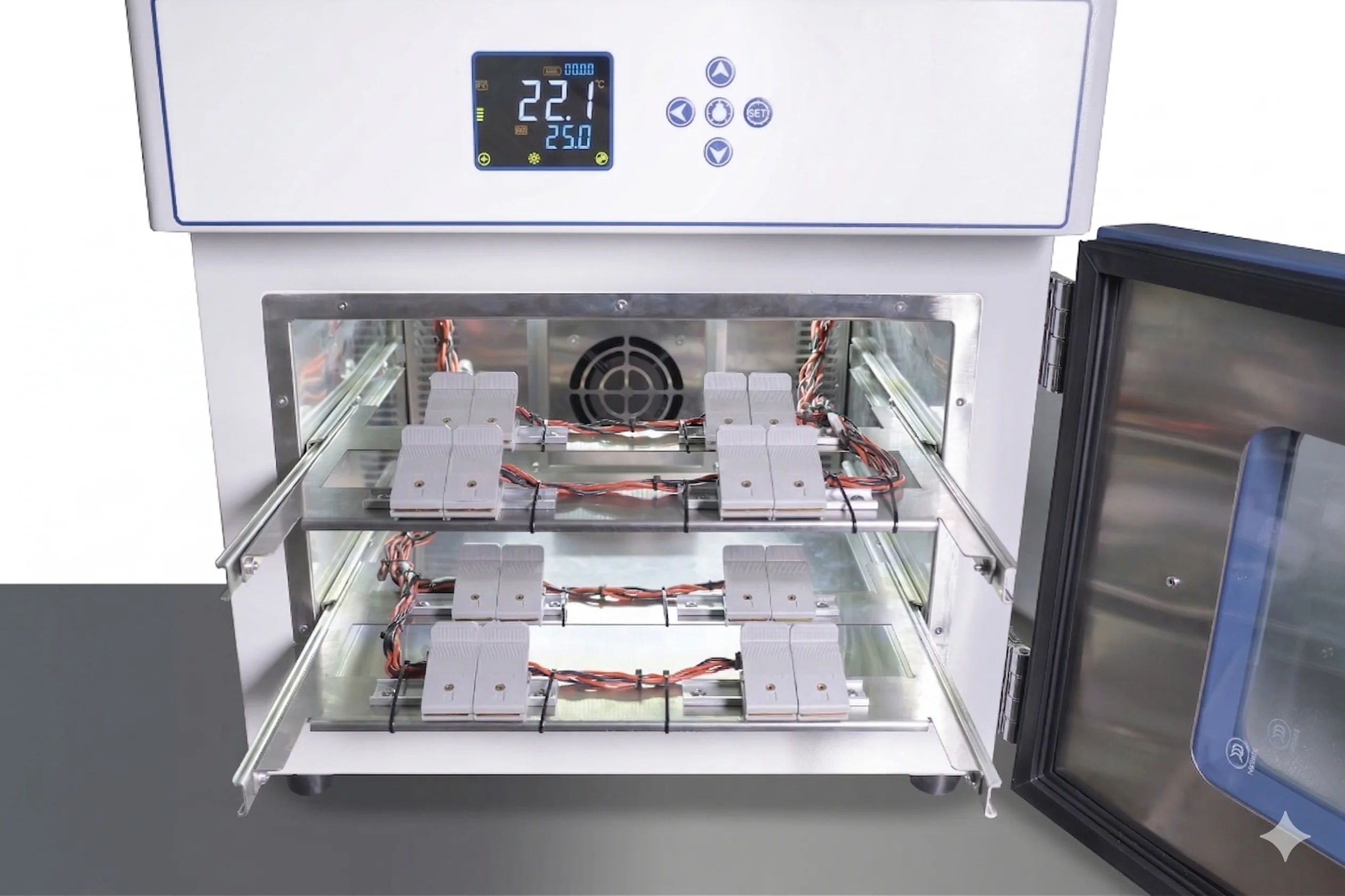

Battery Holders	The coin cell battery holders are installed in the temperature control chamber.
Resolution	5 significant digits
Current Response Time	< 5ms (10% to 90%) Switching Delay: Charge/discharge switching time < 15ms
Sampling Time	100ms
Input Impedance	≥1GΩ
Software & Operation	The software is included to set working modes for measuring of rechargable coin cells. Working modes: CC, CV, CC-CV, CP, CR, and Rate Discharge, etc. Cut-off conditions include step time, current, voltrage, energcy, DV. Cycles, etc. Programmable time interval data collection: 20ms to 7200s
Measurement Cycles	1-65000 cycles 3 Nested Loops Max.
Data Export Format	EXCEL, TXT, and CSV
Communication Port	RS422 interface via Serial or TCP
Temperature Control Chamber
Power Requirement	AC220V±10%, Single Phase, 50 Hz Power Consumption: 200W
Chamber Dimensions	360mm x 305mm x 235mm (L x W x H)
Temperature	Temperature Range: 15 - 60˚C (with ≤ 1˚C temp. fluctuation) Temperature Deviation: ± 2˚C

$6,277.50
