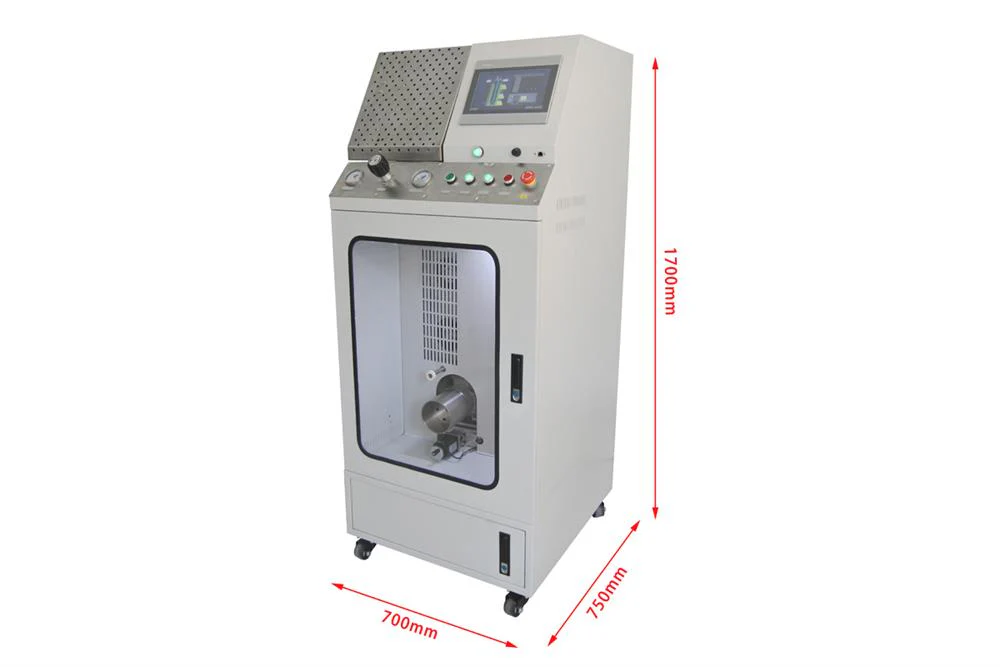

Lab-Scale High Pressure Melt Extrusion Machine for Fiber or Ribbon & Film on up to 350°C - MSK-MS-02

MSK-MS-02 is a Lab-scale melt extruding (spinning) machine for preparing various polymer-based composite fibers or ribbons at micron or nanometer diameter, such as carbon composite, PTFE, and PEEK .to explore new generation composite materials.

SPECIFICATIONS

Input Power	208~240 VAC single phase, 50/60Hz Max power consumption: 2.5KW > 30A air breaker required. The power cable is included without a plug. Please click the link below to choose plug according to the power supply in your lab. NEMA L6-30P Twist-Lock Plug.30 Amp 250 Volt Nylon housing

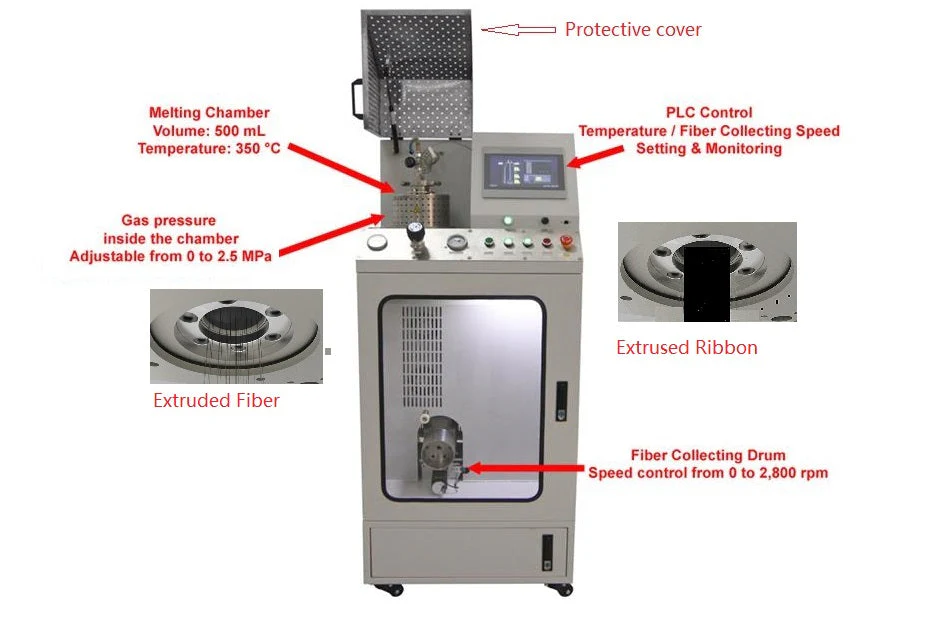

Melt Chamber	Material: SS316  Dimension: ID Φ54 mm xH 230mm Capacity: ~ 500 ml Max. ( 20-250g ) heating temperature: 3 zones heating with 350 °C Max. Temperature Control: three 30 Segment programmable temperature controllers Temperature accuracy: +/- 0.5°C
Melt Extrusion	Melt is extruded by high-pressure inert gas up to 25 bar ( Usually works at 10 bars) The extrusion speed is adjustable between 0.1-10mm/ min by adjusting gas pressure The system max. pressure load: 5 Mpa
Control Panel	PLC touch screen control panel PC remote control software is included for the control of temperature, pressure, and speed. If you decide to use the remote control function, please order a laptop from us to test the software.
Orifice Spinneret Fiber tape	Spinning head (orifice spinneret): single hole extrusion die with diameter 0.1 mm - 3.0 mm selectable (standard single hole diameter is 0.15 mm ) Optional: multi-hole extrusion die is available up to 32 holes upon request at extra cost Note: 0.1 mm hole can produce 5 - 10-micron diameter fiber depended winding wheel speed, which will provide a certain tensile force to make fiber diameter smaller The extrusion die is consumables. The spare die is available at extra cost You may choose a slit-die to extrude a tape ( film)
Winding Wheel	Winding wheel: 100 mm in diameter. Winding speed: 10-50m/min adjustable The wheel is a swing and the length is adjustable  The wheel is easy to install and replace
Compliance	CE certified NRTL certification is available upon request at the extra cost
Application Notes	We reserve the right to modify specifications without notices
