Precise Insulation Resistance Tester for Hi-Pot Measurement of Batteries (0 - 4000M) - MSK-9920
HomeStore

Precise Insulation Resistance Tester for Hi-Pot Measurement of Batteries (0 - 4000M) - MSK-9920

Precise Insulation Resistance Tester for Hi-Pot Measurement of Batteries (0 - 4000M) - MSK-9920

MSK-9920 is a high-performanceĀ insulation resistance testerĀ used to test the insulation resistance of components and devices. It has contact fault detection and short circuit fault test functions. The fastest test time is up to 50 milliseconds.
Features
  • 3.5-inch high-resolution TFT screen for simple operation
  • Maximum constant current output:Ā 1.8mAĀ
  • Minimum test cycle: 50 milliseconds
  • Able to detect test line or contact abnormalities
  • Effectively detect short circuit conditions
  • Automatically discharge after the test
  • NPN or PNP interfaceĀ can be configured
Voltage
  • AC 110-230V, 50/60Hz
Power
  • 15W
Testing Voltage
  • DC 10 ~ 1000 V

Testing Range
  • 0 ~ 4000Ā MĪ© (Total 5 scales)

Maximum Output Current
  • 1.8 mA

Maximum Discharge Current
  • 1.2 mA (Constant current discharge)

Trigger
  • IO trigger,Ā manual trigger,Ā bus trigger

Testing Speed
  • High Speed: 50 ms
  • Low Speed: 500 ms

Data Saving
  • 10 sets of data can be recorded

Ā

$3,598.00
Precise Insulation Resistance Tester for Hi-Pot Measurement of Batteries (0 - 4000M) - MSK-9920ā€”
$3,598.00

More Images

Precise Insulation Resistance Tester for Hi-Pot Measurement of Batteries (0 - 4000M) - MSK-9920 - Image 2

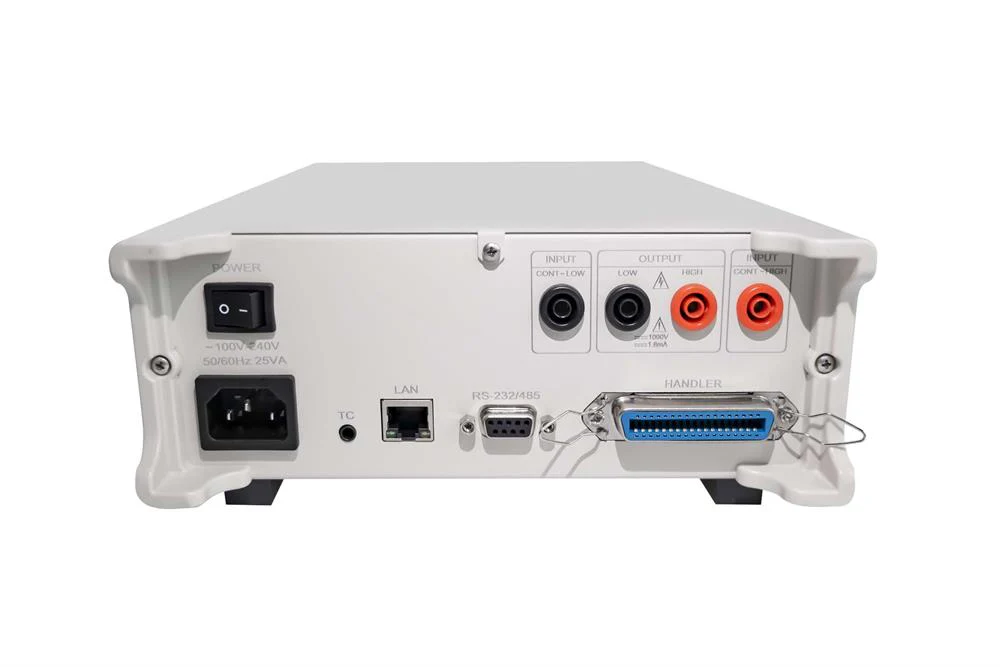

Precise Insulation Resistance Tester for Hi-Pot Measurement of Batteries (0 - 4000M) - MSK-9920 - Image 3

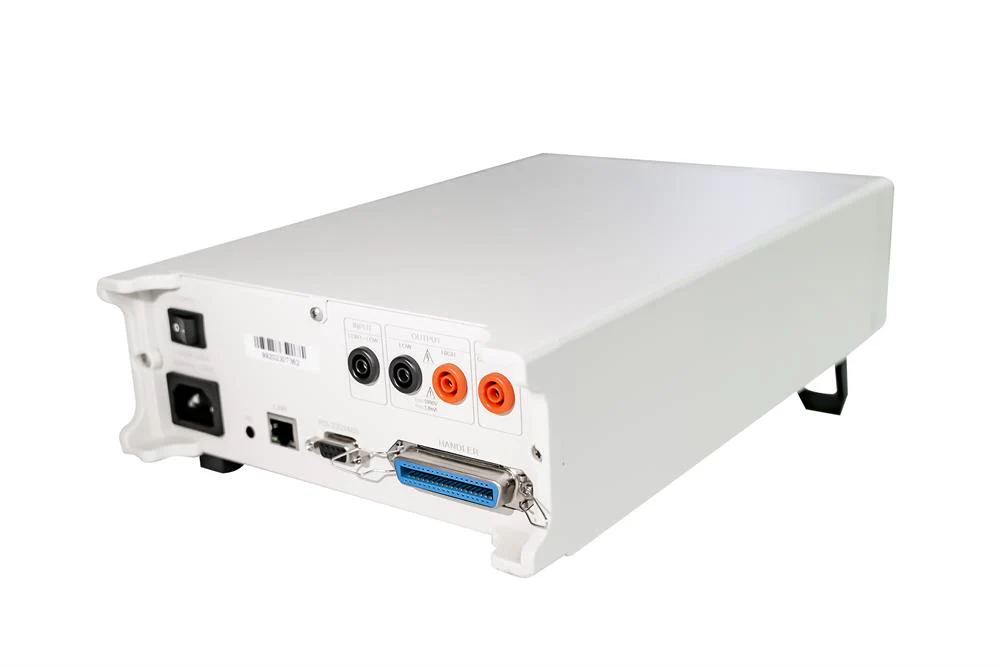

Precise Insulation Resistance Tester for Hi-Pot Measurement of Batteries (0 - 4000M) - MSK-9920 - Image 4

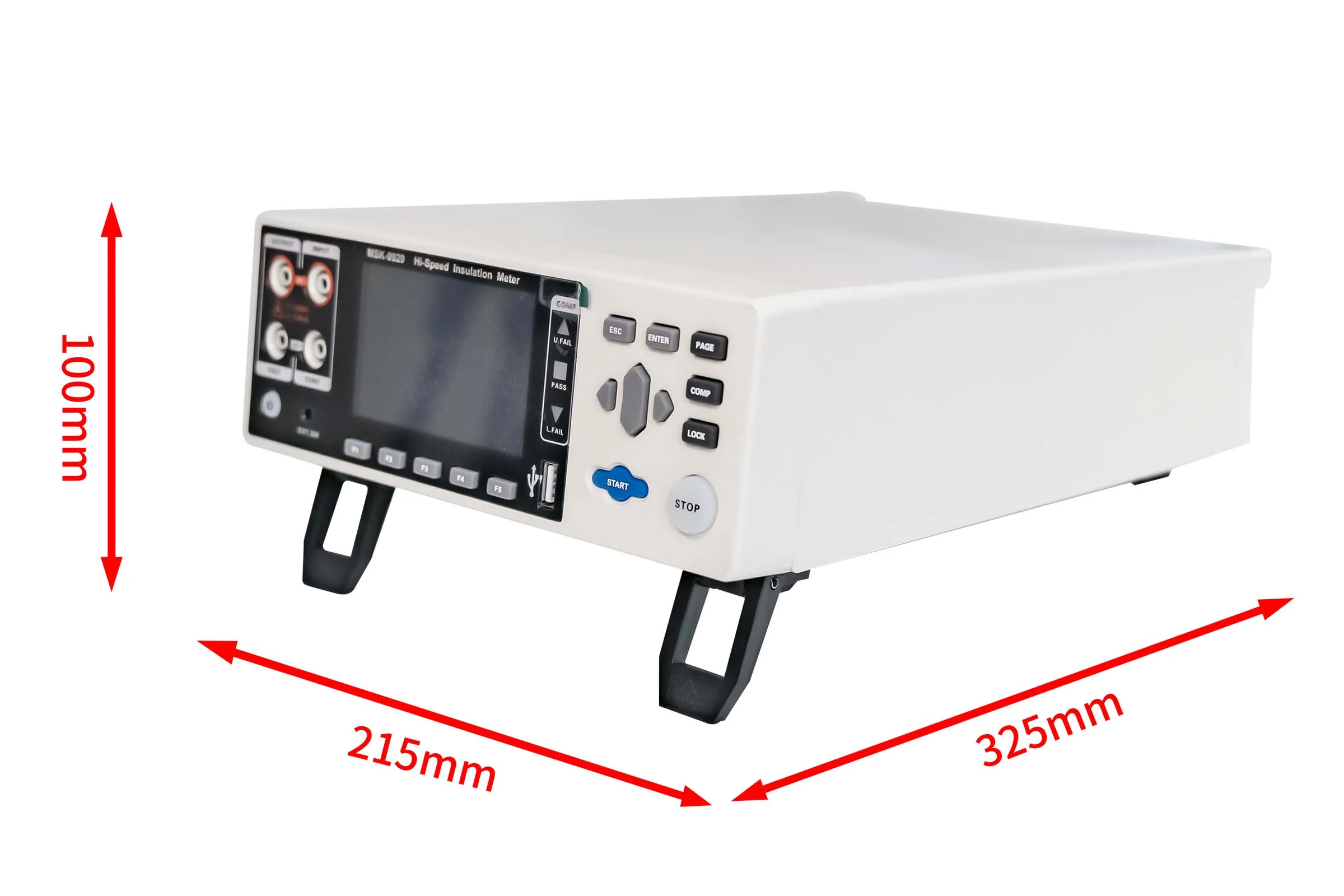

Precise Insulation Resistance Tester for Hi-Pot Measurement of Batteries (0 - 4000M) - MSK-9920 - Image 5

Precise Insulation Resistance Tester for Hi-Pot Measurement of Batteries (0 - 4000M) - MSK-9920

MSK-9920 is a high-performanceĀ insulation resistance testerĀ used to test the insulation resistance of components and devices. It has contact fault detection and short circuit fault test functions. The fastest test time is up to 50 milliseconds.
Features
  • 3.5-inch high-resolution TFT screen for simple operation
  • Maximum constant current output:Ā 1.8mAĀ
  • Minimum test cycle: 50 milliseconds
  • Able to detect test line or contact abnormalities
  • Effectively detect short circuit conditions
  • Automatically discharge after the test
  • NPN or PNP interfaceĀ can be configured
Voltage
  • AC 110-230V, 50/60Hz
Power
  • 15W
Testing Voltage
  • DC 10 ~ 1000 V

Testing Range
  • 0 ~ 4000Ā MĪ© (Total 5 scales)

Maximum Output Current
  • 1.8 mA

Maximum Discharge Current
  • 1.2 mA (Constant current discharge)

Trigger
  • IO trigger,Ā manual trigger,Ā bus trigger

Testing Speed
  • High Speed: 50 ms
  • Low Speed: 500 ms

Data Saving
  • 10 sets of data can be recorded

Ā

Product Information

Shipping & Returns

Description

MSK-9920 is a high-performanceĀ insulation resistance testerĀ used to test the insulation resistance of components and devices. It has contact fault detection and short circuit fault test functions. The fastest test time is up to 50 milliseconds.
Features
  • 3.5-inch high-resolution TFT screen for simple operation
  • Maximum constant current output:Ā 1.8mAĀ
  • Minimum test cycle: 50 milliseconds
  • Able to detect test line or contact abnormalities
  • Effectively detect short circuit conditions
  • Automatically discharge after the test
  • NPN or PNP interfaceĀ can be configured
Voltage
  • AC 110-230V, 50/60Hz
Power
  • 15W
Testing Voltage
  • DC 10 ~ 1000 V

Testing Range
  • 0 ~ 4000Ā MĪ© (Total 5 scales)

Maximum Output Current
  • 1.8 mA

Maximum Discharge Current
  • 1.2 mA (Constant current discharge)

Trigger
  • IO trigger,Ā manual trigger,Ā bus trigger

Testing Speed
  • High Speed: 50 ms
  • Low Speed: 500 ms

Data Saving
  • 10 sets of data can be recorded

Ā
