Max. 480C Band Heater and Programmable Temperature Controller without Die - EQ-HC-2

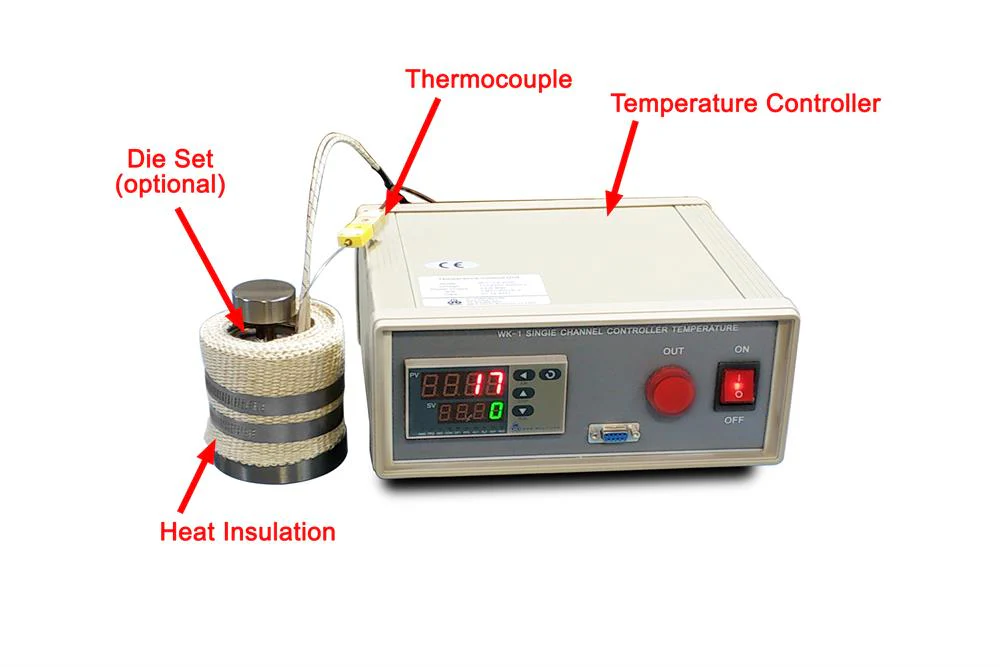

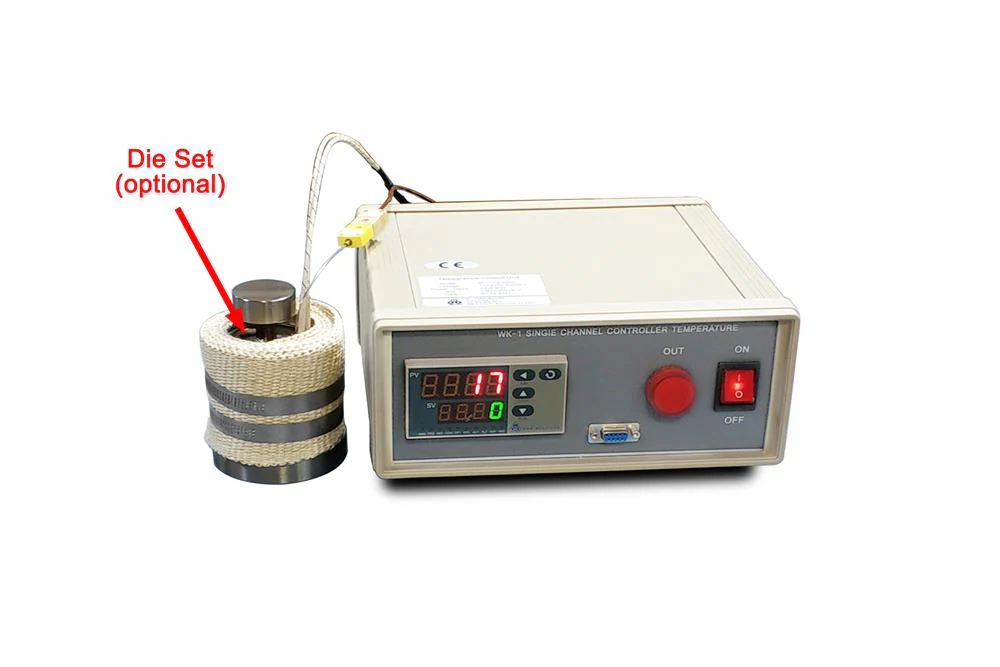

EQ-HC-2 is designed for heating pressing dies with a Band Heater (480 ºC Max.) and a Temperature Controller. (Die is NOT included, please order accordingly)

SPECIFICATIONS:

Model	EQ-HC-2-40 For use with 40 mm ID dies	EQ-HC-2-50 For use with 50 mm ID dies	EQ-HC-2-70 For use with 70 mm ID dies
Band Heater Dimensions	38 mm ID × 50 mm H	50 mm ID × 50 mm H	70 mm ID × 38 mm H
Voltage & Power	120VAC 50/60Hz, 350W max 220VAC available upon request	120VAC 50/60Hz, 500W max 220VAC available upon request	120VAC 50/60Hz, 500W max 220VAC available upon request
Use with Dies (optional)	For use with Dry Pellet Pressing Die at up to 200 °C: 10mm ID Pressing Die - EQ-Die-10D-B	Specifically engineered to use with MTI's high temperature pressing dies:  400°C Max. Refractory Alloy Die, 1/2" I.D. Dry Pellet Pressing Die - EQ-Die-12DHT fig.1  fig.2   Also compatible wi/ below Pressing Dies (200°C max) 1/4" ID Pressing Die - EQ-Die-06D-B 1/2" ID Pressing Die - EQ-Die-12D-B 3/4" ID Pressing Die - EQ-Die-18D-B 20mm ID Pressing Die - EQ-Die-20D	Compatible with the Dry Pressing Dies below at up to 200°C: 1" ID Pressing Die - EQ-Die-25D 28 mm ID Pressing Die - EQ-Die-28D-B 1.5" ID Pressing Die - EQ-Die-38D
Working Temperature	Band Heater: RT - 480 ºC The maximum working temperature depends on the both Band Heater and Pressing Die, whichever is lower. Higher temperature available upon request at extra cost, please contact MTI for details
Temp. control method	Programmable PID temperature controller with the type-K thermocouple.
Application Notes	More sizes of band heaters are available upon request. To avoid damaging the die core and sleeve, we strongly recommend you use the professional laboratory hydraulic pressers which ensure the most even pressing interface and uniform pressure force.
