1100°C Four Chamber HTP Muffle Furnace w/ Programmable Temp. Controller - KSL1100XSMGI4

1100°C Four Chamber HTP Muffle Furnace w/ Programmable Temp. Controller - KSL1100XSMGI4

1100°C Four Chamber HTP Muffle Furnace w/ Programmable Temp. Controller - KSL1100XSMGI4

KSL1100XS-MGI4 is a compact four-chamber ( 4"x4"x4") muffle furnace with a separate 4-channel programmable temperature controller. It is the ideal muffle furnace for sintering samples at high throughput up to 1100 °C in material research. The 4-chamber furnace can be put in a standard glovebox to treat samples under an inert atmosphere
SPECIFICATIONS:

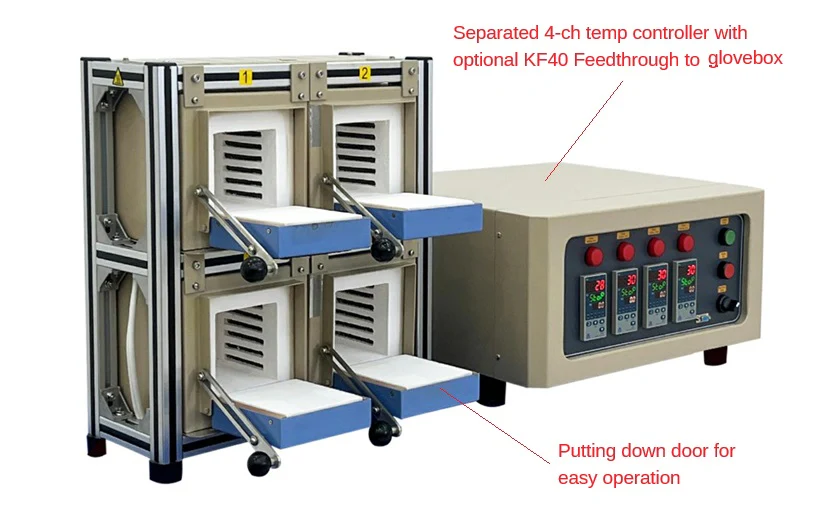

Features	Integrate four mini muffle furnaces into one frame to save space and energy. Drop-down door for easy and safe sample loading Small enough to place inside a standard glovebox, while a separate temperature controller is put in the outside glovebox via KF40 feedthrough
Power	110V version: 950 W (15A Fuse) for each furnace ( power cord is included), Plug: NEMA 5-15P) , Total power consumption 3800 W 220V version: 1.2KW(10A Fuse) for each furnace (power cord is included without a power plug.)
Operating Temperature	200 °C - 1000°C max continuously for each chamber 1100°C max for an hour Note: If you would like to use the furnace at 35 - 200 °C as a drying oven at extra cost, please let us know in advance to present another set of PID parameters.
Max. Heating Rate	30 °C /min Max. 10oC / min recommended for longer service life

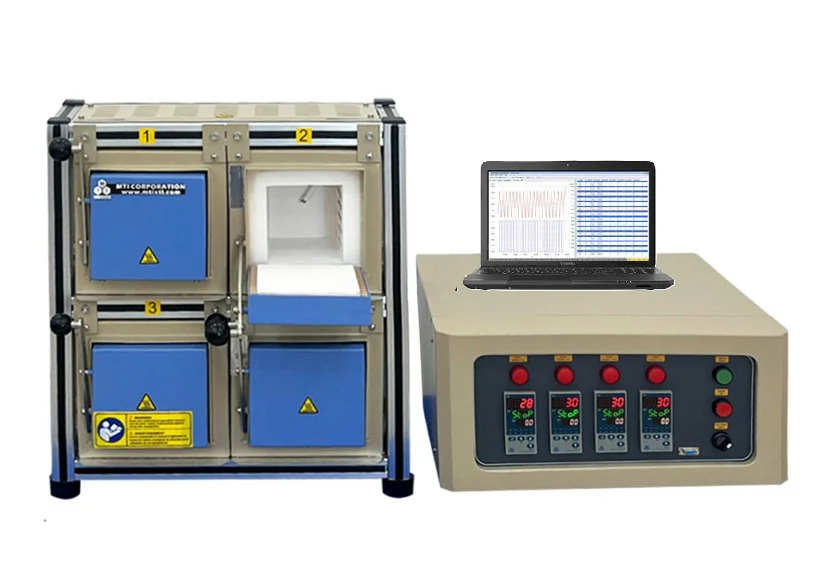

Temperature Controller	The 4-channel temperature controller is separated from the integrated furnace unit. Each controller has PID automatic control and an auto-tune function. 30 programmable segments for each heating chamber Built-in protection for overheating and a broken thermocouple. Optional software is available at extra cost to operate the furnace by a laptop in a remote place.
Temperature Accuracy	+/- 1 °C from 200 °C to 1100 °C
Heating Elements	Fe-Cr-Al Alloy doped by Mo
Thermocouple	K type x 4
Compliance	CE Certified NRTL (UL61010) or CSA certification is available upon request at extra cost.
Warnings	Toxic or explosive gases are not recommended for use with this furnace Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating. You shall place the sample into a crucible as below. Never place the sample on the chamber bottom directly.

Select Rated Voltage

From $2,099.30

Original: $5,998.00

-65%

1100°C Four Chamber HTP Muffle Furnace w/ Programmable Temp. Controller - KSL1100XSMGI4—

$5,998.00

$2,099.30

More Images

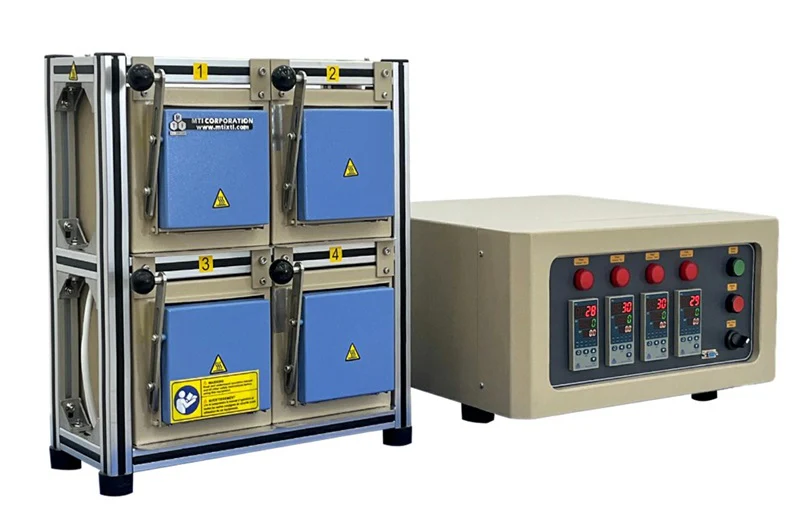

1100°C Four Chamber HTP Muffle Furnace w/ Programmable Temp. Controller - KSL1100XSMGI4 - Image 2

1100°C Four Chamber HTP Muffle Furnace w/ Programmable Temp. Controller - KSL1100XSMGI4 - Image 3

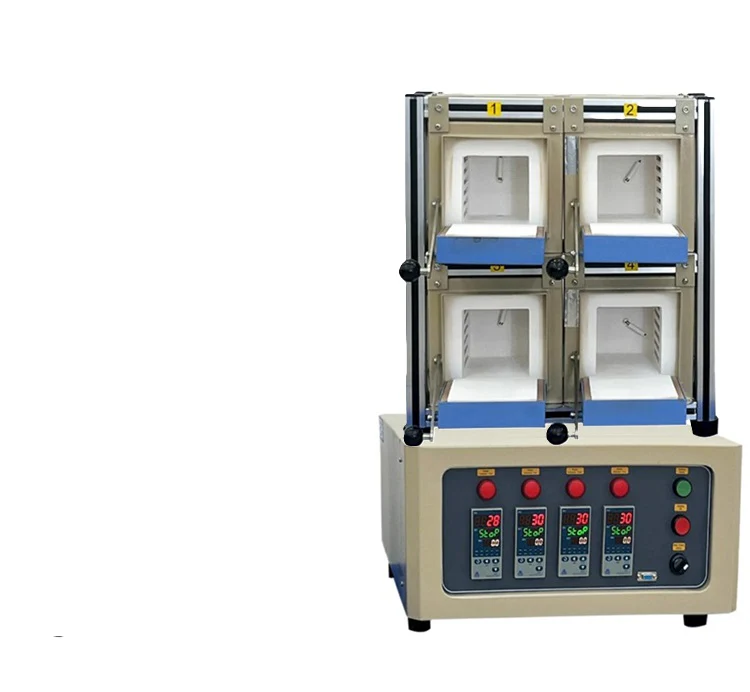

1100°C Four Chamber HTP Muffle Furnace w/ Programmable Temp. Controller - KSL1100XSMGI4 - Image 4

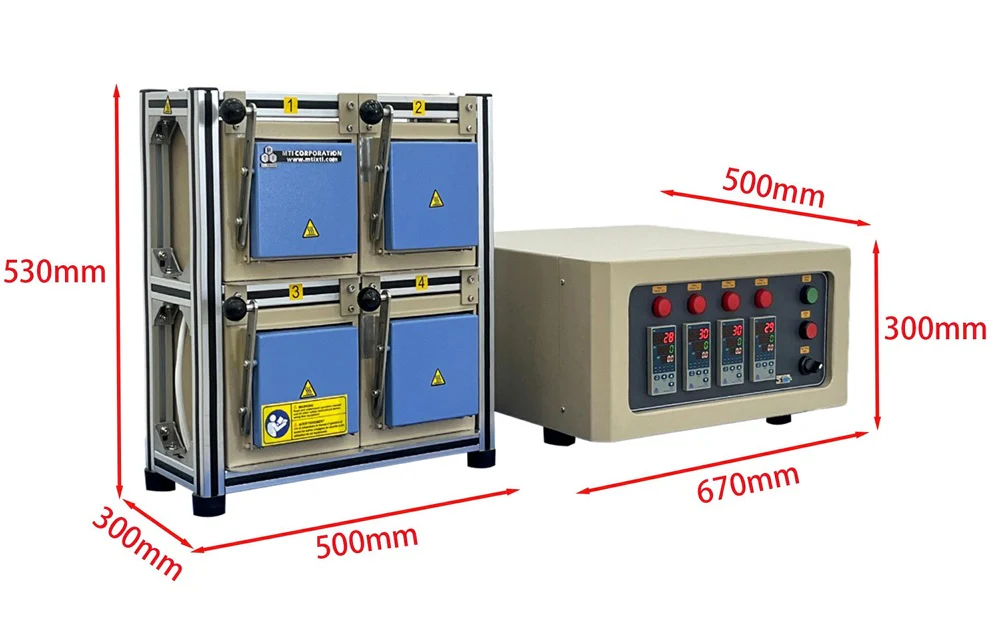

1100°C Four Chamber HTP Muffle Furnace w/ Programmable Temp. Controller - KSL1100XSMGI4 - Image 5

1100°C Four Chamber HTP Muffle Furnace w/ Programmable Temp. Controller - KSL1100XSMGI4

KSL1100XS-MGI4 is a compact four-chamber ( 4"x4"x4") muffle furnace with a separate 4-channel programmable temperature controller. It is the ideal muffle furnace for sintering samples at high throughput up to 1100 °C in material research. The 4-chamber furnace can be put in a standard glovebox to treat samples under an inert atmosphere
SPECIFICATIONS:

Features	Integrate four mini muffle furnaces into one frame to save space and energy. Drop-down door for easy and safe sample loading Small enough to place inside a standard glovebox, while a separate temperature controller is put in the outside glovebox via KF40 feedthrough
Power	110V version: 950 W (15A Fuse) for each furnace ( power cord is included), Plug: NEMA 5-15P) , Total power consumption 3800 W 220V version: 1.2KW(10A Fuse) for each furnace (power cord is included without a power plug.)
Operating Temperature	200 °C - 1000°C max continuously for each chamber 1100°C max for an hour Note: If you would like to use the furnace at 35 - 200 °C as a drying oven at extra cost, please let us know in advance to present another set of PID parameters.
Max. Heating Rate	30 °C /min Max. 10oC / min recommended for longer service life
Temperature Controller	The 4-channel temperature controller is separated from the integrated furnace unit. Each controller has PID automatic control and an auto-tune function. 30 programmable segments for each heating chamber Built-in protection for overheating and a broken thermocouple. Optional software is available at extra cost to operate the furnace by a laptop in a remote place.
Temperature Accuracy	+/- 1 °C from 200 °C to 1100 °C
Heating Elements	Fe-Cr-Al Alloy doped by Mo
Thermocouple	K type x 4
Compliance	CE Certified NRTL (UL61010) or CSA certification is available upon request at extra cost.
Warnings	Toxic or explosive gases are not recommended for use with this furnace Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating. You shall place the sample into a crucible as below. Never place the sample on the chamber bottom directly.
