Microwave Furnace With Programmable Temp Control: optional 1100ÂșC or 1400ÂșC Max.- KSL-MW-XX

Microwave Furnace With Programmable Temp Control: optional 1100ÂșC or 1400ÂșC Max.- KSL-MW-XX

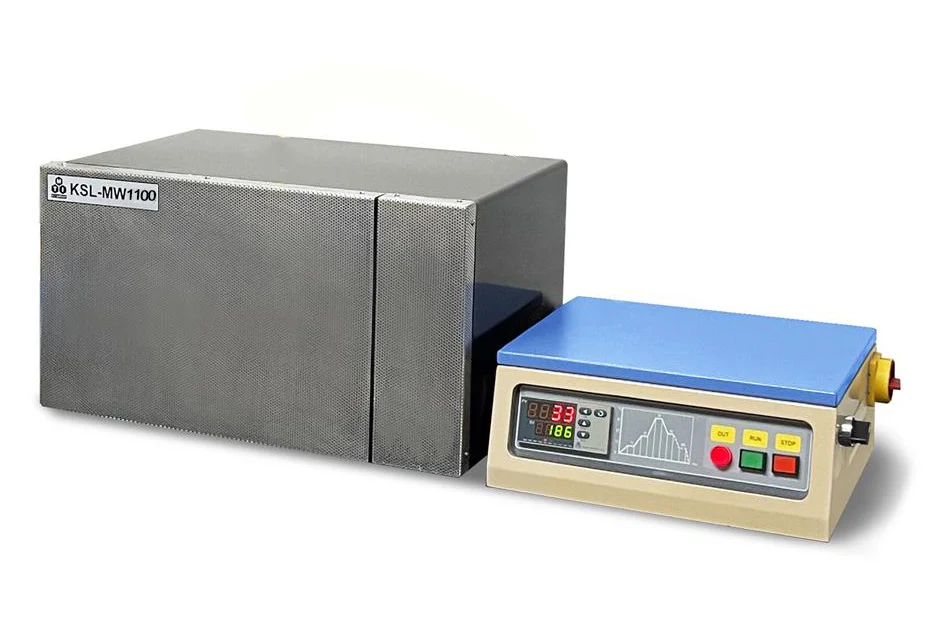

KSL-MW-XX is an economic microwave box furnace converted from a microwave oven with a precision temperature controller. With optional input power, it can rapidly heat the sample up to 1100ÂșC, or 1400°C at a heating rate of Max 100 °C/minute. It is suitable for calcining and sintering magnetic or oxide electronic materials.

Upgraded to 1900W max since Aug. 1, 2023
SPECIFICATIONS:
Furnace Features
  • Stainless steel casing design for shielding microwave radiation
  • Rapid heating up > 60 ÂșC/minute speed ( 100ÂșC/minute Max)
  • SiC foam as heating elements
  • Precision temperature control with 30 segments programmable
  • Vacuum casting thermal insulation material for max. energy saving.
  • The furnaces are selectable at 1100ÂșC or 1400ÂșC with different output power
Microwave
  • Frequency: 2.45 GHz ±25 MHz
  • Output: 700W, 1000W and 1800W selectable from product bar
  • Microwave leaking: ≀1 mW/cmÂČ

Power

(2 Options)
Power Requirement

1000W

AC110-, Single Phase, 50/60 H。

For version of 220V, 5000 W transformer is required

3000W

AC208-240V, Single Phase, 50/60 Hz
Max. Working Temperature 1100 ÂșC  1400 ÂșC
Continuous Working Temperature 1000 ÂșC  1200 ÂșC
Thermocouple K-Type Thermocouple S-Type Thermocouple

Heating Elements
& Thermal Insulation
  • SiC foam is employed as a heating element, which is a microwave susceptor
  • One Al2O3 crucible is included, which is also a microwave susceptor. To be inserted inside the SiC disk
  • SiC Graphite crucible is also available, please click the picture below to order
  • The SiC heater is placed inside a fibrous alumina casing as the thermal insulation layer
  • There are optional models of Microwave Heater to be purchased for various need.

Heating Rate
  • Heating rate: 0 ~60°C / min programmable
  • Heating time: 100 minutes Max.
  • The microwave furnace is good for rapid heating at a short time of less than 10 minutes
 Temperature Controller
  • 30 segments programmable for heating rate, dwell temperature and time, and cooling rate
  • SCR temperature control
  • Over-temperature and thermal couple broken protection
  • Control accuracy +/-5.0 ÂșC
Compliance
  • CE Certified
  • NRTL certification is available upon request at an extra cost
Application Note
  • Wear Thermal Gloves during all operation and handling procedures.
  • It is recommended to place and operate the Microwave Furnace inside a fume hood.
  • Always remove the Thermocouple prior to detaching the Microwave Heater to avoid thermocouple damage.
  • Ensure to maintain clearance of 0.5 meter between the Microwave Furnace and the Temperature Control Unit to prevent electromagenetic interference.
  • Allow the Microwave Furnace to cool below 200°C before removing or disassembling the Microwave Heater.
  • Store the Microwave Heater in a dry environment. If moisture is present, thoroughly dry the Microwave Heater before operation. Otherwise, the moisture can absorb microwave to cause issue on heating process.









Select Microwave Power
From $1,749.30

Original: $4,998.00

-65%
Microwave Furnace With Programmable Temp Control: optional 1100ÂșC or 1400ÂșC Max.- KSL-MW-XX—

$4,998.00

$1,749.30

More Images

Microwave Furnace With Programmable Temp Control: optional 1100ÂșC or 1400ÂșC Max.- KSL-MW-XX - Image 2
Microwave Furnace With Programmable Temp Control: optional 1100ÂșC or 1400ÂșC Max.- KSL-MW-XX - Image 3

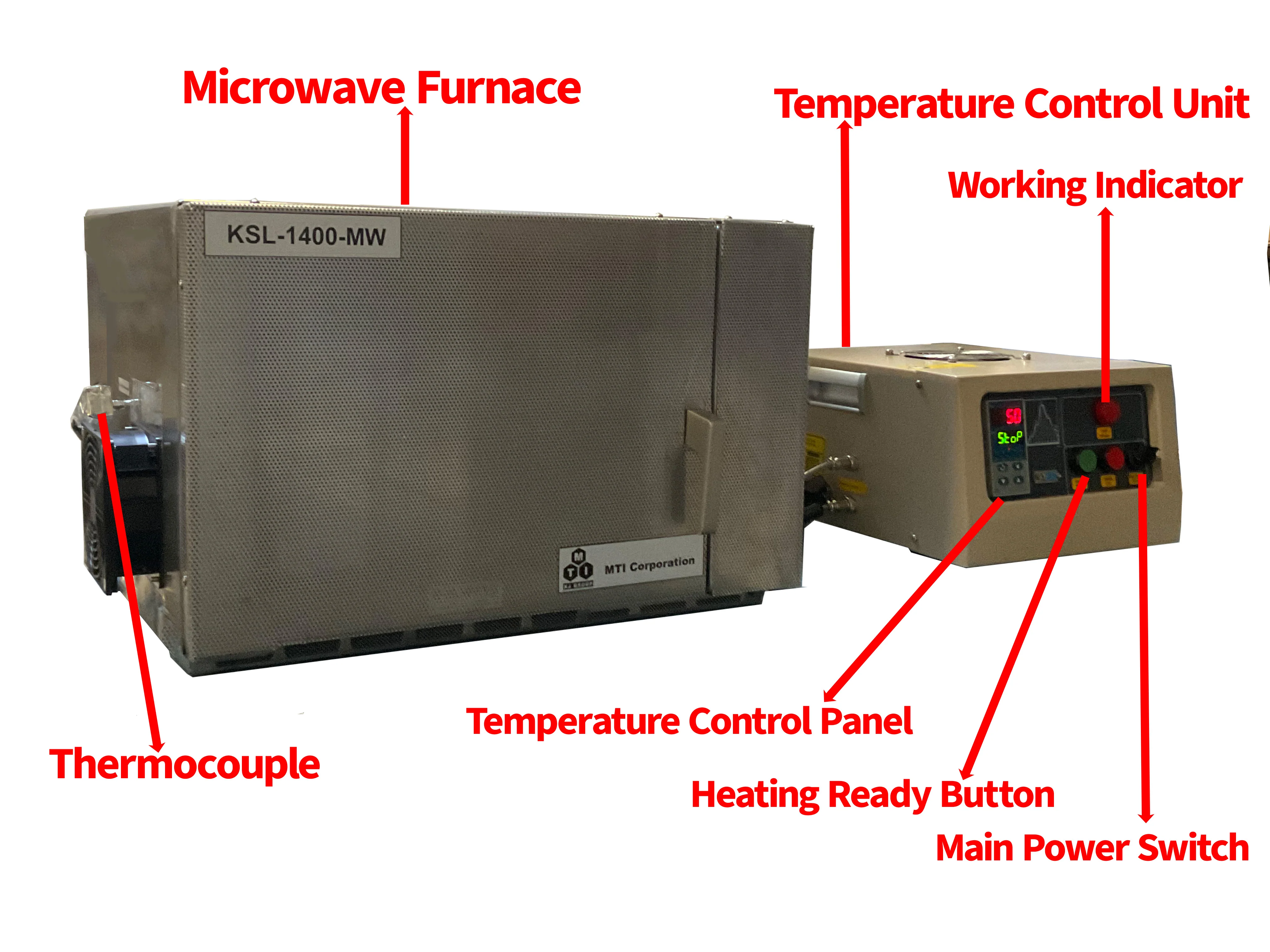

Microwave Furnace With Programmable Temp Control: optional 1100ÂșC or 1400ÂșC Max.- KSL-MW-XX - Image 4

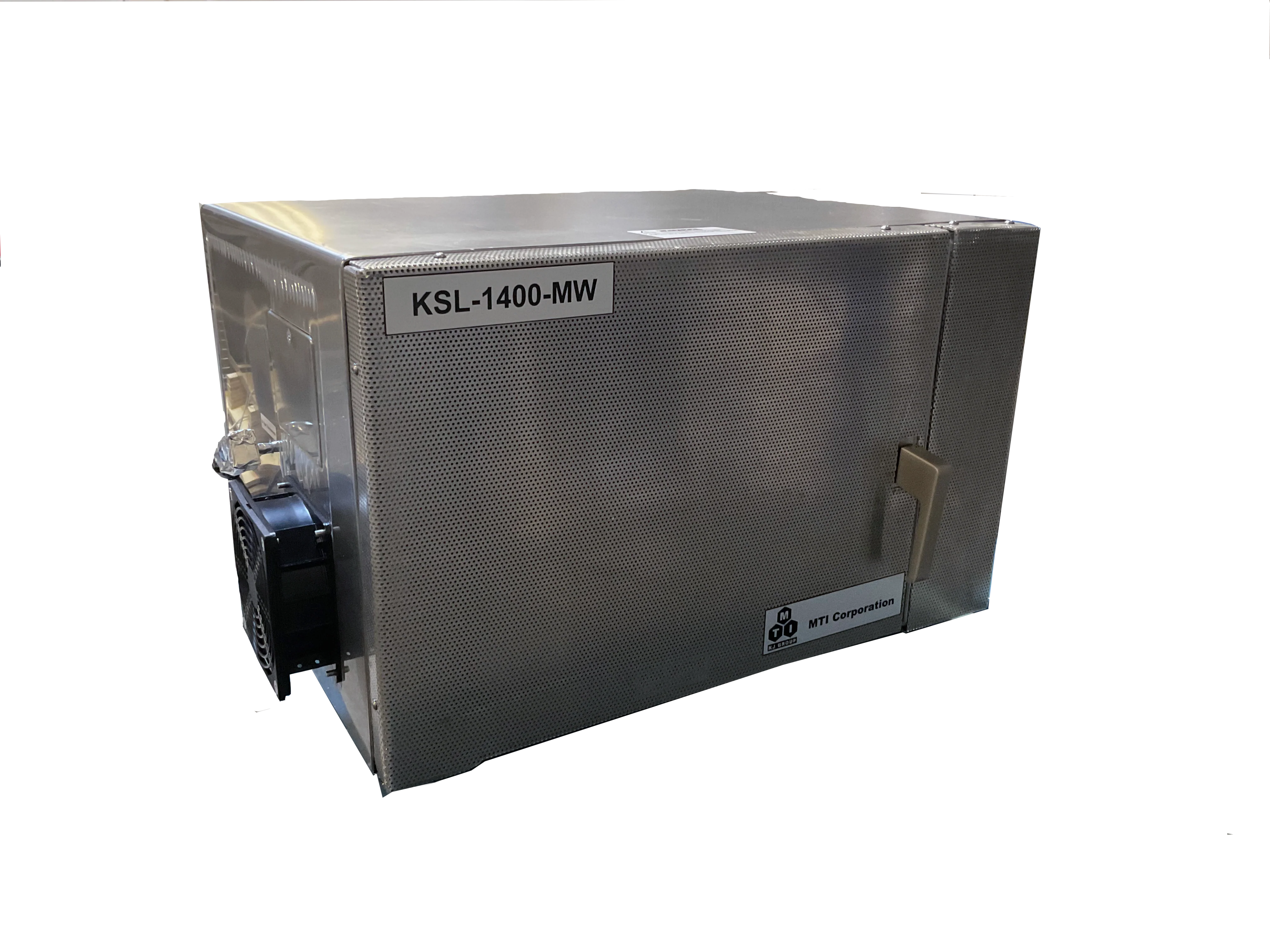

Microwave Furnace With Programmable Temp Control: optional 1100ÂșC or 1400ÂșC Max.- KSL-MW-XX - Image 5
