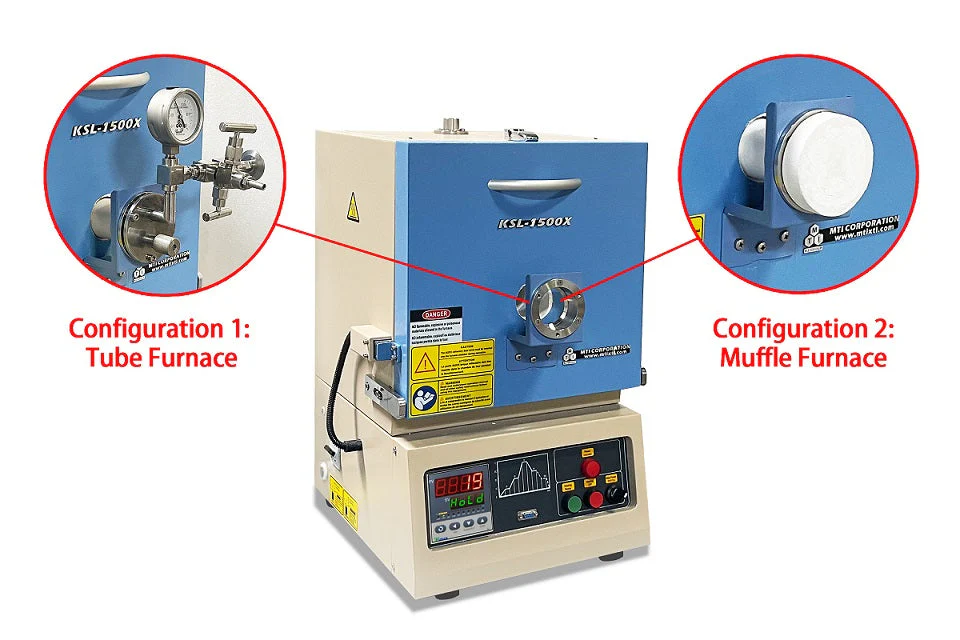

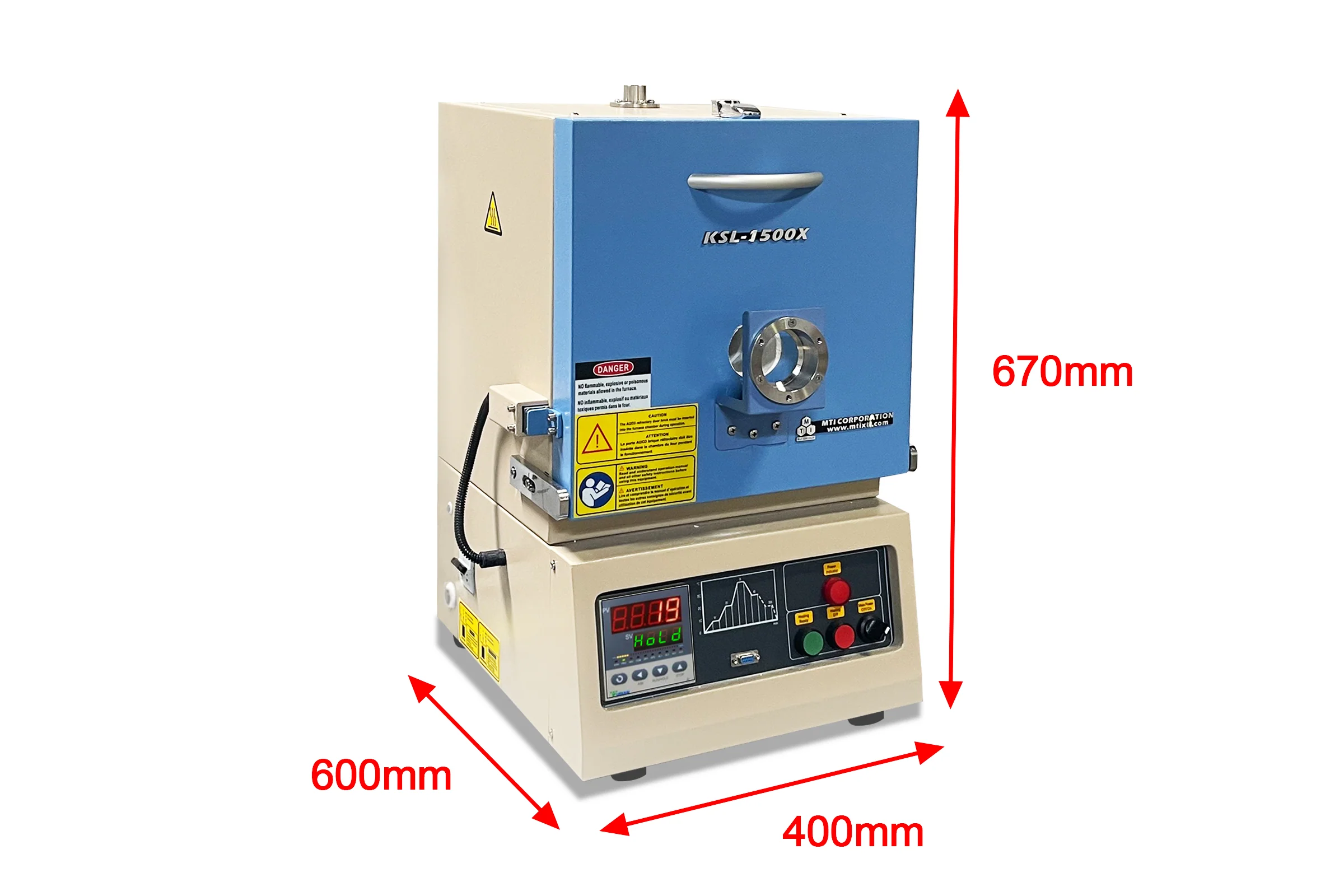

KSL-1500X-S-H is a1500ºC high-temperature hybrid furnace that can be used as a 1.7L ( 12x12x12cm ) muffle furnace and a 2" tube furnace. It is a cost-effective and space-saving solution for material processing labs.
SPECIFICATIONS:
Furnace Structure
|
- The design of the drop-down door is for loading samples easy.
- The gas inlet and venting port are installed for use in oxygen or inert gas-enriched atmospheres.
- One 2" hole is opened in the front of the door to insert a 2" mullite tube when use as a vacuum tube furnace
|
Power
|
- AC 208V-240V single phase, 50/60 Hz ( 20A air breaker required)
- 2.5KW
- Note Power cable included but without the plug. Please install a plug on your own or click the picture left to choose a plug according to your country or your lab requirement
|
Heating Chamber
|
- Heating Elements: SiC (4 pcs U shape)
- Chamber size: 120 x 120 x120 mm
- Working Temperature: 1400ºC ( Continuous ), and 1500ºC (< 60 minutes)
- Heating Rate: 0 ~20°C / min (suggestion =< 10°C)

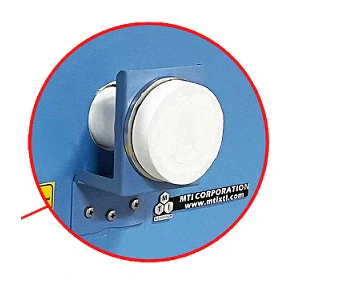

- Thermal block: 2" thermal block made of fibrous alumian is included in the front door
|
Processing Tube
|
- One mullite tube ( one end closed) is included with a dimension of 2'' O.Dx1.75''I.Dx12''L.

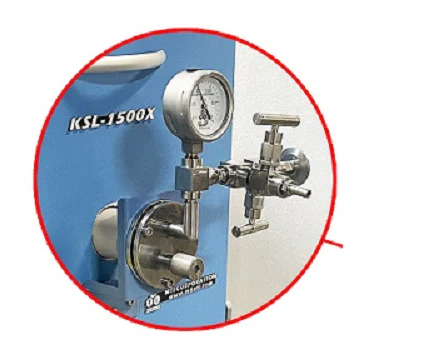

- One set of vacuum flange with valves of gas inlet and outlet, KF25 vacuum port, and mechanical vacuum gauge
- Mx. vacuum 10-2 torr by mechanical pump, and 10-5 torr by turbo-pump
|
Temperature Controller
|
- Proportional–integral–derivative control (PID control) and auto-tune function
- 30 segments programmed with ramping, cooling, and dwelling steps
- Built-in over-temperature alarm and thermocouple failure alarm
- Thermal couple: S type
- +/- 1 ºC temperature control accuracy
- Default DB9 PC communication port
|
Laptop & software (Optional)
|
- Brand new laptop with Microsoft Windows 10 and Microsoft Office 2013 (30 days free trial) for immediate use.
- Labview-Based Temperature Control System (MTS01)enables users to edit temperature profiles, manage heat-treatment recipes, and record and plot data for MTI furnaces.
- A wireless remote control provides up to 200 meters of operating range.
|
|
Compliance
|
- CE Certified
- The furnace is ready to pass TUV(UL61010) or CSA certification at an extra cost.
|
|
Attention Notes
|
- For preserving the longevity of the furnace components, we recommend the heating rate not to exceed 10 °C /min. The cooling rate shall also not exceed 10 °C /min.
-
Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating.
- Performance degradation (i.e. furnace can not reach the maximum temperature of 1500°C or it is drawing a higher than normal working current) can be expected due to the use of aged SiC heating elements. It is necessary to replace all the heating elements.
|
