Atmosphere Controlled Continuous Casting Furnace with Secondary Charge Function - IMCS-1700VC

IMCS-1700VC is an induction melting and continuous casting furnace under vacuum or inner gas, which can cast the rod, plate, or wire continuously for various alloys up to 5 kg at Max. 1700ºC. This device is necessary for wire preparation of metallic wire for AM ( Click here to see details)

SPECIFICATIONS:

• One set of standard graphite crucibles with thermal insulation is included for melting and solidification
• Graphite crucible dimension:160 ID * 220H (mm) ~2 Liter
• Max. melting capacity 5 kg ( Stainless steel based )
• Max. Melting point: 1700ºC

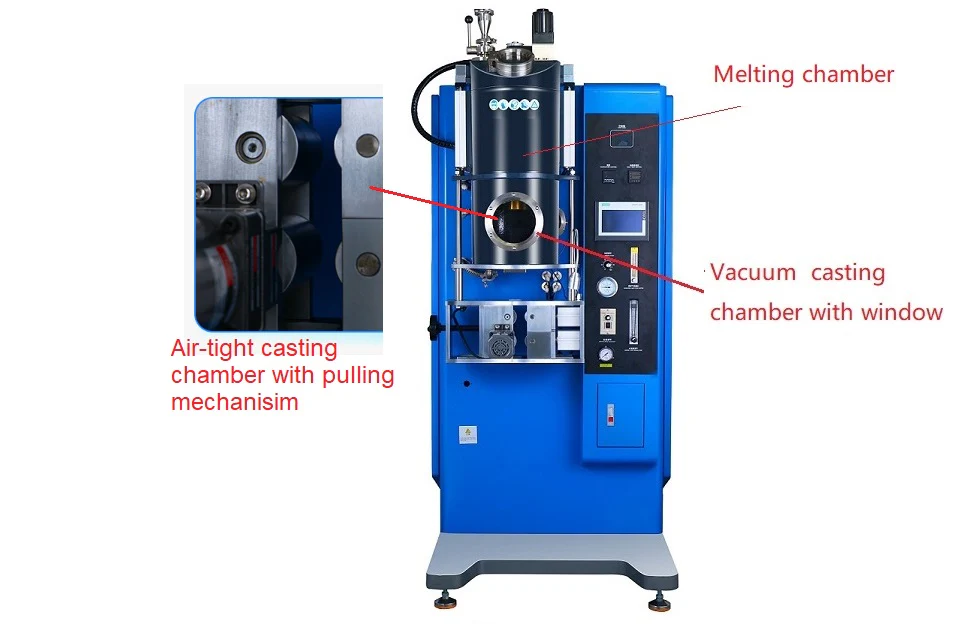

• Air-tight chamber in the bottom of the melting chamber with pulling down mechanism
• Pulling speed: 8 - 10 0cm/min adjustable
• Types and sizes of castable profiles (Please discuss this with our engineer for your application before purchasing it.)

• Graphite lower mold: M50 * 150mm
• Protective Gas: argon, nitrogen with a purity of 9999 (2L per hour needed)

Power Requirements	Input Voltage: 208 - 240VAC, Three Phases, 50/60Hz Max. Current: 70A Output: 25 kW ( 100A air breaker is required )

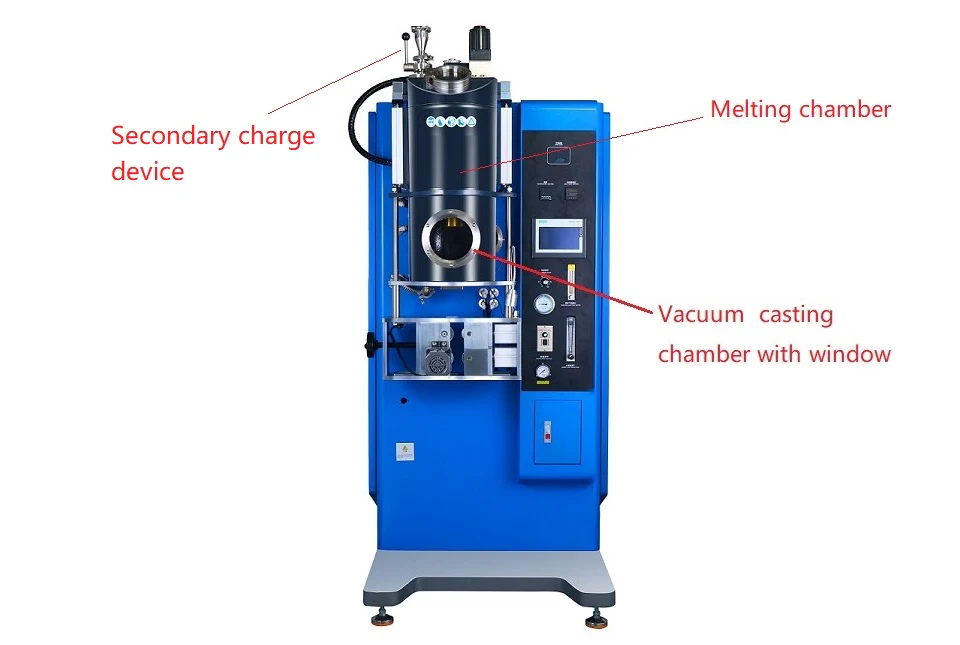

Melting Chamber Stainless steel chamber with Secondary charge and stiring function.
Casting	Wire: φ6-φ30mm Plate: Width: 2-70mm
Temperature Control	Max. Working temperature 1700ºC B-type thermocouple allows the user to closely control and monitor the temperature with the most accurate readings Touch screen digital temperature control with +/- 2ºC accuracy
Vacuum and Inert Gas	Vacuum requirement: 1bar (-29.9" Hg) at sea level A mechanical vacuum/pressure gauge is included Inert Gas Requirement: 5 liters/ minute @ 0.7 bar (10 psi) hi-purity nitrogen or argon Double stage rotary vane vacuum pump is included with this casting system ( click picture left tp see specs)
Water Cooling	58L / min Flow, 17K BTU/hr recirculating water chiller is included

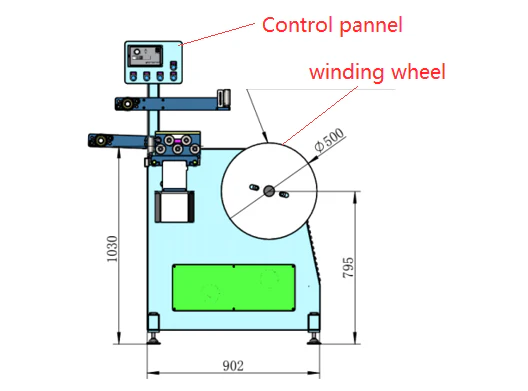

Winding device (optional)	An automatic winding device is optional The device can wind wire up to 20Kg
Compliance	CE certified NRTL certification is available upon request at an extra cost
