1200°C Max Microwave Heated Tube Furnace: optional 1", 1.57" and 2" Dia. - GSL-MW-25

1200°C Max Microwave Heated Tube Furnace: optional 1", 1.57" and 2" Dia. - GSL-MW-25

1200°C Max Microwave Heated Tube Furnace: optional 1", 1.57" and 2" Dia. - GSL-MW-25

GSL-MW-25 is a microwave tube furnace with a working temperature up to 1100°C and an optional tube size of 1", 1.57", and 2" diameter. The microwave tube furnace is equipped with a precision SCR controller with 30 segments programmable and 1ºC accuracy.

SPECIFICATIONS:

Furnace Features	Stainless steel and aluminum shield to protect from microwave radiation Rapid heating up to 20 ºC/minute speed SiC fibrous heating elements Precision temperature control with 30-segment programmability within +/- 1ºC Vacuum casting thermal insulation material for max. energy saving.
Power	2100W 208- 240VAC, Single phase, 50/60Hz
Microwave	Frequency: 2.45 GHz ±25 MHz Power Output: 2100W Microwave leaking: ≤ 3 mW/cm² at 1 meter away.
Working Temperature	≤1100ºC continous Heating rate: 10 ~150°C / min programmable
Heating Elements	SiC ring is employed as a heating element. A fibrous alumina casing is the thermal insulation layer.
Quartz Tube & Flange	The standard quartz tube is 25 mm OD x 21 mm ID x 500 mm L Vacuum-sealed flange with valve, gauge, and TC feedthrough is included. Vacuum level: up to 10-5 torr by turbopump 25mm, 40 mm OD or 50 mm OD quartz tube is available for a max working temperature ≤ 1200 °C
Temperature Controller	Advanced SCR temperature controller 30 segments programmable for heating, dwelling, and cooling. Autotune function; Over-temperature and thermocouple broken protection Control accuracy ±1.0 ºC
Compliance	CE Certified NRTL certification is available upon request at an extra cost

Select Processing Tube Diameter

From $3,149.30

Original: $8,998.00

-65%

1200°C Max Microwave Heated Tube Furnace: optional 1", 1.57" and 2" Dia. - GSL-MW-25—

$8,998.00

$3,149.30

More Images

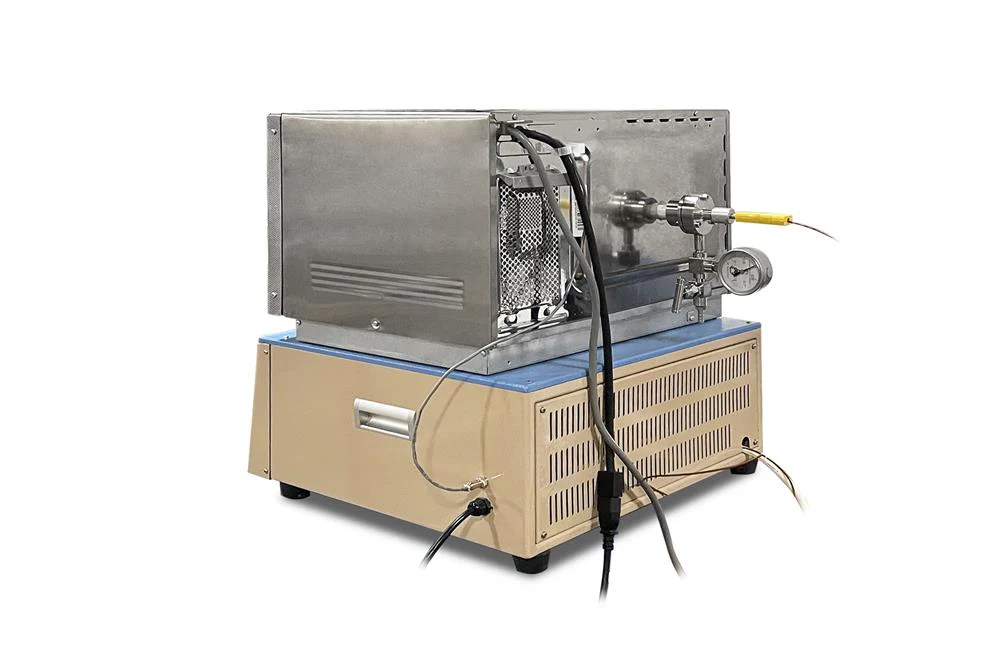

1200°C Max Microwave Heated Tube Furnace: optional 1", 1.57" and 2" Dia. - GSL-MW-25 - Image 2

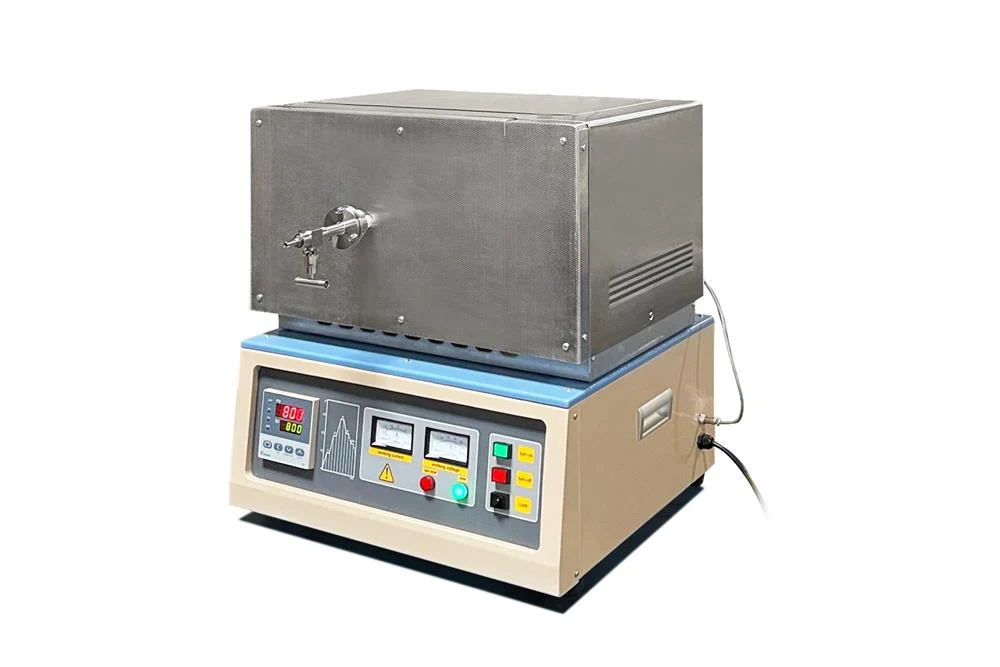

1200°C Max Microwave Heated Tube Furnace: optional 1", 1.57" and 2" Dia. - GSL-MW-25 - Image 3

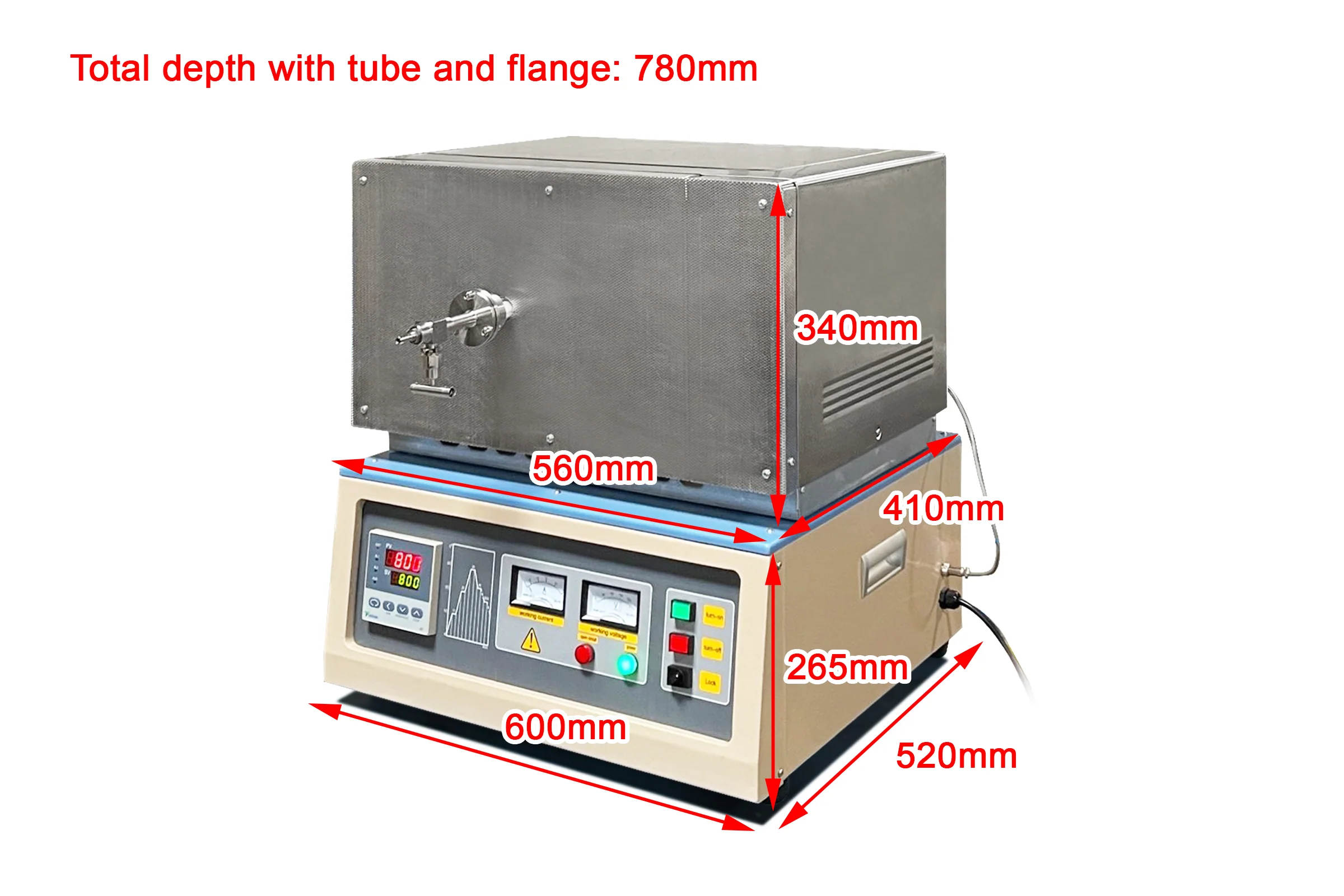

1200°C Max Microwave Heated Tube Furnace: optional 1", 1.57" and 2" Dia. - GSL-MW-25 - Image 4

1200°C Max Microwave Heated Tube Furnace: optional 1", 1.57" and 2" Dia. - GSL-MW-25

GSL-MW-25 is a microwave tube furnace with a working temperature up to 1100°C and an optional tube size of 1", 1.57", and 2" diameter. The microwave tube furnace is equipped with a precision SCR controller with 30 segments programmable and 1ºC accuracy.

SPECIFICATIONS:

Furnace Features	Stainless steel and aluminum shield to protect from microwave radiation Rapid heating up to 20 ºC/minute speed SiC fibrous heating elements Precision temperature control with 30-segment programmability within +/- 1ºC Vacuum casting thermal insulation material for max. energy saving.
Power	2100W 208- 240VAC, Single phase, 50/60Hz
Microwave	Frequency: 2.45 GHz ±25 MHz Power Output: 2100W Microwave leaking: ≤ 3 mW/cm² at 1 meter away.
Working Temperature	≤1100ºC continous Heating rate: 10 ~150°C / min programmable
Heating Elements	SiC ring is employed as a heating element. A fibrous alumina casing is the thermal insulation layer.
Quartz Tube & Flange	The standard quartz tube is 25 mm OD x 21 mm ID x 500 mm L Vacuum-sealed flange with valve, gauge, and TC feedthrough is included. Vacuum level: up to 10-5 torr by turbopump 25mm, 40 mm OD or 50 mm OD quartz tube is available for a max working temperature ≤ 1200 °C
Temperature Controller	Advanced SCR temperature controller 30 segments programmable for heating, dwelling, and cooling. Autotune function; Over-temperature and thermocouple broken protection Control accuracy ±1.0 ºC
Compliance	CE Certified NRTL certification is available upon request at an extra cost
