100ml Hydrothermal Reactor up to 4MPa Optional for SS316 or Ti w/ Heating - GSL-500X-XX

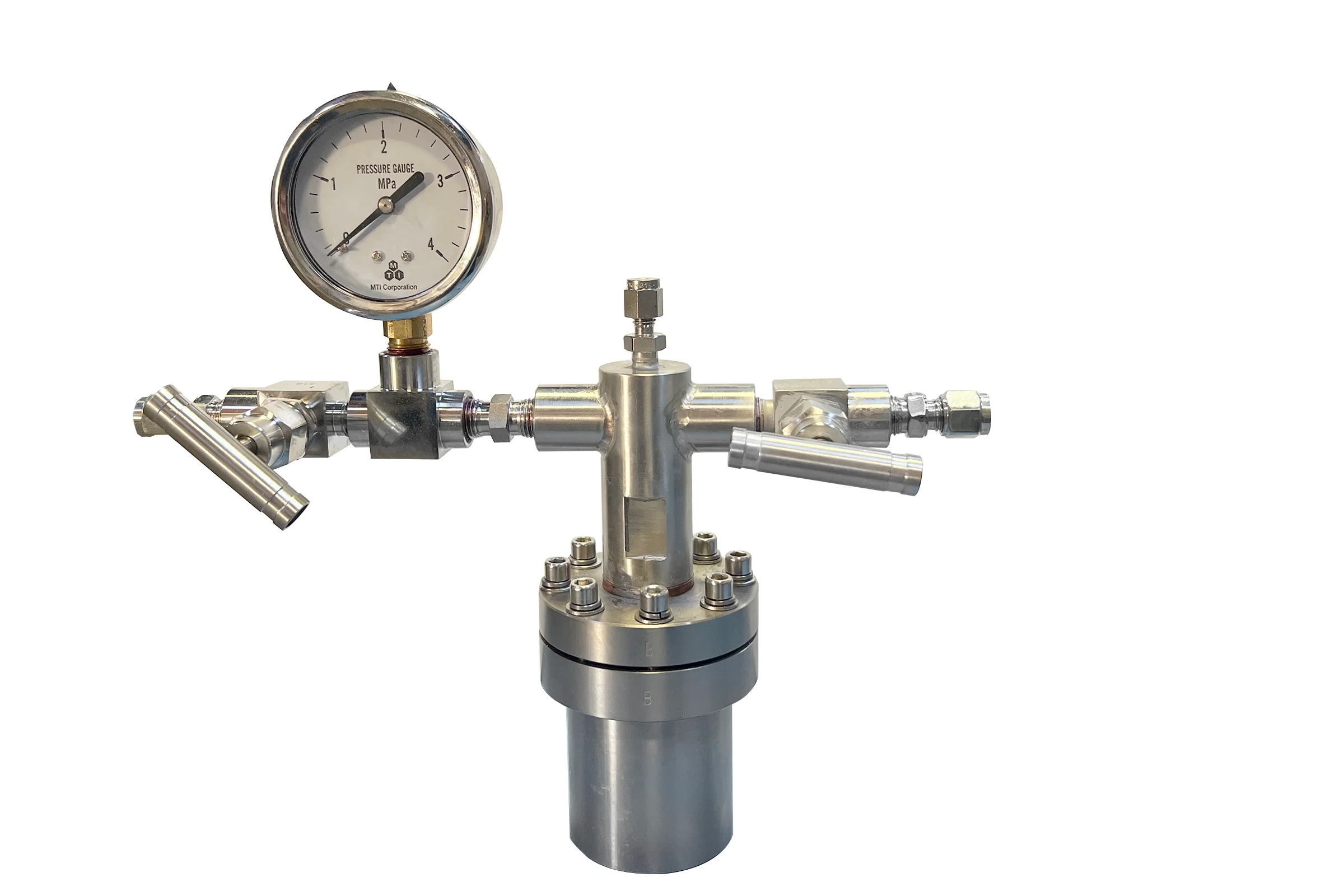

GSL-500X-XX is a hydrothermal reactor made of pure titanium or SS316 steel with a pressure rating up to 4 MPa max. It also comes with gas inlet, outlet, and a pressure gauge.

The optional heating jacket and temperature controller allows to heat up the reactors to 500ºC.  It is an ideal tool for preparing advanced materials, especially bio-materials by the hydrothermal method.

Specifications:

Power	120 VAC, 50/60 Hz, single phase 500 VA 208-240 VAC is available upon request

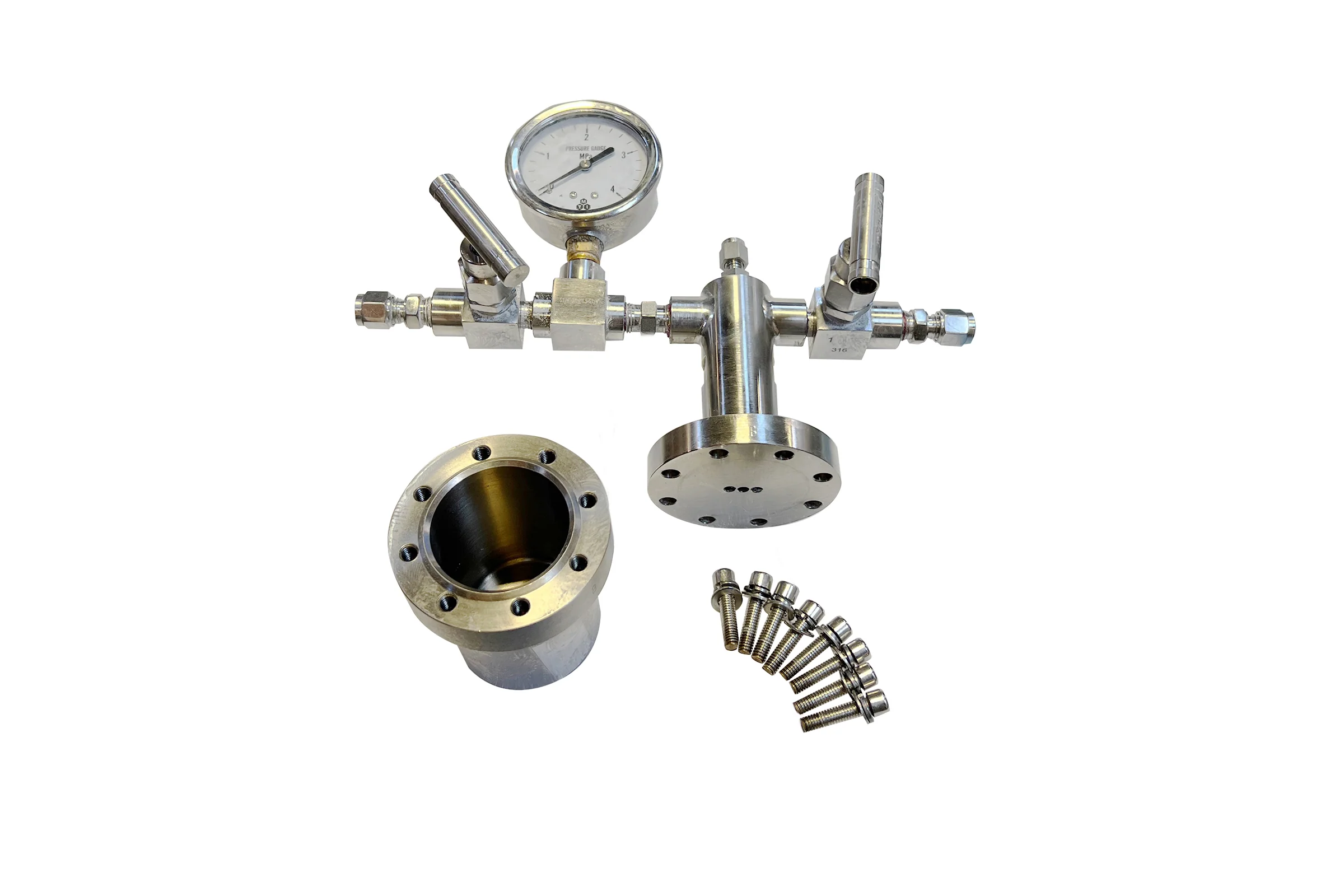

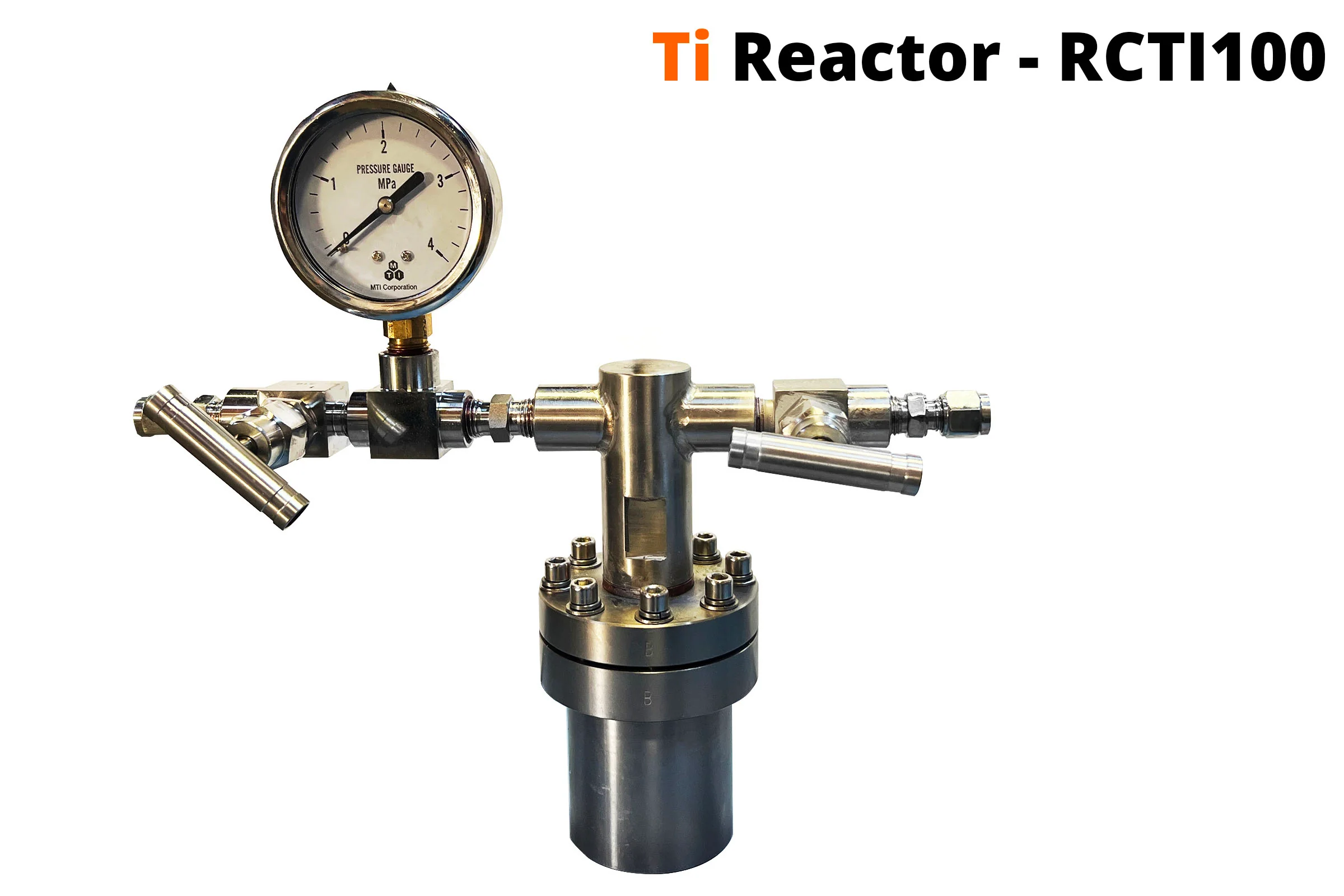

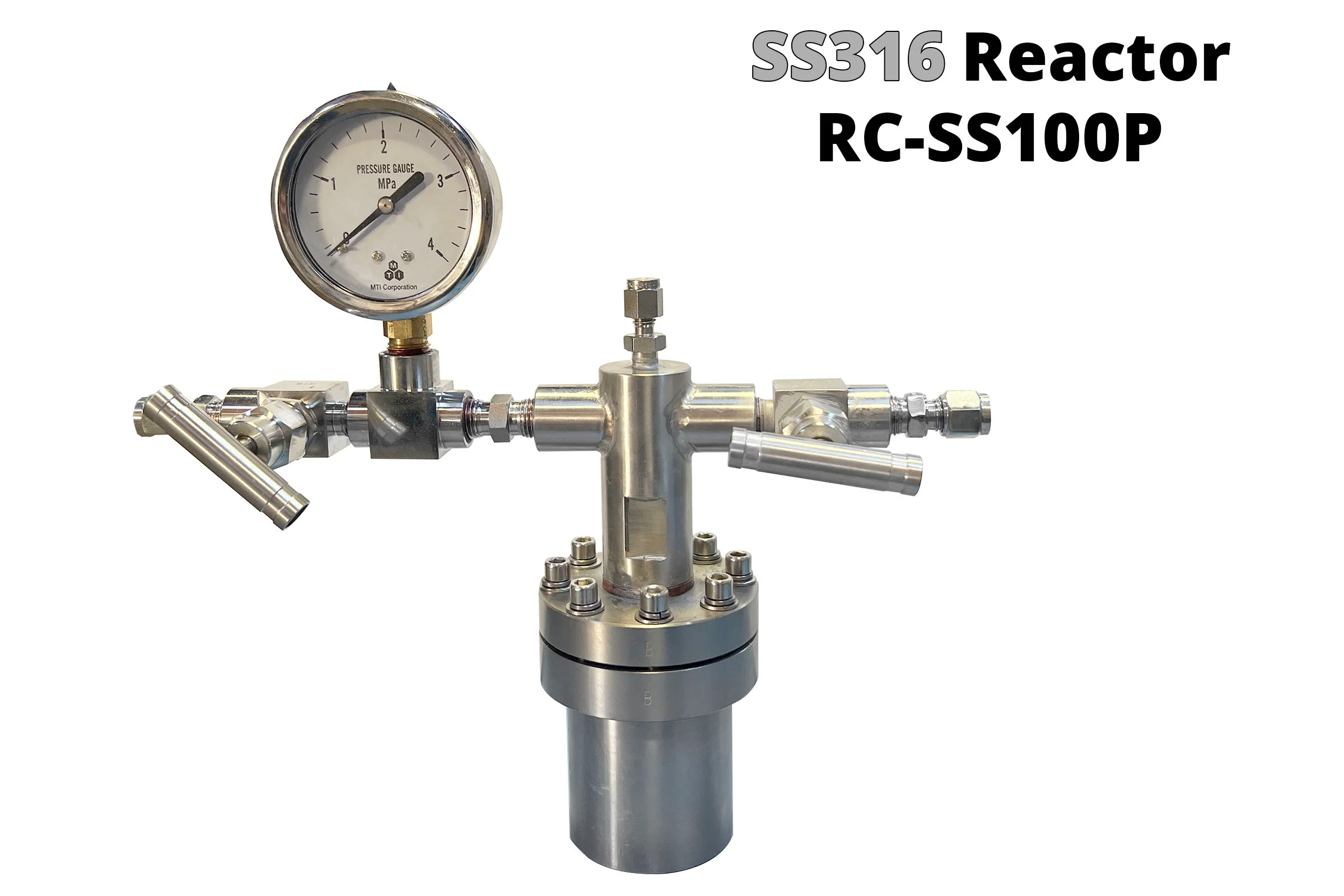

Reactor	Materials:  high purity titanium (> 99.95% ) SS 316 alloy Inner dimensions 65mm OD x 45mm ID x 67mm H Capacity: ~ 100 ml, SS 316 1/4" gas inlet and out with needle valves Built-in pressure gauge (0-4 MPa) Optional PTFE liner is also available.
Working Temperature	RT - 300 °C
Working Pressure	4 MPa Max. < 200°C 2 MPa Max. < 300°C
Valve	Stainless steel 316 needle valves with 1/4" compression tube fitting

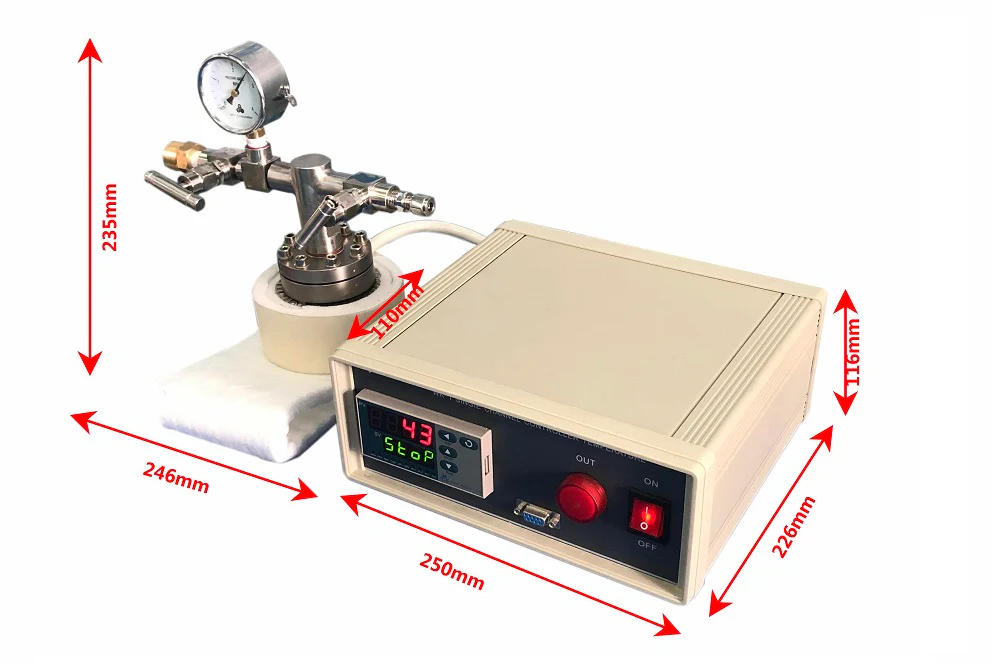

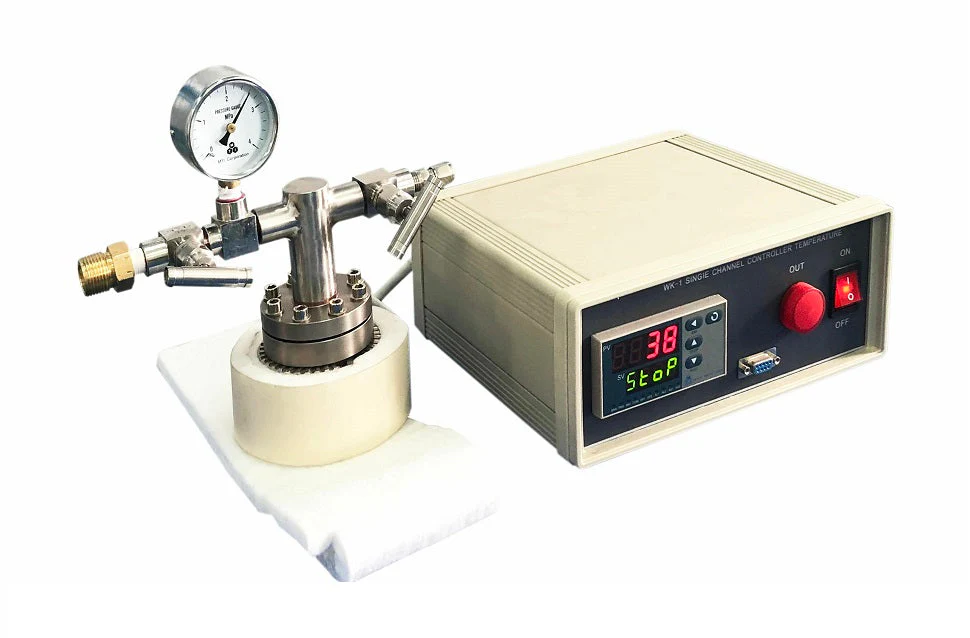

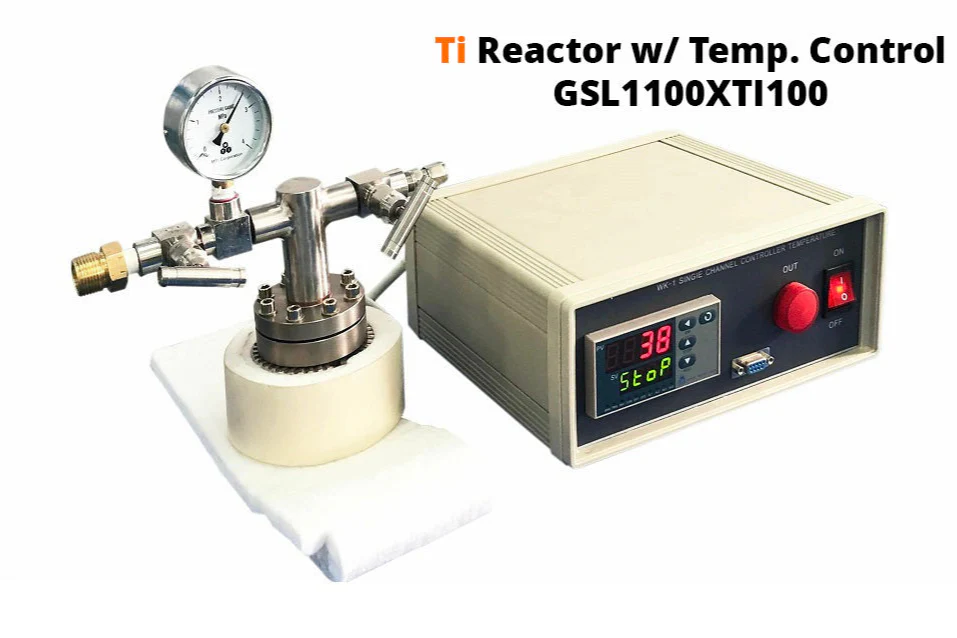

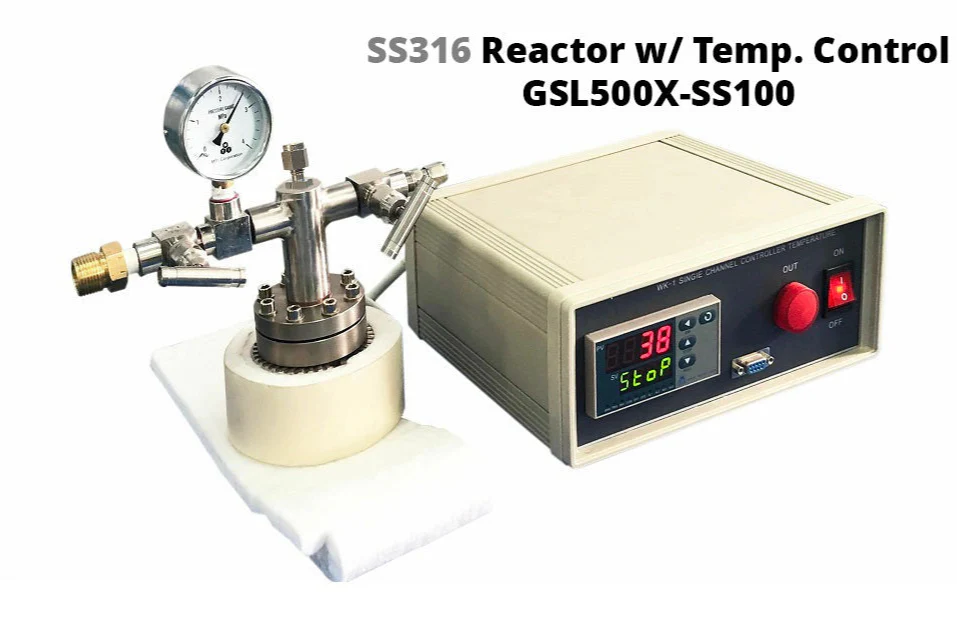

Temperature Controller option	The heating function is optional Single-point digital temperature controller with +/- 1ºC accuracy A coil heater is included to heat the reactor with a thermal couple Digital pressure meters are available at an extra cost
Compliance	CE Certified NRTL or CSA certification ia available upon request at the extra cost
Application Notes	Warning: For your safety, the high-pressure vessel is highly recommended to place inside an explosive-proof box or case during use under high pressure.  Personal protection equipment including but not limited to gloves, goggles, lab jackets is required to operate the equipment.
