Semi-automated 1500°C Thermogravimetric Furnace ( 60mm Tube) GSL-1500X-TGA

Semi-automated 1500°C Thermogravimetric Furnace ( 60mm Tube) GSL-1500X-TGA

Semi-automated 1500°C Thermogravimetric Furnace ( 60mm Tube) GSL-1500X-TGA

GSL-1500X-TGA is a compact tube furnace with a precision TGA (thermal gravimetric analysis) function. It is a cost-effective and space-saving tool to analyze the phase transition of various materials up to 1500°C under a controlled atmosphere. Also, it can be used for small sample annealing or sintering.

SPECIFICATIONS

Furnace Structure	Solid Tube furnace with 60mm OD Tube High-purity alumina fiber insulation surrounding the chamber provides maximum energy efficiency. 40mm dia. x 40mm heating zone Precision temperature controller ±0.1 ºC accuracy One standard KF25 port, one φ6.35mm gas inlet, one quartz observation window, and one relief valve
Thermocouple	S Type
Power	220V AC, 60Hz 6 kW Max
Working Temperature	Continuous: 1400 Max. 1500°C for < 1 hours
Heating Rate	Weighing function OFF: ≤10/min Weighing function ON: 0-200≤3/min, 200-1500≤5/min
Temperature Controllers	Eurotherm temperature controller made in the UK 10 Segments of programmable temperature control via a dedicated computer and software Data can be logged and exported +/- 0.1 ºC temperature accuracy
Electronic Balance	A precision electronic balance ( made in Germany) is located in the bottom of the heating chamber Accuracy: 0.001 g resolution Sample amount: 1 g minimum; 10 g maximum Max. weighting: 120 g if not for TGA
Crucibles	Two 10 ml alumina ID Φ19* 38mm deep crucibles are included
Vacuum pump (optional)	The TGA can reach vacuum up to 10-2 torr by a mechanical pump ( Pic.1) and 10-5 by a turbo pumpPic. 2) Please click the picture below to order the pump and gas delivery system (Pic 3separately:
Warranty	One-year limited warranty (Consumable parts such as heating elements, processing tubes, and o-rings are not covered by the warranty, please order the replacement at related products below.)
Compliance	CE Certified NRTL or CSA certification is available upon request at extra cost.

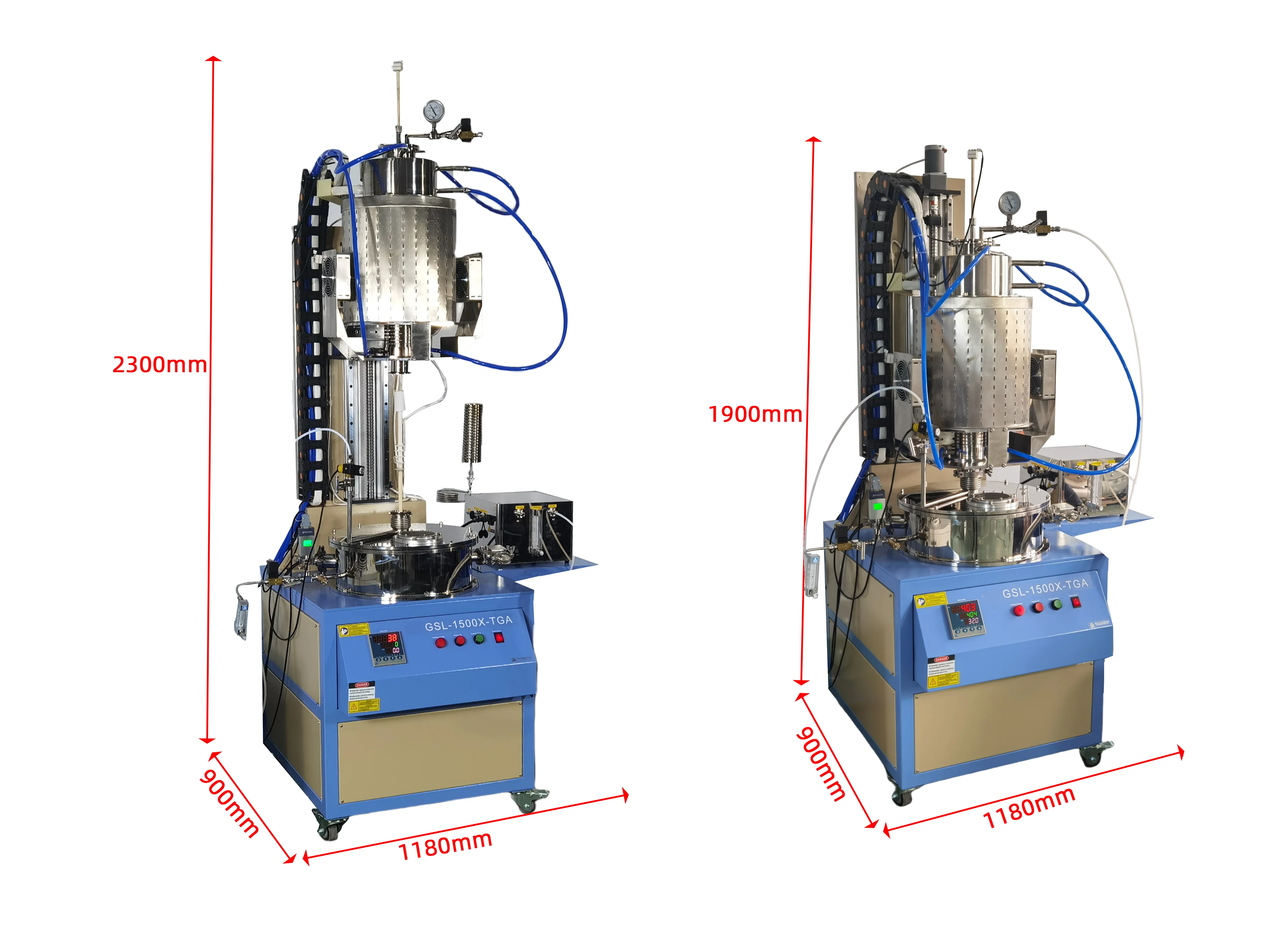

Dimension	7006001900mm
Reference Video	Demo Installation/Operation Exhaust Combustion(Optional )

$19,594.75

Original: $55,985.00

-65%

Semi-automated 1500°C Thermogravimetric Furnace ( 60mm Tube) GSL-1500X-TGA—

$55,985.00

$19,594.75

More Images

Semi-automated 1500°C Thermogravimetric Furnace ( 60mm Tube) GSL-1500X-TGA - Image 2

Semi-automated 1500°C Thermogravimetric Furnace ( 60mm Tube) GSL-1500X-TGA - Image 3

Semi-automated 1500°C Thermogravimetric Furnace ( 60mm Tube) GSL-1500X-TGA - Image 4

Semi-automated 1500°C Thermogravimetric Furnace ( 60mm Tube) GSL-1500X-TGA

GSL-1500X-TGA is a compact tube furnace with a precision TGA (thermal gravimetric analysis) function. It is a cost-effective and space-saving tool to analyze the phase transition of various materials up to 1500°C under a controlled atmosphere. Also, it can be used for small sample annealing or sintering.

SPECIFICATIONS

Furnace Structure	Solid Tube furnace with 60mm OD Tube High-purity alumina fiber insulation surrounding the chamber provides maximum energy efficiency. 40mm dia. x 40mm heating zone Precision temperature controller ±0.1 ºC accuracy One standard KF25 port, one φ6.35mm gas inlet, one quartz observation window, and one relief valve
Thermocouple	S Type
Power	220V AC, 60Hz 6 kW Max
Working Temperature	Continuous: 1400 Max. 1500°C for < 1 hours
Heating Rate	Weighing function OFF: ≤10/min Weighing function ON: 0-200≤3/min, 200-1500≤5/min
Temperature Controllers	Eurotherm temperature controller made in the UK 10 Segments of programmable temperature control via a dedicated computer and software Data can be logged and exported +/- 0.1 ºC temperature accuracy
Electronic Balance	A precision electronic balance ( made in Germany) is located in the bottom of the heating chamber Accuracy: 0.001 g resolution Sample amount: 1 g minimum; 10 g maximum Max. weighting: 120 g if not for TGA
Crucibles	Two 10 ml alumina ID Φ19* 38mm deep crucibles are included
Vacuum pump (optional)	The TGA can reach vacuum up to 10-2 torr by a mechanical pump ( Pic.1) and 10-5 by a turbo pumpPic. 2) Please click the picture below to order the pump and gas delivery system (Pic 3separately:
Warranty	One-year limited warranty (Consumable parts such as heating elements, processing tubes, and o-rings are not covered by the warranty, please order the replacement at related products below.)
Compliance	CE Certified NRTL or CSA certification is available upon request at extra cost.
Dimension	7006001900mm
Reference Video	Demo Installation/Operation Exhaust Combustion(Optional )
