1700 Max High temperature Muffle Furnace with TGA Function- KSL-1700X-A2-TGA
1700 Max High temperature Muffle Furnace with TGA Function- KSL-1700X-A2-TGA

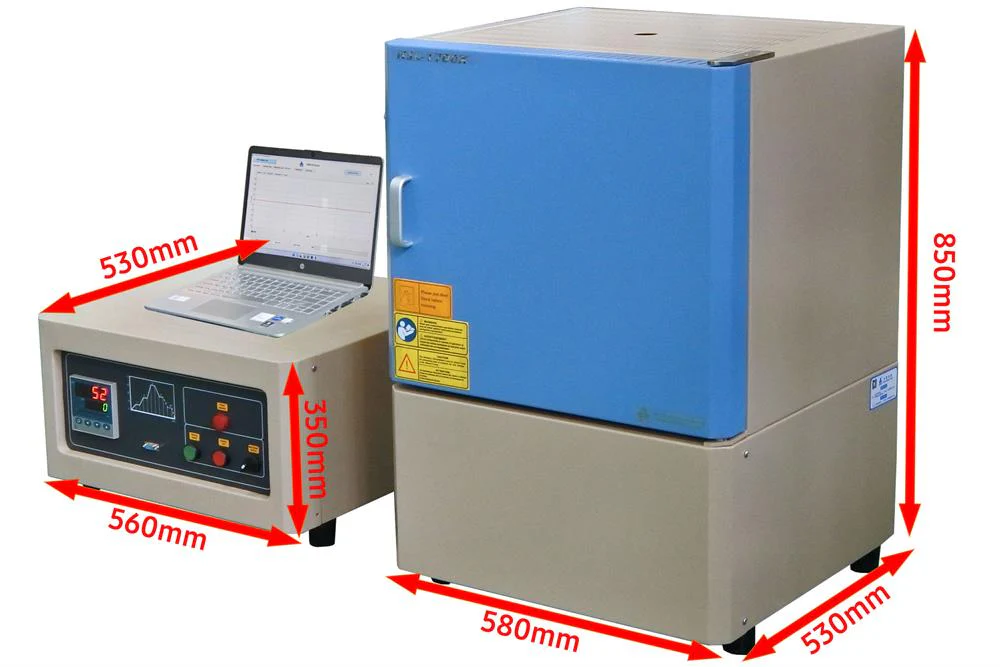

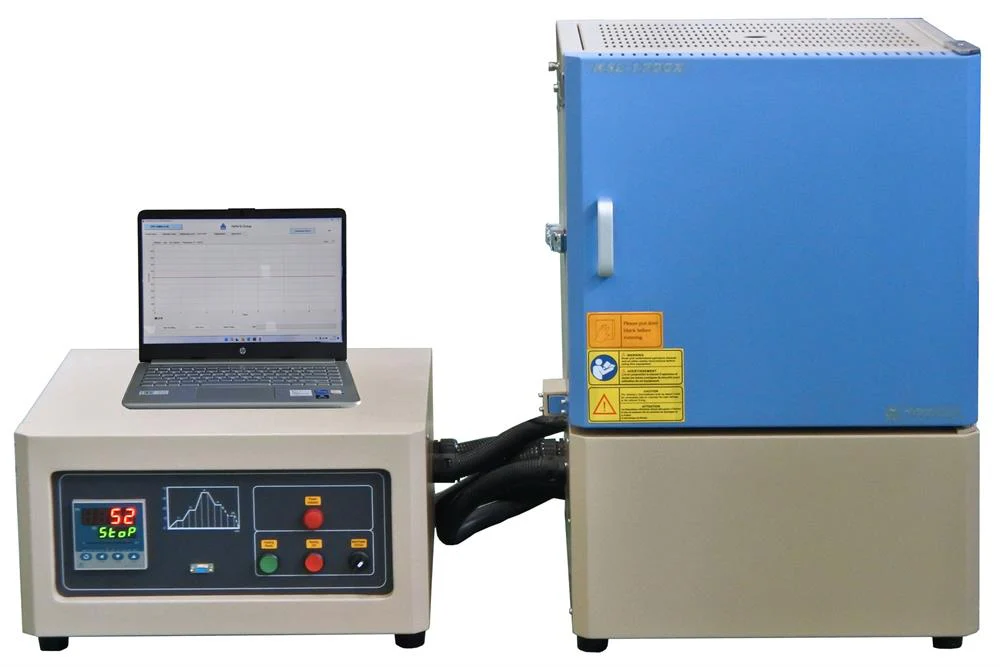

KSL-1700X-A2-TGA is a desktop muffle furnace (8L) with a precision TGA (thermal gravimetric analysis) function. It is a cost-effective tool to analyze the phase transition of various oxide compounds from 100°C to 1700°C in large quantity samples (250g max) under air ambient conditions.
SPECIFICATIONS
Furnace Structure
Three types of size heating chambers are selectable:
120x120x120mm ( 1.7L )
150 x150 x150 mm ( 3.6L)
200 x 200 x 200mm (8L) (Demonstrated sample)
High-purity alumina fiber insulation surrounding the chamber provides maximum energy efficiency.
Heavy duty double layer structure with a cooling fan to keep furnace exteriors safe to touch.
Double-layer steel case with forced-air cooling to ensure lower safer face temperature.
One φ30mm venting port is built on top of the furnace
One φ6mm air inlet is located at one side of the furnace.
Temperature
Maximum Temperature: 1700 (≤30min)
Continuous Working Temperature: 1600
Recommend Heating Rate: ≤10/min
Temperature accuracy: +/- 0.1ºC
Heating element: silicon molybdenum rod
Thermocouple: B Type
Temperature Controller
Eurotherm 3000 precision temperature controller with 24-segment programmable
Over-temperature protection and alarm allow for operation without attendant(s).
+/- 1 ºC temperature accuracy.
B-type thermocouples
Software is included and integrated with a force sensor
One laptop is included as a control panel.
Electronic Balance
A precision electronic balance is located at bottom of the heating chamber with a 0.01 g resolution
The alumina crucible is set on the balance via an alumina rod
Sample amount: 10 g minimum; 250 g maximum.
Force Sensor output data will connect to the laptop to show the weight change curve with the temperature
RS485 port and operation software is included
Crucibles
One 120 ml alumina crucible is included. Please click Pic. 1 to order more
You may click Pic. 2 to choose ZrO2, BN, or Y2O3 crucible based on your application
Note: Power cable included but without a plug. Please install a plug on your own according to your country or your lab requirement.
Warranty
One-year limited warranty (Consumable parts such as heating elements, processing tubes, and o-rings are not covered by the warranty, please order the replacement at related products below.)
Compliance
CE Certified
NRTL or CSA certification is available upon request at extra cost.(please click the marks below to learn details
