1100°C Max. Compact Tube Furnace ( 50mm OD) with Precision TGA Function - GSL-1100X-TGA
HomeStore

1100°C Max. Compact Tube Furnace ( 50mm OD) with Precision TGA Function - GSL-1100X-TGA

1100°C Max. Compact Tube Furnace ( 50mm OD) with Precision TGA Function - GSL-1100X-TGA

GSL-1100X-TGA is a compact tube furnace with a precision TGA (thermal gravimetric analysis) function. It is a cost-effective and space-saving tool to analyze the phase transition of various materials up to 1100°C under a controlled atmosphere to find phase transition. Also, it can be used for small sample annealing or sintering.

Features

  • Sample amount: 1 - 10 g
  • Resolution 1 mg
  • Temperature <1100°C
  • Gas atmosphere control



SPECIFICATIONS

Power
  • 208-240 VAC, 50/60 Hz, 15 A
  • 2.5 KVA
  • 120 VAC, 20 A version is available upon request.
Heating Length
  • 300 mm
Working Temperature
  • Continuous: 1000 °C
  • Max. 1100°C for < 1 hours
Heating Rate
  •  ≤10°C/min
Temperature Controller
  • Eurotherm 3000 series temperature controller
  • 30 Segments of programmable temperature control via a dedicated computer and software
  • Data can be logged and exported
  • +/- 0.1 ºC temperature control stability
Thermocouple
  • K type
Processing Tube
  • Solid Tube furnace with 50mm OD x 600mm L Quartz Tube
Electronic Balance
  • A precision electronic balance ( made in Germany) is located in the bottom of the heating chamber
  • Accuracy: 0.001 g resolution
  • Sample amount: 1 g minimum; 10 g maximum
  • Max. weighting: 120 g if not for TGA
Crucibles
  • Two alumina ID Φ19* 38mm deep crucibles are included
Vacuum pump (optional)
  • The TGA can reach vacuum up to 10-2 torr by a mechanical pump
Water Chiller (optional)
  • Water chiller is required but not included to keep the flanges and o-rings from over heating.

 Compliance
  • CE Certified
  • NRTL or CSA certification is available upon request at extra cost.

Reference Video

 Demo Installation/Operation Exhaust Combustion(Optional )
$33,998.00
1100°C Max. Compact Tube Furnace ( 50mm OD) with Precision TGA Function - GSL-1100X-TGA—
$33,998.00

More Images

1100°C Max. Compact Tube Furnace ( 50mm OD) with Precision TGA Function - GSL-1100X-TGA - Image 2

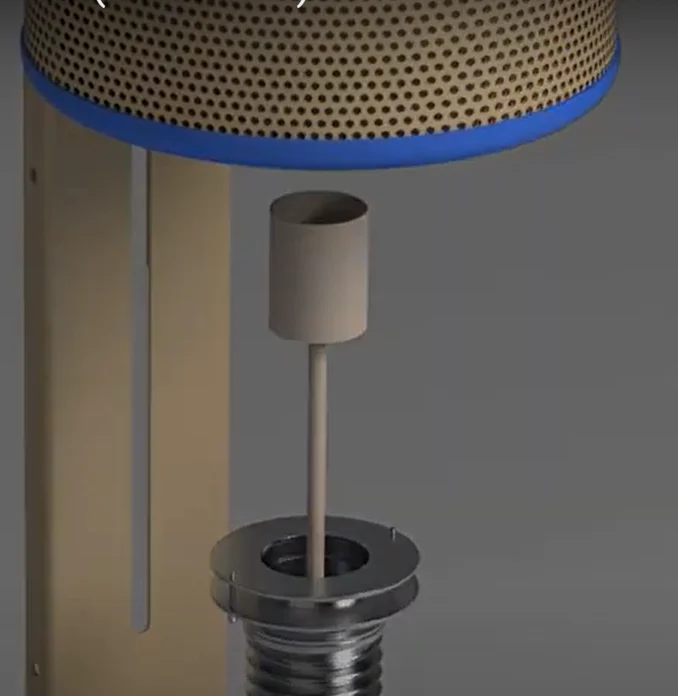

1100°C Max. Compact Tube Furnace ( 50mm OD) with Precision TGA Function - GSL-1100X-TGA - Image 3
