Air-Tight Sample Holder with Zero Diffraction Plate for Powder XRD - AT-XRD-XXZ

AT-XRD-XX is an air-tight sample holder of a zero diffraction plate for powder XRD. Zero diffraction plate with the option of OD 24.6, and 32 mm, which is put inside of the stainless steel holder. The top of the sample holder is covered by Kapton film and tightened by PTFE O-ring. The air-sensitive powder will be put in the cavity of the zero diffraction plate inside the inert gas glovebox.
( Since August 22, an Air-tight sample holder will include one zero diffraction plate )

Specifications

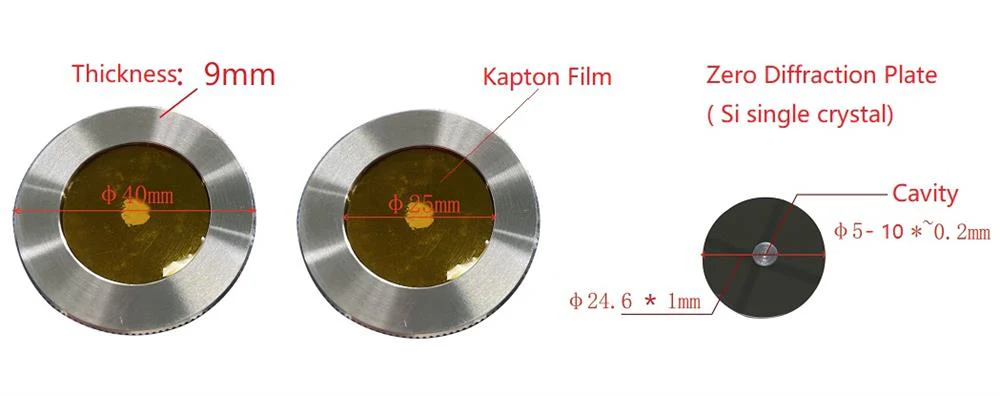

Structure	Please click the picture to see the details   40 mm OD x 9 mm thickness
Zero Diffraction Plate	One Si single crystal zero diffraction plate with a cavity is inside the sample holder The zero diffraction plate is made of single-crystal Silicon which is cut at the special angle Two types of zero diffraction plates are optional from the product option bar Diameter: 24.6, or 30.0 mm with 10 mm dia. x 0.2 mm depth  cavity  Please choose size at the options bar, and click the pics below to order a zero diffraction plate                                                 24.6mm                    30.0mm            XRD
Plate package.	10 pieces of Kapton film 2 PTFE O-rings One zero-diffraction plate
Reference Video
