GSL-1500X-MGI-8 is an 8 channels tube furnace with 50mm O.D. and sealing flange for high throughput heat treatment research of alloy and ceramic material up to 1500°C. It is an excellent tool to research phase diagrams in MGI new generation material.
SPECIFICATIONS:
Furnace Structure
|
- The furnace consists of 8 tube furnace modules with alumina tube 50 O.D x 40 I.D x 552 L (mm)
- Each heating module is separated by insulation material with an air cooling layer, no temperature influences each other
- Each heating module's temperature is controlled independently up to 1500°C

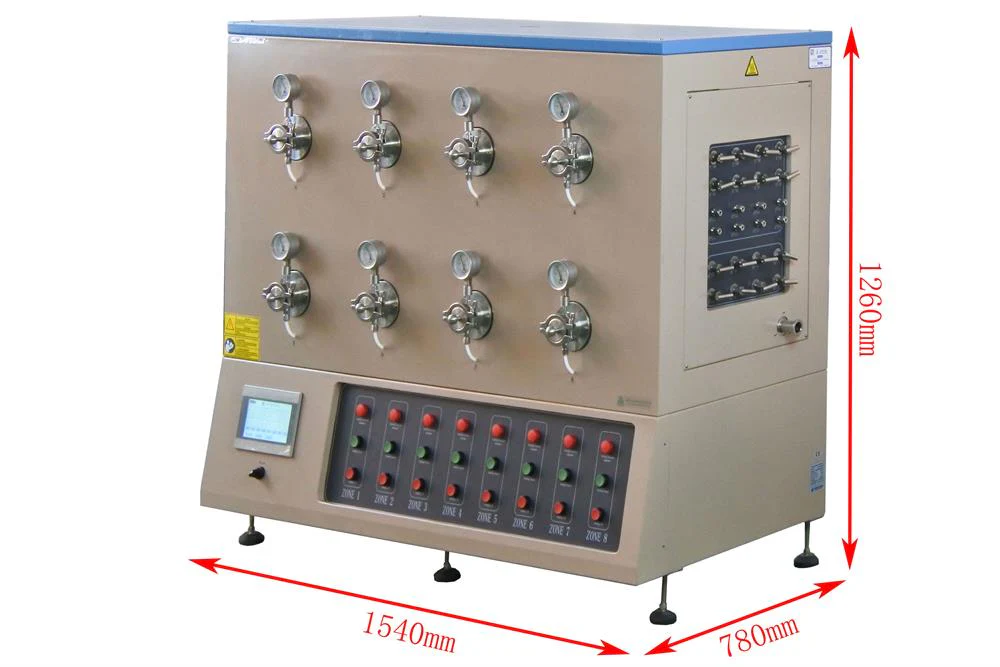

- Quick seal flange, vacuum gauge, and flow meter are installed with 8 independent air inlets and outlets on both sides of the furnace, ensuring each channel can be heat treated in a vacuum or atmosphere protection environment.
- Processing 8 samples with different temperatures at compact space
|
| Heating |
- Silicon carbide heating element
- 160mm heating zone
|
|
Working Temp.
|
- Continuous Working Temperature 1300°C
- Maximum Working Temperature 1500°C (< 30 mins)
|
Gas system & Flange
|
- Each channel has a separate gas inlet and outlet
- KF25 port for vacuum

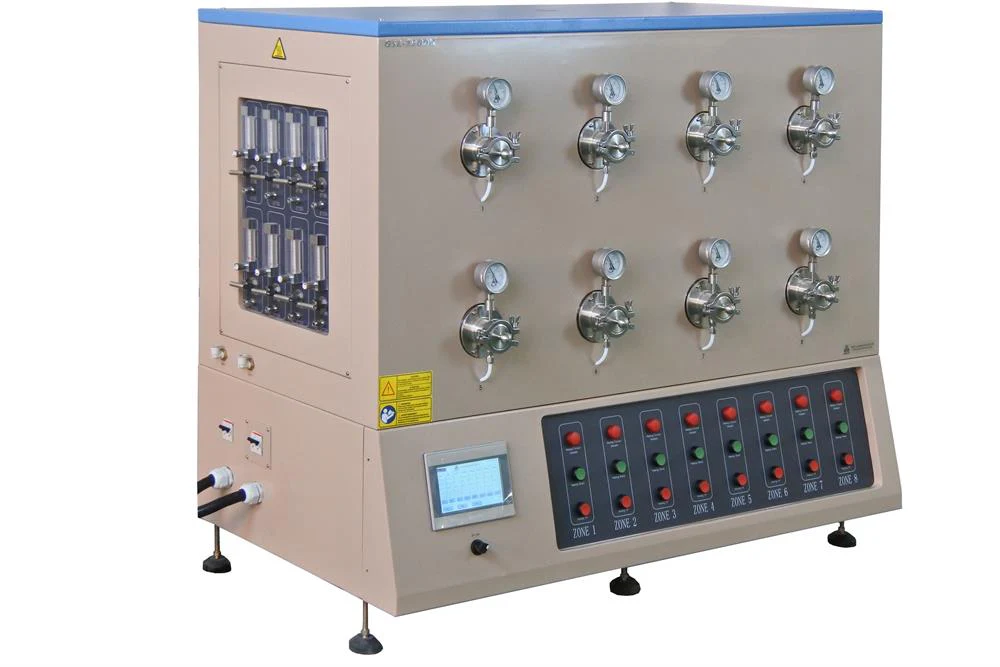

- On the left, there are 8 1/4" air intakes, 8 needle valves, and 8 float flowmeters (16-160ml/min) to regulate the intake flow.
- On the right, there are 8 1/4" air outlets and 4 needle valves
- 8 sets of water-cooled fast stainless steel flange systems
- The flange is equipped with a mechanical pressure gauge
- Quick connecting flange and KF25 port on the front for quick sample access
- The rear flange has an air inlet and an air outlet, which are respectively connected to the air intake and outlet panels on both sides
- Max. Vacuum 10^-2 torr by a mechanical pump
|
| Temperature Control |
- 8 channel heating tube is controlled independently by 30 segments programmable temperature controller
- 8 S type Thermal Couples
- PC control software is included, which can control 8 channel heaters by one Laptop
|
|
Heating Rate
|
|
|
Temperature Accuracy
|
- +/- 1°C (Eurotherm controller for +/- 0.1°C)
|
|
Temperature Uniformity
|
- +/- 10°C @ 1200°C in a 90mm zone in length
|
|
Power & Working Voltage
|
- 18kW, 208 - 240V 3-phase, 50/60Hz
- Note: Power cable included but without a plug. Please install a plug on your own. You may purchase a plug from your local hardware store or browse our catalog for a compatible plug
|
|
Laptop, software (Optional)
|
- Brand new laptop with Microsoft Windows 10 and Microsoft Office 2013 (30-day free trial) available at extra cost.
-
The LabVIEW-based Temperature Control System (MTS01) enables the user to edit temperature profiles, manage heat-treatment recipes, and record and plot data for MTI furnaces.
|
|
Automation Option
|
Please click here to see a fully automated furnace with a robotic arm: |
|
Warning &
Application note
|
-
Max pressure of this furnace tube is 0.02MPa. You must install a pressure regulator on your gas tank to avoid being over-pressured. Click here to learn to install of a gas regulator
- DO NOT open the furnace chamber while the temperature. is over 500
|
