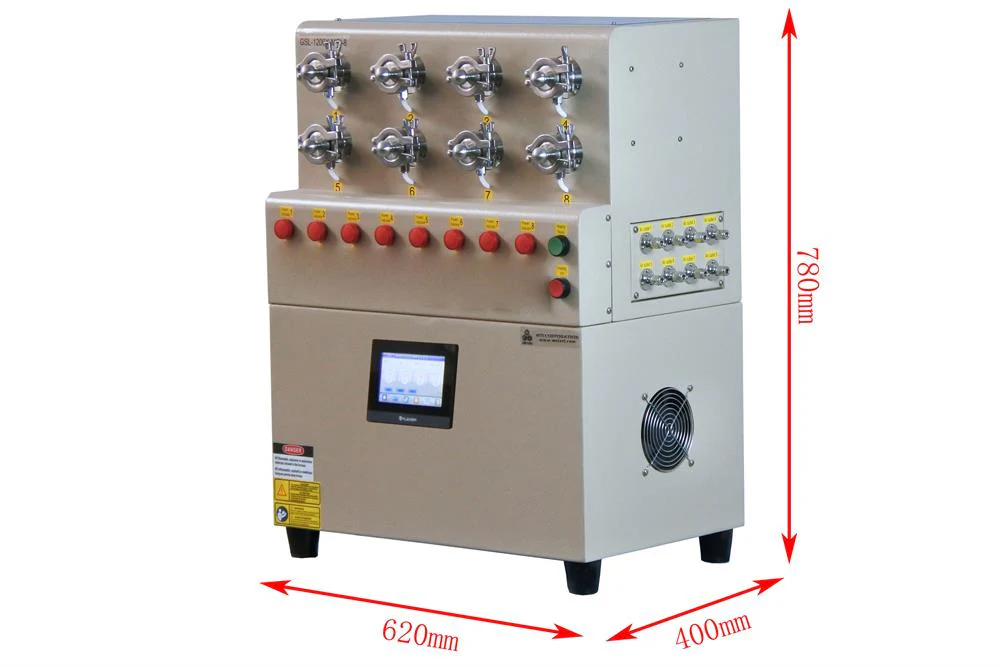

1200C Max 8 Channel Tube Furnace (20mm Quartz) for Hi-Throughput Annealing - GSL-1200X-MGI-8

• The furnace consists of 8 small tube furnace modules with quartz tube 20mm O.D. x 17mm I.D. x 192mm L
• Each heating module is separated by insulation material with air cooling layer, no temperature influence each other
• Each heating module's temperature is controlled independently up to 1200°C
• Quick seal flange, vacuum gauge, and flow meter are installed to allow heat treatment under vacuum or flowing gas
• Processing 8 samples with different temperatures at compact space
• The furnace system consists of two units: a furnace and a transformer box

• NiCrAl alloy wire

Working Temp. &
Constant Temp. Zone

• Continuous Working Temperature 1100°C
• Maximum Working Temperature 1200°C (< 1 hrs)
• Constant temperature zone:
• +/- 2°C within the center 20 mm cubic zone
• +/- 5°C within the center 55 mm cubic zone

• 8 High purity Quartz tubes with 20mm O.D. x 17mm I.D. x 192mm L are included
• 8 Quickly clamped flange with 1/8 gas inlet and outlet, as well as vacuum ports are built-in (see pic below)
• 16 needle valves are optional to connect to the gas inlet and outlet for gas flow control
• 8 vacuum ports in the back will be connected to the vacuum pump via 8 to 1 adaptor
• Only one vacuum pump is required via a KF25 port. Click the picture below to choose a vacuum pump
• Max. Vacuum 10^-2 torr by a mechanical pump and 10^-5 torr by turbopump



• 8 channel heating tube is controlled independently by 30 segments programmable temperature controller
• 8 K type Thermal Couple
• PC control software is included, which can control 8 channel heaters by one Laptop

Heating Rate

• 10 °C/ min Max.

Temperature Accuracy

• +/- 1°C

Power & Working Voltage

• 2.5 KW, 208 - 240V single phase, 50/60Hz (if 4 heating modules operate at the same time )
• Note: Power cable included but without a plug. Please install a plug on your own. You may purchase a plug from your local hardware store or browse our catalog for a compatible plug

Laptop, software (Optional)

• Brand new laptop with Microsoft Windows 10 and Microsoft Office 2013 (30 days free trial) available at extra cost.
• Labview-Based Temperature Control System (MTS01)enables the user to edit temperature profiles, manage heat-treatment recipes, and record and plot data for MTI furnaces.
• A wireless remote control provides up to 300 meters of operating range.

• Gas flow control is at an extra cost.
• MTI recommends using the following 8-channel gas delivery systme for individual gas control.
•
• If vacuum is desired, please contact MTI for more information.

• CE Certified
• NRTL (UL61010) or CSA certification is available at an extra cost

Warning &
Application note
