Economic Powder Resistivity & Compaction Density Measurement System up to 300Kg Loading - MSK-PRT-300

Economic Powder Resistivity & Compaction Density Measurement System up to 300Kg Loading - MSK-PRT-300

Economic Powder Resistivity & Compaction Density Measurement System up to 300Kg Loading - MSK-PRT-300

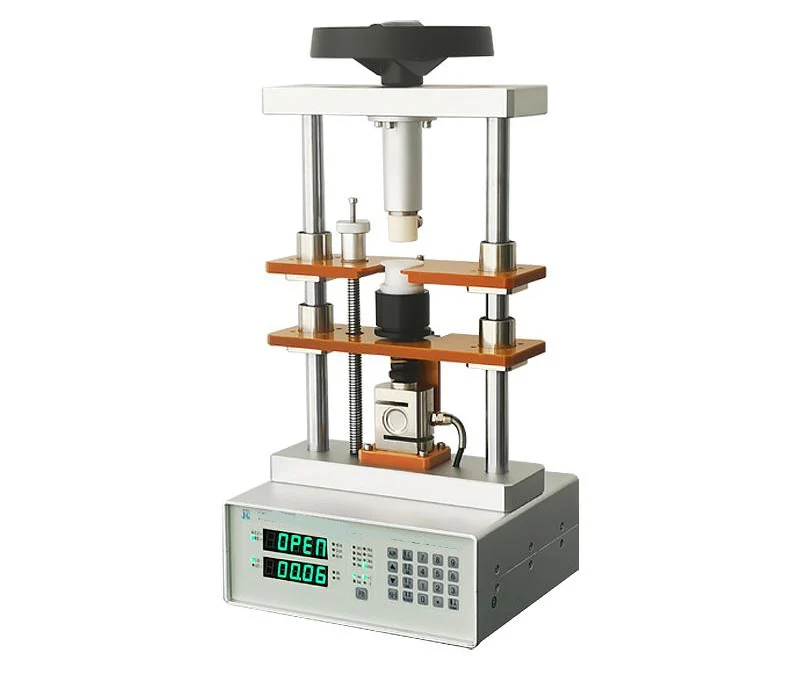

MSK-PRT-300 is an economic powder resistivity & compaction density measurement system with a digital four-probe resistivity meter and a manual pressing machine up to 300 Kg. It is suitable for testing the quality of Li-Ion battery powder and electrode sheets.

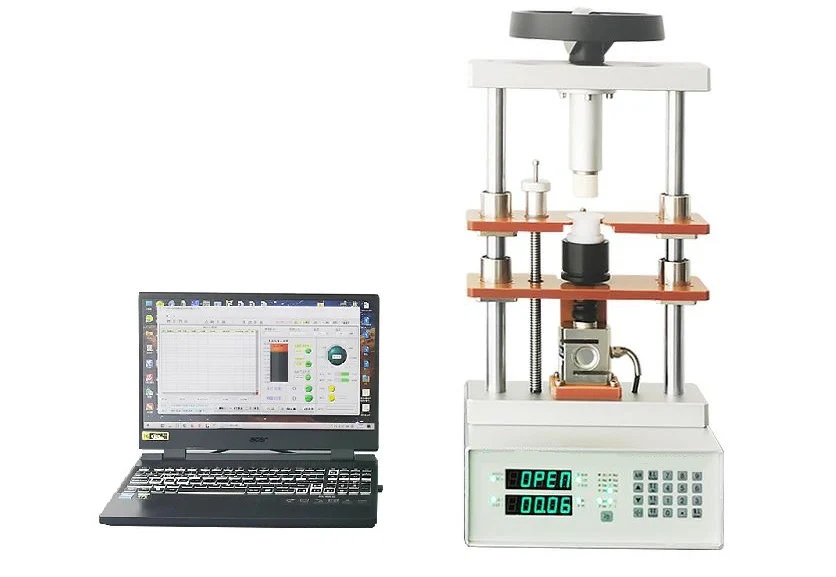

A laptop computer and software are included to record testing data and the curve for the relationship between compaction density and resistivity.

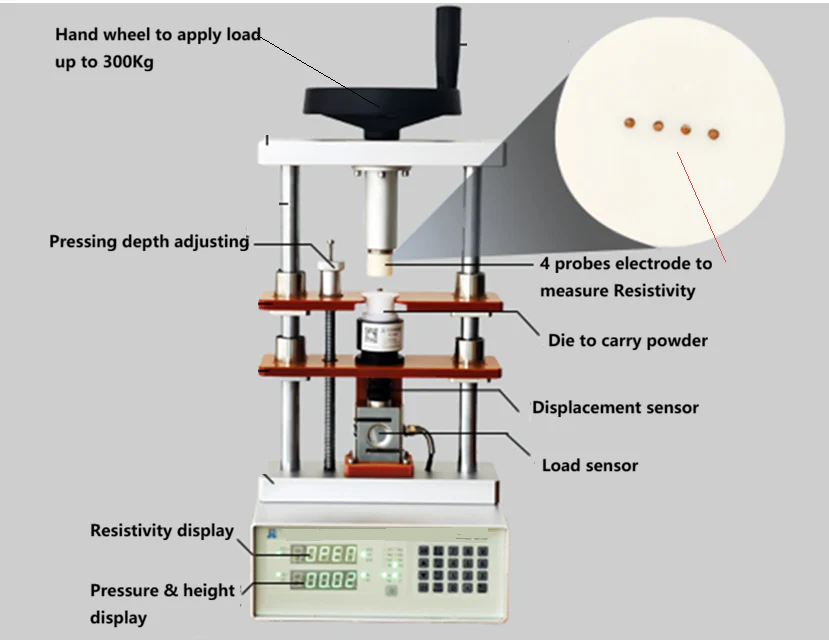

Working Mechanism

Voltage	AC110V or 220V±10%, 50/60 Hz, single phase 10 W
Control of the computer	A laptop with software is included as a control panel for measurement of powder compaction density and resistivity (applied pressure can be up to 30 MPa) All data and curves are recorded into a computer
Resistance Range	10^-5～2×10⁵Ω/cm with 8-segment range Accuracy: +/- 5% in full range
Testing voltage range	10mV ～ 100 mV
Testing Current Range	0.1μA，1μA，10μA，100µA，1mA，10mA，100mA Current resolution: ±0.1% of full range
Powder sample cup	The sample cup is made of plastics 4 conductive electrodes are installed on the top plug of the cup， which has a diameter of 11.28 mm. Inside area of the sample cup: 1 cm2 Sample thickness: 0～ 20 mm (position sensor with accuracy ±0.02mm).
Force of pressing	Force is applied manually via a hand wheel The pressing force is measured by a digital load sensor. Pressing force: 0 - 300Kg measureable Pressure range: 0 - 30 MPa with accuracy ±0.01 MPa
Environmental Use Conditions	Working temperature: -10℃～+40℃， Humidity: ≤65%RH This device can be operated in a glovebox with Ar gas
Dimension	L 250mm × W220 mm × H540mm
Weight	~10 kg
