500°C 53L Vacuum Oven (16x13x14") w/ Gas Flow-meter, Chiller & Vacuum Pump - DZF-6050-HT
HomeStore

500°C 53L Vacuum Oven (16x13x14") w/ Gas Flow-meter, Chiller & Vacuum Pump - DZF-6050-HT

500°C 53L Vacuum Oven (16x13x14") w/ Gas Flow-meter, Chiller & Vacuum Pump - DZF-6050-HT

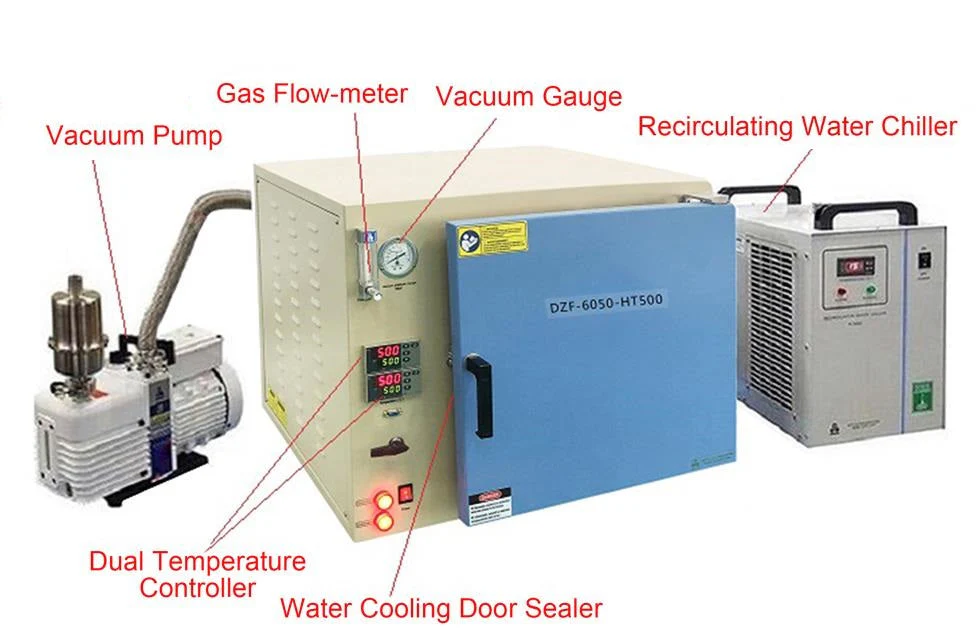

The DZF-6050-HT is a 500ÂșC Max. high-temperature vacuum oven. Two internal heating plates are installed inside the oven as shelves with independent temperature control, and the front door is built-in with a water cold flange with a recirculating water chiller. A 500-5000ml flow meter is installed in the front panel to control the atmosphere of the chamber. All necessary accessories are in the package including a vacuum pump, chiller, fittings, hoses, etc. (Updated to internal heating Version from 5/20/2020)

SPECIFICATIONS

Power
  • 208 -240VAC, single phase, 50/60HZ (Power cable is included w/o plug)
  • 3500W
  • 20A break required
  • Power cable included, but no power plug. The customer shall buy the power plug to match your power outlet or click the picture left to order a plug
Working Temp
  • Continuous: 50~450°C
  • <= 8 hours for staying at 500°C
Temperature Controller
  • Two digital temperature controllers with two K-type thermal couples to control two internal heating shelves independently
    • 30 segments programmable for each controller
    • Built-in over-temperature protection
    • +/- 1°C contral accuracy
  • Max. Heating rate: 10ÂșC/minute
  • The built-in RS485 port is installed for PC connection.
  • Optional PC software(MTS01) for easy control
Chamber and Door

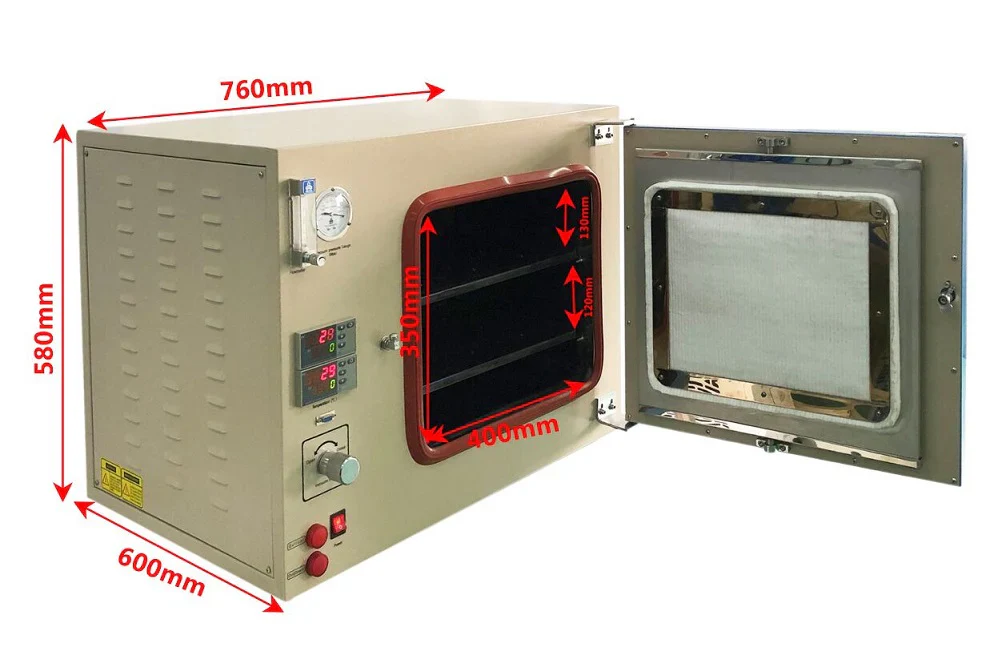

  • Chamber dimensions: 415 x 345 x 370, mm ( 16.3 x 13.5 x 14.5", 53 Liter )
  • The chamber is structured with stainless steel
  • The door is made of an aluminum plate with thermal insulation
  • Silicone door gasket and positive latch door ensure good sealing
  • 2 stainless steel shelves are heatable with power feedthrough up to 500°C
  • The water cooling jacket is built inside the oven door flange to keep the silicone O-ring temperature below 200 °C when the oven temperature is higher
  • Warning: Please don't put your sample directly on the heating plate, but put on a buffer layer. The ceramic plate below is suggested
Water Cooling
  • One Digital Temperature Controlled Recirculating Water Chiller is included. ( click the picture to the left to see details)
    • Refrigeration range: 5~35°C
    • Flowing Rate: 16L/minute
  • Suggest using anti-corrosion coolant (available for auto-part store) to achieve the best water cooling.
  • A water cooling temperature has to be set at 20~25°C to avoid water condensation on the cooling tube.
Gas flowing/purging
  • A precise flow meter is installed in the front panel which ranges from 500 ~ 5000ml/min.
  • The gas is able to continuously flow into the chamber at a constant flow rate defined by the user during operation.
  • The oven can be purged by inert gas before the operation.
Fittings & Connectors
  • One KF25D vacuum port is used for a quick connection to the vacuum pump.
  • Two water/coolant inlets connect the chiller. (tubes are included)
  • One 1/4" Swagelok tube fitting is for an inert gas supply.
  • One needle valve is used to control the input gas.
Vacuum Pump
vacuum pump
  • One Rotary Vane Vacuum Pump with Exhaust Filter, Bellows & KF-D25 Inlet is included.
  • The vacuum level < 10-2 torr by mechanical pump and 10-4 torr by a turbopump
  • Power: 0.4KW / 0.37KW
  • Please click the pic for more specs.
Compliance
  • CE Certified
  • NRTL or CSA certification is available upon request at the extra cost
Application Notes
  •  Please review How to calibrate the oven.
  • You may add Gas Purifier collum on the gas inlet of the oven back to remove oxygen and humidity
  • You may order a mobile table to put the oven on ( click pic below right to order )
  • You may order a spare silicone sealing ring for the door by clicking the picture below right.









Attention		 Please note that it's normal the SS chamber wall will be slightly deformed and lose its shine at high temperatures. However, this won't affect the use of the oven since the sample will be placed on a shelf and won't have contact with the chamber wall.



STANDARD PACKAGE

P/N Name Qty
-6050-HT-1 High temp. Vacuum oven (16x13x14", 53 L, 500°C) 1
-6050-HT-2 Digital Temperature Controlled Recirculating Water Chiller with 6 Liters Tank, 16L / min Flow - KJ3000 1
-6050-HT-3 Ø12mm Polyurethane tube 2
-6050-HT-4 Stainless steel shelves  2
-6050-HT-5 Power cord 1

 Dual-stage vacuum pump with Exhaust Filter,
 KF-D25 Flexible Stainless Steel Vacuum Hose ( Bellows ), 1 meter
 Two sets of KF-25 Quick Clamp with Rubber O-Ring 		1 set



$12,895.00
