Desktop Ultrasonic Scanning System for Non-Destructive Testing of Pouch Cells - UBSC-DT10

Desktop Ultrasonic Scanning System for Non-Destructive Testing of Pouch Cells - UBSC-DT10

The ultrasonic scanning system UBSC-DT10 is designed for NDT(Non-destructive Testing) of pouch/prismatic cell including:

  • Electrolyte diffusion status
  • Early-stage gassing
  • Sealing performance
  • Lithium plating
  • SoC monitoring
  • Electrolyte stability testing
  • Reference Published Paper:
    • Diagnosing and correcting anode-free cell failure via electrolyte and morphological analysis, Nat Energy 5, 693–702 (2020)
    • Ultrasonic Scanning to Observe Wetting and "Unwetting" in Li-ion Pouch Cells, Joule S2542-4351(20)30332-9

SPECIFICATIONS

Features
  • Bubble detection in the pouch/prismatic cells
  • Electrolyte distribution during the vacuum standing
  • Pouch/Prismatic cell leak detection
  • Lithium plating detection
  • Lithium-ion distribution Analysis
  • Cycle life prediction
Voltage & Power
  • AC 200V, Single phase, 50Hz
  • 13.5 kW
Applicable Cell-type
  • Pouch cells
  • Prismatic cells
  • Pouch cell fixture
Coupling Medium
  • Liquid
  • Silicone Oil recommended
Scanning Features
  • Ultrasonic C Scanning
  • Transmission + Reflection
  • Maximum Scanning Area: 150 mm L x 150 mm W
  • Maximum Scanning Thickness: 70 mm
  • Spatial Resolution: 1 mm
  • Time Resolution: 200 us
  • Scanning speed: 10 minutes per cell; depends on the cell size
Software

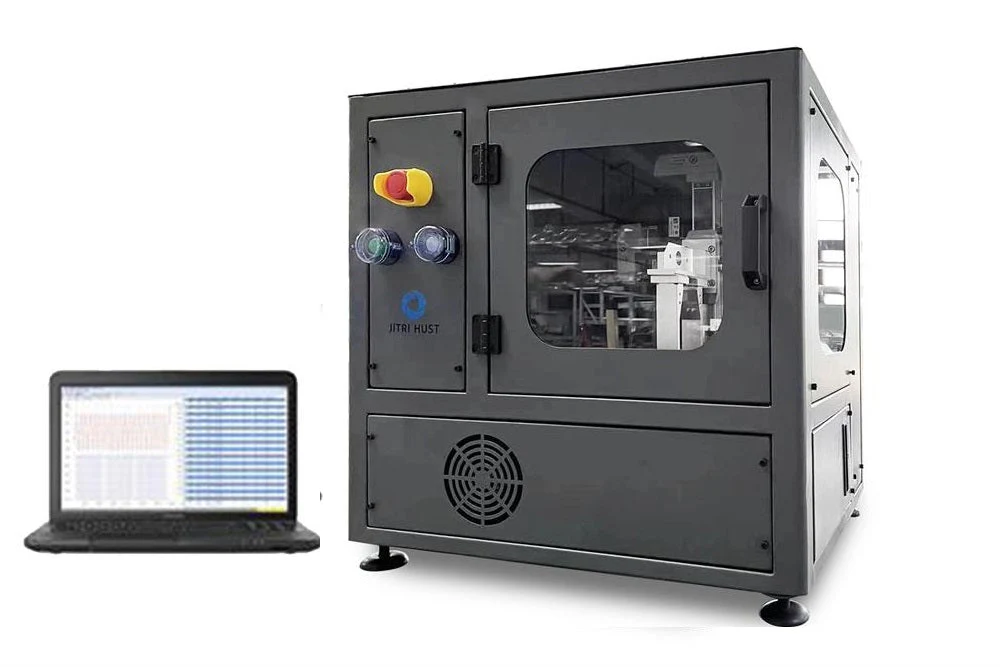

  • Laptop computer and software are included
    • XY Axis Motion Control; XY Travel Pattern
    • Ultrasonic parameters setting
    • Transmission and Reflection Waves Displaying
    • Scanning Image
Compliance
  • CE Certified
Warranty
  • One year limited warranty with lifetime support
Weight & Dimension
  • Weight: 188 lbs
  • Dimension: 650 mm Length x 530 mm Width x 632 mm Height
Demo Video

Application Notes
  • This desktop ultrasonic device is safe due to the low ultrasonic power (<100 mW)
$69,999.30

Original: $199,998.00

-65%
Desktop Ultrasonic Scanning System for Non-Destructive Testing of Pouch Cells - UBSC-DT10—

$199,998.00

$69,999.30

More Images

Desktop Ultrasonic Scanning System for Non-Destructive Testing of Pouch Cells - UBSC-DT10 - Image 2
Desktop Ultrasonic Scanning System for Non-Destructive Testing of Pouch Cells - UBSC-DT10 - Image 3

Desktop Ultrasonic Scanning System for Non-Destructive Testing of Pouch Cells - UBSC-DT10

The ultrasonic scanning system UBSC-DT10 is designed for NDT(Non-destructive Testing) of pouch/prismatic cell including:

  • Electrolyte diffusion status
  • Early-stage gassing
  • Sealing performance
  • Lithium plating
  • SoC monitoring
  • Electrolyte stability testing
  • Reference Published Paper:
    • Diagnosing and correcting anode-free cell failure via electrolyte and morphological analysis, Nat Energy 5, 693–702 (2020)
    • Ultrasonic Scanning to Observe Wetting and "Unwetting" in Li-ion Pouch Cells, Joule S2542-4351(20)30332-9

SPECIFICATIONS

Features
  • Bubble detection in the pouch/prismatic cells
  • Electrolyte distribution during the vacuum standing
  • Pouch/Prismatic cell leak detection
  • Lithium plating detection
  • Lithium-ion distribution Analysis
  • Cycle life prediction
Voltage & Power
  • AC 200V, Single phase, 50Hz
  • 13.5 kW
Applicable Cell-type
  • Pouch cells
  • Prismatic cells
  • Pouch cell fixture
Coupling Medium
  • Liquid
  • Silicone Oil recommended
Scanning Features
  • Ultrasonic C Scanning
  • Transmission + Reflection
  • Maximum Scanning Area: 150 mm L x 150 mm W
  • Maximum Scanning Thickness: 70 mm
  • Spatial Resolution: 1 mm
  • Time Resolution: 200 us
  • Scanning speed: 10 minutes per cell; depends on the cell size
Software

  • Laptop computer and software are included
    • XY Axis Motion Control; XY Travel Pattern
    • Ultrasonic parameters setting
    • Transmission and Reflection Waves Displaying
    • Scanning Image
Compliance
  • CE Certified
Warranty
  • One year limited warranty with lifetime support
Weight & Dimension
  • Weight: 188 lbs
  • Dimension: 650 mm Length x 530 mm Width x 632 mm Height
Demo Video

Application Notes
  • This desktop ultrasonic device is safe due to the low ultrasonic power (<100 mW)
