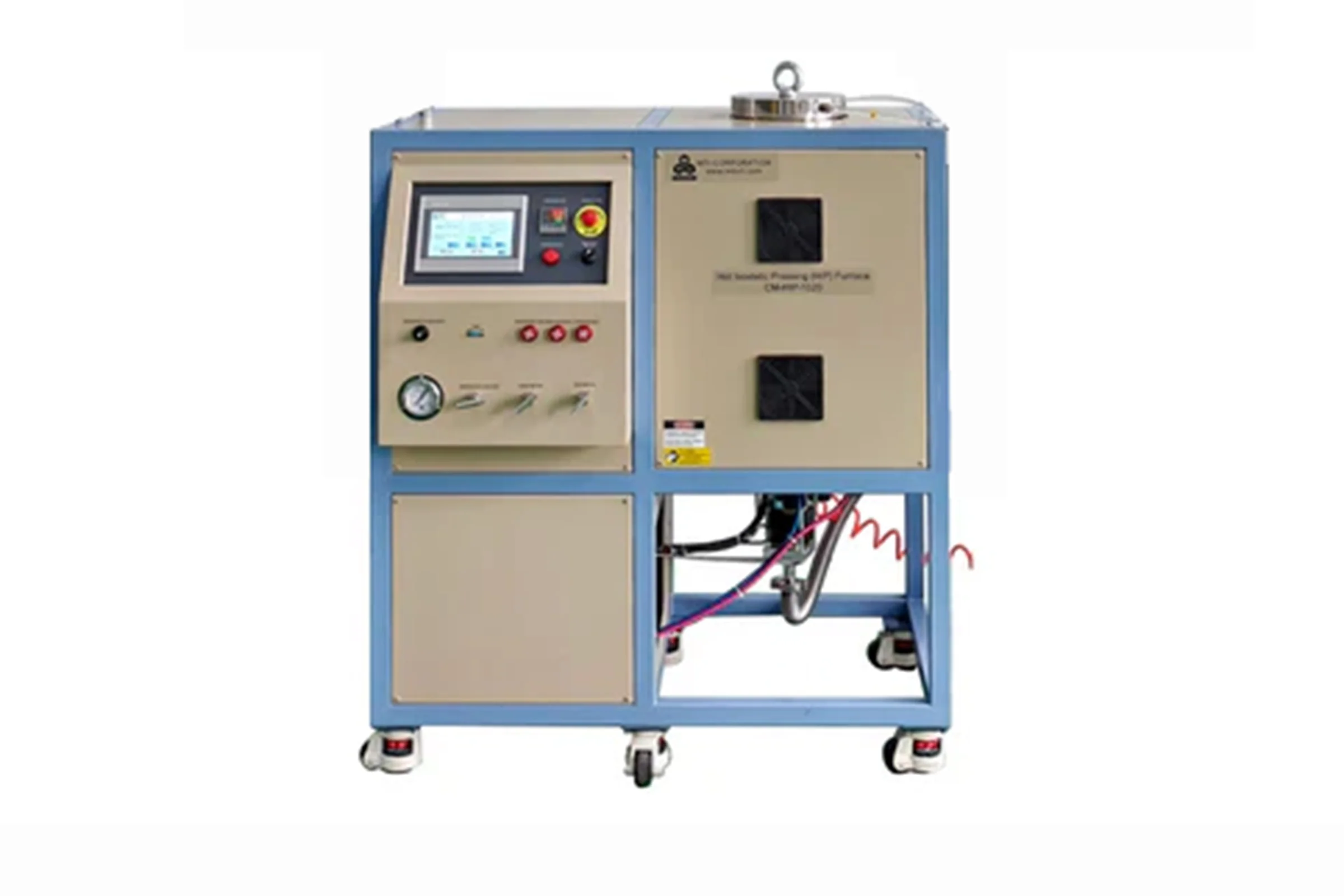

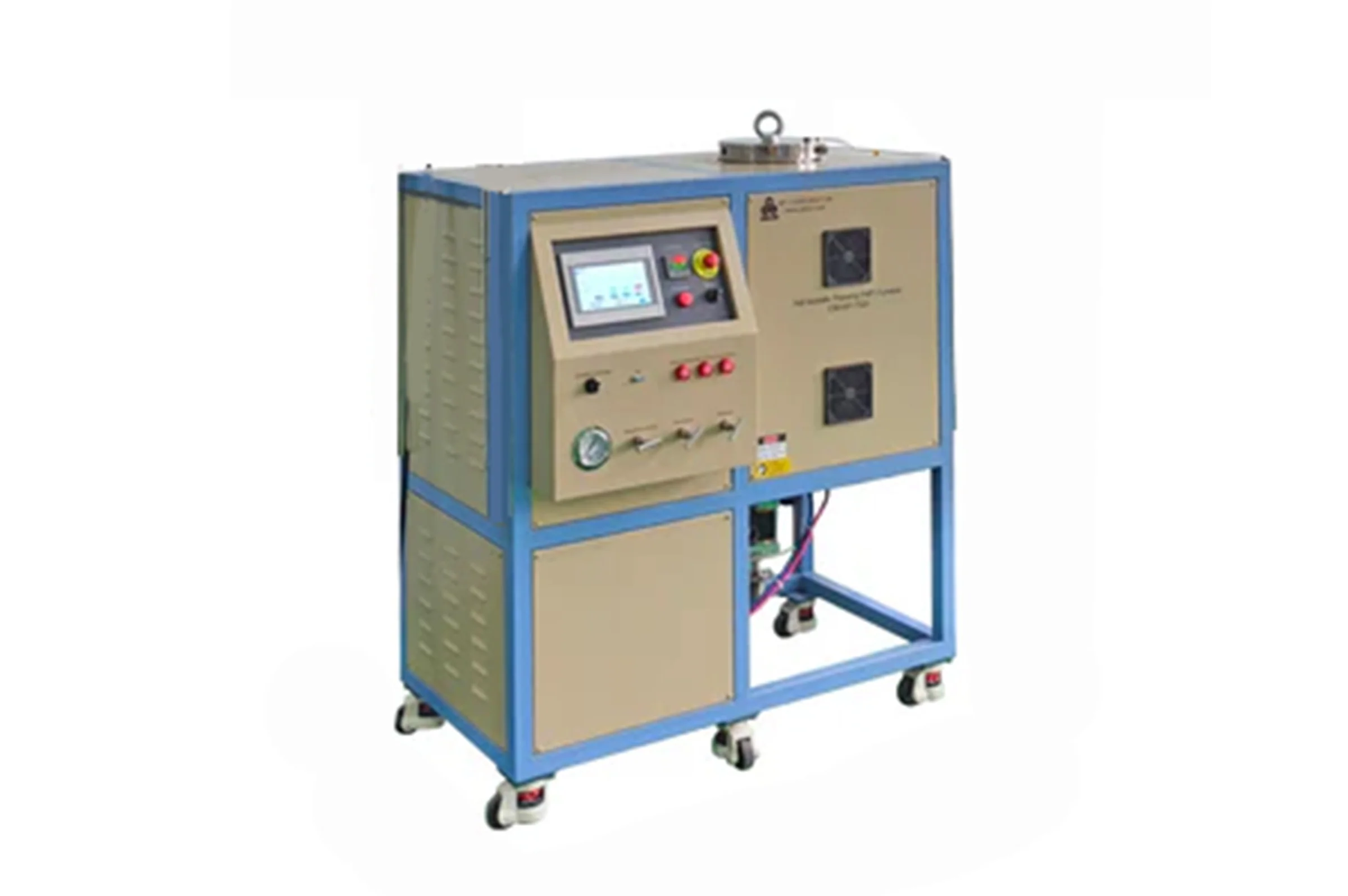

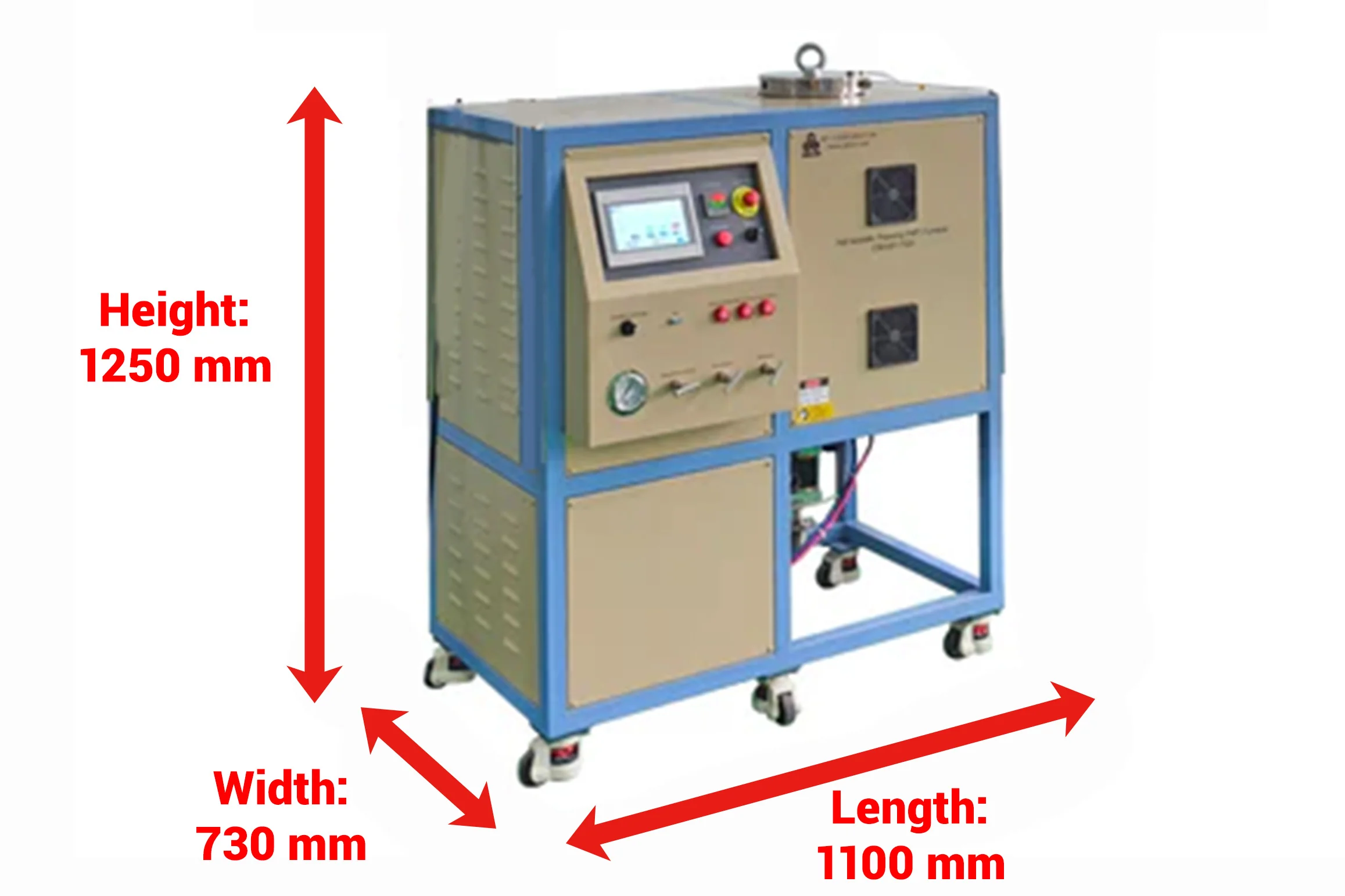

1500°C 20 MPa Hot Isostatic Press (HIP) Furnace (Ø80ID × 130 H mm) - CM-HIP-1520

• 208-240 VAC, 50 A, 50/60 Hz, single phase
• 9 KVA

• SS 304 double-layered water-cooled chamber, Ø294×652 mm
• Digital high-pressure transmitter, up to 25 MPa
• High-pressure solenoid valve as pressure relief control
• Mechanical pressure relief valve, preset at 22 MPa.
• 1/4" Gas inlet and outlet with high-pressure needle valves
• KF25 pneumatic solenoid valve for vacuum generation.

• Embedded Molybdenum resistance heating coil

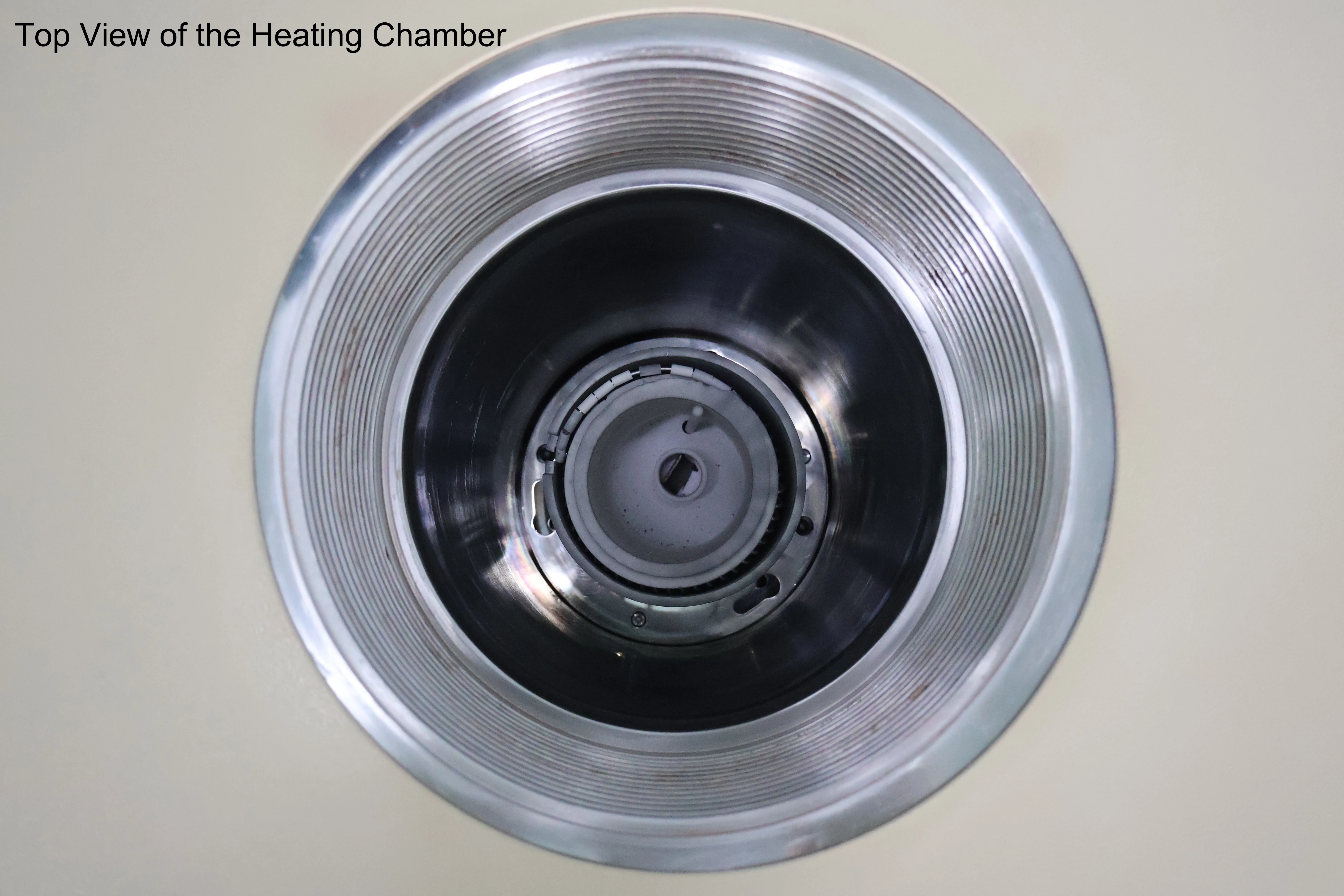

• Heating area Ø80×130 mm
• Recommended sample size Ø60×60 mm
• Alumina thermal insulation sheathed by Mo jacket

• 50 Segment programmable digital temperature controller is included
• Interlocks for over-temperature and thermocouple failure
• Temperature control accuracy: ± 1 °C
• B-type thermocouple

• RS-485 communication port ready for remote control.

• 1500°C ≤8h
• 1400°C continuous
• Heating rate
  • ≤ 2°C/min @ T<200°C
  • ≤ 5°C/min @ 200°C ≤ T ≤1500°C

• ≤ 20 MPa

• Argon only

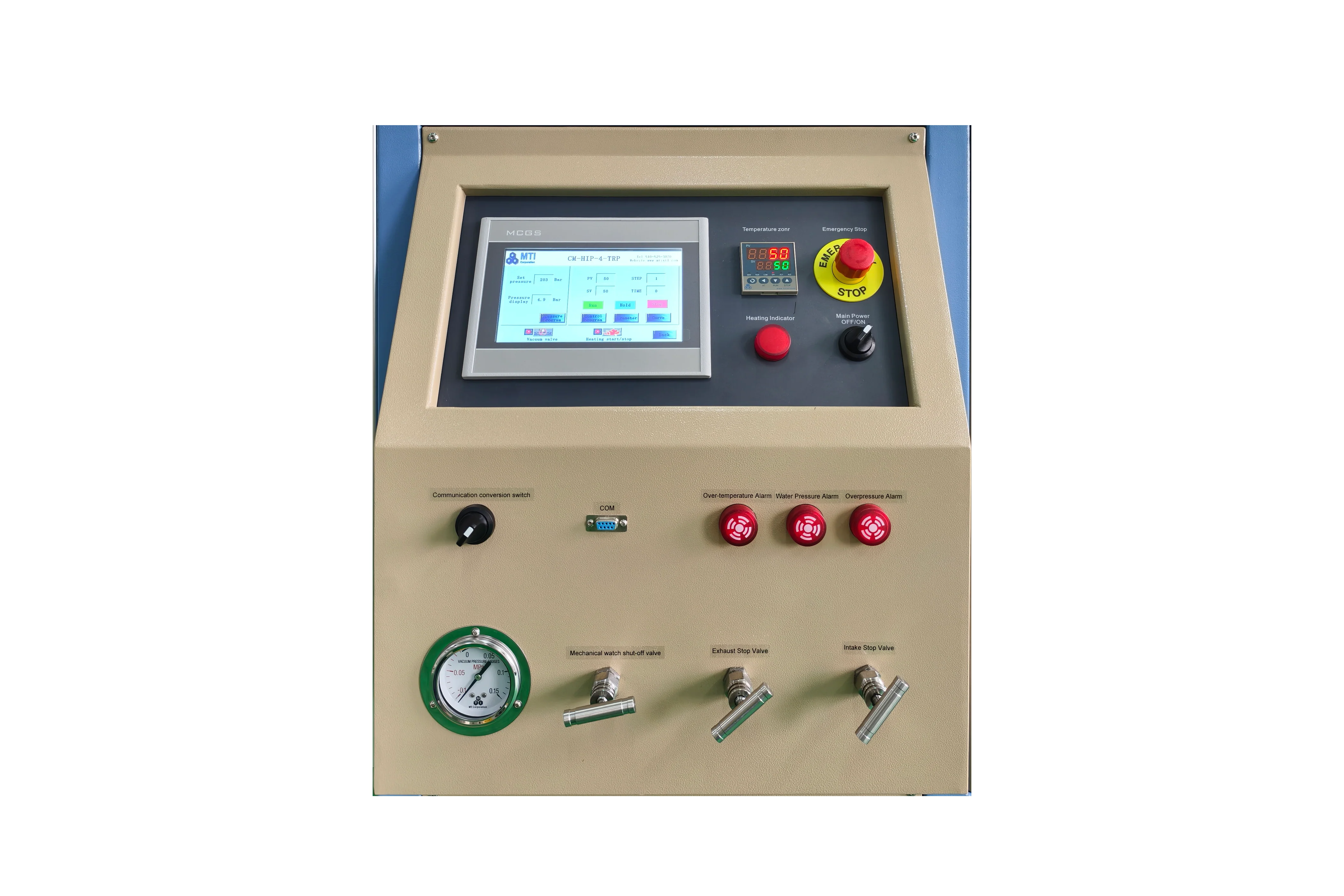

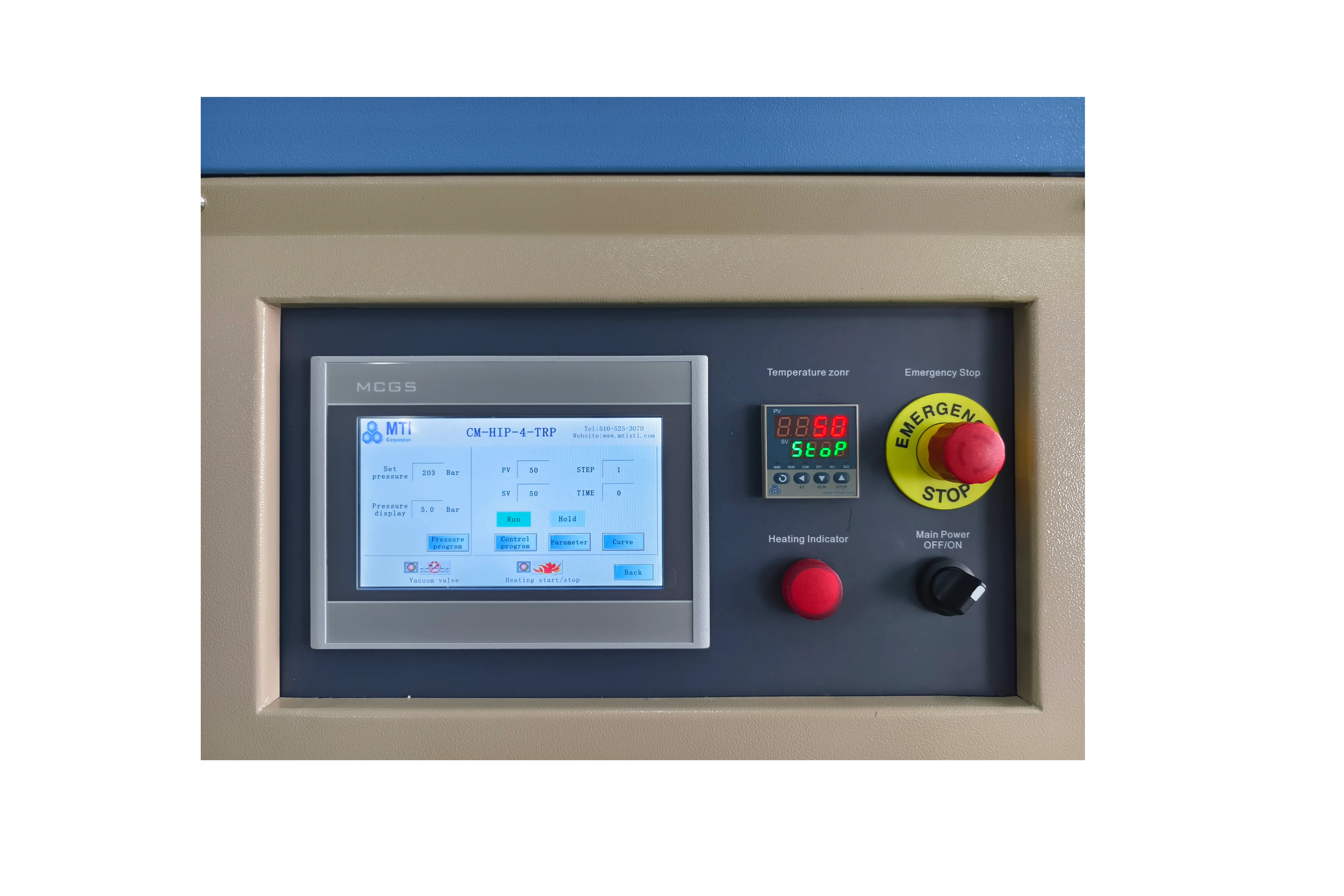

• All-in-one control panel for temperature and pressure

Chain Hoist

(Optional)

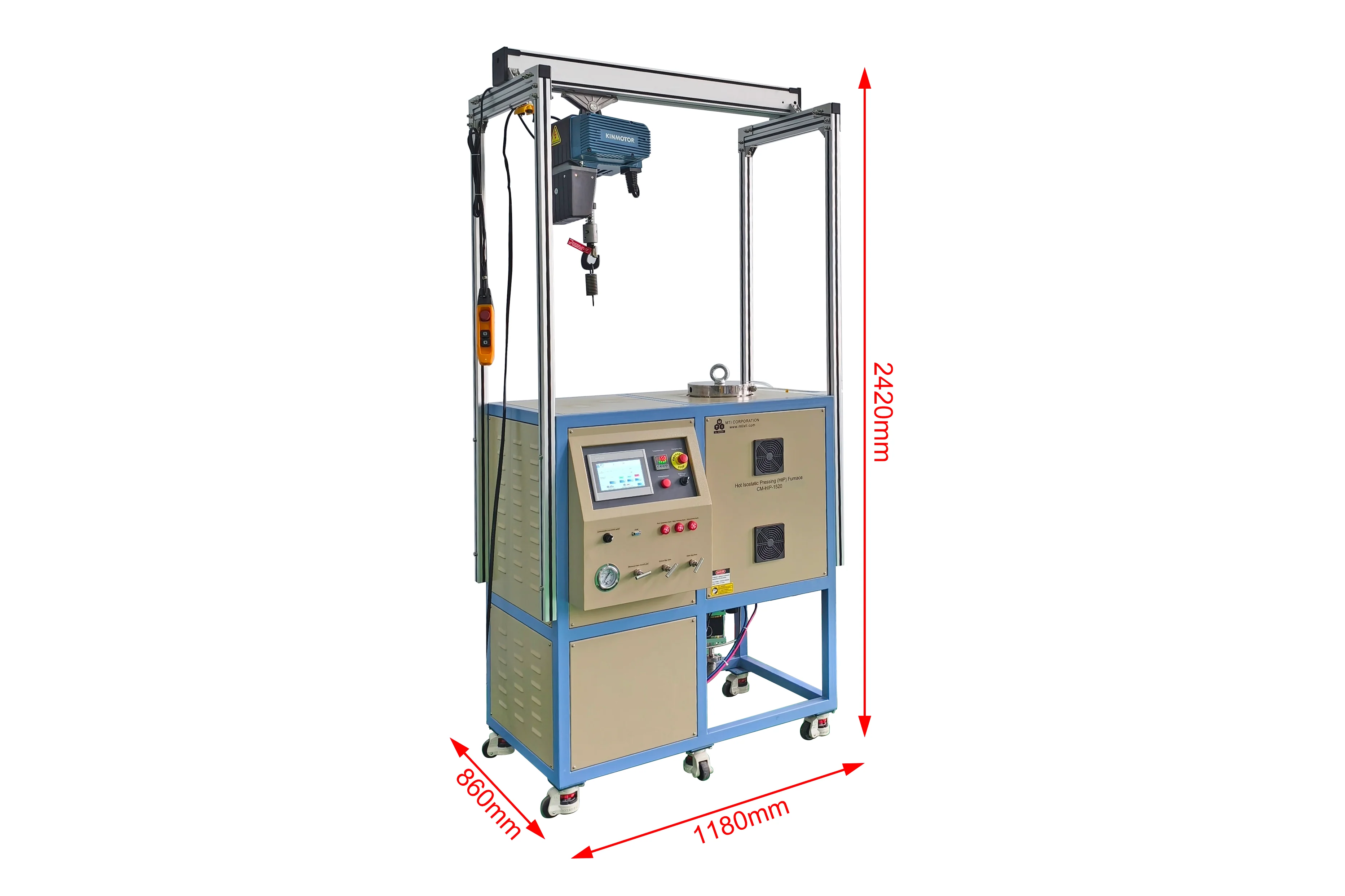

• Manual chain hoist to lift upper flanges, insulation jacket, and heating chamber
• An optional electric chain hoist is available upon request.
• Load: up to 125 kg
• Power 208-240 VAC, single phase, 50/60 Hz, 750 W

• O-rings for chamber seal, Ø195×3.5 mm (one-time use for high-pressure seal)
• O-rings for top cover plate, Ø150×7 mm (multiple use)

• Mo heating coil assembly
• Type B thermocouple

 Vacuum Pump

(Optional)

• Vacuum pump is required for air evacuation but not included.
• MTI recommends using a dual-stage rotary vane pump

 Water Chiller

(Optional)

• Chilled water circulation is required.
• MTI recommend using KJ6200 recirculating water chiller for best performance.

Gas Booster

(Optional)

• Gas booster is recommended for process at low-temperature but high-pressure (>10 MPa or 1500 psig) conditions due to insufficient gas pressure from a cylinder.

Air Compressor

(Optional)

• Compressed air is required @ 40 - 60 psig to drive the pneumatic solenoid valve
• MTI recommends using an air compressor or similar.

• CE, NRTL (UL61010), or CSA certification is available at extra cost.

• On-site installation, commissioning, and training are required but not listed in the unit cost
