600°C Vertical Crucible Furnace with SS316 Alloy Reactor with 6 tube ports VBF-600S
HomeStore

600°C Vertical Crucible Furnace with SS316 Alloy Reactor with 6 tube ports VBF-600S

600°C Vertical Crucible Furnace with SS316 Alloy Reactor with 6 tube ports VBF-600S

VBF-600S is a compact top-loading furnace with an SS316 vessel.

SPECIFICATION:
Structure
  • SS316 case for anti-corrosive processing
  • The crucible furnace has a heating chamber of 4.7" ID x 8" H, (120 mm ID x 200 mm H)
  • The separated temperature controller for remote operation
  • The compact furnace can be put in the glovebox via an antechamber
  • The furnace includes an SS316 tube and an ISO 80K flange with 6 tube fittings
  • An alumina spacer is included to isolate the temperature from the heating chamber

Power
  • Choice of working voltage
    • AC 110-120V, Single Phase, 50/60Hz, 20A, 1.5KVA Max.
    • AC 208-240V, Single Phase, 50/60Hz, 15A, 1.8KVA Max.

Max. Temperature
  • Continuous: 600°C

Max. Heating Rate

  • 20 °C/min Max.

Reaction Vessel

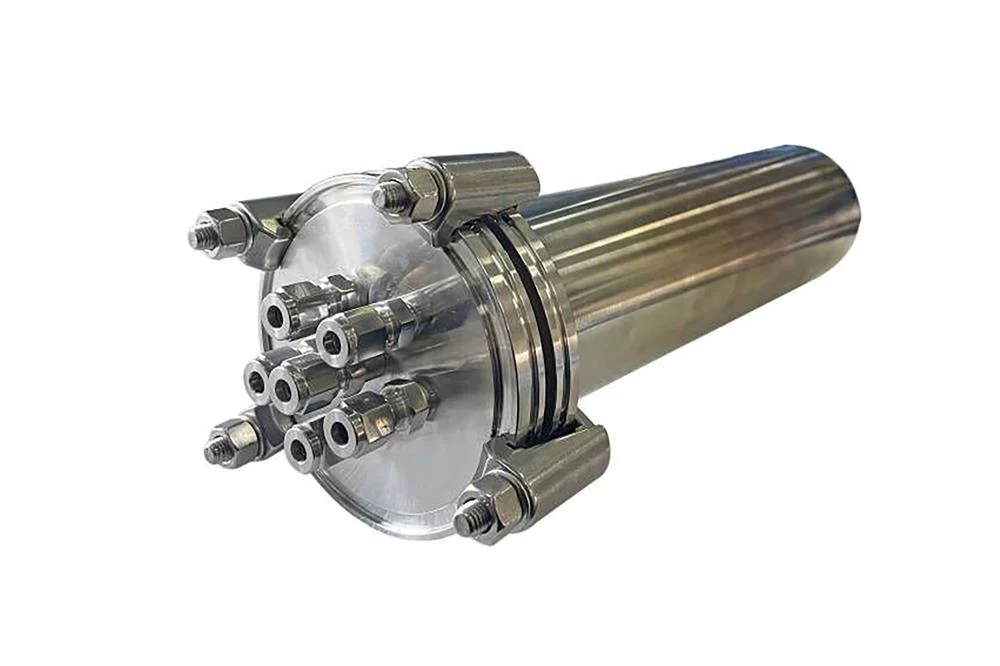

  • The reaction vessel is made of SS 316.

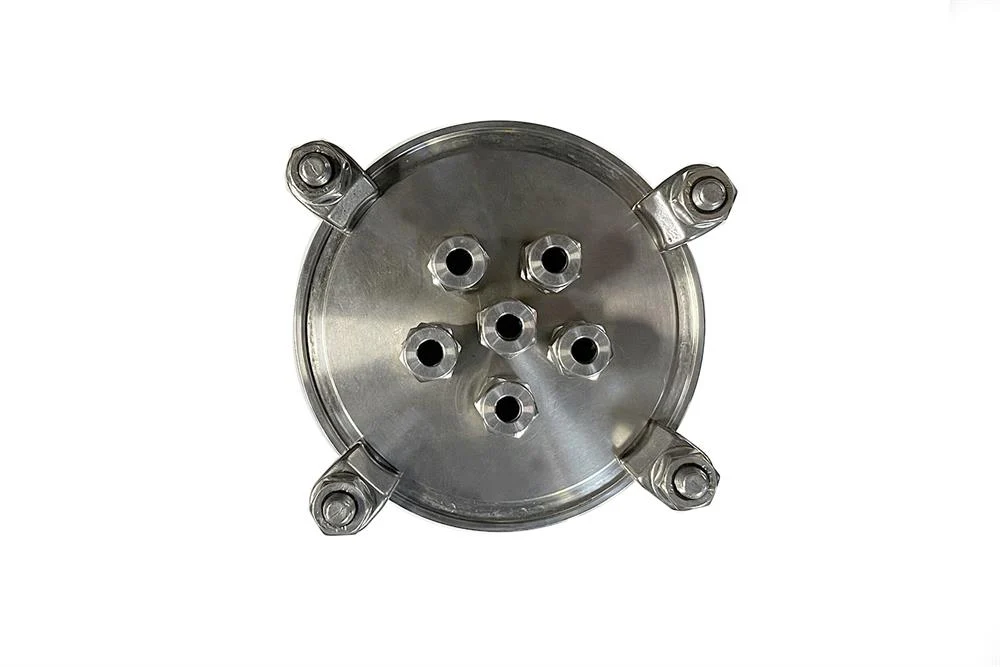

  • DN80ISO-K flange with six 1/4" compression tube ports.
  • Tube dimension: Ø 76 x Ø 70 x D 290 mm
  • Max. Vacuum: 10-6 torr by turbo pump
  • Max. positive pressure: 0.2 Mpa ( 2 bar

Temperature controller
  • One digital temperature controller is built in with an accuracy of ±1°C
    • PID automatic control and auto-tune function.
    • 30 programmable segments for precise process
    • Built-in protection for overheating and broken thermocouples.
  • Two Omega K-type thermocouples are included
    • One for furnace temperature control
    • One for temperature monitoring inside the vessel.
  • RS485 port is included for the remote control.

 Dimension

  • Control Unit: 340mm L x 300mm W x 145mm H
  • Furnace: 350mm L x 265mm W x 540mm H

 Shipping package size
  • 40" x 23" x 31"

 Shipping weight

  •  109 lbs

 Warranty
  • One-year limited warranty (The warranty does not cover consumable parts)
Certificate
  • CE Certified
  • NRTL Certification is available upon request, additional charges will apply
Select Voltage
From $7,496.00
