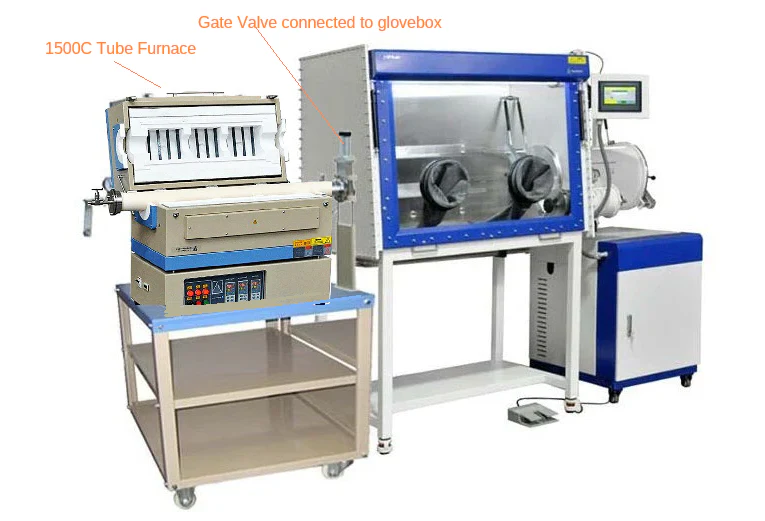

1500°C Dual Zone Split Tube Furnaces with Cooling Zone and Connected to Glove-box OTF-1500X-II-DVD-GB

• Chamber dimensions: 1200 mm L x 740 mm W x 900 mm H, made of stainless steel.
• Hinged-type front door for loading devices and samples easily
• A high-quality purification system ensures O2 and H2O below 1 PPM

• One 100mm Dia. An air-tight flange is installed on the left side of the glovebox to connect with the tube furnace.
• Please click the picture in the left column for detailed specifications of the glovebox

1500 °C Max Three-Zone Tube Furnace

• Two heating zones, tube furnace with independent temperature control
• Heating zone length : ( 200 +200 mm ) with Max. working temperature of 1500ºC
• Three Eurotherm Temp. controllers with +/- 0.1ºC accuracy.
• Alumina tube with the dimensions of 100OD x 96ID x 1200L mm is available upon request )
• The air-tight flanges with the valve and vacuum gauge are included
• One gate valve connected the processing tube to the glovebox
• For detailed specifications of the furnace, please click the picture at the left column

• Single-phase 208 - 240VAC, 50 / 60 Hz
• The glovebox: 1500 W (including a vacuum pump)
• Furnace: 6000 W
• Total power:  7500 KW

• Furnace:                 W x D x H 3200 x 750 x 750 mm
• Glove Box：           W x D x H 2000 x 1000 x 1880 mm
• Total dimensions:   W x D x H 5500 x 1000 x 1880 mm

Compliance

• CE approval
• NRTL Certification (UL 1450) is available upon request at an extra cost
