1200°C 2" Tube Furnace w/ Automatic Valves & Sliding Door - OTF-1200X2-ASD
HomeStore

1200°C 2" Tube Furnace w/ Automatic Valves & Sliding Door - OTF-1200X2-ASD

1200°C 2" Tube Furnace w/ Automatic Valves & Sliding Door - OTF-1200X2-ASD

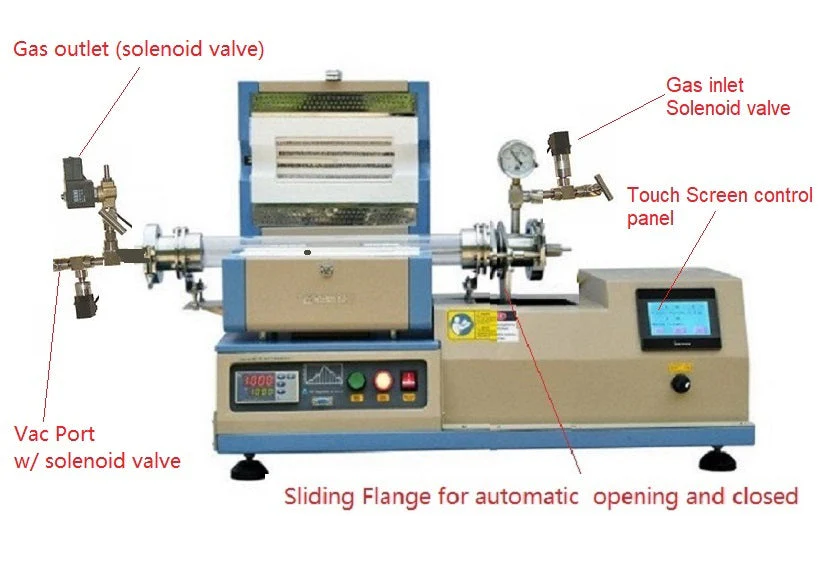

OTF-1200X-ASD is a compact split tube furnace with a max. the working temperature of 1200°C.   The automatic sliding door ( flange ) is built-in to open or close the flange automatically without tightening screws.  Gas inlet & outlet valves and vacuum ports are controlled by solenoid valves without manual operation.  All actions are controlled by a touchscreen panel or optional PC.


SPECIFICATIONS:


Furnace Structure

  • Double-layer steel structure.
  • High-purity Al2O3 fibrous insulation with Max. energy saving
  • High-purity alumina coating on refractory ceramics for longer service life.
Power
1.2 KW
Voltage
110VAC or 220VAC
(Please select the voltage in the options bar)
Max. Temperature
1200°C (<1 hour)
Continuous Temperature
1100°C ( continuous)
Max. Heating Rate
<= 10 °C/min
Heating Zone Length
8" (200mm), single zone. The following picture shows the temp. distribution across the heating zone
Constant Temp. Zone
2.3" (60mm)  (+/-1°C) @ 1000 °C

Temperature Controller
  • Proportional–integral–derivative control (PID control) and auto-tune function
  • Built-in Over Temperature and Thermocouple Failure Protection
  • 30 segments programmed with ramping, cooling, and dwelling steps
  • Default DB9 PC communication port
  • Temperature accuracy: +/- 1°C
  • Advanced Enrutherm 3000 is option with +/- 0.1oC accuracy
  • RS485 port and  software are included for PC operation
Heating Elements
Fe-Cr-Al Alloy doped by Mo
Tube Size
1
  •  2'' Quartz Tubes: 50mm OD x 44mm ID x 600mm L is included in the package.
  • One fibrous ceramic tube block is in the left flange to block heating radiation
  • One ceramic baffle is on the right with a sliding flange.

Vacuum Flanges
& Vacuum Level

  • Left side flange is installed with gas outlet and KF25 vacuum port together with solenoid valves, which can be opened and closed by the touchscreen panel
  • The right side flange is installed with a gas inlet with solenoid valves and a quartz sample holder with baffles. The flange is driven pneumatically to close and open the right flange ( door) without manual operation.
  • Vacuum level: 10-2 torr by mechanical pump and 10-5 torr by turbo-pump
Pressure Measurement / Monitoring
  • Standard mechanical vacuum gauge measures within a pressure range of -0.1 to 0.15Mpa are included.
  • Optional: A gas-type independent digital vacuum gauge with a wide range between 3.8x10-5 to 1125 Torr.

Control Panel
  • Touch screen control panel to control all parameters, including
    • Temperature programma
    • Vacuum pump on/off
    • Right flange close/open
    • Gas inlet and outlet on/off
Dimensions
(Click Pic to see details )
Net Weight
35 Kg
Shipping Package Size
40''(L) x 30''(W) x 35''(H)
Shipping Weight
110 lbs
Warranty
 One-year limited warranty with lifetime support (Consumable parts such as processing tubes and o-rings are not covered by the warranty, please order replacements at related products below.)
Compliance

  • CE Certified
  • NRTL or CSA certification is available upon request at an extra cost.
Application Notes & Warning

  • Tube furnaces with quartz tubes are designed for use under vacuum and low pressure < 0.2 bars.
  • Vacuum pressures may only be safely used up to 1000°CThe flow rate for gasses should be limited to<200 SCCM (or 200ml/min) for reducing thermal shocks to the tube
  • Attention: A two-stage pressure regulator must be installed on the gas cylinder to limit the pressure to below 3 PSI for safe operation. Click here to learn the installation of a gas regulator.
  • For safety, you may consider putting the small tube furnace inside a fume hood. ( click picture left to see )
Operation Demo Vidoe
