2250ºC Max. Spark Plasma Sintering Furnace ( SPS ) up to 100 MPa - YLJ-SPS-5T
HomeStore

2250ºC Max. Spark Plasma Sintering Furnace ( SPS ) up to 100 MPa - YLJ-SPS-5T

2250ºC Max. Spark Plasma Sintering Furnace ( SPS ) up to 100 MPa - YLJ-SPS-5T

YLJ-SPS-5T is a Spark Plasma Sintering System (SPS) designed for a wide range of material research up to 2250ºC. It can be used for sintering, bonding, surface treatment, and synthesis. The sample material can be metals, ceramics, nanostructured material, and amorphous material. This system perfectly fits solid electrolyte and electric thermal material research.


Specification

Configuration
  • Stainless Steel Chamber - Suitable for Controlled Inert Gas or Vacuum Condition
  • 5T max electric sintering press unit with graphite die (100 MPa Max.)
  • Sintering DC power supply
  • Vacuum system
  • Precision temperature control
  • Touchscreen control panel
Power
  • 460-480VAC, 3 phase, 50/60Hz, 30 kW
  • Optional working voltage, 208-240V, 380V, 400V, 415V, 3p, is available upon request.
Output Current
  • DC 0 - 3000 A (Manual or PID Control)
Output Voltage
  • DC 0 - 10 V (Manual, or PID Control)
Working Temperature
and thermocouple
  • 200ºC - 2000ºC with C-type thermocouple
  • 900ºC - 2250ºC with infrared pyrometer
 Temperature controller
  • Precision Eurotherm temperature controller is built-in
  • Temperature resolution 0.1ºC
  • Temperature accuracy ±10°C
Electric Mechanical Press
  • Electric mechanical press
  • Max pressure: 5T
  • Digital Pressure control and monitoring.
Sintering Die Set Dimension
  • OD. 85- 100 mm
  • ID: 12.75 mm (1/2")
  • Up to 100 MPa
  • Other graphite die with 10 mm, 25.4 mm diameter is available upon request.
Vacuum Chamber
  • 304 stainless steel vacuum chamber.
  • Chamber size:  350 mm Dia x 350 mm L
  • Vacuum Level：
    • 7.5E-2 torr with a mechanical pump （ not included ）
    • 10e-5 torr  with optional turbopump (click picture below right to order)

Pressure Control System
  • PLC with 11" touchscreen panel
Pressure Accuracy
  • ±3kgf
Max Heating Rate
  • <200ºC/Minute
 Water Cooling
  • 56L/minute recirculating water chiller is not included.
  • Please click the picture left to order
Compliance
  • CE certified
  • NRTL certification is NOT available temporarily.



$48,825.00

Original: $139,500.00

-65%
2250ºC Max. Spark Plasma Sintering Furnace ( SPS ) up to 100 MPa - YLJ-SPS-5T—

$139,500.00

$48,825.00

More Images

2250ºC Max. Spark Plasma Sintering Furnace ( SPS ) up to 100 MPa - YLJ-SPS-5T - Image 2

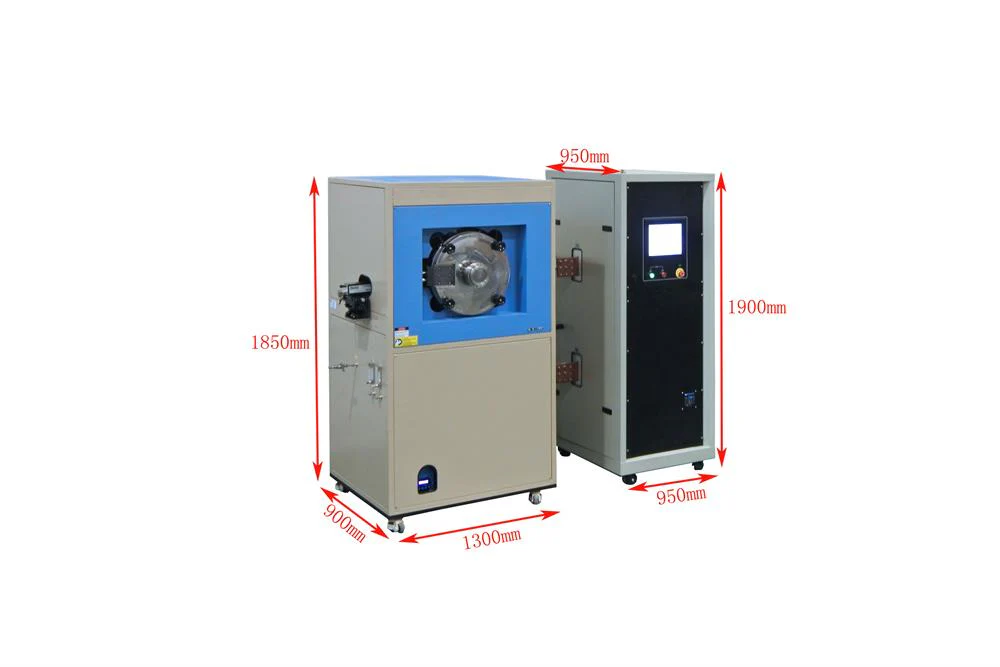

2250ºC Max. Spark Plasma Sintering Furnace ( SPS ) up to 100 MPa - YLJ-SPS-5T - Image 3

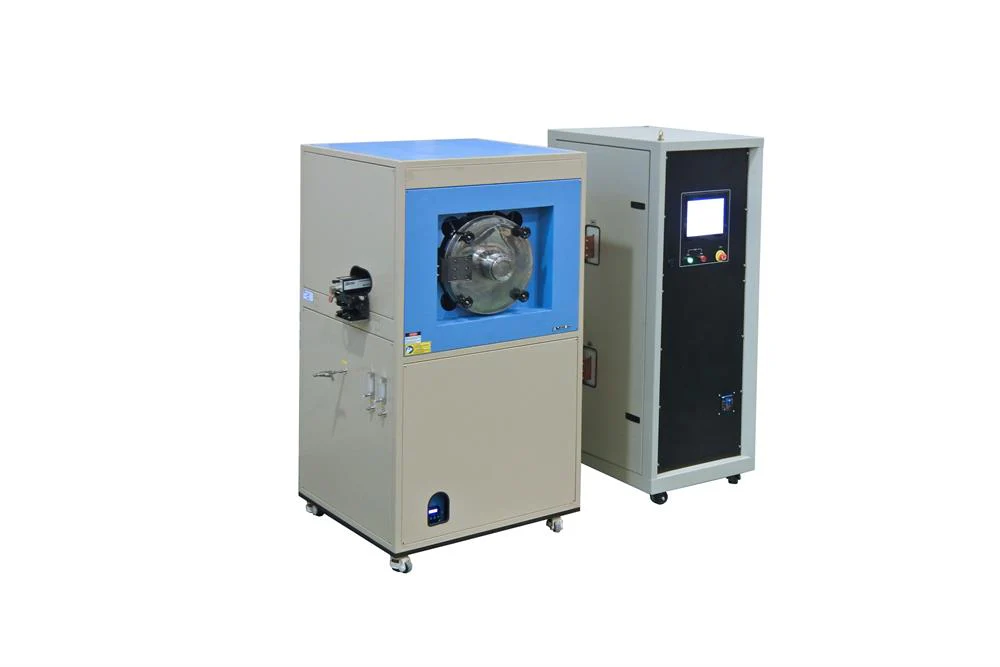

2250ºC Max. Spark Plasma Sintering Furnace ( SPS ) up to 100 MPa - YLJ-SPS-5T - Image 4

2250ºC Max. Spark Plasma Sintering Furnace ( SPS ) up to 100 MPa - YLJ-SPS-5T

YLJ-SPS-5T is a Spark Plasma Sintering System (SPS) designed for a wide range of material research up to 2250ºC. It can be used for sintering, bonding, surface treatment, and synthesis. The sample material can be metals, ceramics, nanostructured material, and amorphous material. This system perfectly fits solid electrolyte and electric thermal material research.


Specification

Configuration
  • Stainless Steel Chamber - Suitable for Controlled Inert Gas or Vacuum Condition
  • 5T max electric sintering press unit with graphite die (100 MPa Max.)
  • Sintering DC power supply
  • Vacuum system
  • Precision temperature control
  • Touchscreen control panel
Power
  • 460-480VAC, 3 phase, 50/60Hz, 30 kW
  • Optional working voltage, 208-240V, 380V, 400V, 415V, 3p, is available upon request.
Output Current
  • DC 0 - 3000 A (Manual or PID Control)
Output Voltage
  • DC 0 - 10 V (Manual, or PID Control)
Working Temperature
and thermocouple
  • 200ºC - 2000ºC with C-type thermocouple
  • 900ºC - 2250ºC with infrared pyrometer
 Temperature controller
  • Precision Eurotherm temperature controller is built-in
  • Temperature resolution 0.1ºC
  • Temperature accuracy ±10°C
Electric Mechanical Press
  • Electric mechanical press
  • Max pressure: 5T
  • Digital Pressure control and monitoring.
Sintering Die Set Dimension
  • OD. 85- 100 mm
  • ID: 12.75 mm (1/2")
  • Up to 100 MPa
  • Other graphite die with 10 mm, 25.4 mm diameter is available upon request.
Vacuum Chamber
  • 304 stainless steel vacuum chamber.
  • Chamber size:  350 mm Dia x 350 mm L
  • Vacuum Level：
    • 7.5E-2 torr with a mechanical pump （ not included ）
    • 10e-5 torr  with optional turbopump (click picture below right to order)

Pressure Control System
  • PLC with 11" touchscreen panel
Pressure Accuracy
  • ±3kgf
Max Heating Rate
  • <200ºC/Minute
 Water Cooling
  • 56L/minute recirculating water chiller is not included.
  • Please click the picture left to order
Compliance
  • CE certified
  • NRTL certification is NOT available temporarily.



Product Information

Shipping & Returns

Description

YLJ-SPS-5T is a Spark Plasma Sintering System (SPS) designed for a wide range of material research up to 2250ºC. It can be used for sintering, bonding, surface treatment, and synthesis. The sample material can be metals, ceramics, nanostructured material, and amorphous material. This system perfectly fits solid electrolyte and electric thermal material research.


Specification

Configuration
  • Stainless Steel Chamber - Suitable for Controlled Inert Gas or Vacuum Condition
  • 5T max electric sintering press unit with graphite die (100 MPa Max.)
  • Sintering DC power supply
  • Vacuum system
  • Precision temperature control
  • Touchscreen control panel
Power
  • 460-480VAC, 3 phase, 50/60Hz, 30 kW
  • Optional working voltage, 208-240V, 380V, 400V, 415V, 3p, is available upon request.
Output Current
  • DC 0 - 3000 A (Manual or PID Control)
Output Voltage
  • DC 0 - 10 V (Manual, or PID Control)
Working Temperature
and thermocouple
  • 200ºC - 2000ºC with C-type thermocouple
  • 900ºC - 2250ºC with infrared pyrometer
 Temperature controller
  • Precision Eurotherm temperature controller is built-in
  • Temperature resolution 0.1ºC
  • Temperature accuracy ±10°C
Electric Mechanical Press
  • Electric mechanical press
  • Max pressure: 5T
  • Digital Pressure control and monitoring.
Sintering Die Set Dimension
  • OD. 85- 100 mm
  • ID: 12.75 mm (1/2")
  • Up to 100 MPa
  • Other graphite die with 10 mm, 25.4 mm diameter is available upon request.
Vacuum Chamber
  • 304 stainless steel vacuum chamber.
  • Chamber size:  350 mm Dia x 350 mm L
  • Vacuum Level：
    • 7.5E-2 torr with a mechanical pump （ not included ）
    • 10e-5 torr  with optional turbopump (click picture below right to order)

Pressure Control System
  • PLC with 11" touchscreen panel
Pressure Accuracy
  • ±3kgf
Max Heating Rate
  • <200ºC/Minute
 Water Cooling
  • 56L/minute recirculating water chiller is not included.
  • Please click the picture left to order
Compliance
  • CE certified
  • NRTL certification is NOT available temporarily.



You may also like

NEW
Thumbnail 1Thumbnail 2

10T Compact Lab Press with Separable Hydraulic Pump & Safety Cover - YLJ-10T

$998.00

-65%NEW
Thumbnail 1Thumbnail 2

40T Lab Press with Programmable Electric Hydraulic Pump - YLJ-40TA-PE

$8,995.00

$3,148.25

-65%NEW
Thumbnail 1Thumbnail 2

24T Lab Press with Separable Hydraulic Pump & Safety Cover - YLJ-24TS

$1,899.00

$664.65

-65%NEW
Thumbnail 1Thumbnail 2

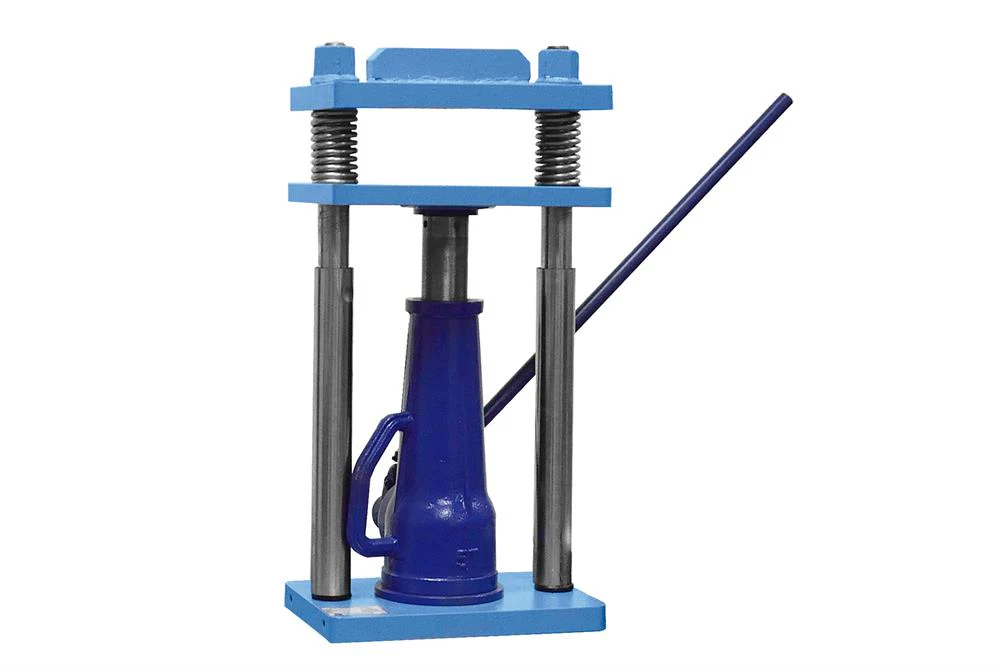

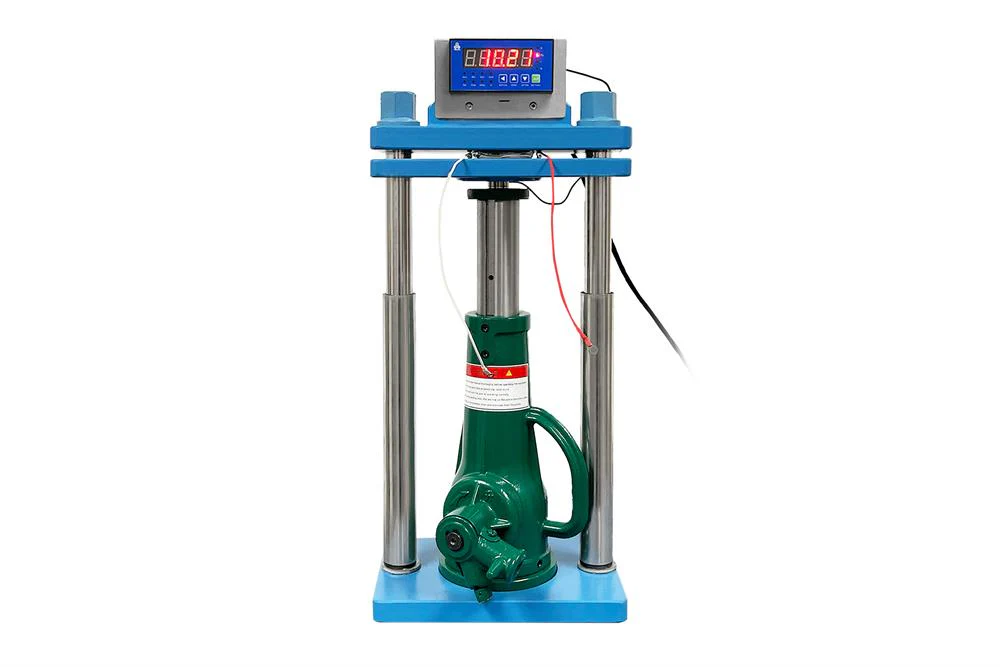

3T Max. Manual Mechanical Press or Compressing Jig - YLJ-3

$765.00

$267.75

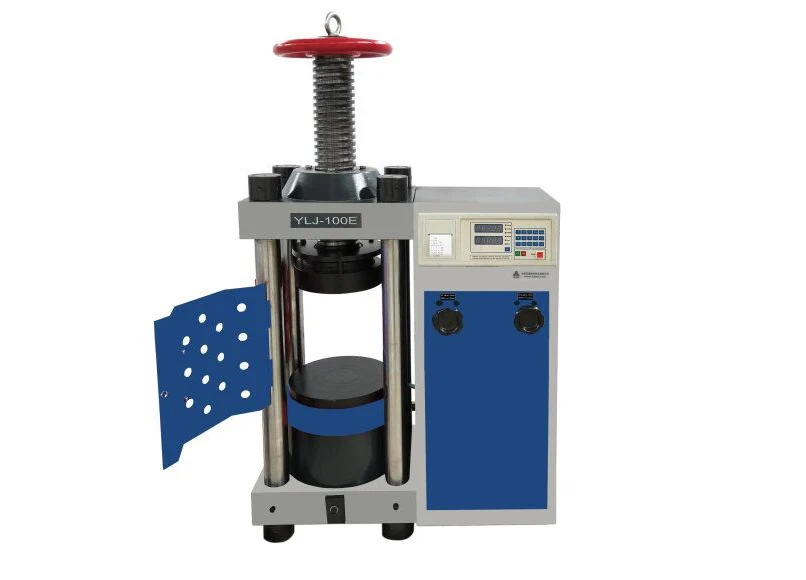

NEW
Thumbnail 1Thumbnail 2

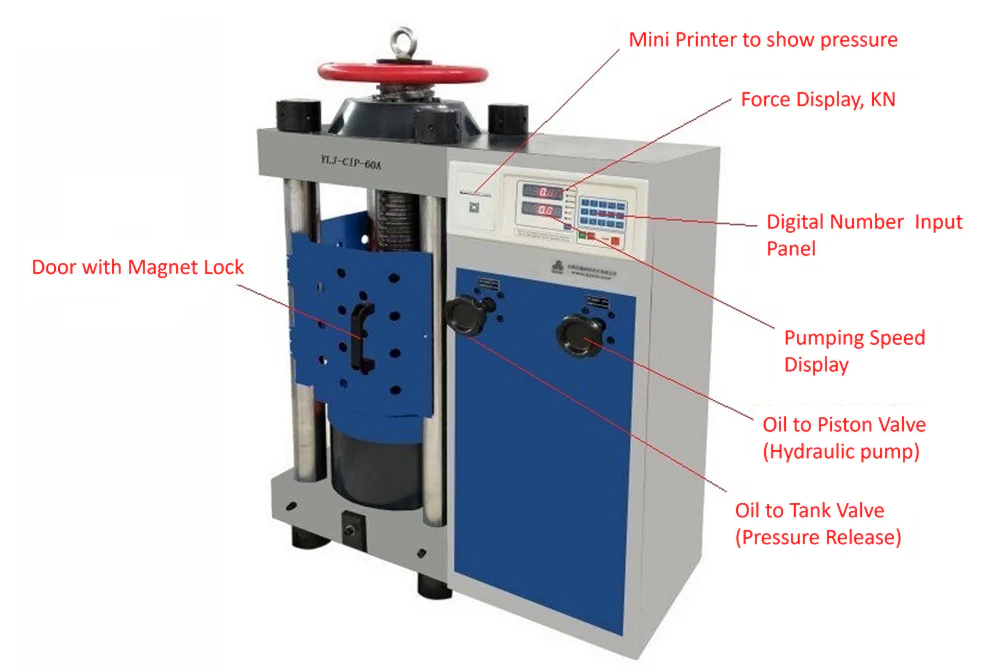

100T Motorized Hydraulic Press with Digital Display - YLJ-100E

$11,998.00

NEW
Thumbnail 1Thumbnail 2

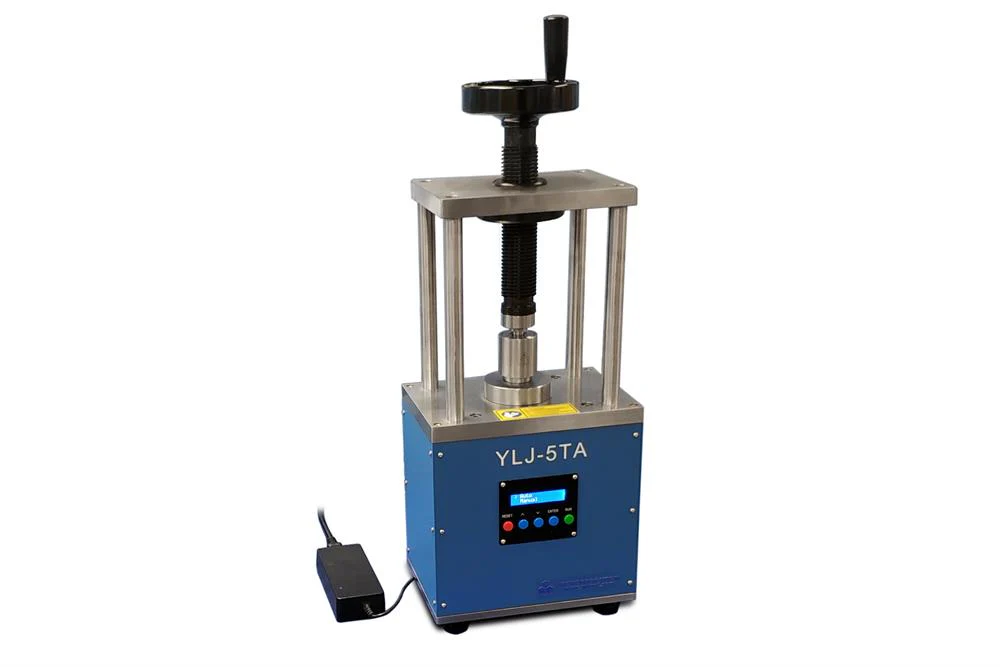

5T Electric Oil-less Press with Digital Programmable Pressure Controller (Ar Gas Compatible) - YLJ5TA

$7,995.00

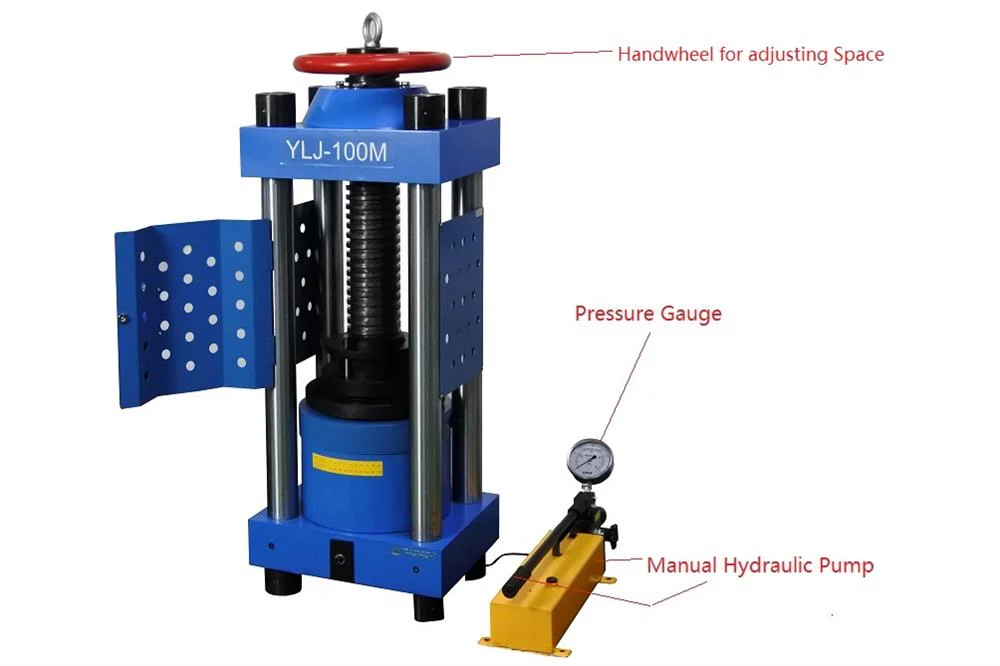

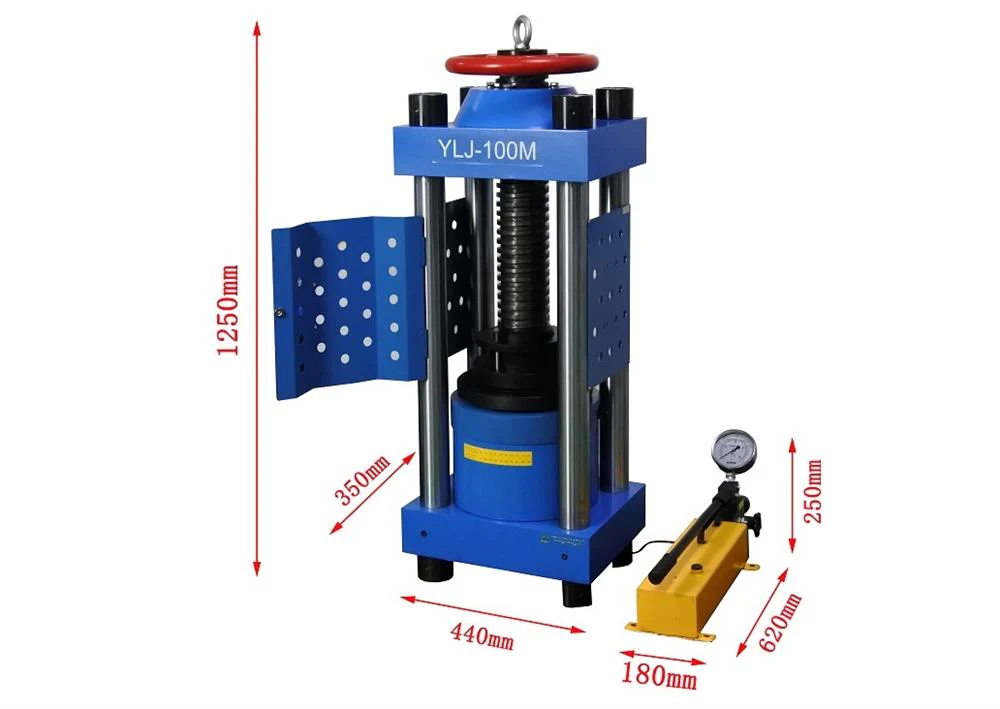

NEW
Thumbnail 1Thumbnail 2

100T Max. Manual Hydraulic Press with Protection Door - YLJ-100M

$10,998.00

NEW
Thumbnail 1Thumbnail 2

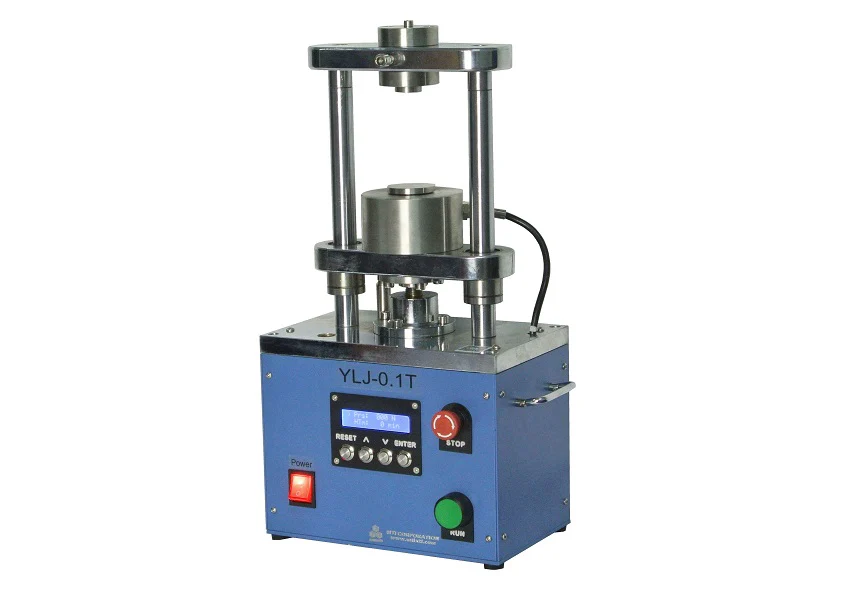

50 - 450N Precision Electric Press with +/- 5N Accuracy - YLJ01TA

$4,998.00

-65%NEW

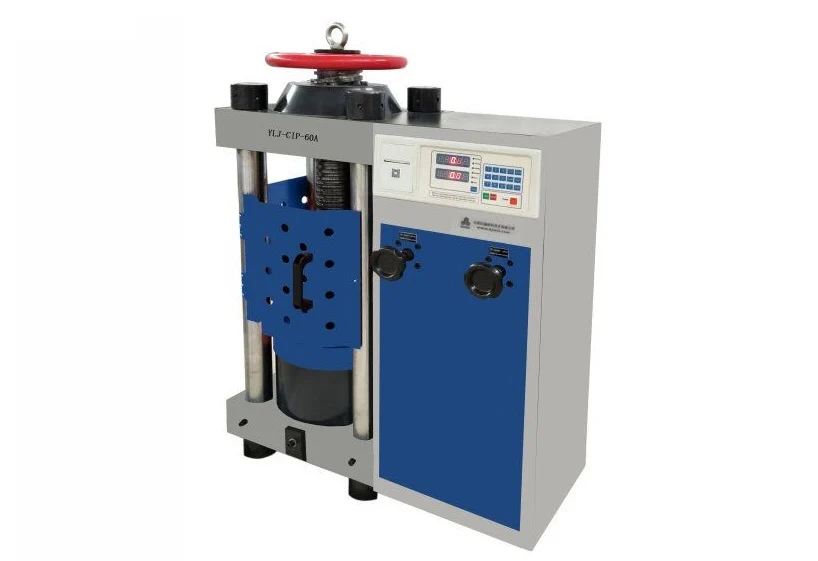

Thumbnail 1Thumbnail 2

200T Electric Hydraulic Press with Digital Display - YLJ-200E

$15,998.00

$5,599.30

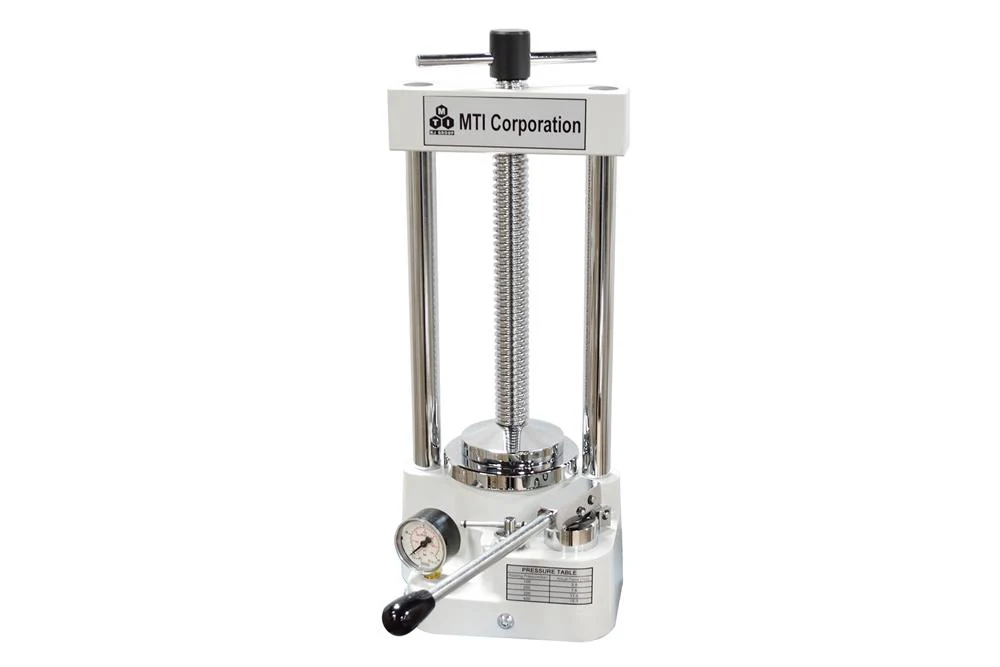

-65%NEW
