5T Electric Oil-less Press with Digital Programmable Pressure Controller (Ar Gas Compatible) - YLJ5TA
HomeStore

5T Electric Oil-less Press with Digital Programmable Pressure Controller (Ar Gas Compatible) - YLJ5TA

5T Electric Oil-less Press with Digital Programmable Pressure Controller (Ar Gas Compatible) - YLJ5TA

YLJ-5TA is a compact electric compressive & oil-less press with a digital pressure gauge and load cell up to max. 5000 kg force via a DC motor (5 metric Tons). It is designed for compressing small pellets in the glove box (Ar compatible) for ceramic research and solid-state battery.  The compact press can be placed inside the glovebox via an antechamber.

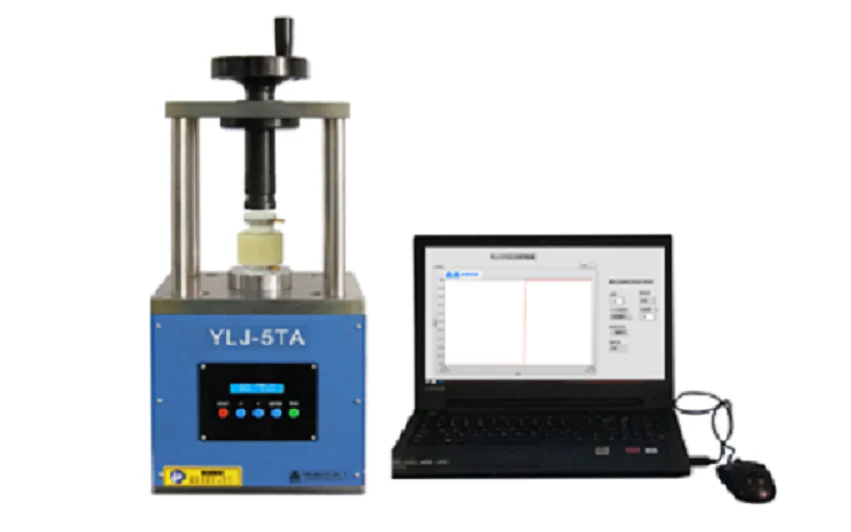

PC control software and PC connection are included for 2023 and newer models.

SPECIFICATIONS:
Power
  • 24V DC
  • NRTL & CSA certified 110 - 240V AC to 24V DC 90W power adapter for universal use
Pressure
  • A built-in load cell with a digital display for pressure measurement and control
  • Digital control panel for programmable pressure and dwell time
    • Pressure adjustment range: 0.1-5T
    • Pressure accuracy: +/- 0.003T
    • Time setting: 1 - 999 minutes
    • Optional:  10 metric ton press is available upon request at extra cost
PC Control Software

  • The PC port is built in for possible remote operation
  • Software functionalities, which are available upon request at extra cost
    • Pressure Monitoring.
    • Data Logging/Exporting to Excel.
    • Set up the pressure and pressing time.
    • Start and stop the press.
  • Optional: A laptop with pre-installed software is available upon request at an extra cost.

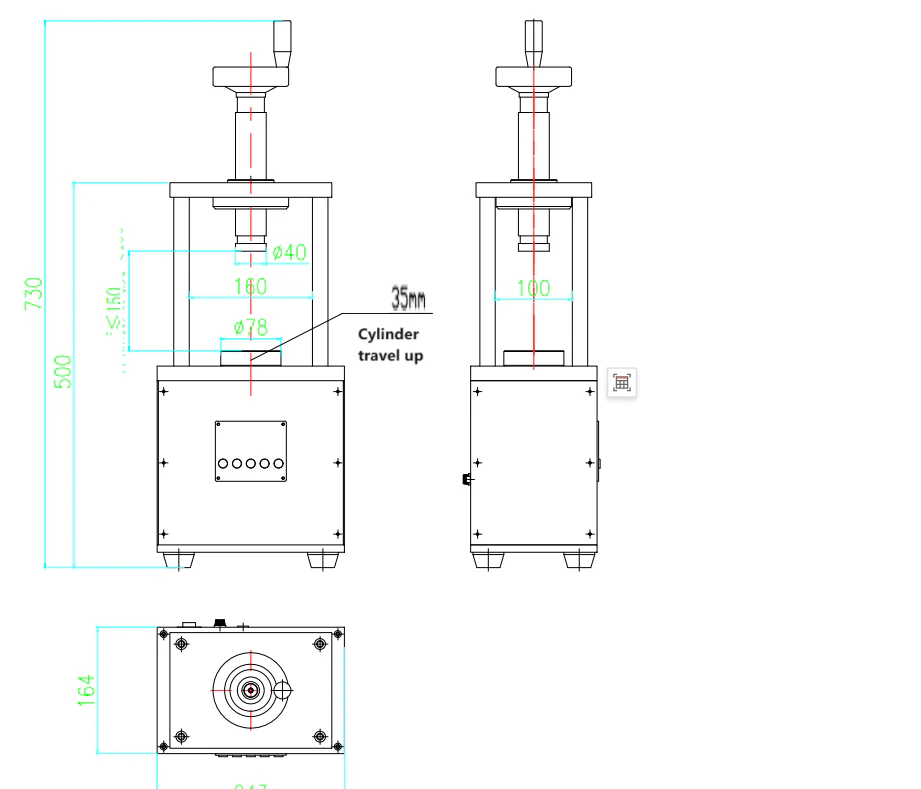

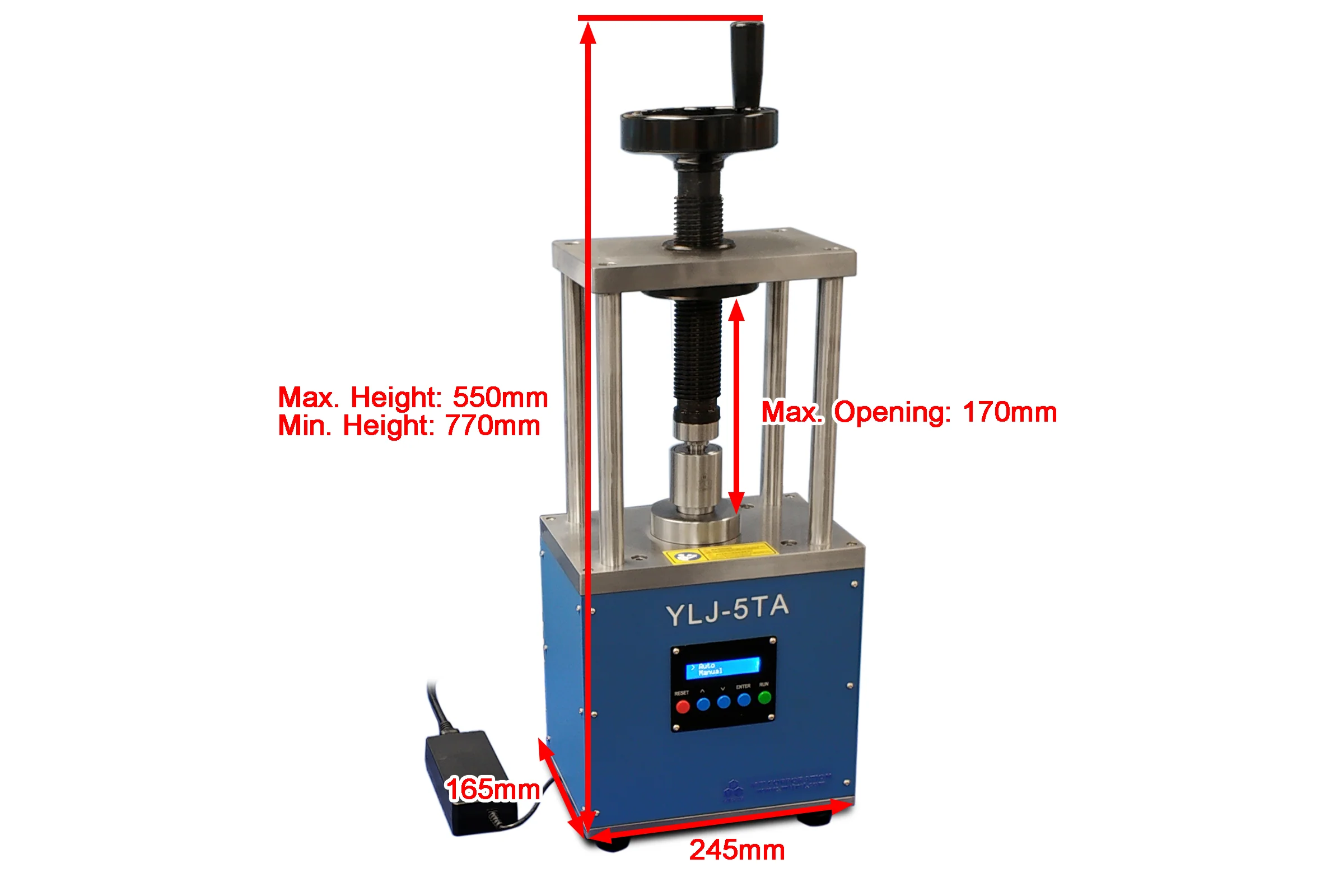

Structure Heavy-Duty Steel Platform
Working space Stroke: 35 mm
Width: 135 mm
Compliance
  • CE approval
  • NRTL or CSA certification is available upon request at an extra cost.
  • Note: NRTL certification is not necessary due to 24VDC safe device



Select Software and Laptop
From $7,995.00
5T Electric Oil-less Press with Digital Programmable Pressure Controller (Ar Gas Compatible) - YLJ5TA—
$7,995.00

More Images

5T Electric Oil-less Press with Digital Programmable Pressure Controller (Ar Gas Compatible) - YLJ5TA - Image 2
5T Electric Oil-less Press with Digital Programmable Pressure Controller (Ar Gas Compatible) - YLJ5TA - Image 3
5T Electric Oil-less Press with Digital Programmable Pressure Controller (Ar Gas Compatible) - YLJ5TA - Image 4
5T Electric Oil-less Press with Digital Programmable Pressure Controller (Ar Gas Compatible) - YLJ5TA - Image 5

5T Electric Oil-less Press with Digital Programmable Pressure Controller (Ar Gas Compatible) - YLJ5TA

YLJ-5TA is a compact electric compressive & oil-less press with a digital pressure gauge and load cell up to max. 5000 kg force via a DC motor (5 metric Tons). It is designed for compressing small pellets in the glove box (Ar compatible) for ceramic research and solid-state battery.  The compact press can be placed inside the glovebox via an antechamber.
PC control software and PC connection are included for 2023 and newer models.

SPECIFICATIONS:
Power
  • 24V DC
  • NRTL & CSA certified 110 - 240V AC to 24V DC 90W power adapter for universal use
Pressure
  • A built-in load cell with a digital display for pressure measurement and control
  • Digital control panel for programmable pressure and dwell time
    • Pressure adjustment range: 0.1-5T
    • Pressure accuracy: +/- 0.003T
    • Time setting: 1 - 999 minutes
    • Optional:  10 metric ton press is available upon request at extra cost
PC Control Software

  • The PC port is built in for possible remote operation
  • Software functionalities, which are available upon request at extra cost
    • Pressure Monitoring.
    • Data Logging/Exporting to Excel.
    • Set up the pressure and pressing time.
    • Start and stop the press.
  • Optional: A laptop with pre-installed software is available upon request at an extra cost.
Structure Heavy-Duty Steel Platform
Working space Stroke: 35 mm
Width: 135 mm
Compliance
  • CE approval
  • NRTL or CSA certification is available upon request at an extra cost.
  • Note: NRTL certification is not necessary due to 24VDC safe device



Product Information

Shipping & Returns

Description

YLJ-5TA is a compact electric compressive & oil-less press with a digital pressure gauge and load cell up to max. 5000 kg force via a DC motor (5 metric Tons). It is designed for compressing small pellets in the glove box (Ar compatible) for ceramic research and solid-state battery.  The compact press can be placed inside the glovebox via an antechamber.
PC control software and PC connection are included for 2023 and newer models.

SPECIFICATIONS:
Power
  • 24V DC
  • NRTL & CSA certified 110 - 240V AC to 24V DC 90W power adapter for universal use
Pressure
  • A built-in load cell with a digital display for pressure measurement and control
  • Digital control panel for programmable pressure and dwell time
    • Pressure adjustment range: 0.1-5T
    • Pressure accuracy: +/- 0.003T
    • Time setting: 1 - 999 minutes
    • Optional:  10 metric ton press is available upon request at extra cost
PC Control Software

  • The PC port is built in for possible remote operation
  • Software functionalities, which are available upon request at extra cost
    • Pressure Monitoring.
    • Data Logging/Exporting to Excel.
    • Set up the pressure and pressing time.
    • Start and stop the press.
  • Optional: A laptop with pre-installed software is available upon request at an extra cost.
Structure Heavy-Duty Steel Platform
Working space Stroke: 35 mm
Width: 135 mm
Compliance
  • CE approval
  • NRTL or CSA certification is available upon request at an extra cost.
  • Note: NRTL certification is not necessary due to 24VDC safe device
